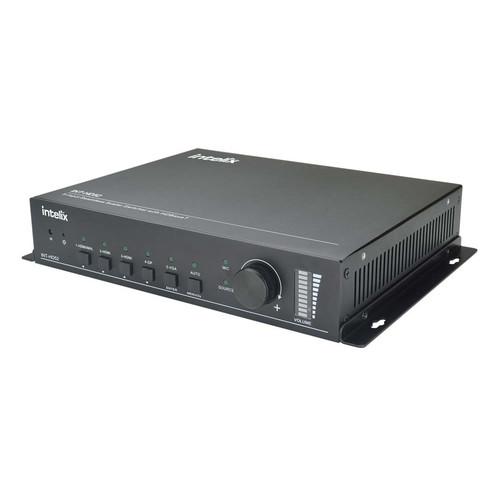

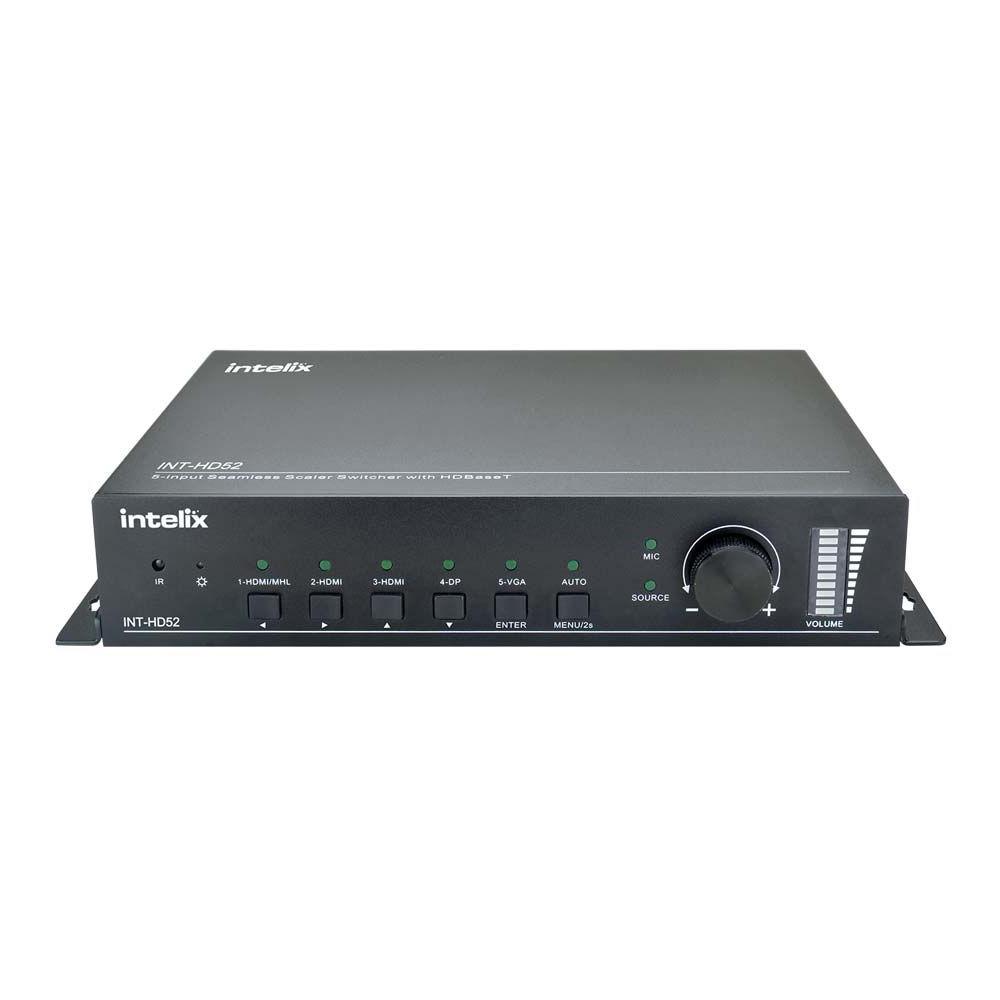

Product description The INT-HD52 5x1+1 Auto Switching/Scaling Presentation Switcher from Intelix is a 5 input multi-format A/V presentation auto switcher that scales video signals to an HDMI and HDBaseT output simultaneously. The HDBaseT output supports PoE and can connect to a compatible HDBaseT receiver up to a maximum distance of 230' (HDBaseT receiver sold separately). With one IR in and one IR out and one RS232, the IR and RS232 control signals to be transmitted bi-directionally between the switcher and a compatible HDBaseT receiver. The switcher can be controlled either by front panel buttons, IR remote, IP, RS232, or web based GUI. With a microphone input that supports phantom power and a balanced stereo audio output for audio reinforcement, the switcher can handle a myriad of A/V applications. - HDBaseT with PoE and a mirrored HDMI output
- Integrated scaling up to 1900 x 1200
- Mic/Line level audio input with audio embedding and phantom power
- Audio de-embedding with balanced audio output
- Switching time less than 1 sec
- RS232 and IR tunneling over HDBaseT for control of connected devices/displays
- Controllable via RS232, IP, IR, or front panel
- Includes under table mounting ears
- Integrated web GUI for setup and/or control
- Up to 229.7' signal extension with PoE via HDBaseT
Applications - Commercial and education small presentation functions
Huddle rooms, boardrooms, classrooms, and meeting spaces UPC: 601446003701 In the Box Intelix 5x1+1 Auto Switching/Scaling Presentation Switcher with HDBaseT, PoE, and HDMI Output 2 x Mounting Ear with Screws Power Adapter (24 VDC, 2.71A) 4 x Plastic Cushion IR Remote VGA to Component Breakout Cable RS232 to 3-Pin Phoenix Breakout Cable IR Emitter IR Eye Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix 5x1 1 Auto Switching Scaling Presentation Switcher with HDBaseT, PoE, and HDMI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

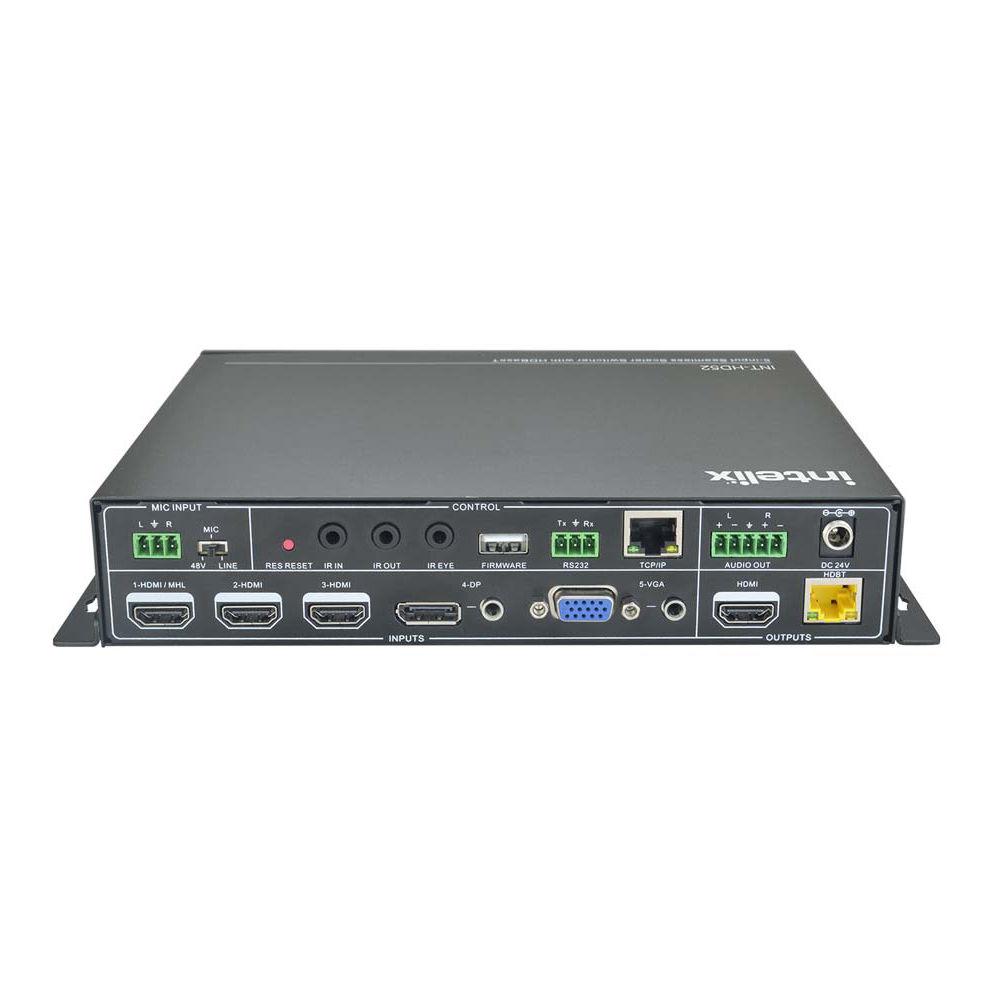

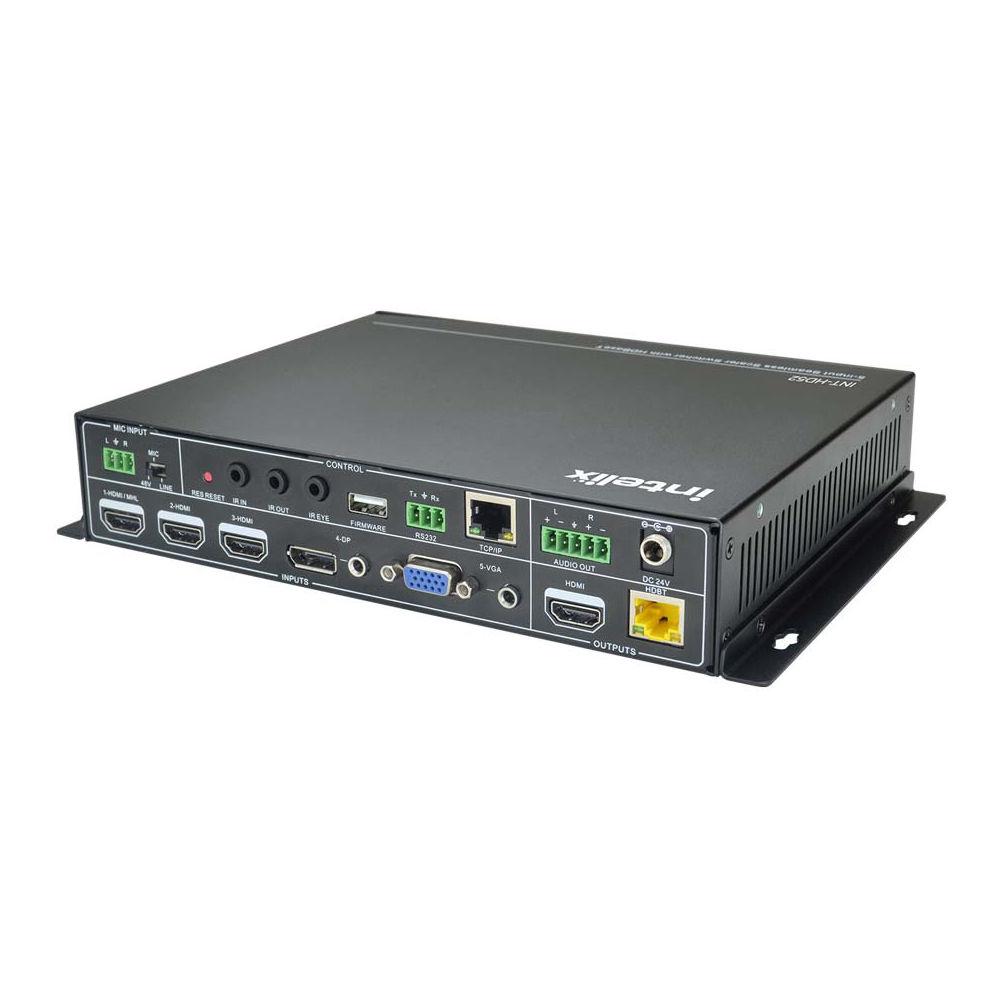

Technical parametersIntelix INT-HD52 Specs | Video Inputs | 3 x HDMI
1 x DisplayPort
1 x VGA | | Video Input Connector | 3 x HDMI type-A
1 x DisplayPort female
1 x VGA female 15-pin | | Input Video Signal | HDMI, DP, YPbPr, C-video, VGA | | Video Output | 1 x HDMI
1 x HDBaseT | | Video Output Connector | 1 x HDMI type-A
1 x RJ45 | | Output Video Signal | HDMI, HDBaseT | | Output Resolution | 1920 x 1200, 1920 x 1080, 1600 x 1200, 1600 x 900, 1360 x 768, 1280 x 800, 1280 x 720, 1024 x 768 | | Standards | Compliant with HDMI 1.4 & HDCP2.2 | | Audio Input | 1 x stereo audio input for DP
1 x stereo audio input for VGA
1 x microphone audio | | Audio Input Connectors | 2 x 3.5 mm stereo jacks
1 x 3-pin phoenix | | Audio Input Impedance | >10 kOhms | | Audio Output | 1 x dual-mono analog | | Audio Output Connector | 1 x 5-pin phoenix | | Audio Output Impedance | 70 Ohms | | Frequency Response | 20 Hz to 20 kHz | | Stereo Channel Separation | >80 dB @1 kHz | | Control Port | 1 x IR IN
1 x IR OUT
1 x IR EYE
1 x RS232
1 x TCP/IP | | Control Connector | 3 x 3.5 mm mini jack (IR)
1 x 3-pin phoenix connector (RS232)
1 x RJ45 (TCP/IP) | | Transmission Distance | 1080p, 229.7' (70 m) or less when using CAT6 | | Temperature | 32 to 122°F (0 to +50°C) | | Humidity | 10 to 90% | | Power Supply | 24 VDC, 2.71 A | | Power Consumption | 27 W | | Dimension | 8.6 x 1.73 x 6.79" (21.8 x 4.4 x 17.2 cm) | | Weight | 2 lb (0.9 kg) |
