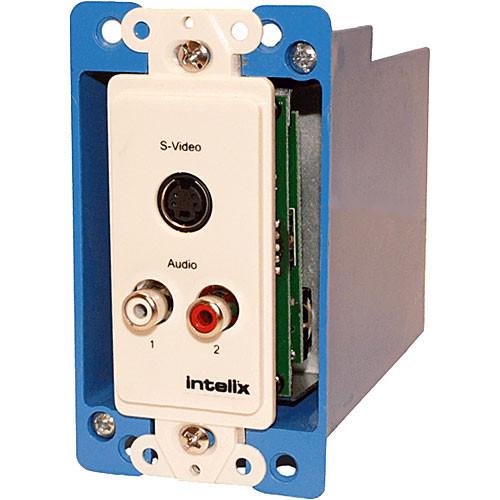

User Manual for Intelix AVO-SVA2-WP-F Cat-5 Stereo Audio and S-Video Wall Plate Balun Click to enlarge the picture
Contents of the user manual for the Intelix AVO-SVA2-WP-F Cat-5 Stereo Audio and
- Product category: Wall Plates & Installation Boxes Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Wall Plates & Installation Boxes
|
User manual for the Intelix AVO-SVA2-WP-F Cat-5 Stereo Audio and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The Intelix AVO-SVA2-WP-F Stereo Audio and S-Video Wall Plate Balun is designed to convert a stereo or dual mono audio signal, and S-Video signal to a Cat-5 (RJ45) output. With two AV0-SVA2-WP-F Baluns, the signal can be sent to up to 2,500-feet before being reconverted. The stereo audio/S-Video balun is an ideal solution for sending audio and video signal to A/V presentation systems and business audio/video distribution. - Quality Stereo or Mono Line Signal and S-Video Transfer
- The AVO-SVA2-WP-F is designed to convert a stereo or dual mono audio signal, and S-Video signal to a Cat-5 (RJ45) output. With two AV0-SVA2-WP-F Baluns, the signal can be sent to up to 2,500-feet before being reconverted.
- Wall Plate Design
- The AVO-SVA2-WP-F mounts into any standard electrical box and is designed to provide accessible, in-wall connections for line level audio and S-video devices.
UPC: 601446003909 In the Box Intelix AVO-SVA2-WP-F Cat-5 Stereo Audio and S-Video Wall Plate Balun Stereo Audio and S-Video Wall Plate Balun 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix AVO-SVA2-WP-F Cat-5 Stereo Audio and S-Video Wall Plate Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix AVO-SVA2-WP-F Specs Maximum Operating Distance | 2,500 Feet | Bandwidth | 20Hz to 20kHz | Impedance | 600 ohms, unbalanced | Isolation | 500V | Audio I/O Connectors | Two Female RCA and S-Video to Single RJ45 | Phantom Power | No | Power | Not Specified By Manufacturer | Dimensions (WxHxD) | 4.3 x 2.5 x 1.0" (10.92 x 6.35 x 2.54cm) | Weight | 0.2 lbs (3.2 oz) |
