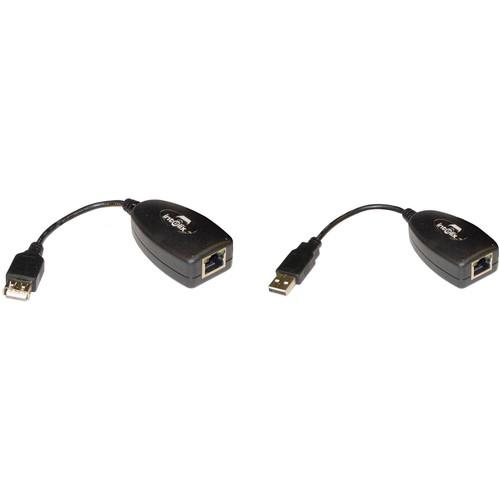

User Manual for Intelix AVO-USB-C Client Side USB Extender and AVO-USB-H Host Side USB Extender Kit Click to enlarge the picture
Contents of the user manual for the Intelix AVO-USB-C Client Side USB Extender
- Product category: USB Extenders Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix USB Extenders
|
User manual for the Intelix AVO-USB-C Client Side USB Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description This Kit includes one Intelix AVO-USB-C Client Side USB Extender and one Intelix AVO-USB-H Host Side USB Extender, so you can extend a USB peripheral up to 330' away from a system using an optional Ethernet cable. The Intelix AVO-USB-C client-side USB extender comes with a female USB Type-A port for your mouse or keyboard, and the other end has a standard Ethernet port. The host-side extender features the same Ethernet connection and a typical USB Type-A connector, which plugs directly in your computer's port. Once connected, the two USB extenders transmit data at a rate of 1.5 Mb/s up to 330' away. For connections under 100', the extenders deliver data up to 12 Mb/s. Additionally, both extenders support twisted pair cabling with Cat 5, Cat 5e, Cat 6, or Cat 6e specifications. - Intelix AVO-USB-C Client Side USB Extender The Intelix AVO-USB-C Client Side USB Extender allows the transmission of low-speed (1.5 Mbps) USB 1.0 and 2.0 signals up to a distance of 330', and high-speed (12 Mbps) USB 1.0 and 2.0 signals up to a distance of 100' over twisted pair cabling when used with the Host Side USB Extender (AVO-USB-H).Connected to the client device with connector dongles, the AVO-USB-C Client Side USB Extender offers easy and error-free transfer of data between host and client. Being a plug-and-play device that works without any software installation, the receiver is ideal for use in educational institutions, corporate houses, and residential areas.
- Used with the Host Side USB Extender (AVO-USB-H)
- Allows the transmission of low-speed (1.5 Mbps) USB 1.0 and 2.0 signals up to a distance of 330', and high-speed (12 Mbps) USB 1.0 and 2.0 signals up to a distance of 100' over twisted pair cabling (Cat5/5e/6/6e)
- Connected to the client device with connector dongles that ensures easy and error-free transfer of data between host and client
- Plug-and-play device—ideal for use in educational institutions, corporate facilities, and residences
UPC: 601446001240 - Intelix AVO-USB-H Host Side USB Extender The Intelix AVO-USB-H Host Side USB Extender transmits low-speed (1.5 Mbps) USB 1.0 and 2.0 signals up to a distance of 330', and high-speed (12 Mbps) USB 1.0 and 2.0 signals up to a distance of 100' over twisted pair cabling (Cat 5, Cat 5e, Cat 6, Cat 6e) when used with the Client Side Extender (AVO-USB-C). Connected to the host device with connector dongles, it offers easy and error-free transfer of data between the client and the host. Being a plug-n-play device that works without any software installation, the AVO-USB-H Host Side USB Extender is ideal for use in educational institutions, corporate facilities, and residences.
- Used with the Client Side Extender (AVO-USB-C)
- Transmits low-speed (1.5 Mbps) USB 1.0 and 2.0 signals up to a distance of 330'
- Also allows transmission of high-speed (12 Mbps) USB 1.0 and 2.0 signals up to a distance of 100'
- Connected to the host device with connector dongles that ensure easy and error-free transfer of data between host and client
- Plug-n-play device - ideal for use in educational institutions, corporate facilities, and residences
UPC: 601446001257 In the Box - AVO-USB-C Client Side USB Extender
- Limited 2-Year Warranty
- AVO-USB-H Host Side USB Extender
Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix AVO-USB-C Client Side USB Extender and AVO-USB-H Host Side USB Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Intelix AVO-USB-C Client Side USB Extender
| Distance | Full Speed (12 Mbps): 100' (30.5 m)
Low Speed (1.5 Mbps): 330' (100.6 m) | | Anti-Static | Contact Discharge: 2000 V
Air Discharge: 4000 V
IEC61000-4-2 1995 | | Power | Power
Powered through the USB output of the host device
Vbus Power
5 V
Low Power Device Extension (Memory Sticks, etc.)
<100 mA draw: 200' (61 m)
High Power Device Extension (Unpowered Hubs, etc.)
<500 mA draw: 30' (9.1 m)
Self-Powered Device Extension (Powered Hubs, etc.)
0 mA draw: 330' (100.6 m) | | Connectors | USB-A female to RJ-45 | | Diagnostics | Green power/status LED | | Recommended Cable | Cat5/5e/6/6e | | Enclosure | ABS plastic | | Operating Temperature | -41 to 95°F (-5 to 35°C) | | Dimensions | 2.5 x 0.8 x 1.4" (64 x 20 x 36 mm) | | Weight | 1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 5.8 x 4.5 x 1.0" | - Intelix AVO-USB-H Host Side USB Extender
| Distance | Full speed (12 Mbps): 100' (30.5m)
Low speed (1.5 Mbps): 330' (100.6m) | | Anti-Static | Contact Discharge: 2000V
Air Discharge: 4000V
IEC61000-4-2 1995 | | Power | Power
Powered through the USB output of the host device
Vbus Power
5V
Low Power Device Extension (memory sticks, etc.)
<100 mA draw: 200' (61m)
High Power Device Extension (unpowered hubs, etc.)
<500 mA draw: 30' (9.1m)
Self Powered Device Extension (powered hubs, etc.)
0 mA draw: 330' (100.6m) | | Connectors | USB-A male to RJ45 | | Diagnostics | Green power/status LED | | Recommended Cable | Cat 5, Cat 5e, Cat 6, Cat 6e | | Enclosure | ABS plastic | | Operating Temperature | -41 ~ 95°F (-5 ~ 35°C) | | Dimensions | 2.5 x 0.8 x 1.4" (64 x 20 x 36mm) | | Weight | 1 lb (0.5kg) | | | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 1.0" |
