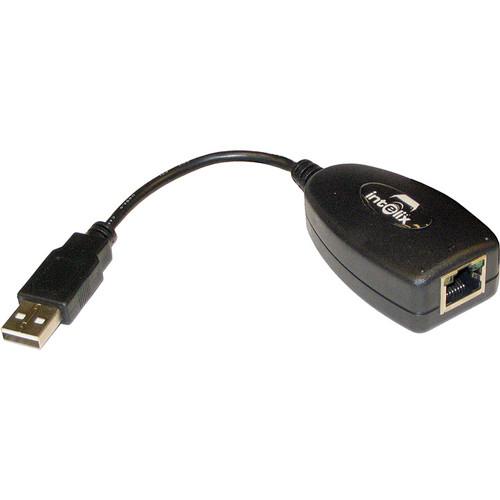

User Manual for Intelix AVO-USB-H Host Side USB Extender Click to enlarge the picture
Contents of the user manual for the Intelix AVO-USB-H Host Side USB Extender
- Product category: USB Extenders Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix USB Extenders
|
User manual for the Intelix AVO-USB-H Host Side USB Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The Intelix AVO-USB-H Host Side USB Extender transmits low-speed (1.5 Mbps) USB 1.0 and 2.0 signals up to a distance of 330', and high-speed (12 Mbps) USB 1.0 and 2.0 signals up to a distance of 100' over twisted pair cabling (Cat 5, Cat 5e, Cat 6, Cat 6e) when used with the Client Side Extender (AVO-USB-C). Connected to the host device with connector dongles, it offers easy and error-free transfer of data between the client and the host. Being a plug-n-play device that works without any software installation, the AVO-USB-H Host Side USB Extender is ideal for use in educational institutions, corporate facilities, and residences. - Used with the Client Side Extender (AVO-USB-C)
- Transmits low-speed (1.5 Mbps) USB 1.0 and 2.0 signals up to a distance of 330'
- Also allows transmission of high-speed (12 Mbps) USB 1.0 and 2.0 signals up to a distance of 100'
- Connected to the host device with connector dongles that ensure easy and error-free transfer of data between host and client
- Plug-n-play device - ideal for use in educational institutions, corporate facilities, and residences
UPC: 601446001257 In the Box Intelix AVO-USB-H Host Side USB Extender 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix AVO-USB-H Host Side USB Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix AVO-USB Specs | Distance | Full speed (12 Mbps): 100' (30.5m)
Low speed (1.5 Mbps): 330' (100.6m) | | Anti-Static | Contact Discharge: 2000V
Air Discharge: 4000V
IEC61000-4-2 1995 | | Power | Power
Powered through the USB output of the host device
Vbus Power
5V
Low Power Device Extension (memory sticks, etc.)
<100 mA draw: 200' (61m)
High Power Device Extension (unpowered hubs, etc.)
<500 mA draw: 30' (9.1m)
Self Powered Device Extension (powered hubs, etc.)
0 mA draw: 330' (100.6m) | | Connectors | USB-A male to RJ45 | | Diagnostics | Green power/status LED | | Recommended Cable | Cat 5, Cat 5e, Cat 6, Cat 6e | | Enclosure | ABS plastic | | Operating Temperature | -41 ~ 95°F (-5 ~ 35°C) | | Dimensions | 2.5 x 0.8 x 1.4" (64 x 20 x 36mm) | | Weight | 1 lb (0.5kg) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 1.0" |
