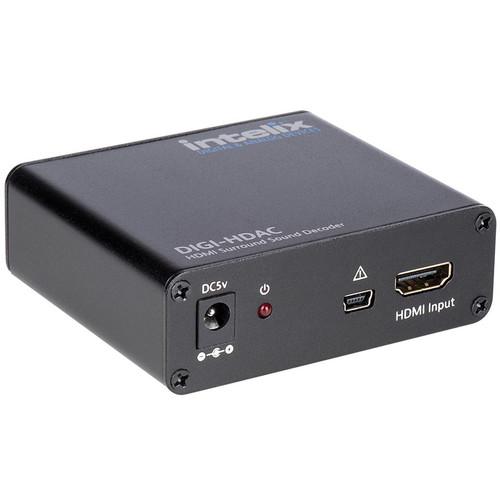

User Manual for Intelix DIGI-HDAC HDMI Surround Sound Decoder Click to enlarge the picture
Contents of the user manual for the Intelix DIGI-HDAC HDMI Surround Sound Decoder
- Product category: Embedders & De-Embedders Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Embedders & De-Embedders
 |
User manual for the Intelix DIGI-HDAC HDMI Surround Sound Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|

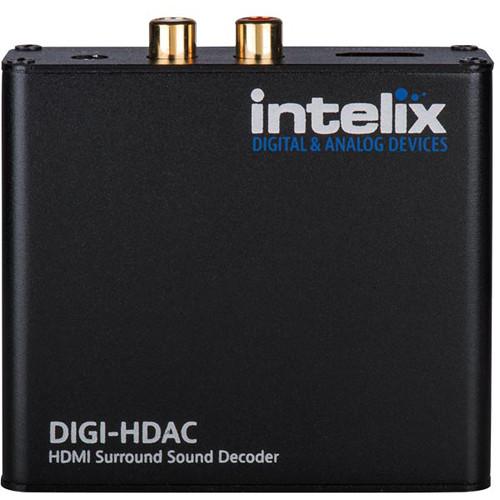

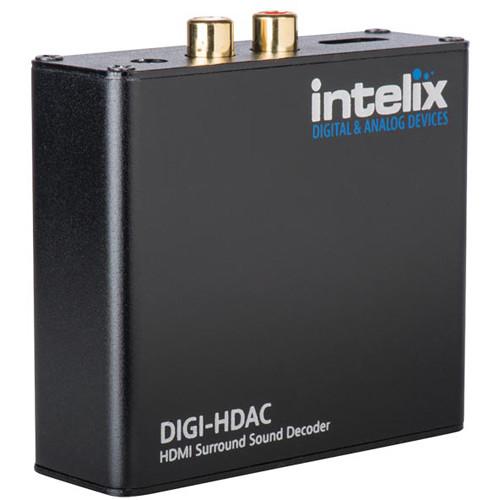

Product description Reap the benefits of HDMI video with legacy analog audio equipment by using the DIGI-HDAC HDMI Surround Sound Decoder to de-embed the digital audio stream and convert it to be output via conventional RCA and 3.5mm headphone outputs. DIGI-HDAC supports stereo PCM audio and 5.1-channel Dolby and DTS surround sound audio. The incoming video signal remains untouched through the HDMI output and video resolutions up to UHD 4K (3840x2160) are supported. The original audio signal also remains embedded in the HDMI output stream along with a processed stereo mixdown of the embedded audio. - De-embeds HDMI audio to analog outputs with HDMI video passthrough
- Decodes HDMI audio stream to stereo analog audio
- Supports 3D, 4K, and audio formats up to 5.1 audio
- Analog outputs (3.5mm and RCA) pass audio simultaneously
- Built-in surge protection
- Includes power supply; optional power via USB

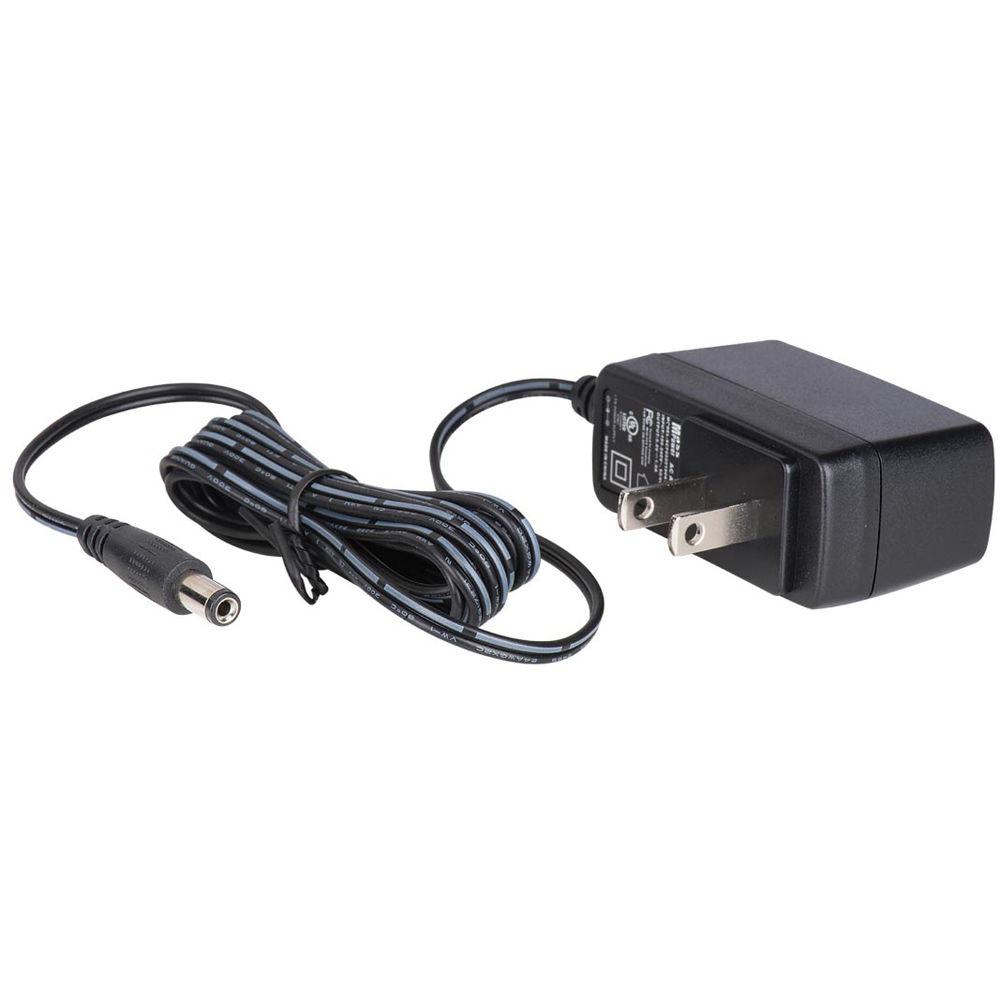

UPC: 601446001431 In the Box Intelix DIGI-HDAC HDMI Surround Sound Decoder Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix DIGI-HDAC HDMI Surround Sound Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

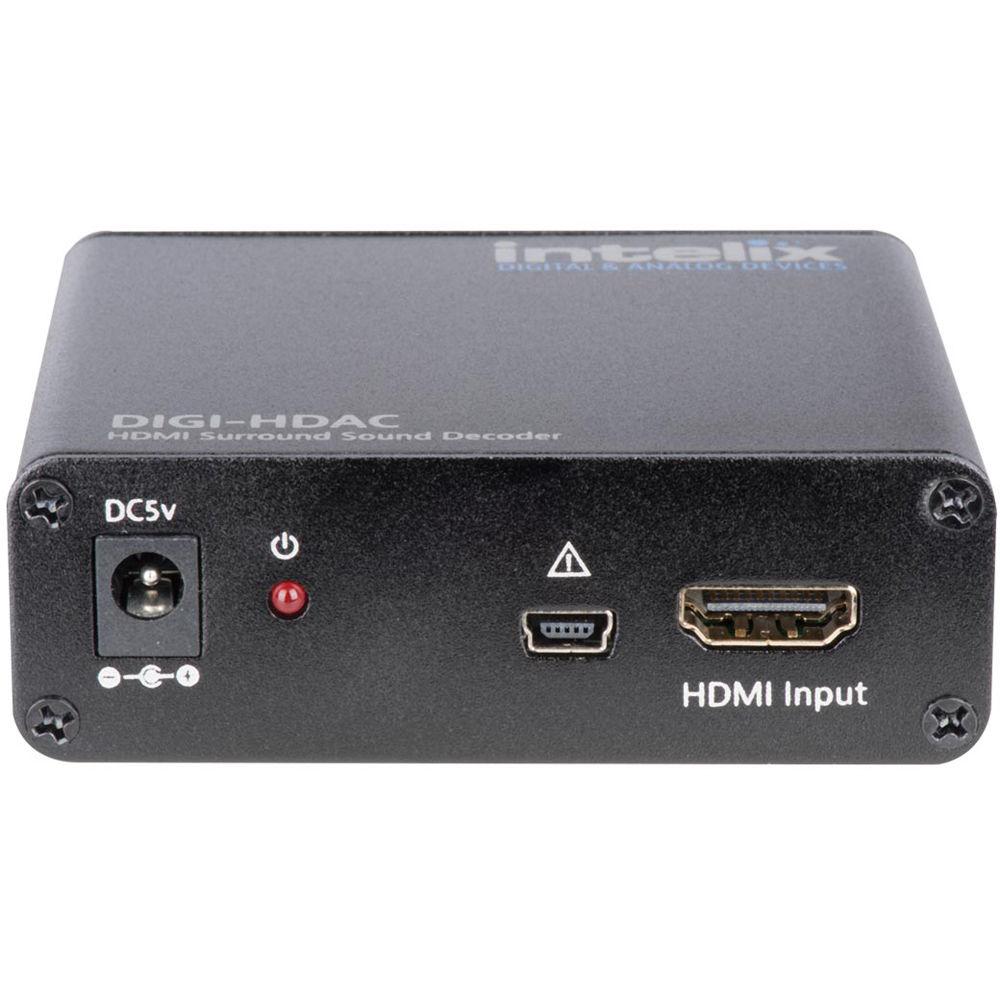

Technical parametersIntelix DIGI-HDAC Specs | Connections | 2 x HDMI Type A female
1 x 5 VDC Barrel jack (5.5 x 2.5 mm)
1 x USB mini-B (alternate power)

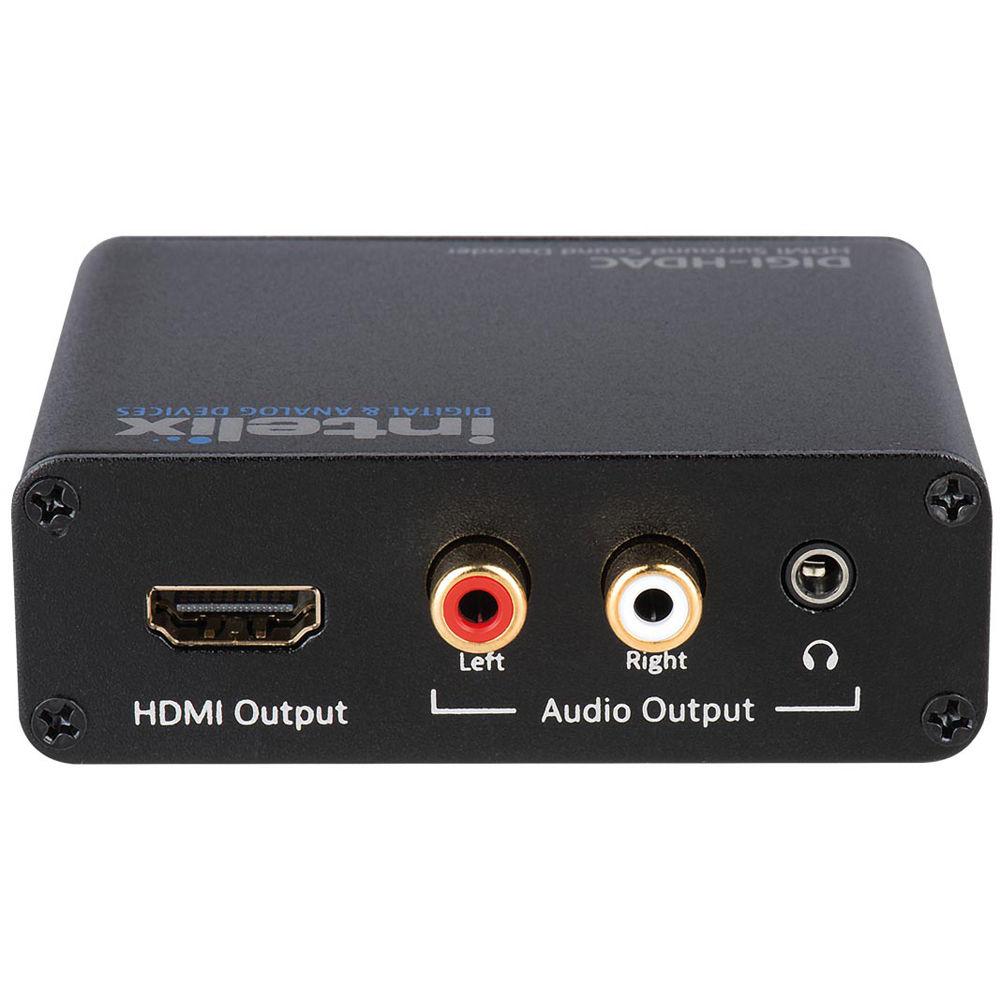

2 x RCA audio
1 x 3.5mm headphone jack | | | | Resolution Support | 3840 x 2160
1080p
1080i
720p
576p
480p
NTSC
PAL | | Color Depth | 8/10/12/16 bits per color channel | | HDCP | Compliant | | Input Signal | Video: 0.5 - 1.5 V p-p
DDC: 5 V p-p | | | | Audio Support | PCM 2-Channel: 32/44.1/48/96 kHz
Dolby Digital/DTS 5.1: 16/20/24-bit | | Signal to Noise Ratio | 120 dB | | Frequency Response | Output: 20 Hz - 20 kHz, ±0.5 dB | | | | Power Supply | Input: 100-240 VAC, 50-60 Hz
Output: 5 VDC, 1 A | | Power Consumption | Maximum: 2.5 W | | ESD Protection | Air-Gap Discharge: ±8 kV
Contact Discharge: ±4 kV | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Tempearture: 14 to 140°F / -10 to 60°C
Operating Humidity: 20-90%, non-condensing
Storage Humidity: 20-90%, non-condensing | | Compliance | FCC, CE, RoHS | | Dimensions | 1.1 x 3.3 x 3.2" / 28 x 84 x 80 mm | | Weight | 0.7 lb / 320 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.4 x 5.9 x 2.2" |
