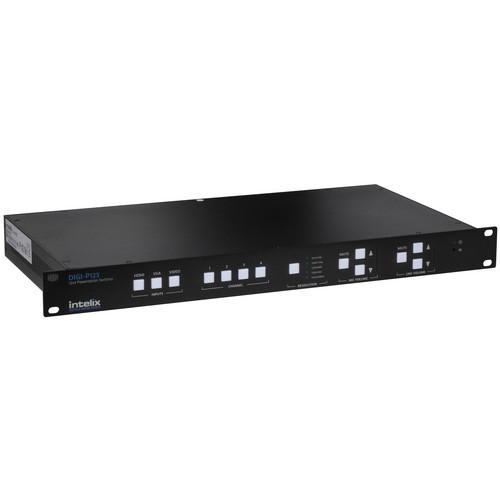

User Manual for Intelix DIGI-P123 Presentation Switcher Click to enlarge the picture
Contents of the user manual for the Intelix DIGI-P123 Presentation Switcher
- Product category: Routers & Switchers Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Routers & Switchers
|
User manual for the Intelix DIGI-P123 Presentation Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The Intelix DIGI-P123 Presentation Switcher combining switching, scaling, format conversion, mic/line mixing, speaker amplification and twisted pair extension in a single chassis. It replaces a rack full of audio-visual equipment with a compact, easy-to-integrate solution designed specifically for demanding commercial applications.
The switcher contains 4 HDMI, 4 VGA, and 4 A/V inputs and a HDMI, HDBaseT extender, and a VGA output. The switcher combines Intelix’s switching and extension technology with scaling, mic/line mixing, independent channel volume control, and speaker amplification. Plus, improved video processing delivers pristine video in both 16 x 9 and 16 x 10 output aspect ratios. You can forget the clutter of traditional corporate AV, education, and hospitality systems-this presentation switcher delivers superior features power-packed performance. - Total of 12 inputs (4 HDMI, 4 VGA, 4 A/V) and 3 outputs (HDMI, VGA, HDBaseT extender)
- 16 x 9 and 16 x 10 output scaling
- Twisted pair extension up to 230' (70m)
- Image position adjustment
- RS232, Ethernet, IR and front panel control
- Web GUI accessible from internet browser
- Audio embedding and de-embedding
- Built-in 20W speaker amplification
- Mic/line mixing with volume control
- Features control over HDBaseT, allowing IR and RS232 control signals to be transmitted over twisted pair cable through connected DIGI-HD60C-R receivers 1
Please Note: Receiver sold separately. close - 3 second average switching times when scaling
UPC: 601446000762 In the Box Intelix DIGI-P123 Presentation Switcher Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix DIGI-P123 Presentation Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix DIGI-P123 Specs | Input Connections | HDMI Inputs: 4 x HDMI type A
VGA Inputs: 4 x HD15-F, 4 x 3.5 mm TRS-F
Composite Video 1: 1 x RCA-F (video), 2 x RCA-F (stereo audio shared with S-Video 3)
YPbPr 2 (Component Video): 3 x RCA-F (video), 2 x RCA-F (stereo audio shared with Composite Video 4
S-Video 3: 1 x 4PMD-F (video), 2 x RCA-F (stereo audio shared with Composite Video 1) Composite Video 4: 1 x RCA-F (video), 2 x RCA-F (stereo audio shared with YPbPr 2) | | Microphone Input | Line Level: 1 x 3-Pole/3.5mm Euroblock (audio summed with Mic Level input)
Mic Level: 1 x 3-Pole/3.5mm Euroblock Connector (audio summed with Line Level input) | | Control | Front Panel: Push Button, IR, Rear Panel: RS232 via 3-Pole/3.5mm Euroblock, TCP/ IP via 8P8C, RS232 via HDBaseT Output (8P8C-F) Requires compatible HDBaseT receiver | | Power Input | 1 x IEC-C14 Power Inlet | | Firmware Upgrade | USB Type A Female | | Output Connections | HDMI Output: 1 x HDMI type A
VGA Output: 1 x HD15-F
Stereo Analog Audio: 2 x RCA (stereo audio)
HDBaseT Output (DIGI-P123): 1 x 8P8C-F
Speaker Output: 1 x 4-Pole/5.08 mm Euroblock | | Bandwidth | HDMI: 4.95 Gb/s (1.65 Gb/s per color)
VGA: 375 MHz
S-Video: 150 MHz | | Input Resolution | HDMI: 640 x 480 @ 60 Hz, 640 x 480 @ 72 Hz, 640 x 480 @ 75 Hz, 800 x 600 @ 56 Hz, 800 x 600@ 60 Hz, 800 x 600 @ 72 Hz, 800 x 600 @ 75 Hz, 1024 x 768 @ 60 Hz, 1024 x 768 @ 70 Hz, 1024 x 768 @ 75 Hz, 1280 x 1024 @ 75 Hz, 1360 x 768, 1920 x 540, 1920 x 1080i, 1920 x 1080p
VGA: 640 x 480 @ 60 Hz, 640 × 480 @ 72 Hz, 720 × 400 @ 70 Hz, 800 × 600 @ 60 Hz, 800 × 600 @ 72 Hz, 800 × 600 @ 75 Hz, 1024 × 768 @ 60 Hz, 1024 × 768 @ 70 Hz, 1024 × 768 @ 75 Hz, 1280 × 1024 @ 75 Hz, 1280 × 768, 1360 × 768 @ 60 Hz, 1920 × 1080 | | Compatibility | HDMI Input: HDMI 1.3, DVI-D
VGA: RGBHV, RGBs, RGsB, RsGsBs
S-Video: NTSC 3.58, NTSC 4,42, PAL, SECAM | | Compliance | HDCP Compliant | | Video Bandwidth | 170 MHz (Component Video) | | Resolution | Input: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Output: 1920 x 1080, 1360 x 768, 1280 x 720, 1280 x 800, 1024 x 768 | | Video Impedance | 75 Ω | | Maximum Pixel Clock | 145 MHz | | Video Gain | 0 dB | | Signal Level | 0.5 V to 2.0 Vp-p | | Audio Performance | RCA/3.5 mm Input Signal Level: -10 dBv (Nominal) RCA/3.5 mm Input Impedance: > 10k Ω | | Input Signal Level | -48 dB Nominal (Mic input), +4 dBu | | Input Impedance | Mic: 600 Ω (Mic input), >10kΩ (Line input) | | ADC | 24-bit, 48 kHz, 2-channel LPCM | | Output Impedance | 50 Ω | | Speaker Output | 2 x 10 W @ 8 Ω/ 2 x 20 W @ 4 Ω | | Frequency Response | 20 Hz to 20 kHz | | Stereo Channel Separation | >80 dB @ 1 kHz | | Common Mode Rejection Ratio | >90 dB @ 20 Hz to 20 kHz | | Extender | Maximum Distance per Linked: 230' (70 m)
Unit (Cat 5e): Painted Aluminum
Cable Requirements: Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern
Bandwidth: 6.75 Gb/s
Input DDC Signal: 5.0 Vp-p (TTL)
Input Video Signal: 0.5 to 1.0 Vp-p | | Enclosure | Painted Aluminum | | Operating Temperature | +32 to +120°F (0 to +48°C) | | Storage Temperature | +14 to +158° F (-20 to +70°C) | | Humidity | Operating: 10 to 90%, Non-condensing
Storage: 10 to 85%, Non-condensing | | Maximum Power Consumption | 65 W | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Regulatory | CE, RoHS | | Dimensions | 19.00 x 9.25 x 1.73" (483.00 x 235.00 x 44.00 mm), 1 RU | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 21.1 x 13.7 x 5.1" |
