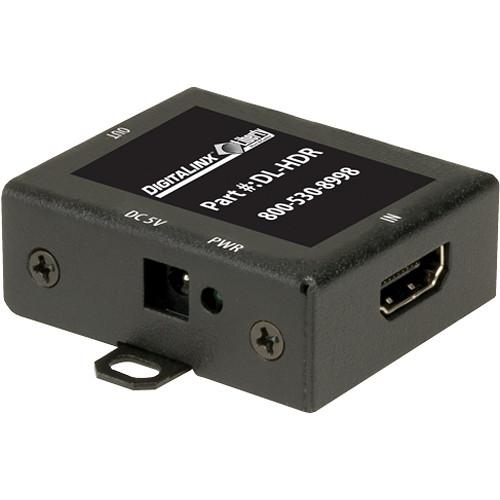

User Manual for Intelix DL-HDR Digital Media Repeater Click to enlarge the picture
Contents of the user manual for the Intelix DL-HDR Digital Media Repeater
- Product category: Video Extenders & Repeaters Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Video Extenders & Repeaters
|
User manual for the Intelix DL-HDR Digital Media Repeater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The intelix DL-HDR Digital Media Repeater is an internally powered digital HDMI and DVI repeater device. This repeater has an in-line design for simple signal boosting and cable transmission. The device is compliant with DVI 1.0 and HDMI 1.3 signals. The device is fully compliant with the HDCP protocol.
This Digital Media Repeater is ideal for installations where the cable must pass through a faceplate, a wall, or a rack-mounted digital video distribution system. An inactive coupler will suffer signal degradation and introduce digital artifacts. The active coupler will reconstitute the signal and boost it, allowing maximum resolution to transmit to the source. This device can also be used at the end of a long copper interconnect to boost the signal at the source.
The system can easily accommodate DVI-only inputs and outputs by using Liberty’s high quality HDMI to DVI interconnects. The DVI connector is routed to the sources and display unit, while the HDMI connector plugs into the Digitalinx switcher. The digital audio signal is not transmitted when using DVI connectors. - High Quality Picture: No Loss of Resolution or Introduced Digital Artifacts
- This Digital Media Repeater is manufactured to deliver high quality picture by preserving the native resolution from the video sources and eliminating any digital artifacts (pixel loss or sparklies). Because of the nature of digital signals, any non-active connector junctions will detrimentally affect the signal; this device provides active junctions to re-constitute and amplify the signal (boosting) and ensures high signal quality to the display.
- Signal Amplification
- The Digital Media Repeater has dual power options: either pin number 18 of the source HDMI unit or by a 5 VDC external power supply to ensure adequate power is available to perform the signal boost as per correct specification. This is necessary because the introduction of a Digital Media Repeater indicates that longer cable lengths are in use. This device corrects the signal loss from a longer length cable to the original native resolution and signal power. The maximum length of an interconnect cable recommended for this device is 114.83' (35 m). All Liberty Wire & Cable HDMI interconnects are tested to ensure 1080p resolution. As a note for power requirements, the source power availability from the video source may not be sufficient to drive the 1 to 1.6 W requirement of the device and the external DC unit is supplied to answer the requirements where this limitation exists.
- Compact & Practical Design
- The in-line DL-HDR repeater is simply a convenient in-line coupler for extending cable lengths or applying a freshly boosted signal to a display. The input and output connections are at a distance of 180° from each other. The Digital Media Repeater can be daisy chained to transmit the signal over long distances. The 90° units are usually installed in pairs as the signal is going from a source into a wall or junction then out of the wall or junction to a display.
- Daisy Chain Capabilities
- Connecting this device in line is recommended not to exceed 3 devices. Only externally power units should be daisy chained. Digital Media Repeater powered by the source device may have adequate power requirements to drive audio applications. Using the optional DC power converter will ensure the appropriate power level required.
In the Box Intelix DL-HDR Digital Media Repeater 5 VDC Power Supply (UL and C(UL) Listed Class 2 C(UL)US) User Manual 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix DL-HDR Digital Media Repeater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix DL-HDR Specs | Input | HDMI type A receptacle (single link) 1 port | | Output | HDMI type A receptacle (single link) 1 port | | Maximum Resolution | WUXGA 1600 x 1200, HDTV 1080p | | Supported Resolution | Supporting Graphic Resolution: Up to computer UXGA (1600 x 1200 @ 75 Hz)
Up to display 1080p60 (2200 x 1125 @ 60 Hz) | | HDCP Compatible | Yes | | Power Consumption | 5 VDC, 1.6 W maximum
1.6 W maximum, from pin 18 of HDMI or optional DC Power adapter | | Frequency Bandwidth | 1.65 Gbps | | Altitude | Altitude Ceiling
Operating: 9,840' (3,000 m)
Storage: 9,840' (3,000 m) | | Temperature | Operating: 50 to 104°F (10 to 40°C)
Storage: -4 to 113°F (-20 to 45°C) | | Humidity | Operating: 10 to 80% non-condensing
Storage: 5 to 95% non-condensing | | Dimensions (H x W x D) | 1.97 x 2.16 x 0.59" (50 x 55 x 15 mm) | | Weight | 0.44 lb (0.2 kg) | Note: This Digital Media Repeater is expected to function for more than 50,000 hours of use at a 90% confidence level. The device is tested as per identical standards for testing LCD monitors.
As per the image (page 1-6) and specs (page 1-2), the dimensions are mentioned.
