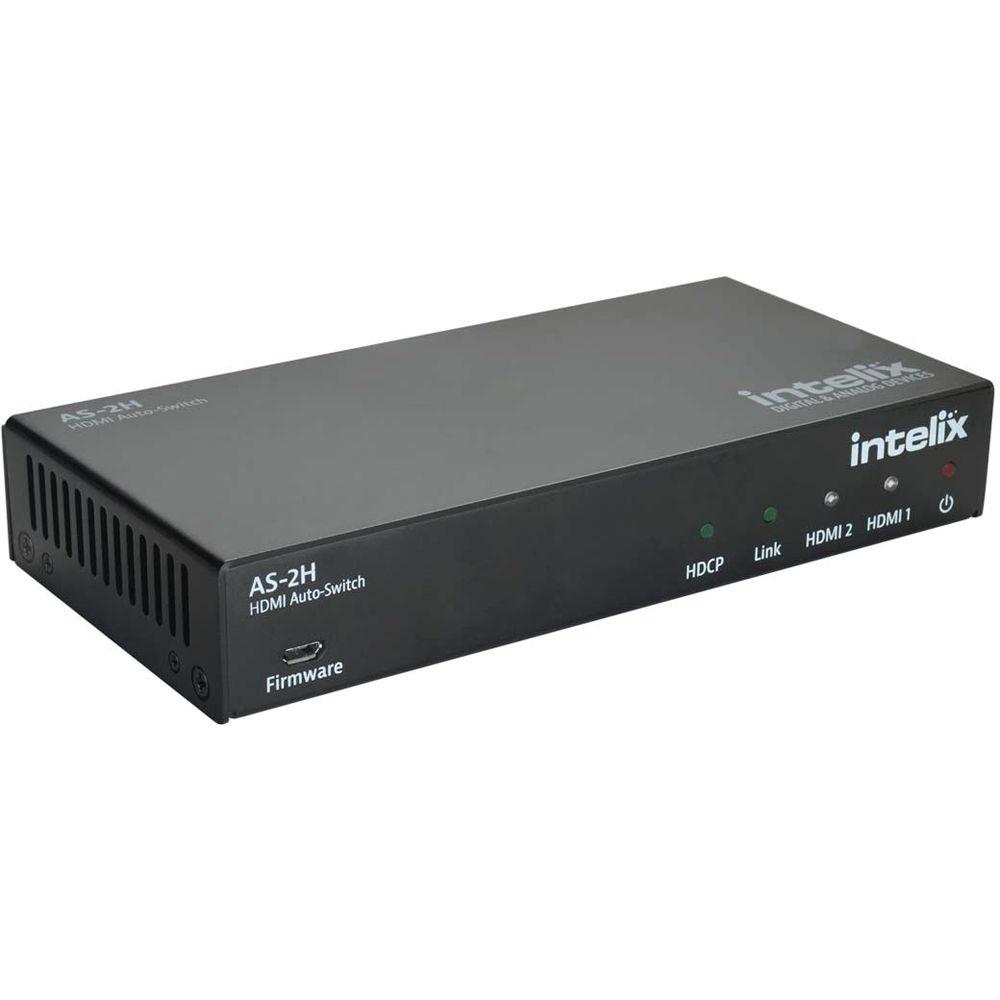

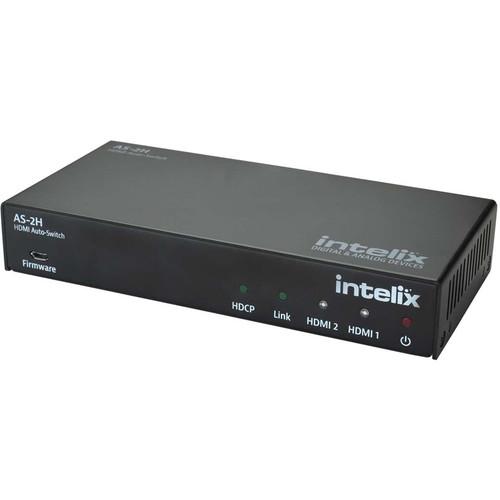

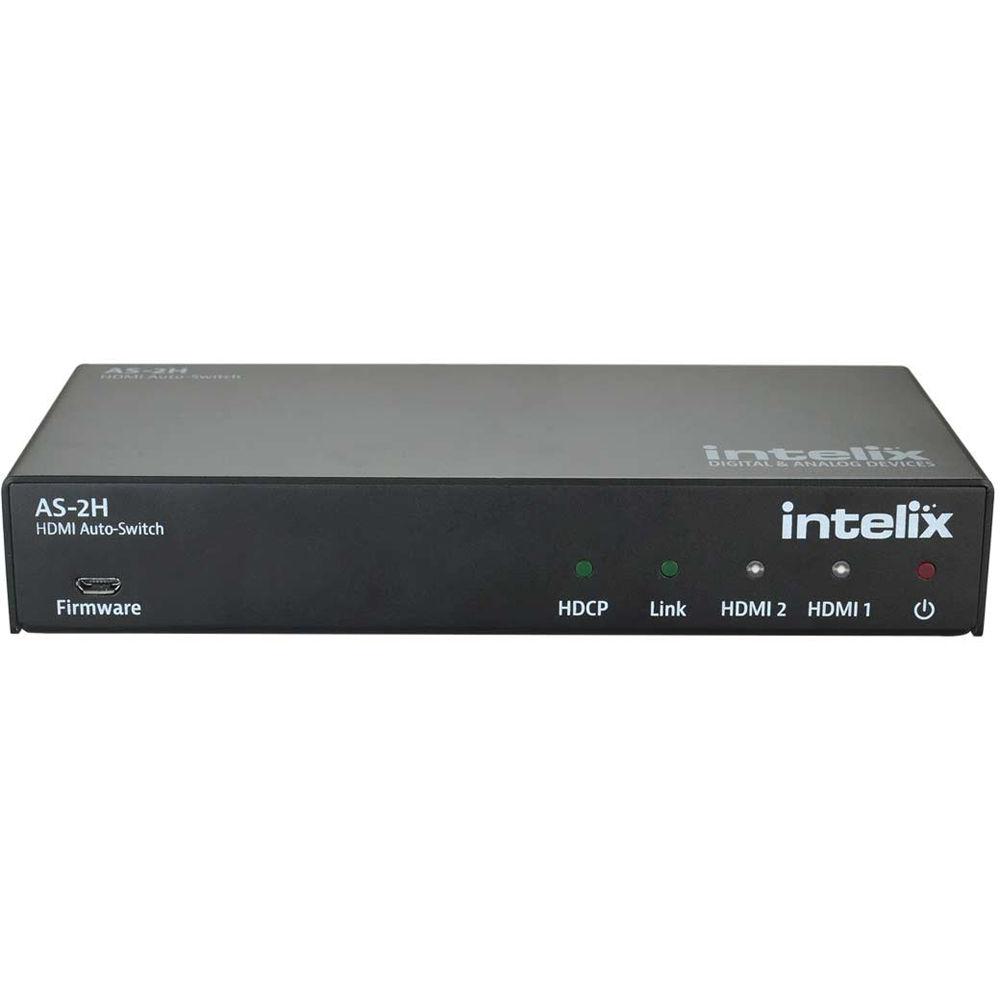

Product description The Dual HDMI Auto-Switcher from Intelix is an under-table mounted switcher designed to be a PC interface for classrooms, boardrooms, and conference centers. It features two HDMI inputs and utilizes HDBaseT technology to extend the digital output up to 230’ away using solid core shielded Cat5e or greater cable. This transmitter device is compatible with several Intelix HDBaseT receivers, but is designed to work primarily with the DIGI-HD60C-R Receiver. The unit features multiple EDID modes to eliminate user confusion and incompatible video formats.If both inputs are active, the last "in” will be selected. Additional contact-closure inputs are provided on the rear of the unit to allow for third-party control. RS-232 control of the AS-2H can be accomplished by connecting to the RS-232 port on a compatible receiver, or through a direct connection on the RS-232 input of the device.The switcher can be programmed to control the connected display. The display manufacturer’s RS-232 commands can be entered into the switcher with the use of the Intelix Display Control software. This allows display power and input to be automatically controlled based on video activity, eliminating the need for a third-party control system in many installations. - Key Features
-
- Two HDMI inputs
- HDMI and HDBaseT output to a distance up to 230’
- Automatically switches input to active video
- RS-232, auto, and dry contact closure for control of device
- PoH (Power over HDBaseT) or 24 VDC local power
- Display Control Software function to control TV or projector with RS-232 commands, which automatically turns display on/off
- Customizable power management system when not in use
- Uses any shielded solid core Cat5e or greater twisted pair cabling
- Extension of two HDMI sources to one HDMI destination
- Ideal for boardroom, education, and hospitality applications
UPC: 601446001486 In the Box Intelix Dual HDMI Auto-Switcher with HDBaseT Output Power Supply Mounting Hardware 4-Pin Removable Screw Terminal 3-Pin Removable Screw Terminal RS-232 Cable (3-Pin to DE9) Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix Dual HDMI Auto-Switcher with HDBaseT Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

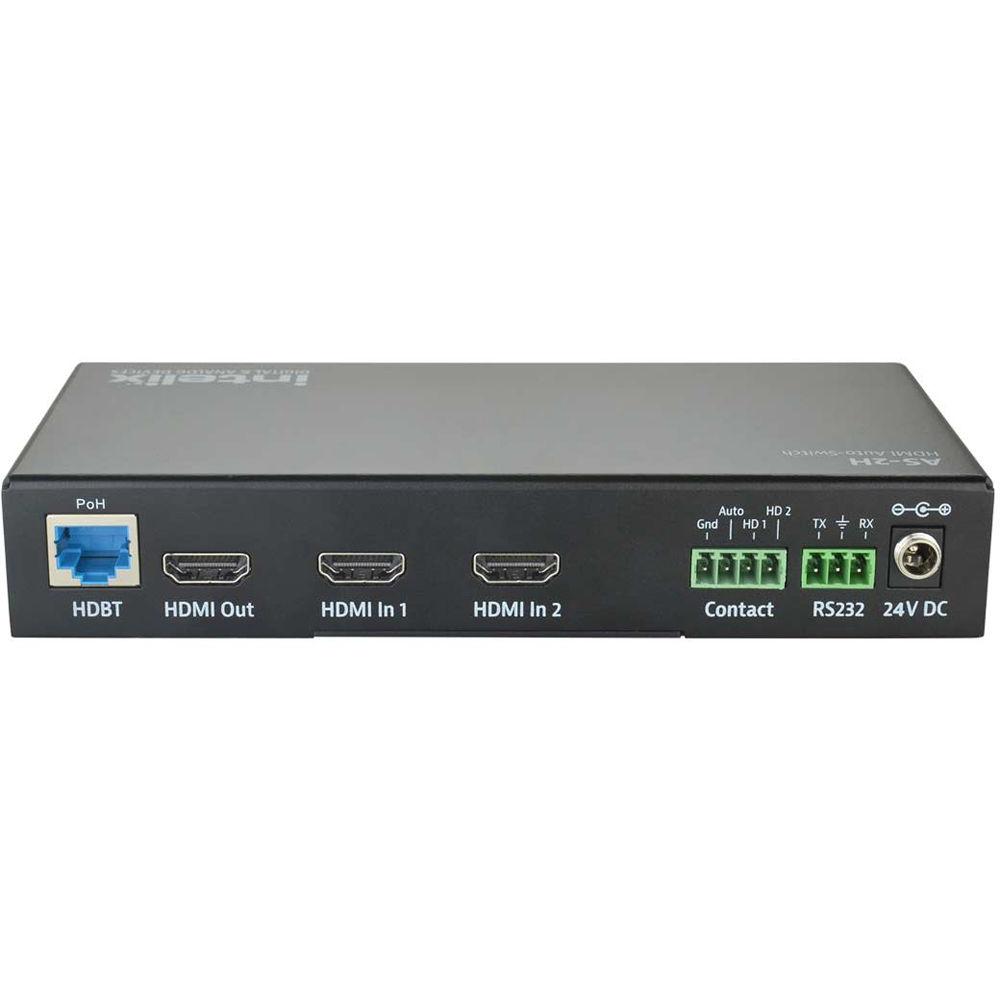

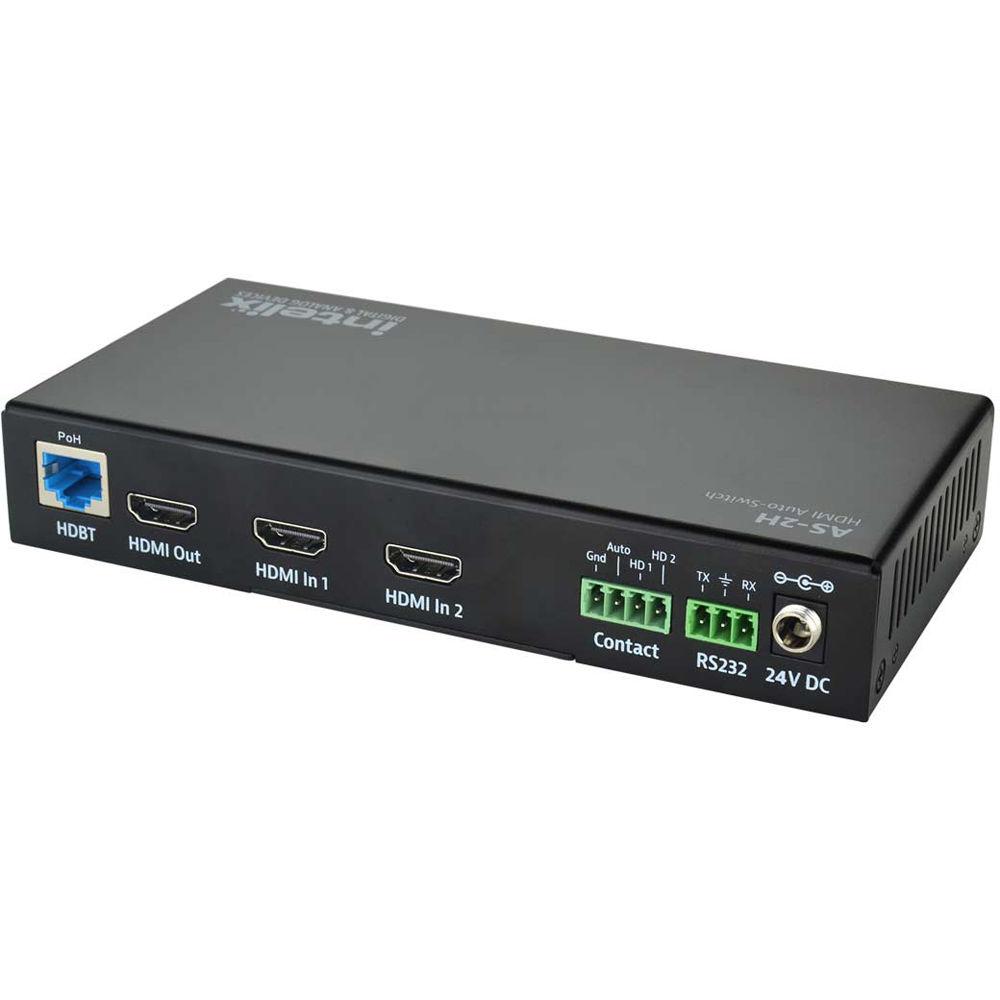

Technical parametersIntelix AS-2H Specs | Input/Output Connections | 2 x HDMI Type A, input
1 x HDMI Type A, output
1 x RJ45 HDBaseT port (shielded 8P8C)
1 x RS-232, 3-pin removable terminal block connector
1 x 4-pin Removable terminal block connector
1 x Micro USB Type B (firmware support)
1 x 5.5 mm OD, 2.6 mm ID threaded barrel (power) | | Video Resolutions | SMPTE:
UHD/30 (HDMI only)
1080p
1080i
720p
576p
576i
480p
480i
VESA: Up to 1920 x 1200
Color Depth: 24/30/36/48-bit | | VGA | Scaling Resolutions (60 Hz):
1920 x 1200
1600 x 1200
1400 x 1050
1360 x 768
1280 x 800
1024 x 768
1080p
720p | | Video Compatibility | Deep Color 36/30/24-bit at 1080p: 230' (70 m)
Deep Color 48-bit at 1080p: 3D (HDMI input), UHD/30 @ 131' (40 m) | | Compliance | HDMI 1.4 and HDCP 1.4 | | Embedded Audio | Up to PCM 8-Channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | Analog Audio | Analog stereo line level (converted to 2-Ch 24-bit PCM 48 kHz) | | CEC | HDMI pass-through only | | Baud Rate | 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200 (wall plate control)
Supported Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 | | HDBaseT Signal Characteristics | Maximum Distance: 230' (70 m)
Cable Requirements: Continuous solid core Cat5e or greater with TIA/EIA-568B crimp pattern (no couplers in-line)
Bandwidth: 10.2 GB/s
HDBaseT Chipset: VS010TX | | Construction | Aluminum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, Non-condensing | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Storage Humidity | 20 to 90%, Non-condensing | | Power Input | 24 VDC 1.25 A, or 48 VDC PoH (Power over HDBaseT) | | Power Output | 48 VDC PoH | | PoE | 802.3af Alternative A | | Power Consumption | 10 W | | Standby Mode | 30 Minutes no signal | | ESD Protection | 16 kV | | Regulatory | CE, RoHS | | Diagnostic Indicators | HDCP, Link, HDMI 1, HDMI 2, and Power | | Dimensions (H x W x D) | 1.2 x 6.8 x 3.3" (3.0 x 17.0 x 8.4 cm) | | Weight | 2 lb (0.9 kg) |
