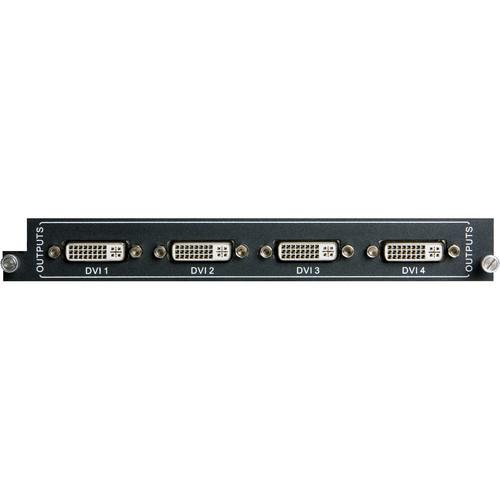

User Manual for Intelix DVI-D Output Card for Card-Based Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Intelix DVI-D Output Card for Card-Based
- Product category: Router, Switcher & Patchbay Accessories Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Router, Switcher & Patchbay Accessories
|
User manual for the Intelix DVI-D Output Card for Card-Based contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The DVI-D Output Card for Card-Based Matrix Switcher from Intelix has DVI-D outputs that are HDMI and HDCP compliant and support CEC and DDC standards. Each output is a single link DVI-D connection that can support video resolutions up to 1920 x 1200. - Single link DVI-D output card for FLX-8X8A, FLX-88, FLX-1616, and FLX-3232 Matrix Switchers
- Applications
Designed for use with FLX-8X8A, FLX-88, FLX-1616, FLX-3232 Matrix Switchers
Suitable for the medical industry and other applications requiring high-definition locking connectors In the Box Intelix DVI-D Output Card for Card-Based Matrix Switcher Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix DVI-D Output Card for Card-Based Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix FLX-DO4 Specs | Compatibility | FLX-8X8A, FLX-88, FLX-1616, and FLX-3232 Matrix Switcher | | I/O Connections | Single Link DVI Output: 4 x female DVI 24+5 | | Output Signal | Single Link DVI-D up to 1920 x 1200 | | Compliance | Video: HDMI and HDCP | | EDID and DDC Management | Actively Buffered; Supports DVI and HDMI standards | | Bandwidth | 340 MHz (10.2 Gb/s) | | Crosstalk | 0 dB | | Resolution | 640 x 480 to 1920 x 1200 | | Crosstalk | <-50 dB at 5 KHz | | Input Level | TMDS 2.9 / 3.3 V | | Construction | Plug-in card with keyed black metal plate | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 140°F (-10 to 60°C) | | Humidity | Operating & Storage: 20 to 90%, non-condensing | | | | Package Weight | 0.81 lb | | Box Dimensions (LxWxH) | 6.38 x 3.88 x 1.19" |
