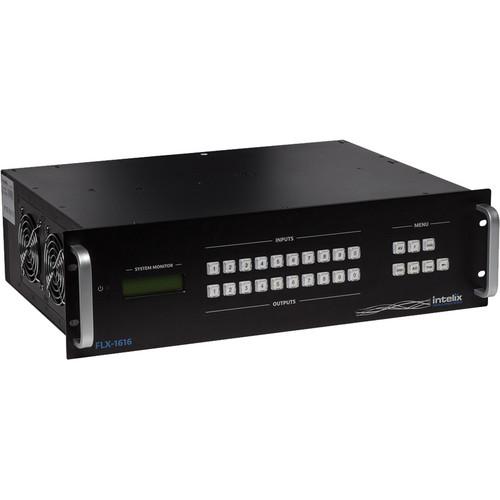

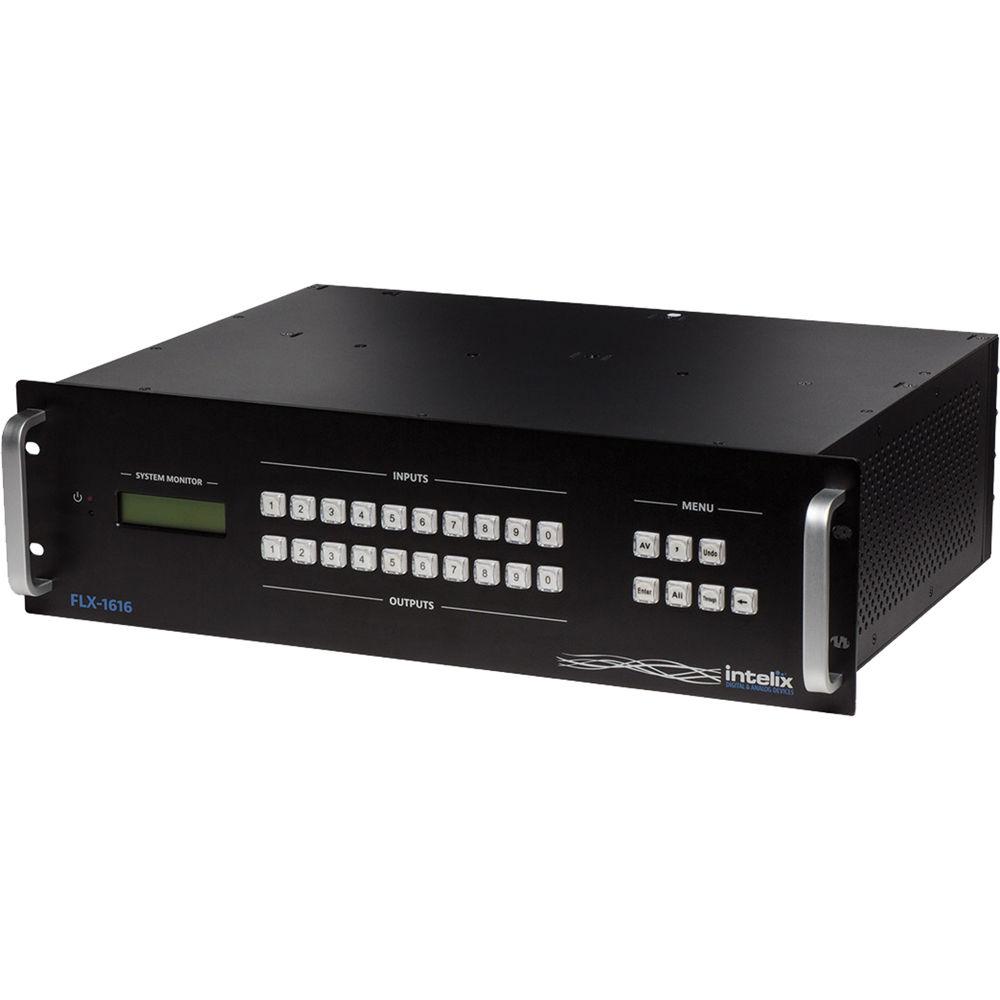

Product description The Intelix FLX-1616 Modular Video Matrix Switcher (Up to 16x16) is a card-based modular switcher that supports up to 16 inputs and 16 outputs via optional input/output cards. It features 4 input card slots and 4 output card slots, and the optional cards each feature 4 ports. Over 80 different input/output combinations can be set up using all the available cards. The configurations don't have to be even — for example, you can have 4 inputs and double the outputs and freely route to all the outputs. The cards install without any setup required and secure by thumbscrews.

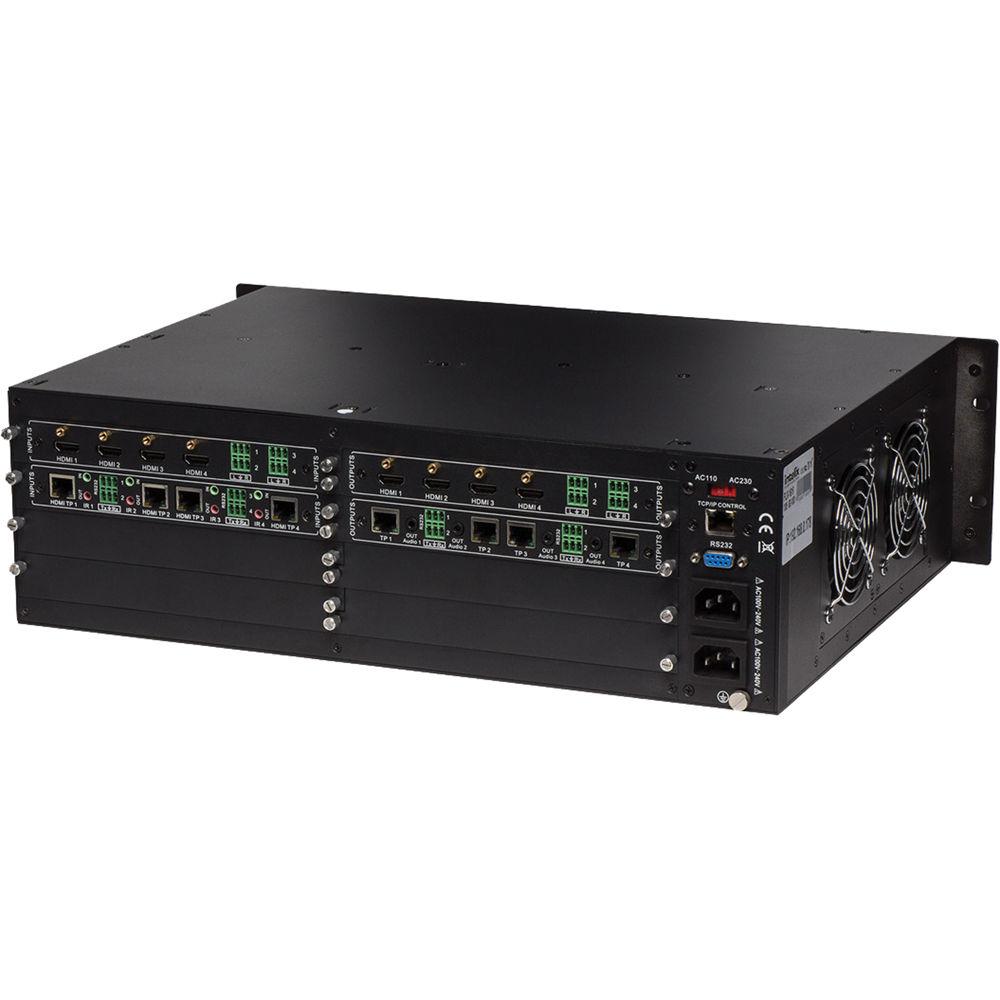

Each card has one type of connection. The input cards are available with HDBaseT, HDMI, DVI-D, VGA, and HDMI with Analog Audio inputs. The output cards are available with HDBaseT, HDMI, DVI-D, HDBaseT with Audio De-Embedding, and HDMI with Audio De-Embedding outputs. The HDBaseT input cards feature RS-232 and bidirectional wide-band IR. The VGA input cards come with breakout cables that support Component, Composite, and S-Video signals, and they feature built-in scalers that convert these signals.

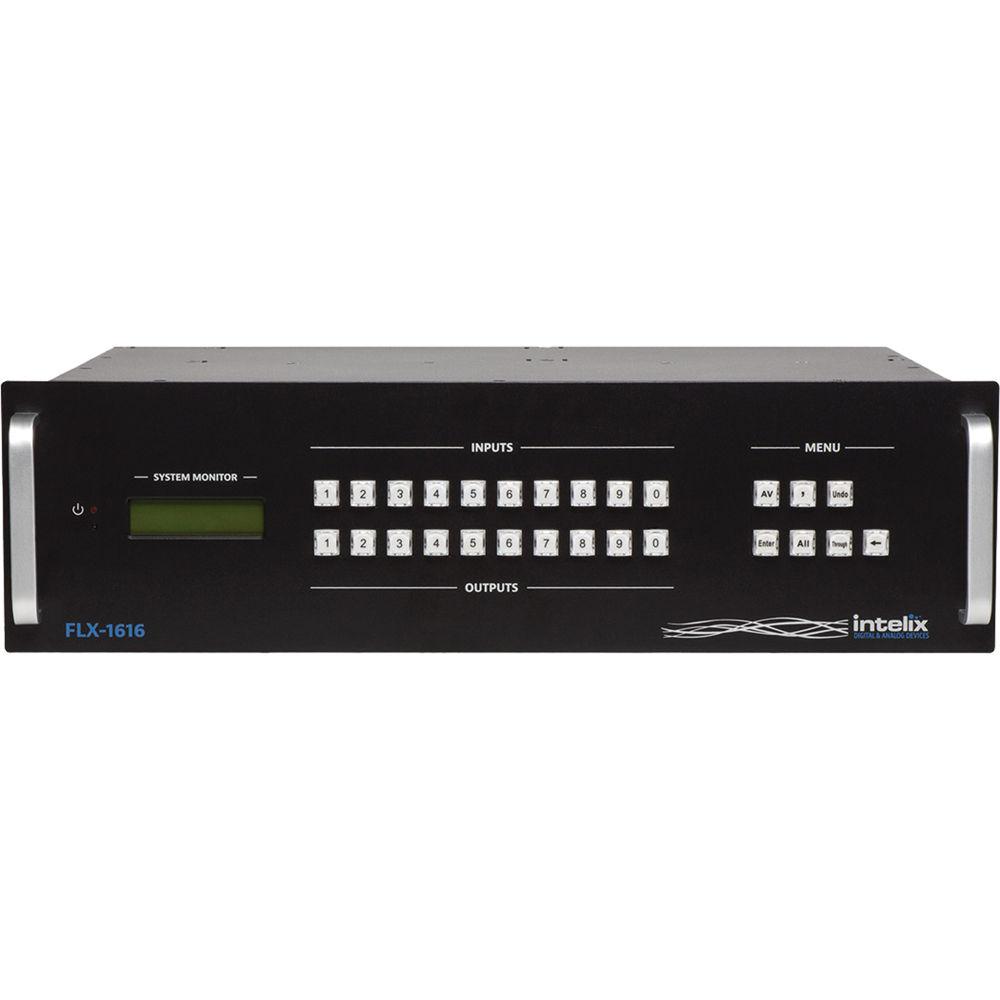

The switcher can be controlled by front panel buttons or IR, RS-232, or TCP/IP connections. The front panel buttons are numbered and have clear caps for easy visibility. Prefixed control drivers are available for free download from Intelix for integration into your control system. You'll be able to assign each input number to a connected source. Ten presets are otherwise programmable for efficient routing. An LCD on the front panel at all times shows the output status. - Key Features
-
- Card-based, modular matrix switcher
- Supports up to 16 inputs and 16 outputs
- Features 4 input and 4 output slots
- Each optional card has four connections
- Front panel, IR, RS-232, or TCP/IP control
- Supported Input Cards
-
- FLX-BI4 — HDBaseT
- FLX-HI4 — HDMI
- FLX-DI4 — DVI-D
- FLX-RI4 — VGA
- FLX-HI4A — HDMI with Analog Audio
- Supported Output Cards
-
- FLX-BO4 — HDBaseT
- FLX-HO4 — HDMI
- FLX-DO4 — DVI-D
- FLX-BO4A — HDBaseT with Audio De-Embedding
- FLX-HO4A — HDMI with Audio De-Embedding
UPC: 601446000700 In the Box Intelix FLX-1616 Modular Video Matrix Switcher (Up to 16x16) Installation Guide IR Remote RS-232 Cable Power Cable 4 x Modular Metal Blank 4 x Rubber Feet Pocket Screwdriver 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix FLX-1616 Modular Video Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix FLX-1616 Specs | Material | Black painted aluminum | | Control | Front Panel: Push Buttons, IR

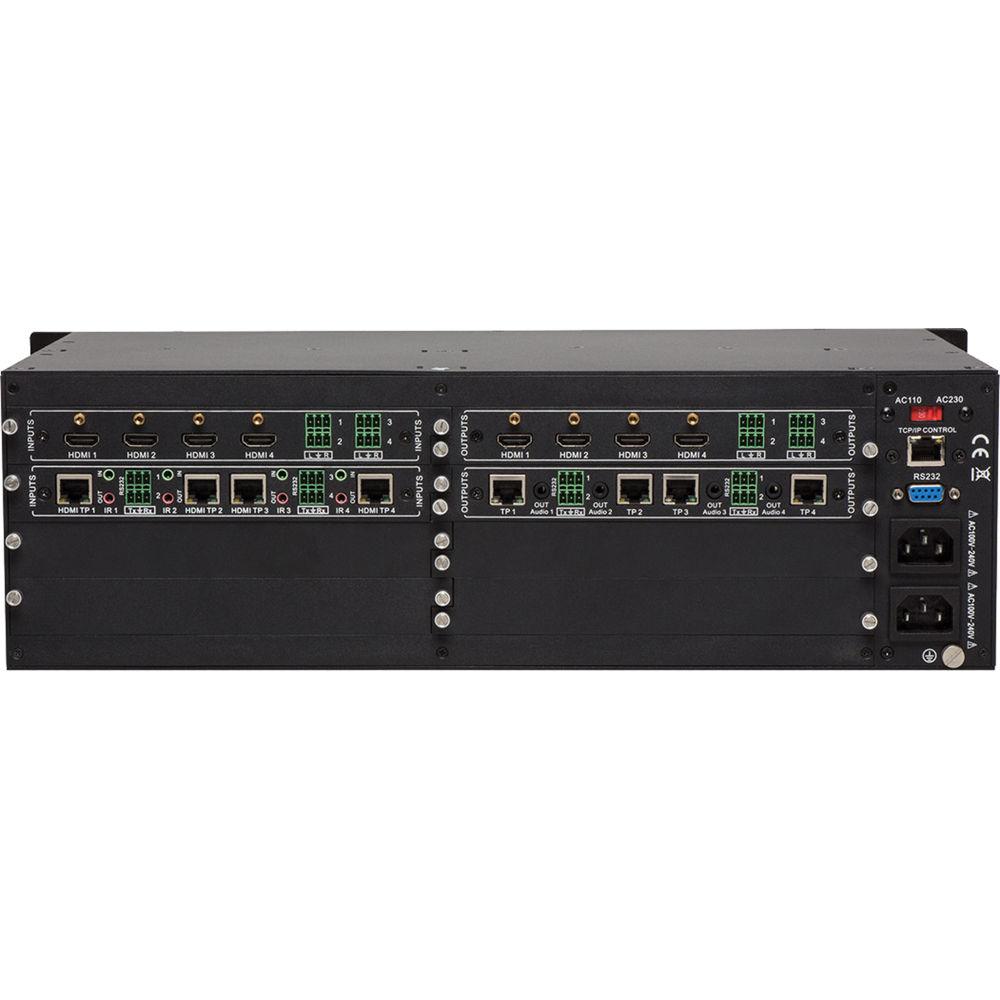

Rear Panel: RS-232 via DE-9 connector, TCP/IP via 8P8C connector | | Power Supply | 100 - 240 VAC 50/60 Hz | | Power Consumption | 135 W Fully Populated | | ESD Protection | 15 kV | | Regulatory | CE, RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, Non-condensing | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Storage Humidity | 20 to 90%, Non-condensing | | Rack Height | 3 RU | | Dimensions | 19 x 14 x 5.25" (48 x 36 x 13 cm) | | Weight | Approx. 22 lb (10 kg) |
