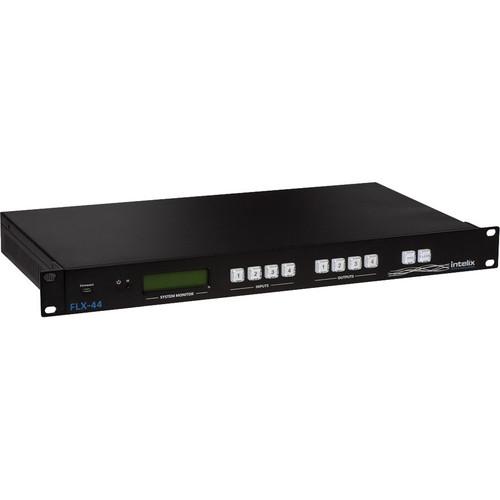

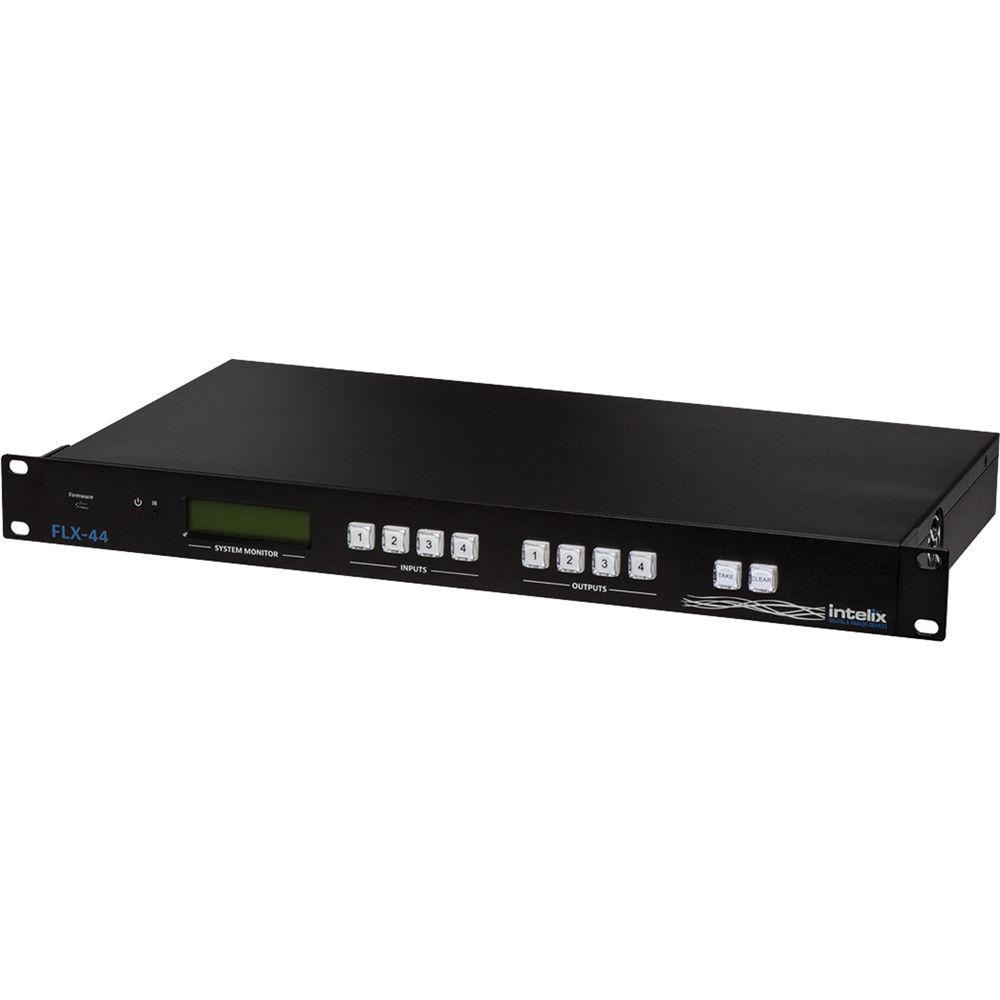

Product description The Intelix FLX-44 HDMI/HDBaseT Matrix Switcher is a 4 input and 4 output matrix switcher designed for audio and video routing and for distribution of HDMI signals.
The FLX-44 features HDBaseT twisted pair extension for each output, and simultaneous HDMI on the first 2 outputs, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support 1080p HDMI video with audio, bi-directional wide-band IR, matrix control via IR, RS-232 tunneling, and HDCP up to 196' away. Each HDBaseT output port supplies power to the attached extender, eliminating the need for a power supply at the display end. Each output features a stereo audio de-embedder for connection to amplifiers or DSPs.

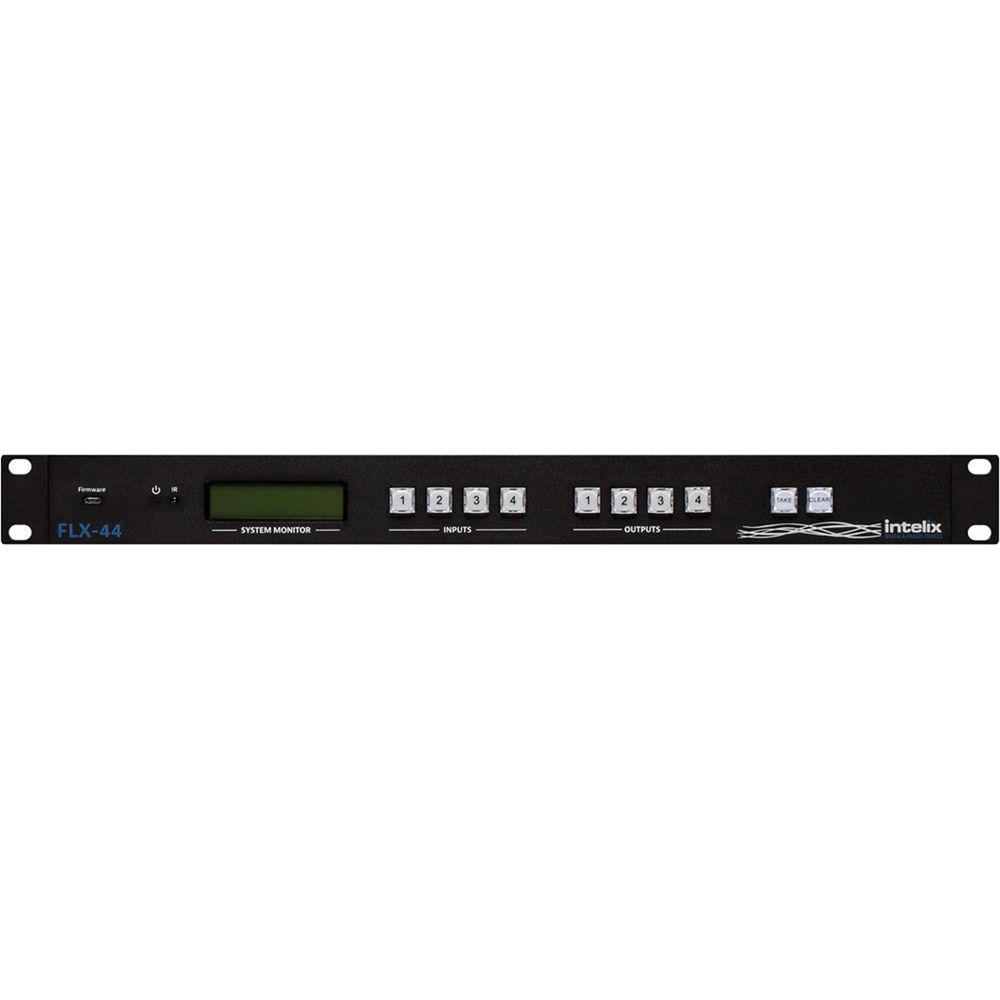

The switcher can be controlled by front panel buttons or by IR, RS-232, or Etherenet connections. The front panel buttons are numbered and have clear caps for easy visibility. The matrix includes a simple IR remote control to allow IR switching. This IR remote control can be learned into universal remotes and IR based control systems. An IR All In port is provided, which allows one IR connection to control all 4 remote displays.
The 1RU matrix also features a full command set for RS-232 and Ethernet control with third party control systems, as well as control via a web browser. RS-232 commands to remote displays can also be embedded in the control stream through the matrix from both the RS-232 and Ethernet control ports, which will reduce the number of serial ports required for the control system.
The FLX-44 is HDMI compatible and supports up to 2K resolutions, Deep Color, and full 3D capabilities. The matrix features advanced EDID and HDCP handling, and has the ability to turn HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources. This switcher is designed for matrix routing in environments with demanding control system requirements such as corporate video conferencing, boardrooms, conference centers, and similar venues. - Four HDBaseT Lite outputs with PoE, and two mirrored HDMI outputs
- Matrix routing and distribution of HDMI signals
- Audio/video routing in environments with demanding control system requirements
- Up to 200' extender distance
- Audio de-embedding on each output
- Front panel, IR, TCP/IP, and RS232 control
- IR and RS232 routing and tunneling over HDBaseT
- Control page and configuration are accessible from web browser (Web GUI)
- Ideal for houses of worship, corporate video conferencing, boardrooms, and conference centers
UPC: 601446000779 In the Box Intelix FLX-44 HDMI/HDBaseT Matrix Switcher (4x4, 1RU) IR Remote Control RS-232 Cable US Power Cable US Power Supply 2 x Mounting Bracket with Screws 4 x Rack Feet with Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix FLX-44 HDMI HDBaseT Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

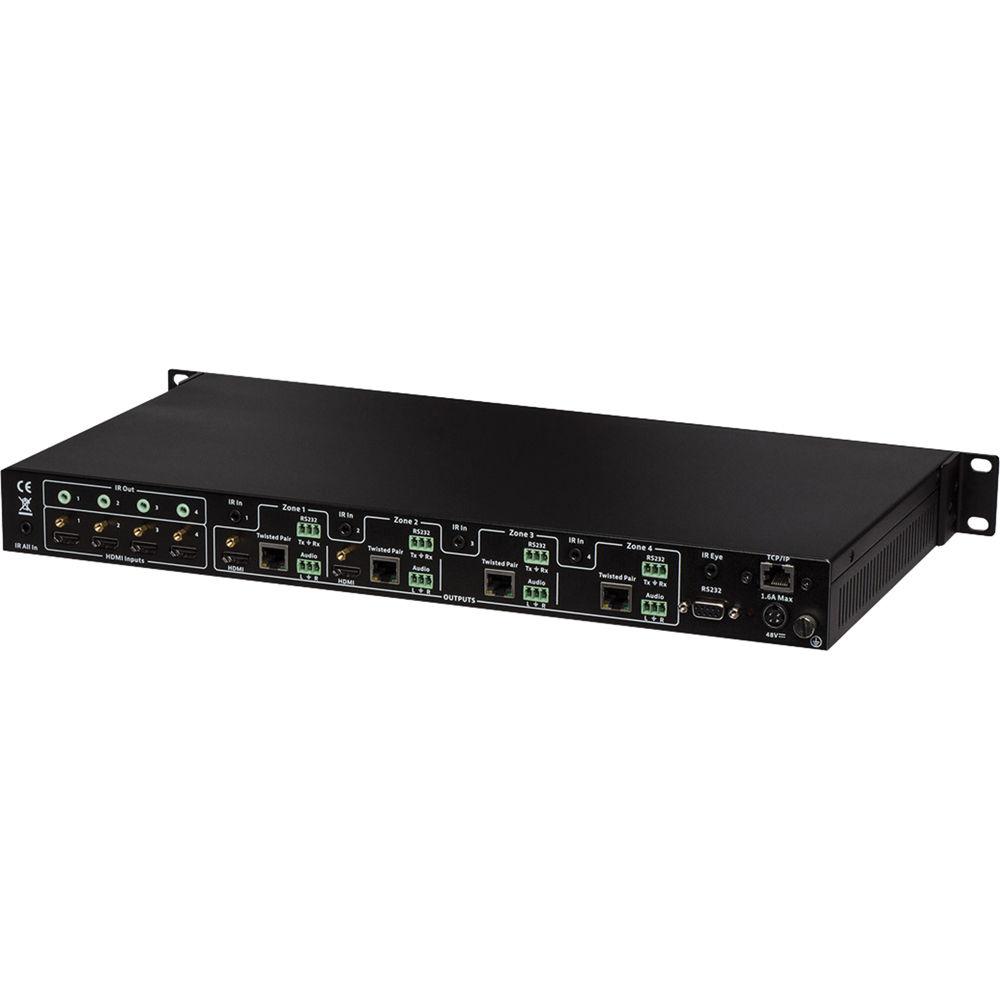

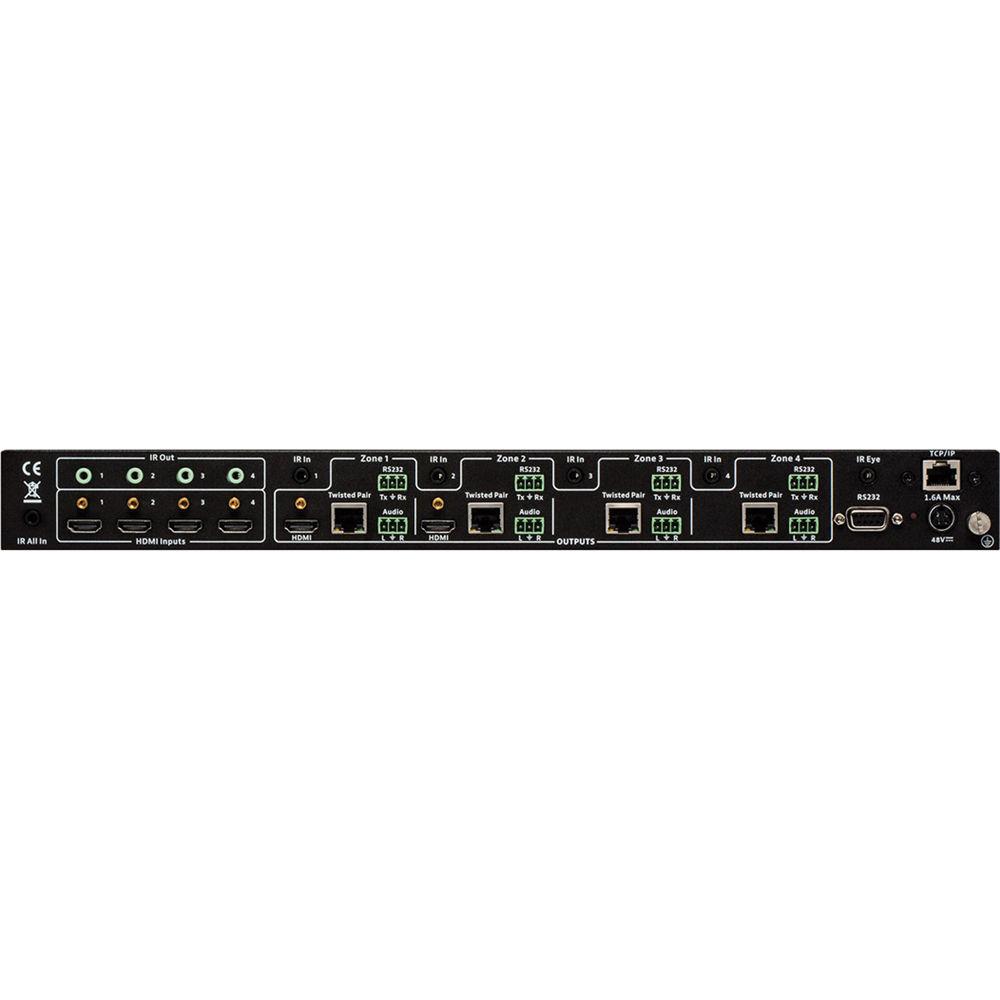

Technical parametersIntelix FLX-44 Specs | | | Input Connectors | 4 x HDMI Type A receptacle, female
4 x 3.5 mm phone jack TRS, IR, female
1 x 3.5 mm phone jack TRS IR All In, female
1 x 3.5 mm phone jack TRS, IR Eye, female | | Output Connectors | 2 x HDMI Type A receptacle
4 x RJ45, HDBaseT (1 per output)
4 x 3.5 mm 3-pole removable Euroblock, audio
4 x 3.5mm phone jack TRS IR , female | | RS-232 Connector | 4 x 3.5 mm 3-pole removable Euroblock | | Power Connector | 1 x 4-pin amphenol CPC, female | | Control | 1 x Mini USB, firmware upgrade | | | | Audio | Embedded Audio Compatibility: Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | Video Resolutions | HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p
VESA: Up to 1920 x 1200 | | Maximum Distance | CAT 5e @ 1080p 2D: 197' (60 m)
CAT 5e @ 1080p 3D: 115' (35 m) Per linked unit | | | | Bandwidth | 6.75 Gbps | | Input DDC Signal | 5 VDC pp (TTL) | | Input Video Signal | 0.5 - 1 VDC pp | | Supported IR Carrier Frequency | 33 - 35 kHz @ 5 V | | Cable Requirements | Solid core Category 6 or 6A with TIA/EIA-568B crimp pattern | | | | Power Requirement | 100 - 240 VAC, 1.8 A | | Power Output | 48 VDC, 5 A | | Maximum Power Consumption | 150 W | | ESD Protection | 15 kV | | | | Controls | 4 x Input control button
4 x Output control button
1 x IR control
1 x Take
1 x Clear | | Indicators | 1 x LCD output status
1 x LED power | | Compatibility | DIGIB-EMT IR transmitter
DIGIB-EYE IR receiver
DIGI-HD70-R A/V receiver
DIGI-HDE-R A/V, IR, and RS-232 receiver
DIGI-HD60C-R A/V, IR, RS-232, and PoE receiver | | Regulations | FLX-44: CE, RoHS
Power supply: UL, FCC, CCC, CE, and RoHS | | Enclosure | Painted Aluminum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 20 - 90% non-condensing | | Dimensions | 17.1 x 9.3 x 1.7" (43.5 x 23.5 x 4.4 cm) | | Weight | 4.5 lb (2.0 kg) | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 21.1 x 13.3 x 5.8" |
