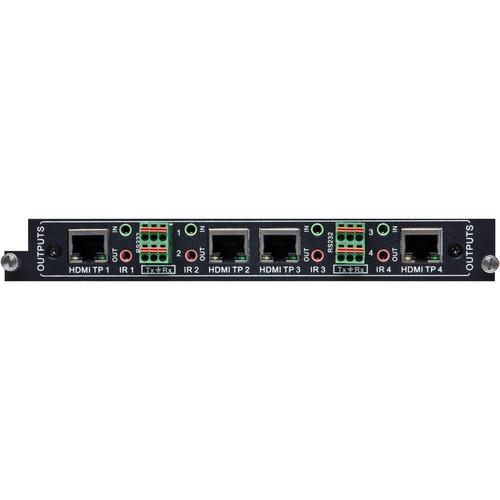

Product description The Intelix FLX-BO4 HDBaseT Output Card for FLX Series Flexible Card-Based Matrix Switcher takes advantage of HDBaseT outputs to allow sources from remote locations from up to 70m away to be routed to any of the available outputs, utilizing standard CAT5e cable with a TIA-568B crimp. The RS-232 and wide-band IR connections for each input allow bi-directional control signals at the equipment rack to interface with source equipment when used with the DIGI-HD60C-R or DIGI-HDE-R HDBaseT Receivers (sold separately). The DIGIB-MIT IR Emitter and DIGI-EYE IR Receiver (sold separately) are required for IR control functionality. - HDBaseT output card for FLX-8X8A, FLX-88, FLX-1616, and FLX-3232 Matrix Switchers
- Four HDBaseT RJ45 outputs
- RS-232 and bi-directional IR embedding
- Can be used with DIGI-HD60C-S, DIGI-HD70-S or DIGI-HDE-S to transmit signal to remote displays
- Supports HDBaseT Specifications; HDMI and HDCP compliance
- Applications:
Designed for use with FLX-8X8A, FLX-88, FLX-1616, FLX-3232 Matrix Switchers
Suitable for installations requiring long HDMI runs and remote control of source and destination devices
Transmit signals from remote sources, 1080p up to 229.7' (70m) In the Box Intelix FLX-BO4 HDBaseT Output Card for FLX Series Flexible Card-Based Matrix Switcher Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix FLX-BO4 HDBaseT Output Card for FLX Series Flexible Card-Based Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix FLX-BO4 Specs | Compatibility | FLX-8X8A, FLX-88, FLX-1616, and FLX-3232 Matrix Switcher
DIGI-HD60C-R and DIGI-HDE-R HDBaseT Receiver (A/V and control)
DIGI-HD70-R HDBaseT Receiver (A/V only)
DIGIB-EMT IR Emitter DIGIB-EYE IR Receiver | | I/O Connections | HDBaseT Port: 4 x 8P8C port (shielded RJ-45)
IR Input: 4 x 3.5 mm TS
IR Output: 4 x 3.5 mm TRS
RS-232: 4 x 3-pole Euroblock connectors DIGIB-MIT IR Emitter and DIGI-EYE IR Receiver (sold separately) are required for IR control functionality. | | Video Compatibility | Maximum At 229.7' (70.0 m): Deep color 36 / 30 / 24 bit at 1080p
Maximum At 131.2' (40.0 m): Deep color 48 bit at 1080p, 3D | | Compliance | Video: HDMI and HDCP | | Embedded Audio | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | Signal | Maximum Signal Distance: 229.7' (70.0 m) | | Cable Requirements | Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern | | Bandwidth | 10.2 Gb/s | | Gain | 0 to 10 dB at 100 MHz | | Resolution | 800 x 600 to 1920 x 1200 | | SNR | >70 dB at 100 MHz over 328.1' (100.0 m) | | Return Loss | <-30 dB at 5 kHz | | Total Harmonic Distortion (THD) | <0.005% at 1 kHz | | Signal Level | Maximum: <0.3 V Minimum: 1.45 Vpp | | Differential Phase Error | ±10° at 135 MHz over 328.1' (100.0 m) | | Construction | Plug-in card with keyed black metal plate | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 140°F (-10 to 60°C) | | Humidity | Operating & Storage: 20 to 90%, non-condensing | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.38 x 3.88 x 1.19" |
