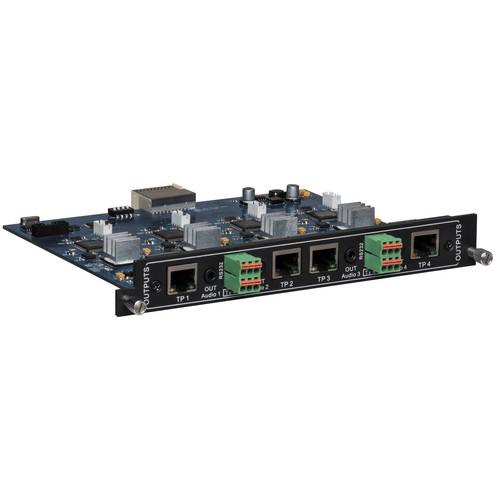

User Manual for Intelix FLX-BO4A 4 Port HDBaseT Output Card with Audio De-Embedding for FLX Series Switchers Click to enlarge the picture
Contents of the user manual for the Intelix FLX-BO4A 4 Port HDBaseT Output
- Product category: Router, Switcher & Patchbay Accessories Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Router, Switcher & Patchbay Accessories
|
User manual for the Intelix FLX-BO4A 4 Port HDBaseT Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The Intelix FLX-BO4A HDBaseT Output Card with Audio De-Embedding is designed for use with the FLX-88, FLX-1616, and FLX-3232 Card Based Switchers and allows you to customize the matrix based on your unique application. Its 4 HDBaseT outputs are suitable for installations requiring long HDMI runs and remote control of source and destination devices. It allows you to transmit 1080p signals up to 230' to remote sources.
The output card takes advantage of HDBaseT outputs connect any source device to a remote display, up to 230' (70m) away, utilizing a standard CAT5e cable. The bi-directional RS232 connections for each output allow control signals at the equipment rack to control displays connected to compatible receivers. The output card also includes the ability to extract stereo audio from the HDMI signal. The stereo analog audio is output to 3.5mm jack. Also, this unit incorporates advanced EDID handling features that ensure video and audio compatibility such as full copy and hybrid copy functions. - HDBaseT output card with audio de-embedding
- For FLX-88, FLX-1616, FLX-3232 Card Based Switchers
- Four HDBaseT extender outputs
- Embedded IR and RS232 transmission
- Stereo analog audio de-embedding on each output
- Can be used with DIGI-HD60C-S, DIGI-HD70-S or DIGI-HDE-S Transmitters to transmit signal to remote displays 1
Please Note: Sold separately. close - Supports HDBaseT specifications; HDMI and HDCP compliance
- For installations requiring long HDMI runs and remote control of source & destination devices
- Transmit signal from remote sources: 1080p up to 230' (70m)
UPC: 601446000748 In the Box Intelix FLX-BO4A 4 Port HDBaseT Output Card with Audio De-Embedding for FLX Series Switchers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix FLX-BO4A 4 Port HDBaseT Output Card with Audio De-Embedding for FLX Series Switchers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix FLX-BO4A Specs | | | Ports | 4 x HDBaseT Ports (RJ45)
4 x 3.5 mm Analog Audio Ports
4 x 3-pole Euroblock Connectors | | | | Video Compatibility | Deep Color 36/30/24-bit, 1080p at 230' (70m)
Deep Color 48-bit at 1080p, 3D at 131' (40 m) | | Compliance | HDMI and HDCP | | Embedded Audio | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | | | Performance | Unbalanced Stereo Audio, -10 dBV nominal | | Pin Configurations | TIP - Left (+), RING - Right (+), SLEEVE - Ground | | Output Impedance | 50 Ω | | Frequency Response | 20 Hz to 20 kHz, ±0.5 dB | | THD + Noise | < 0.002% from 20 Hz to 20 kHz | | | | Maximum Distance | 230' (70 m) | | Cable Requirements | Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern | | Bandwidth | 10.2 Gb/s | | Gain | 0 to 10 dB at 100 MHz | | Resolution | 800 x 600 to 1920 x 1200 | | Signal to Noise Ratio | > 70 dB at 100 MHz over 330' (100 m) | | Return Loss | < -30 dB at 5 kHz | | Total Harmonic Distortion (THD) | < 0.005% at 1 kHz | | Signal Level | < 0.3 V to 1.45 Vp-p | | Differential Phase Error | ±10° at 135 MHz over 330' (100 m) | | | | Construction | Plug-in card with keyed black metal plate | | Operating Temperature | +32 to +104° F (0 to +40° C) | | Operating Humidity | 20 to 90%, Non-condensing | | Storage Temperature | +14 to +140°F (-10 to +60°C) | | Storage Humidity | 20 to 90%, Non-condensing |
