User Manual for Intelix FLX-HO4A 4 Port HDMI Output Card with Audio De-embedding for FLX Series Switchers Click to enlarge the picture
Contents of the user manual for the Intelix FLX-HO4A 4 Port HDMI Output
- Product category: Router, Switcher & Patchbay Accessories Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Router, Switcher & Patchbay Accessories
|
User manual for the Intelix FLX-HO4A 4 Port HDMI Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|

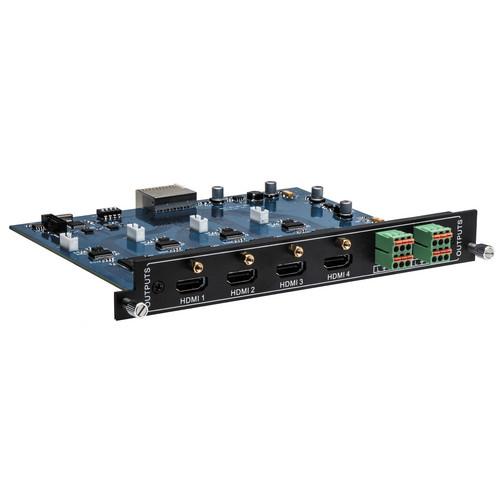

Product description The Intelix FLX-HO4A 4 Port HDMI Output Card with Audio De-embedding is designed for use with the FLX-88, FLX-1616, and FLX-3232 Card Based Switchers and allows you to customize the matrix based on your unique application. Its 4 HDMI outputs support high resolution video signals, including 3D and 48-bit deep color at 1080p. Additionally, audio signals from stereo up to 7.1 audio streams will pass through the matrix to supported outputs.
The card also includes the ability to extract stereo audio signal from HDMI. The external audio output is on phoenix terminal blocks. The card features advanced EDID handling that ensures video and audio compatibility, such as full copy and hybrid copy functions. It is suitable for corporate facilities, houses of worship, schools, conference centers, and any other application requiring HDMI connectivity. - HDMI output card with audio de-embedding for FLX-88, FLX-1616, FLX-3232 Card Based Switchers
- Stereo analog audio de-embedding on each output
- Used in corporate facilities, houses of worship, schools, conference centers, and any other application requiring HDMI connectivity
UPC: 601446000731 In the Box Intelix FLX-HO4A 4 Port HDMI Output Card with Audio De-embedding for FLX Series Switchers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix FLX-HO4A 4 Port HDMI Output Card with Audio De-embedding for FLX Series Switchers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix FLX-HO4A Specs | | | HDMI Output | 4 x HDMI Type A | | Analog Audio Output Connectors | 4 x 3-pole Euroblock Connectors | | Video Compatibility | Deep Color 48/36/30/24-bit at 1080p, 3D | | Compliance | HDMI and HDCP (Selectable) | | Audio Capability | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | Analog to Digital Converter | PCM 2 Channel 48 kHz | | | | Performance | Unbalanced Stereo Audio, -10 dBV nominal | | Pin Configuration | Left (+), Ground, Right (+) | | Output Impedance | 50 Ω | | Frequency Response | 20 Hz to 20 kHz, ±0.5 dB | | THD + Noise | < 0.002% from 20 Hz to 20 kHz | | | | Bandwidth | 340 MHz (10.2 Gb/s) | | Gain | 0 dB | | Resolution | Up to 1920 x 1200 | | Crosstalk | < -50 dB at 5 kHz | | Input Level | TMDS 2.9/3.3 V | | Compatibility | FLX-88, FLX-1616, FLX-3232 matrix switchers Sold separately. | | EDID | 4 x 2-position DIP switch (one per output) | | | | Construction | Plug-in card with keyed black metal plate | | Operating Temperature | +32 to +104° F (0 to +40°C) | | Operating Humidity | 20 to 90%, Non-condensing | | Storage Temperature | +14 to +140°F (-10 to +60°C) | | Storage Humidity | 20 to 90%, Non-condensing | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.4 x 7.9 x 2.8" |
