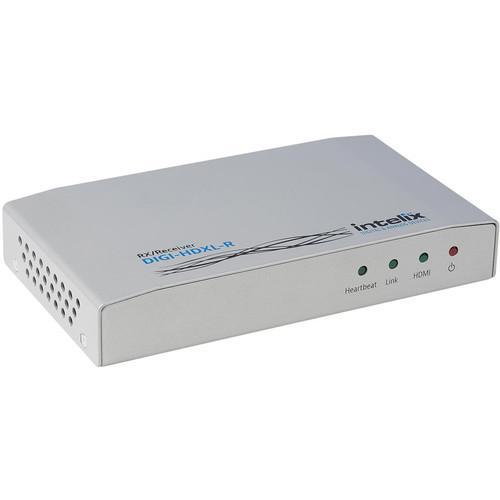

User Manual for Intelix HDMI Extender Receiver Unit over HDBaseT with Ethernet, RS232, Bi-Directional IR, and PoE Click to enlarge the picture
Contents of the user manual for the Intelix HDMI Extender Receiver Unit over
- Product category: Video Extenders & Repeaters Intelix
- Brand: Intelix

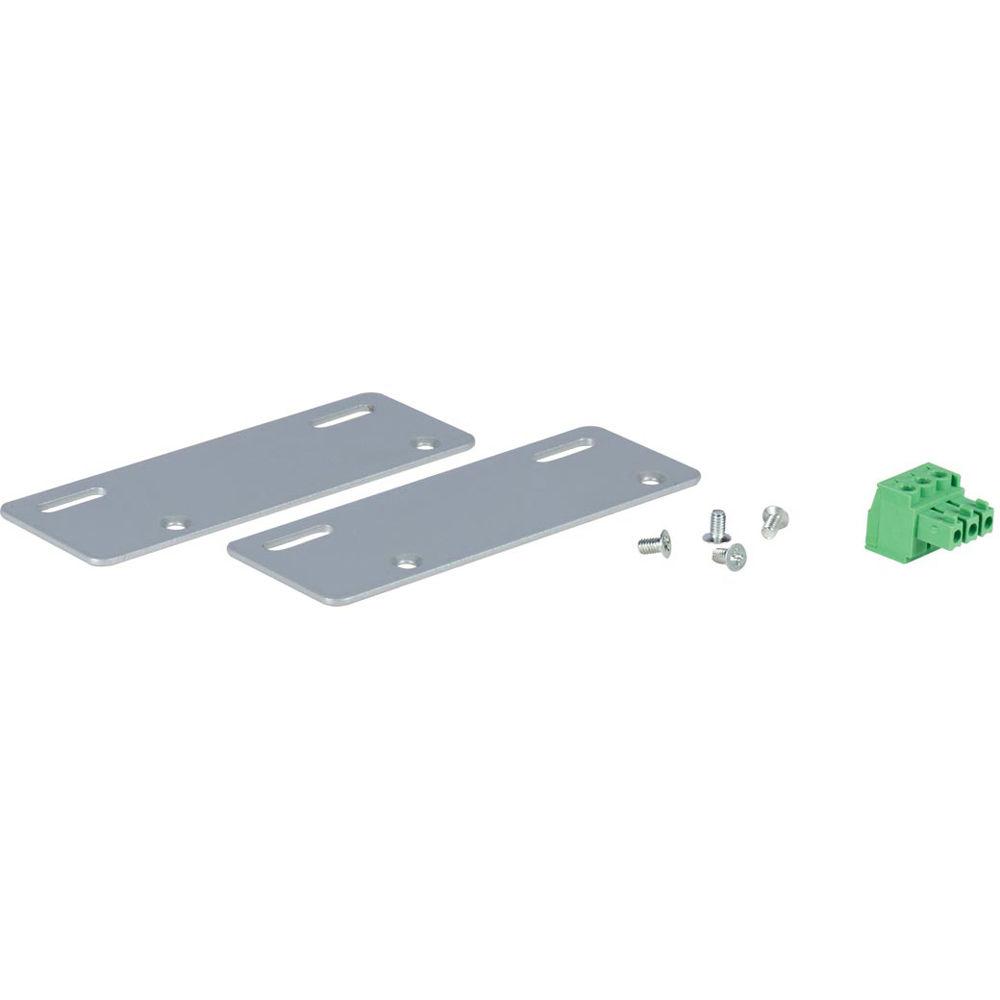

- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Video Extenders & Repeaters
 |
User manual for the Intelix HDMI Extender Receiver Unit over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|

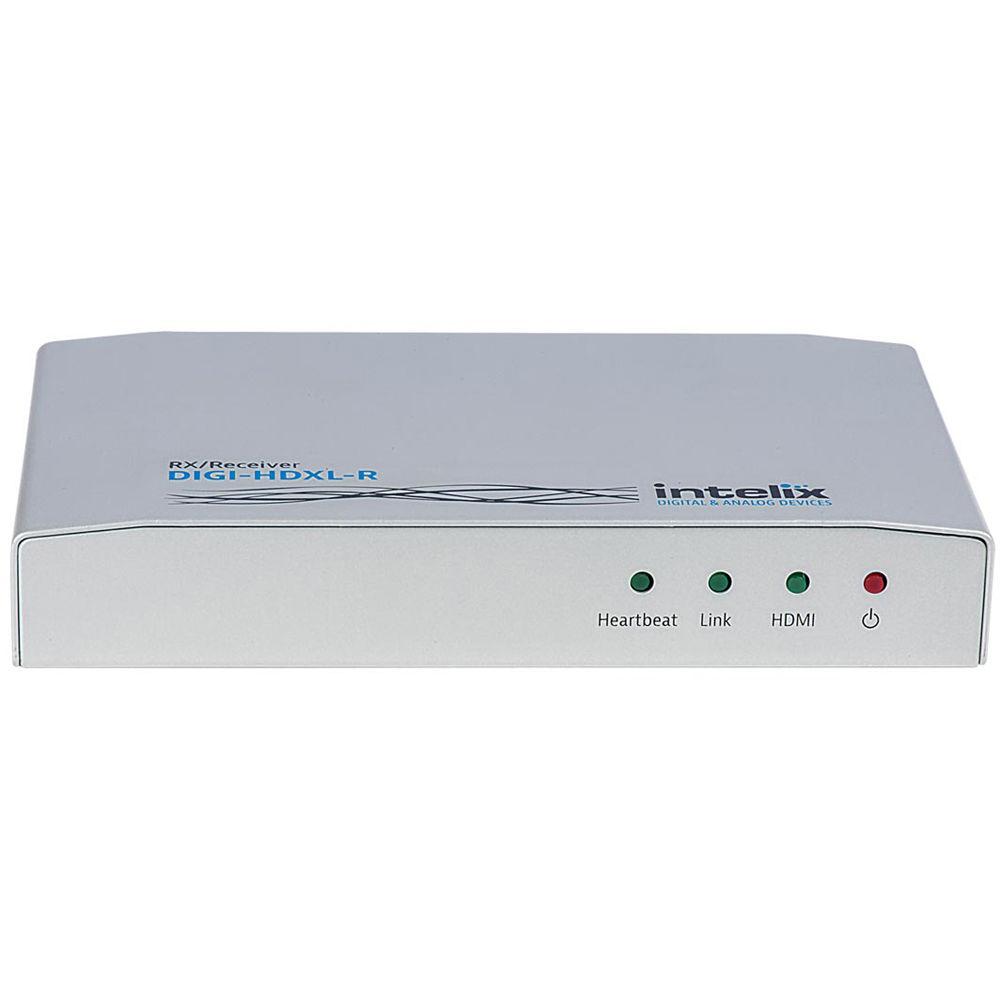

Product description Provided by third party: The Intelix DIGI-HDXL-R extends HDMI over a single cable by incorporating HDBaseT technology. The DIGI-HDXL-R supports 1080p video signals, including multichannel audio. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Key features of the extender combine local HDMI output on the transmitter, power over Ethernet (PoE), bidirectional IR, bidirectional RS-232, and Ethernet pass-through with a 2-port network switch on the receiver.
Flexible power design allows the DIGI-HDXL extenders to be powered at either the TX or RX end, and only one power supply is required. The bidirectional wideband IR, bidirectional RS-232, and Ethernet pass-through capabilities make the DIGI-HDXL compatible with many control systems. The two-port network switch on the DIGI-HDXL-R allows a second device to share the 100BaseT Ethernet pass-through connection without adding additional hardware to the installation.
- Key Features
-
- Wide HDMI transmission
- Two-port Ethernet switch, locking power connector
- Supports 1080p and audio formats up to 7.1 audio
- Supports HDBaseT, CEC specifications, HDMI/HDCP compliant
- Built-in surge protection, diagnostic LEDs
- Bidirectional wideband IR, RS-232 and 100BaseT Ethernet pass-through
Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix HDMI Extender Receiver Unit over HDBaseT with Ethernet, RS232, Bi-Directional IR, and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix DIGI-HDXL-R Specs | | | Device Type | Video/audio/infrared/serial/network extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Max Resolution | 1080p | | Max Transfer Distance | 492 ft | | Features | 7.1 channel audio support, HDBaseT technology, metal housing, Dolby TrueHD support, DTS-HD Master Audio support, 15KV Surge protection | | Compliant Standards | IEEE 802.3af | | | | Interfaces | 1 x HDMI (output) - Type A
1 x IrDA (input) - mini jack
1 x IrDA (output) - mini jack

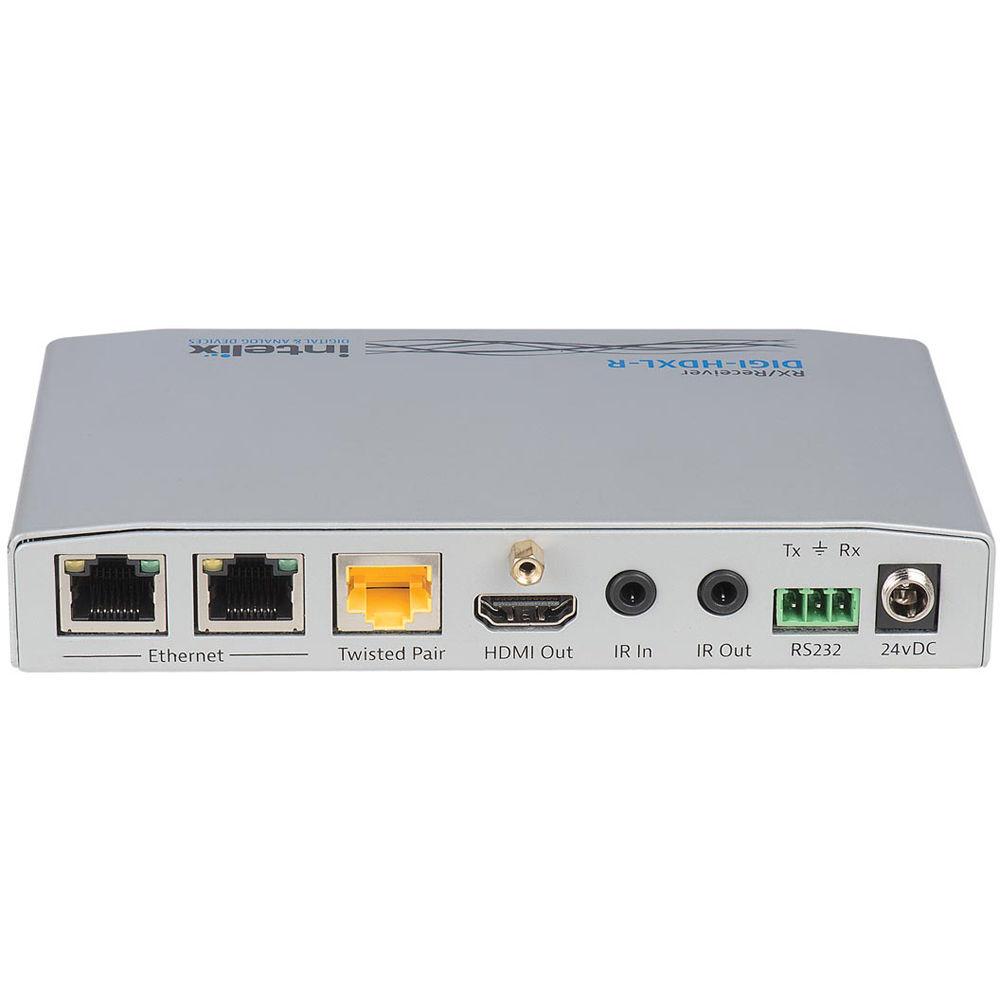

1 x RS-232
2 x Ethernet 100Base-TX - RJ-45
1 x HDBaseT - RJ-45 | | | | Power Over Ethernet (PoE) | PoE | | Power Device | External power adapter | | Power Consumption Operational | 22 Watt | | | | Width | 5.9 in | | Depth | 3.3 in | | Height | 0.9 in | | Weight | 1.1 lbs | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 32
