User Manual for Intelix HDMI Extender Transmitter Unit over HDBaseT with Ethernet, RS232, Bi-Directional IR, and PoE Click to enlarge the picture
Contents of the user manual for the Intelix HDMI Extender Transmitter Unit over
- Product category: Video Extenders & Repeaters Intelix
- Brand: Intelix

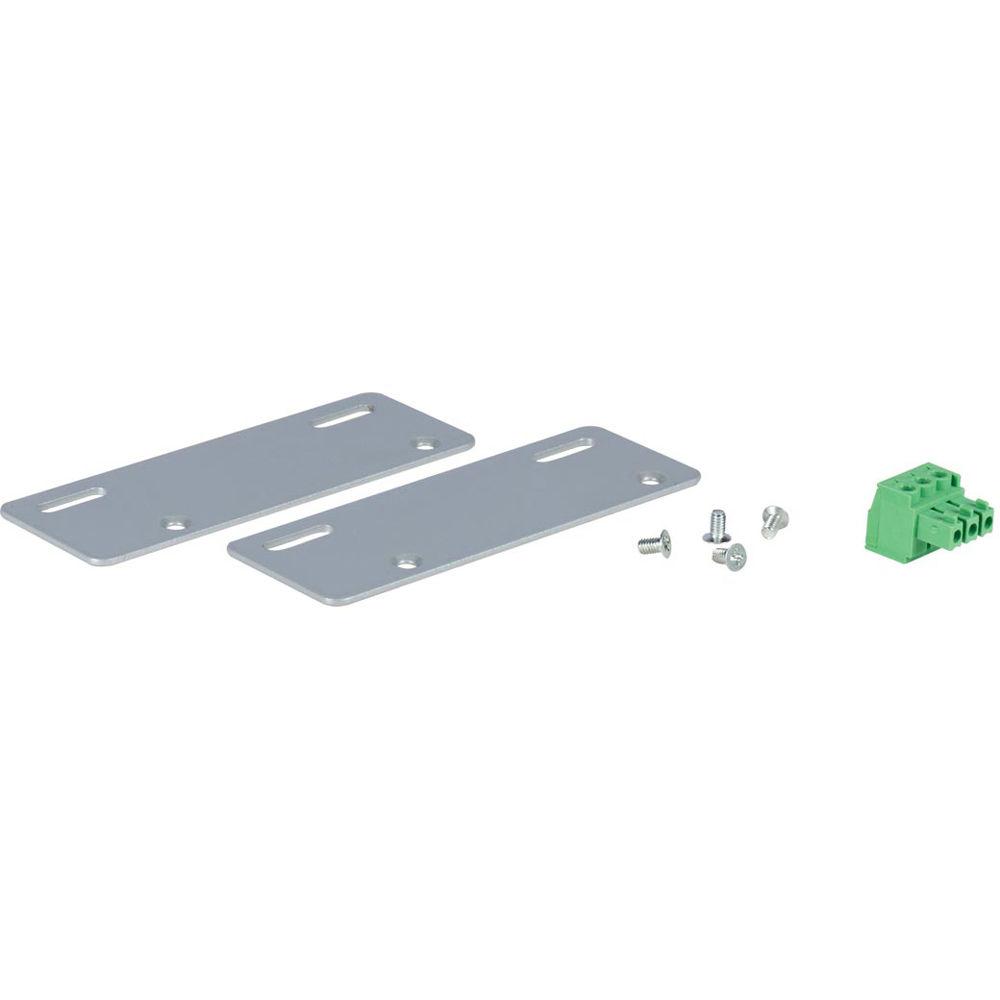

- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Video Extenders & Repeaters
 |
User manual for the Intelix HDMI Extender Transmitter Unit over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|

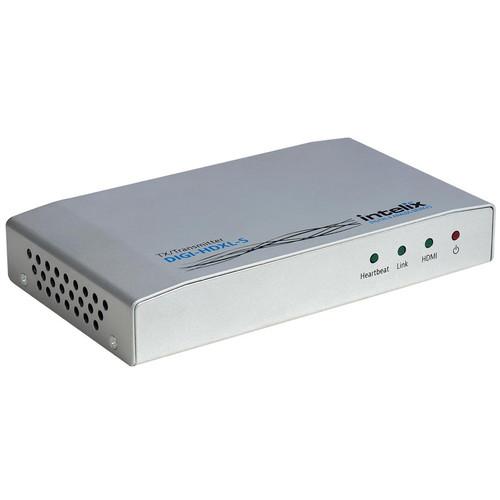

Product description Provided by third party: The Intelix DIGI-HDXL-S extends HDMI over a single cable by incorporating HDBaseT technology. The DIGI-HDXL-S supports 1080p video signals up to 150 meters (492 feet) including multichannel audio. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Key features of the new extender series include local HDMI output on the transmitter, power over Ethernet (PoE), bidirectional IR, bidirectional RS232, and Ethernet pass-through with a 2-port network switch on the receiver.
The HDMI distribution chip in the DIGI-HDXL-S sends one signal to the HDBaseT output and the other signal to the local HDMI output for a local display. This new feature also allows HDMI source devices that do not support DDC clock stretching (HDMI 1.2 and below) to be extended over the HDBaseT link without issues. Flexible power design allows the DIGI-HDXL series extenders to be powered at either the TX or RX end, and only one power supply is required. The bidirectional wideband IR, bidirectional RS232, and Ethernet pass-through capabilities make the DIGI-HDXL compatible with most control systems.
The DIGI-HDXL series extenders are only compatible with Intelix XL-series HDBaseT product offerings. An HDBaseT link will not be established with other HDBaseT products.
- Key Features
-
- HDMI transmission up to 150m (492 ft)
- HDMI loop out; locking power connector
- Supports 1080P/24bit and audio formats up to 7.1 audio
- Supports HDBaseT, CEC specifications; HDMI/HDCP compliant
- Built-in surge protection, diagnostic LEDs
- Bidirectional Wideband IR, RS232 and 100BaseT Ethernet pass-through
- PoE (Power over Ethernet) - power from RX
Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix HDMI Extender Transmitter Unit over HDBaseT with Ethernet, RS232, Bi-Directional IR, and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

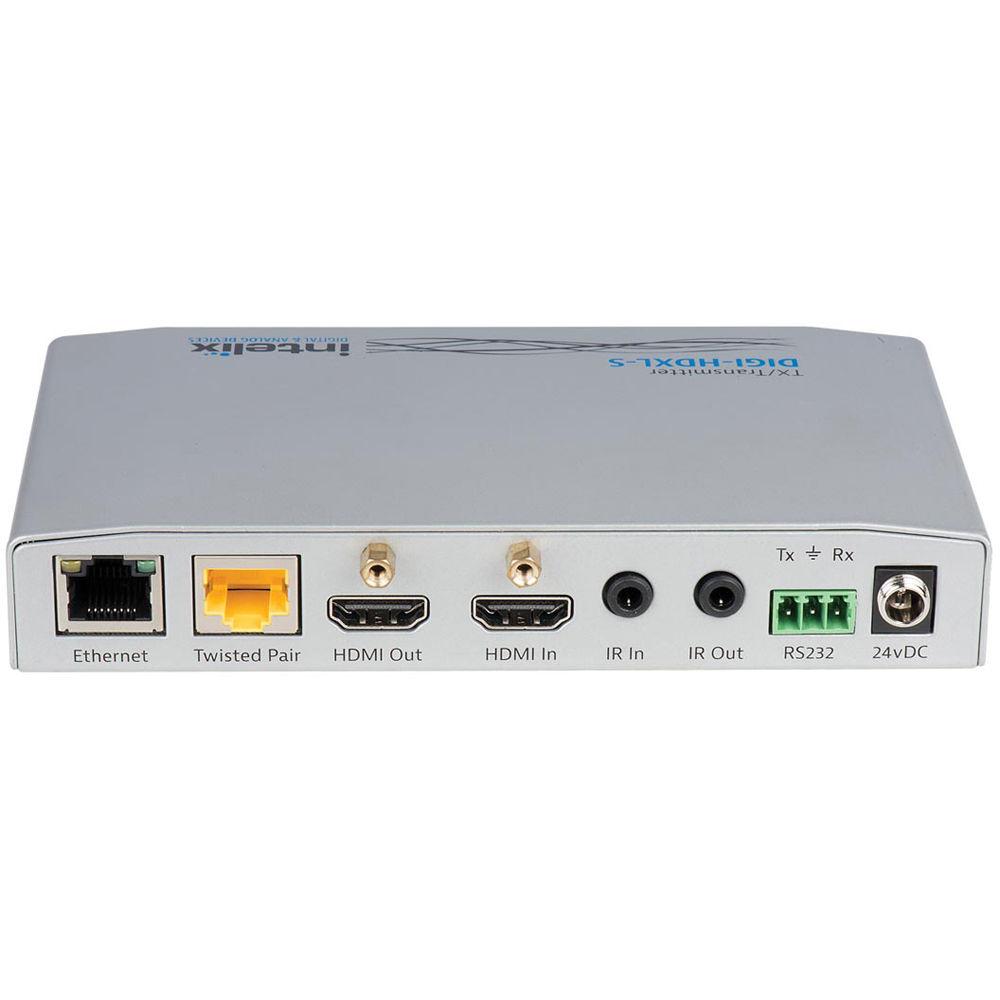

Technical parametersIntelix DIGI-HDXL-S Specs | | | Device Type | Video/audio/infrared/serial/network extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | 100Mb LAN, HDMI, HDBaseT | | Max Resolution | 1080p | | Max Transfer Distance | 492 ft | | Status Indicators | Power, status, link/activity, video | | Features | Surge protection, HDCP compliant, 7.1 channel audio support, 15KV ESD Protector, Dolby TrueHD support, DTS-HD Master Audio support, 24-bit Deep Color support | | | | Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A receptacle
1 x HDMI (output) - 19 pin HDMI Type A receptacle
1 x HDBaseT - RJ-45 female
1 x RS-232 - 3 pin terminal block
1 x network (pass-through) - RJ-45 female
1 x IR (input)
1 x IR (output) | | | | Compliant Standards | RoHS, CEC, IEEE 802.3af | | | | Power Device | Power injector | | Power Consumption Operational | 22 Watt | | | | Width | 5.9 in | | Depth | 3.3 in | | Height | 0.9 in | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 32
