Product description The HDMI/HDBaseT 6x4 Matrix Switcher from Intelix is designed for use in conference rooms that have two in-room inputs extended to the rack, a few local sources at the rack, two discrete displays, a VTC codec, and a recorder. It features four HDMI inputs, two of which allow analog audio embedding on balanced inputs. Two HDBaseT inputs are also provided, and support 1080p HDMI video with audio, wide-band IR tunneling (for IR control of sources), RS-232 routing, and HDCP up to 196'. Each HDBaseT input port supplies power to the attached extender, eliminating the need for a power supply at the source end. All inputs feature selectable HDCP compliance and advanced EDID handling to address challenging system design parameters.
The switcher also features HDBaseT twisted pair extension for each output, and simultaneous HDMI on the first two outputs, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. Each output features a stereo audio de-embedder for balanced connection to amplifiers or DSPs. Audio outputs feature breakaway capabilities, allowing audio from the sources to be sent to any output. Each HDBaseT output port supplies power to the attached extender, eliminating the need for a power supply at the display end.

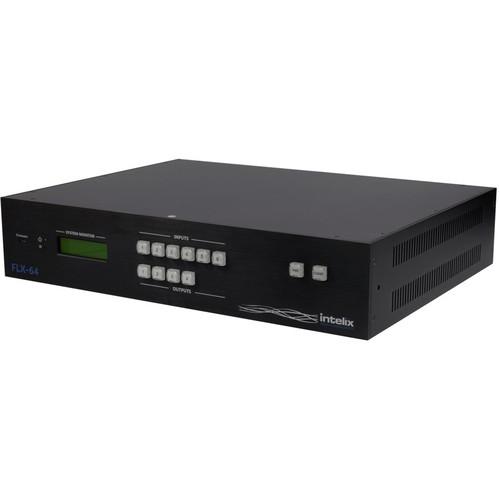

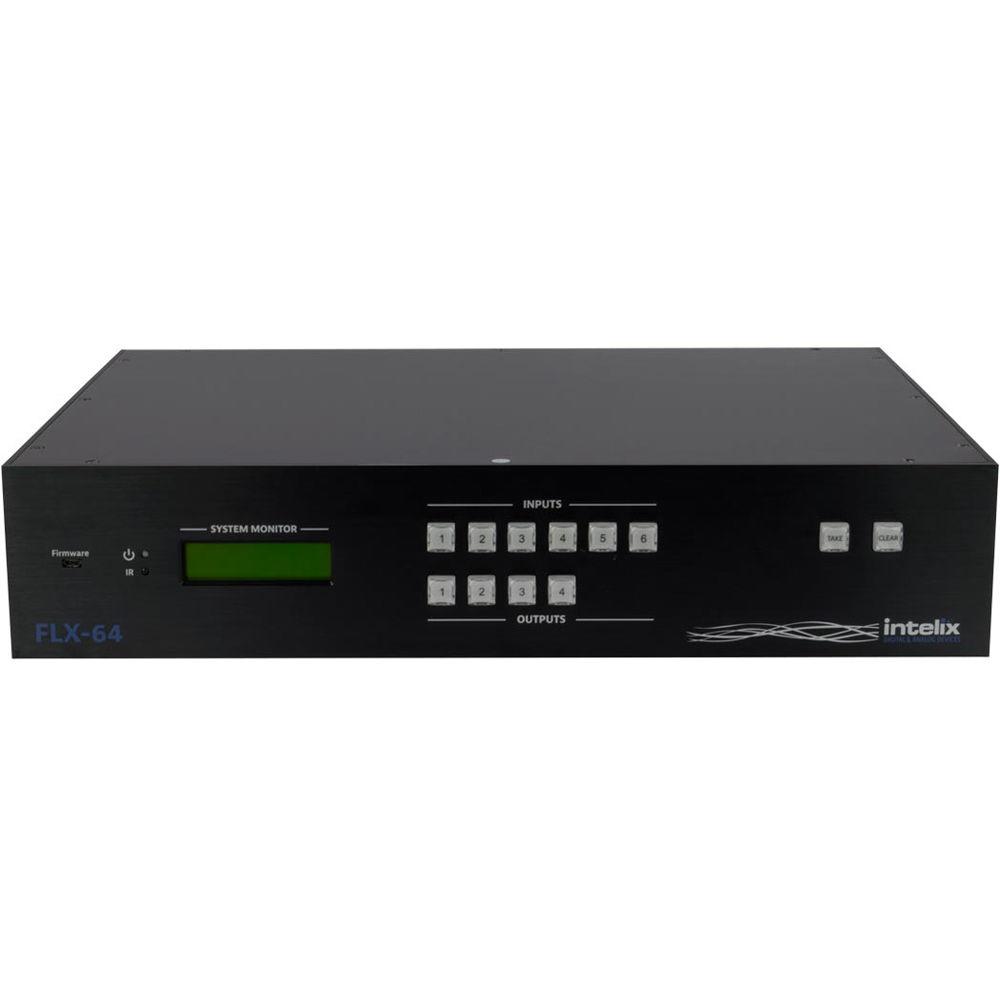

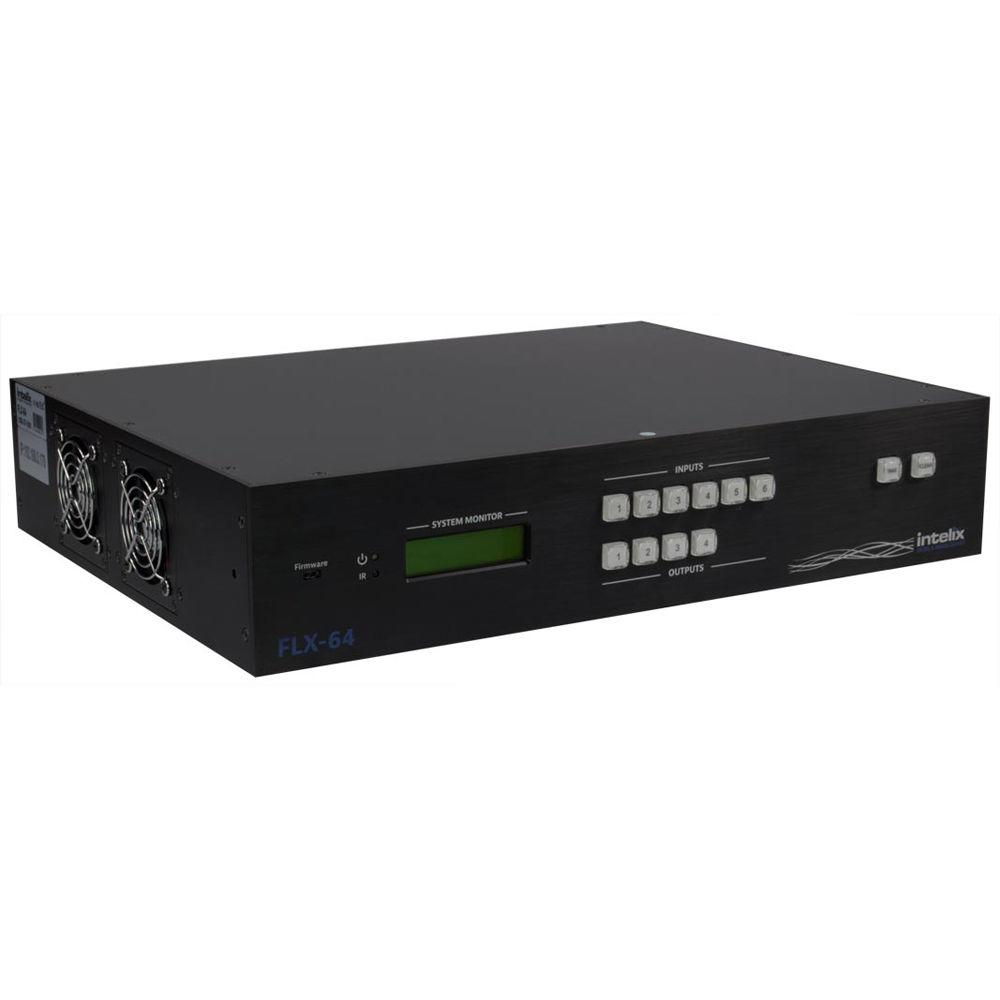

The FLX-64 can be controlled via front panel buttons, front panel IR, external IR, remote IR through HDBaseT extenders, RS-232, and Ethernet. Clear button caps provide legible text on the front panel, which can be customized for each installation. The matrix includes a simple IR remote control to allow IR switching. This IR remote control can be learned into universal remotes and IR-based control systems. An IR All In port is provided, which allows one IR connection to control all four remote displays.
The matrix also features a full command set for RS-232 and Ethernet control with third-party control systems, plus control and system configuration via a web browser. RS-232 commands to remote displays can also be embedded in the control stream through the matrix from both the RS-232 and Ethernet control ports, which will reduce the number of serial ports required for the control system. Compatibility - Transmitters (AV and Control): DIGI-P52, DIGI-P123
Transmitters (AV and Power): DIGI-HD60-S
Transmitters (AV, Control, and Power): AS-1H1DP, AS-1H1DP-WP, AS-1H1V, AS-1H1V-WP, AS-2H, AS-2H-WP, DIGI-HD60C-S, DIGI-HDX-S
Receivers (AV and Power): DIGI-HD60-R
Receivers (AV, Control, and Power): DIGI-HD60C-R, DIGI-HDX-R General - Four HDMI inputs, two with audio embedding, and two HDBaseT Lite inputs with PoE
- Four HDBaseT Lite outputs with PoE and two mirrored HDMI outputs
- Maximum 196' extender distance
- Audio de-embedding on each output, including breakaway
- Front panel, IR, TCP/IP, and RS-232 control
- IR and RS-232 tunneling over HDBaseT (inputs and outputs)
- Control page and configuration accessible from web browser
Applications - True matrix routing and distribution of HDMI signals
- A/V routing in environments with demanding control system
- Suitable for houses of worship and corporate videoconferencing
In the Box Intelix HDMI/HDBaseT 6x4 Matrix Switcher IR Remote IR Eye Rack-Mounting Ears with Screws Rubber Feet Power Cable (US) Straight-Through DE9 (M) to RS-232 (F) Cable 6 x 3.5mm TRS to TR IR Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix HDMI HDBaseT 6x4 Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

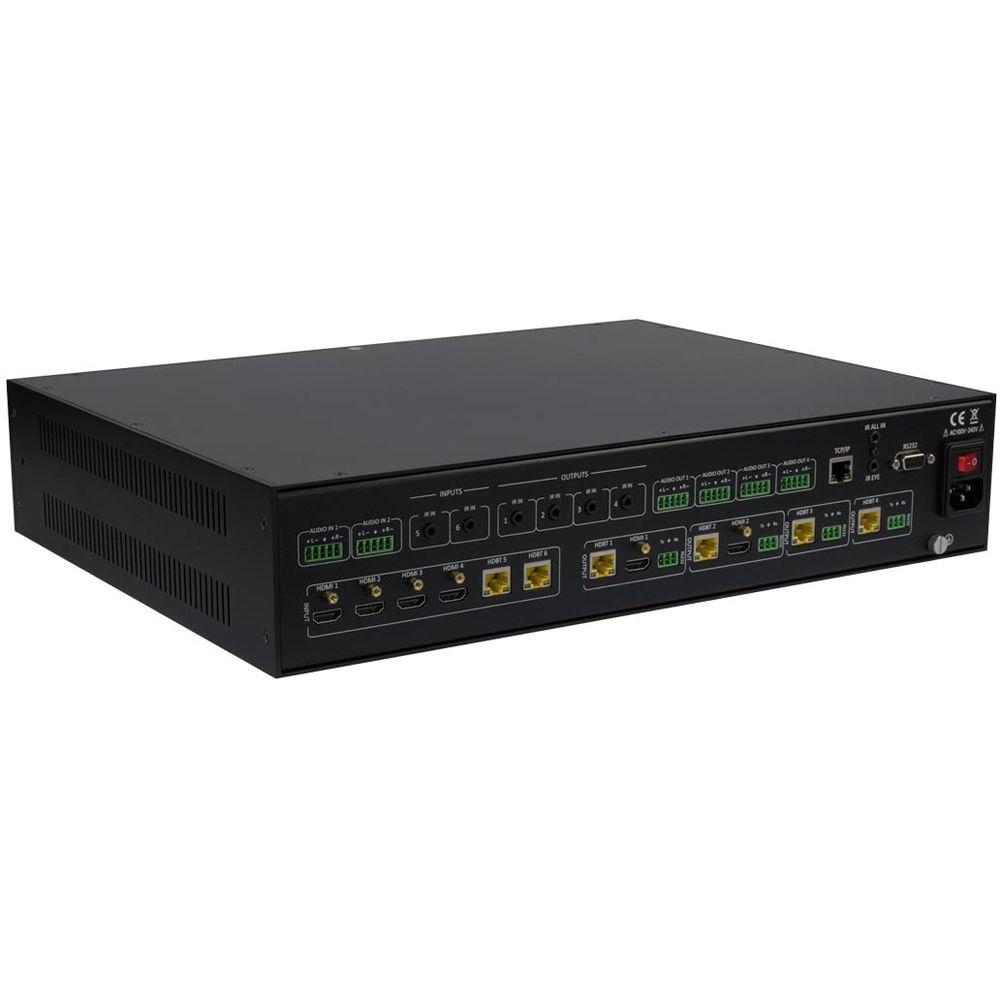

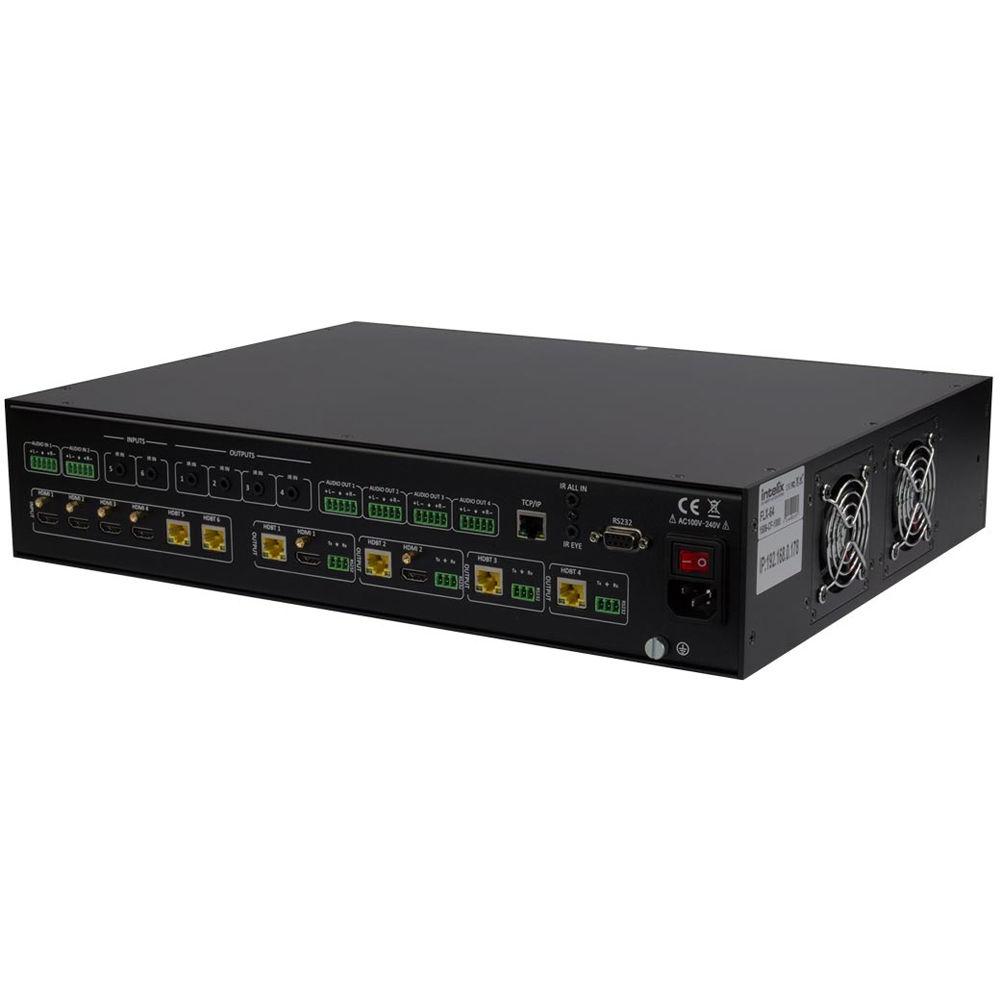

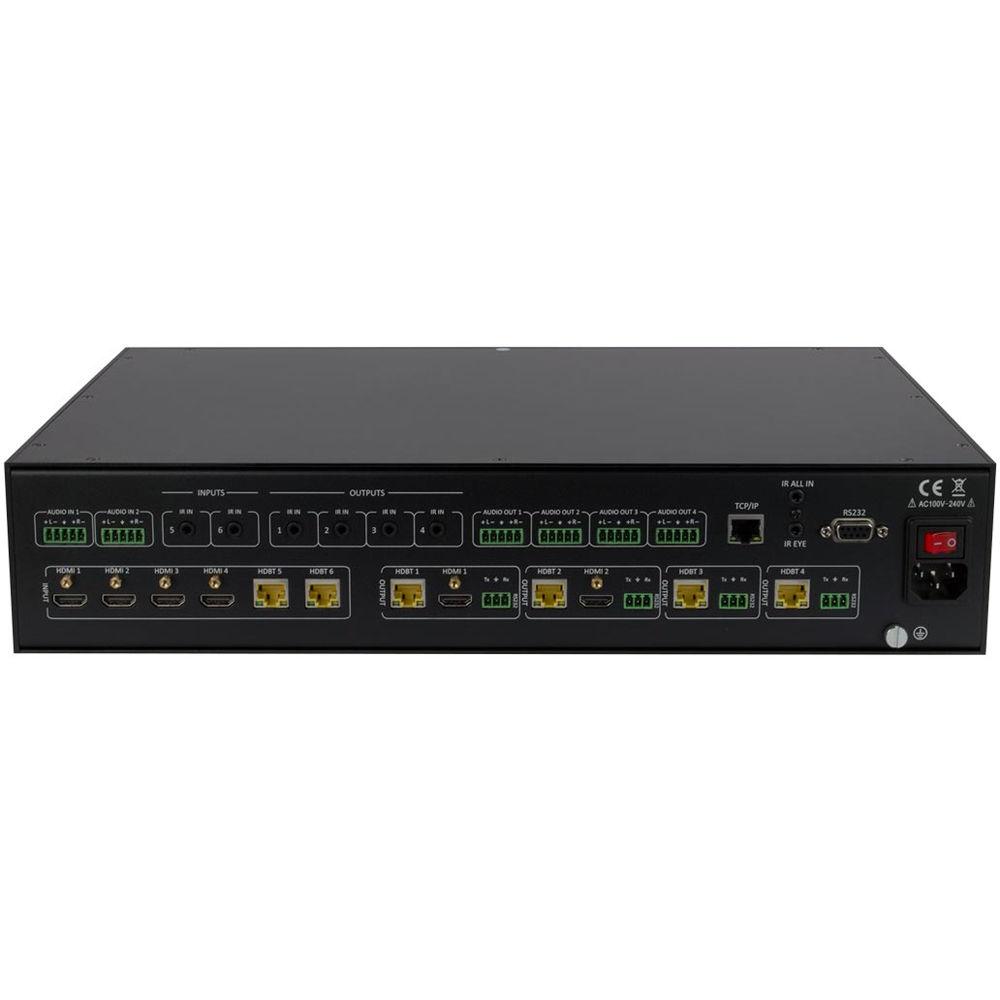

Technical parametersIntelix FLX-64 Specs | Input/Output Connections | Inputs
4 x HDMI Type A (1 to 4)
2 x HDBaseT 8P8C, shielded RJ45, female (5 & 6)
2 x Balanced analog audio, 5-pole/3.5 mm Euroblock (1 & 2):
2 x IR tunnel, 3.5 mm TRS (5 & 6):
Outputs
2 x HDMI Type A (1 & 2)
4 x HDBaseT 8P8C, shielded RJ45, female
4 x Balanced analog audio, 5-pole/3.5 mm Euroblock
4 x IR, 3.5 mm TRS (1 to 4):
4 x RS-232 tunnel, 3-pole/3.5 mm Euroblock
IR All In: 1 x 3.5 mm TRS
IR Eye: 1 x 3.5 mm TRS
TCP/IP: 1 x RJ45 shielded, female, 8P8C
RS-232: 1 x DE9, female
AC Power Inlet: IEC C14 | | Video Resolutions | Maximum Video Compatibility
At 197' / 60 m: Deep Color 36/30/24-bit @ 1080p
At 115' / 35 m: Deep Color 48-bit @ 1080p and 3D
Maximum Passive HDMI Cable Distance: 16.4' / 5 m
Video Compliance: HDMI and HDCP
Embedded Audio: Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Input DDC Signal: 5.0 Vpp (TTL)
Input Video Signal: 0.5 to 1.0 Vpp
Analog Audio Pinout: Left +, Left -, Ground, Right +, Right -
TCP/IP Speed: 100BaseT
RS232 Baud Rate: 9600, 19200, 38400, and 115200 baud
IR Carrier Frequency Range: 33 to 55 kHz at 5 V | | HDBaseT Signal Characteristics | Maximum Distance: 197' / 60 m
Cable Requirements: Continuous solid core Cat5e/6 or greater with TIA/EIA-568B crimp pattern
Bandwidth: 10.2 Gb/s
Gain: 0 to 10 dB at 100 MHz
SNR: > 70 dB at 100 MHz over 328' / 100 m
Return Loss: < -30 dB at 5 kHz
Total Harmonic Distortion (THD): < 0.005% at 1 kHz
Min-Max Signal Level: < 0.3 to 1.45 Vpp
Differential Phase Error: ±10° at 135 MHz over 328' / 100 m | | Frequency Range | IR Carrier: 33 to 55 kHz at 5 V | | Ethernet | 100BaseT | | Baud Rate (RS-232) | 9600 baud | | Operating Temperature | 32 to 120°F / 0 to 48°C | | Operating Humidity | 10 to 90%, Non-condensing | | Storage Temperature | 14 to 158°F / -20 to 70°C | | Storage Humidity | 10 to 85%, Non-condensing | | Power Input | 100 to 240 VAC, 50 to 60 Hz, 0.8 A | | Power Output | 24 VDC, 1.25 A | | Power Consumption | 200 W, maximum | | ESD Protection | 15 kV | | Regulatory | Unit: FCC, CE, RoHS
Power Supply: CE, RoHS | | Dimensions (H x W x D) | 3.5 x 17.2 x 13.1" (8.9 x 44.0 x 33.2 cm) |
