User Manual for Intelix HDMI VGA Auto-Switcher with VGA Scaling, HDMI & HDBaseT Output Click to enlarge the picture
Contents of the user manual for the Intelix HDMI VGA Auto-Switcher with VGA
- Product category: Routers & Switchers Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Routers & Switchers
 |
User manual for the Intelix HDMI VGA Auto-Switcher with VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|

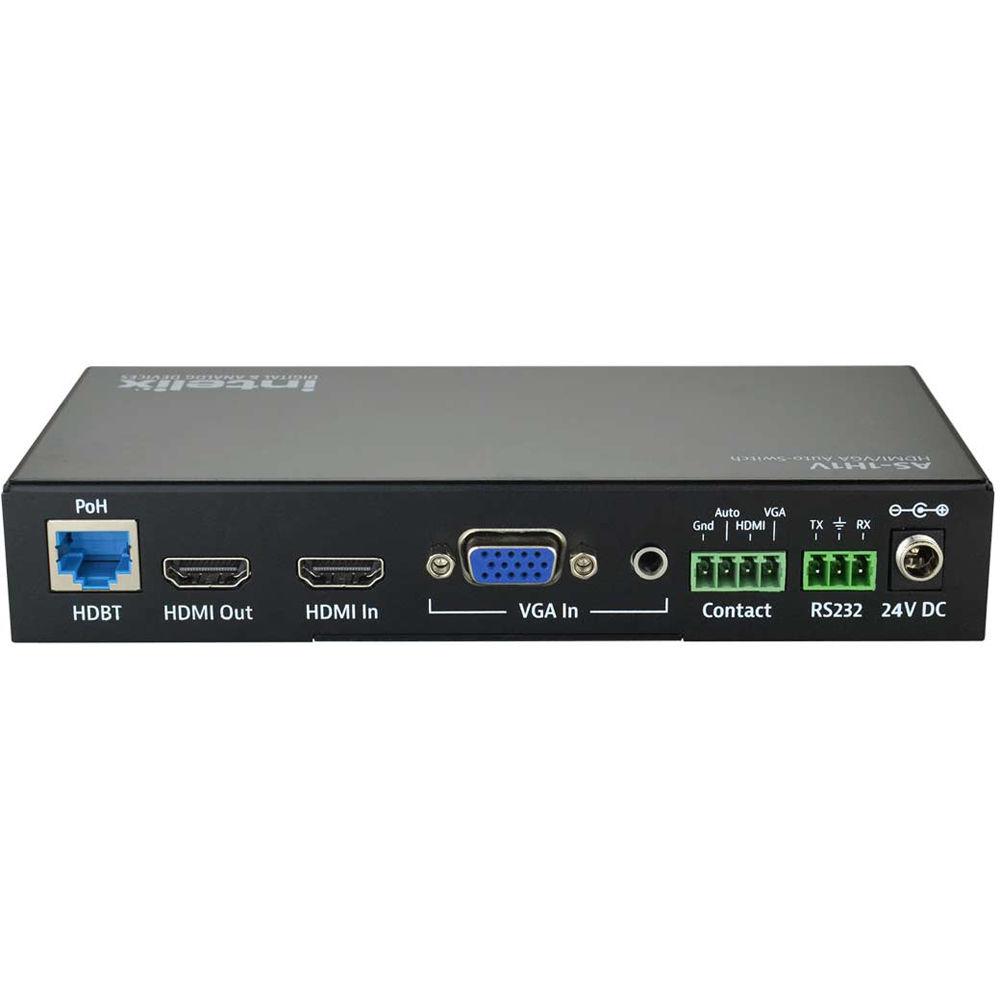

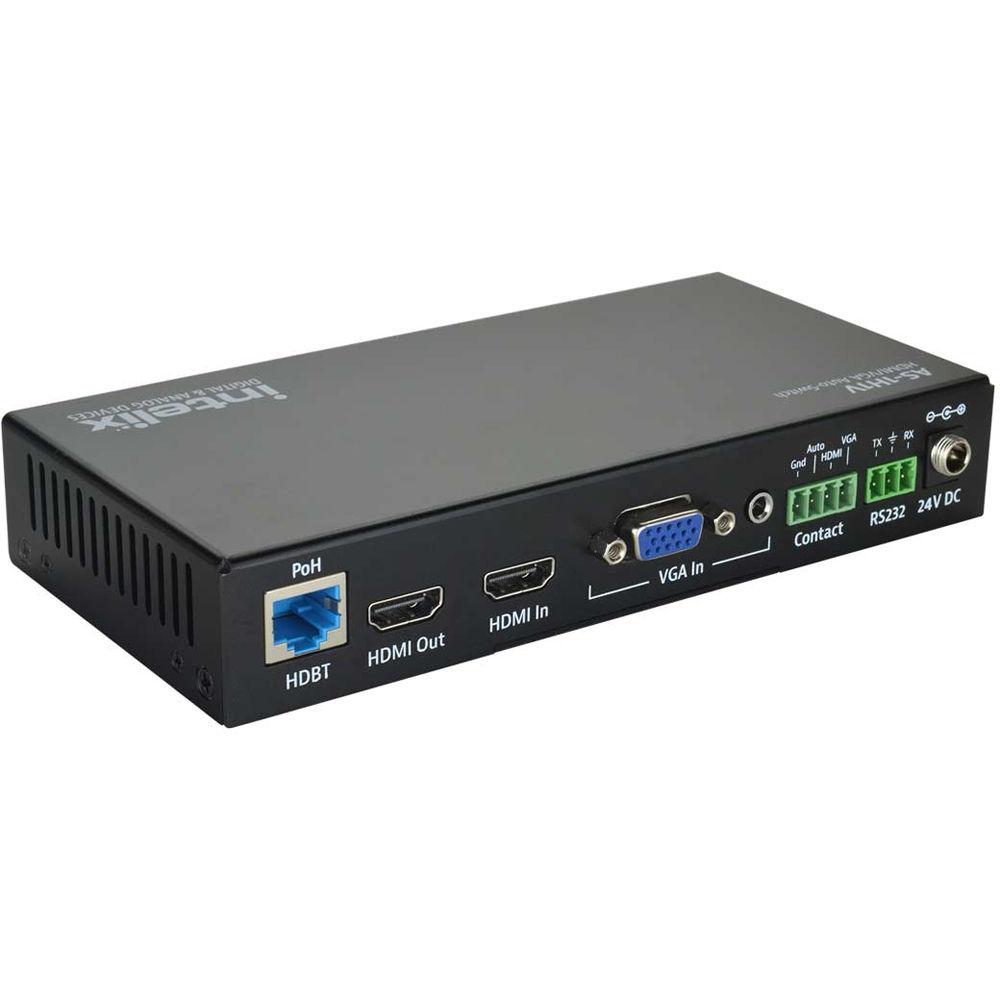

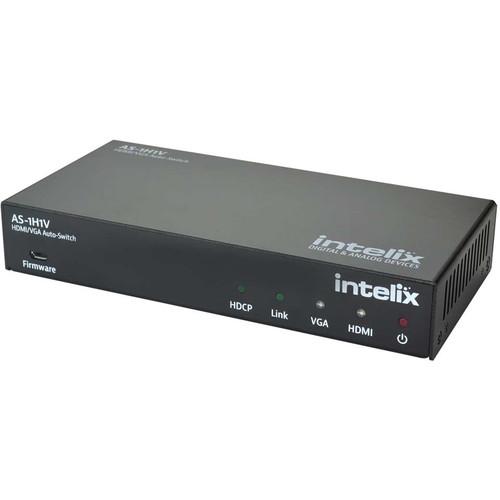

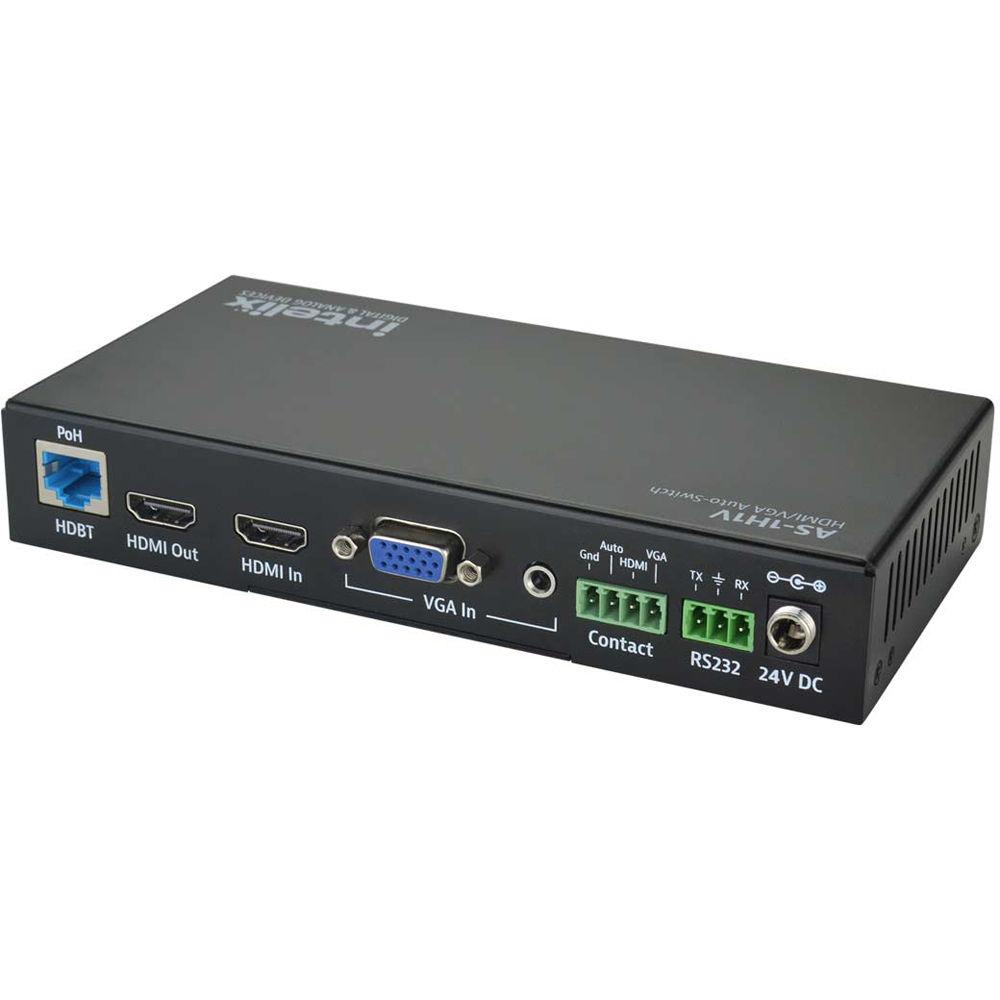

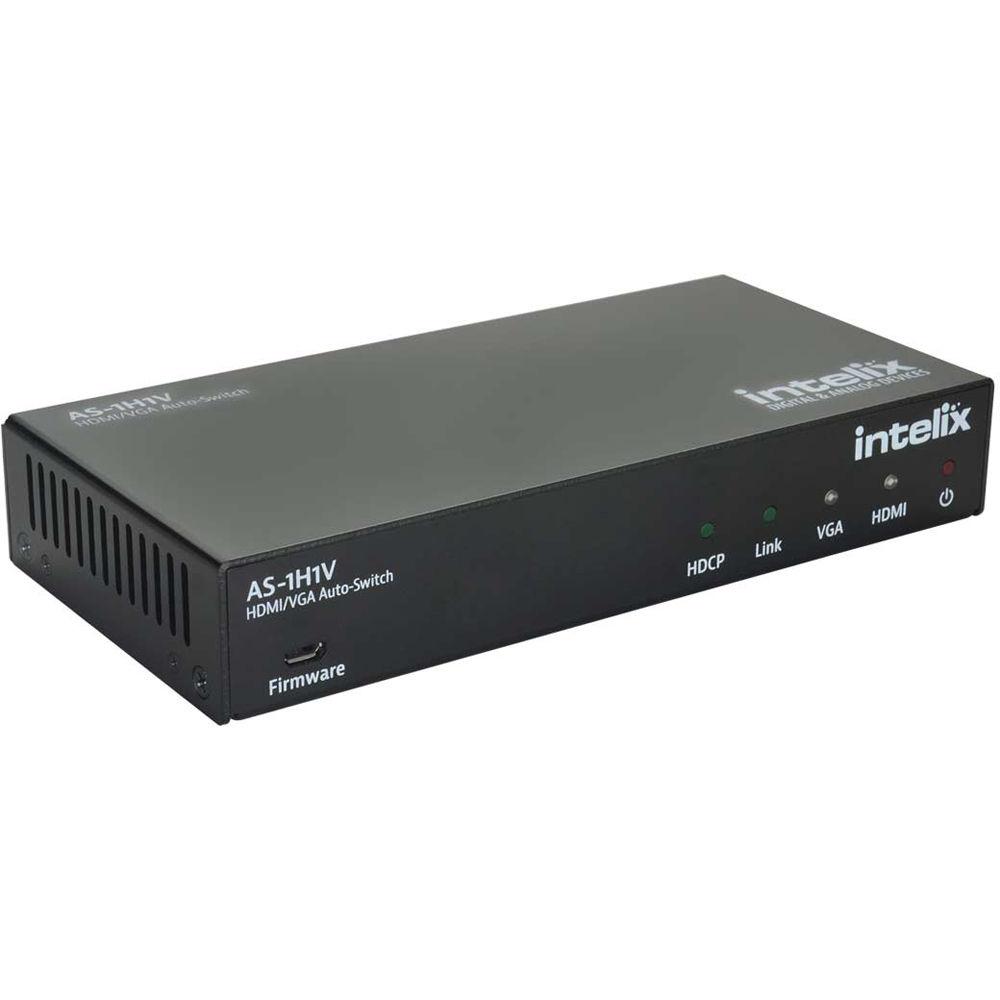

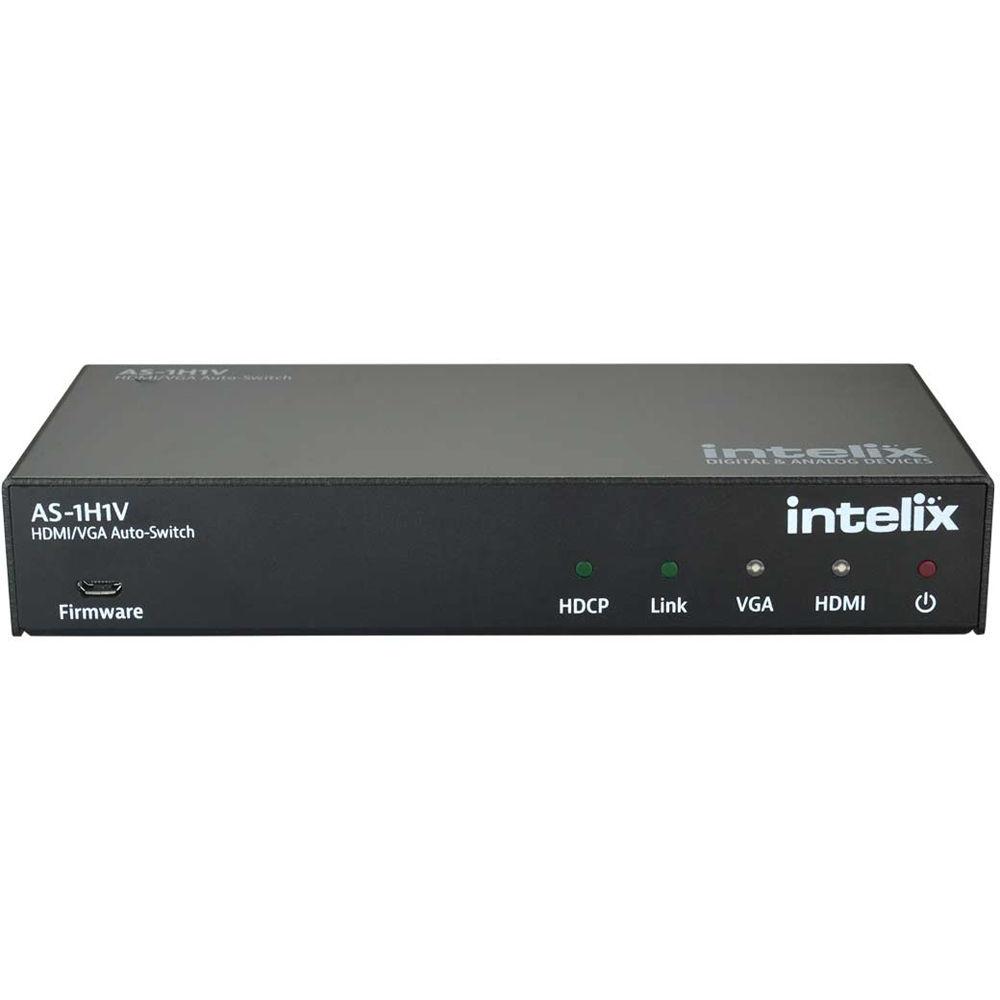

Product description The HDMI/VGA Auto-Switcher from Intelix is an under-table mounted switcher designed to be a PC interface for classrooms, boardrooms, and conference centers. It features VGA + Audio to HDMI conversion with VGA scaling up to 1920 x 1200 and an HDMI input. The switcher utilizes HDBaseT technology to extend the digital output up to 230’ away using solid core-shielded Cat5e or greater cable. Though designed to work with the DIGI-HD60C-R Receiver, this transmitter device is compatible with select Intelix HDBaseT receivers. The unit features multiple EDID modes to eliminate user confusion, and incompatible video formats. An HDMI output is available for use to connect to a local display.The switcher can be powered from the rear panel or by Power over HDBaseT (PoH), including midspan injectors that support Power over Ethernet (PoE) Alternative A. It can also power compatible HDBaseT receivers. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. The switcher also features a customizable power management system, which will put the unit into a low-power state after no video display for 30 minutes or being inactive for 3 hours by default.The switcher can detect which input has an active video input, and switch to that input. If both inputs are active, the “last in” will be selected. There are additional contact-closure inputs provided on the rear of the unit to allow third-party control. RS232 control of the switcher can be accomplished by connecting to the RS232 port on a compatible receiver or through a direct connection on the RS232 input of the device.The switcher can be programmed to control the connected display. The display manufacturer’s RS232 commands can be entered into the switcher with the use of Intelix Display Control software. This allows display power and input to be automatically controlled based on video activity, eliminating the need for a third-party control system in many installations. -
- HDMI (including audio) and VGA/3.5mm stereo input
- HDMI and HDBaseT output to a distance up to 230’
- Automatically switches input to active video
- VGA scaling up to 1920 x 1200
- RS232, auto, and dry contact closure for control of device
- PoH (Power over HDBaseT) or 24 VDC local power
- Display Control Software function to control TV or projector with RS232 commands which automatically turns display on/off
- Customizable power management system when not in use
- Uses any shielded solid core Cat5e or greater twisted pair cabling
- Extension of HDMI and VGA with stereo audio to one HDMI
- Ideal for boardroom, education, and hospitality applications
In the Box Intelix HDMI/VGA Auto-Switcher with VGA Scaling, HDMI & HDBaseT Output Power Supply Mounting Hardware RS232 Cable (3-Pin to DE9) Rubber Feet USB Programming Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix HDMI VGA Auto-Switcher with VGA Scaling, HDMI & HDBaseT Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix AS-1H1V Specs | Input/Output Connections | HDMI Input: 1 x HDMI Type-A
VGA Input: 1 x PC Video HD-15-F
Analog Audio: 1 x 3.5 mm TRS
HDBaseT Port: 1 x 8P8C port (Shielded RJ45)
HDMI Output: 1 x HDMI Type-A
Power: 1 x 5.5 mm OD, 2.6 mm ID threaded barrel
RS232 Port: 1 x 3-pin removable terminal block connector
Contact Closures: 1 x 4-pin removable terminal block connector
Firmware Port: 1 x USB Type-B micro | | Video Resolutions | SMPTE: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, UHD/30 (HDMI only)
VESA: Resolutions up to 1920 x 1200
Color Depth: 24, 30, 36, 48-bit | | VGA | Scaling Resolutions (60 Hz): 1024 x 768, 1400 x 1050, 1600 x 1200, 1280 x 800, 1360 x 768, 1920 x 1200, 720p, 1080p | | Video Compatibility | Deep Color 36/30/24-bit at 1080p @ 230' (70 m)
Deep Color 48-bit at 1080p, 3D (HDMI Input), UHD/30 @ 131' (40 m) | | Compliance | HDMI 1.4 and HDCP 1.4 | | Embedded Audio | Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | Analog Audio | Analog stereo line-level (Converted to 2 channel 24-bit PCM 48 kHz) | | CEC | HDMI pass-through only | | Baud Rate | 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200 (wall plate control)
Supported Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 | | HDBaseT Signal Characteristics | Maximum Distance: 230' (70 m)
Cable Requirements: Continuous solid core Cat5e or greater with TIA/EIA-568B crimp pattern (no couplers in-line)
Bandwidth: 10.2 GB/s
HDBaseT Chipset: VS010TX | | Construction | Aluminum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, non-condensing | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Storage Humidity | 20 to 90%, Non-condensing | | Power Input | 24 VDC, 1.25 A or 48 VDC PoH (Power over HDBaseT) | | Power Output | 48 VDC PoH (Power over HDBaseT) | | Diagnostic Indicators | HDCP, Link, VGA, HDMI, and Power | | Dimensions (H x W x D) | 1.2 x 6.8 x 3.3" (3.0 x 17 x 8.4 cm) | | Weight | Not Specified by Manufacturer |
