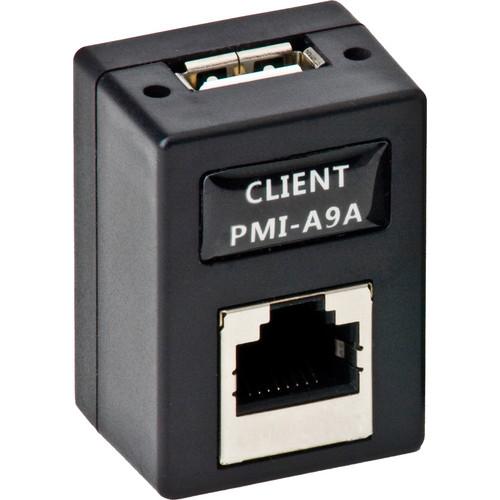

User Manual for Intelix PMI-A9A USB over Twisted-Pair Extender Transmitter Click to enlarge the picture
Contents of the user manual for the Intelix PMI-A9A USB over Twisted-Pair Extender
- Product category: USB Extenders Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix USB Extenders
|
User manual for the Intelix PMI-A9A USB over Twisted-Pair Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The intelix PMI-A9A USB over Twisted-Pair Extender Transmitter acts as a client and transmits standard and full-speed USB signals over twisted pair cabling when used with PMI-A9B (host unit). It extends standard speed USB 1.0 and 2.0 signals up to 330’ (100.58 m), and full-speed USB 1.0 and 2.0 signals up to 100’ (30.48 m). This transmitter has plug-and-play technology and does not require driver software. It is compatible with intelix AVO-USB series products. - USB A receptacle to RJ45 shielded
- USB 2.0 full speed (12 Mbps) compliant and USB 1.1 legacy support
- Small format, faceplate mountable
- Category 5/5E/6 cable infrastructure up to 165' (50.29 m)
- Application: Ideal for education and use with electronic white boards and USB control extension between local and remote
UPC: 601446156698 In the Box Intelix PMI-A9A USB over Twisted-Pair Extender Transmitter 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix PMI-A9A USB over Twisted-Pair Extender Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix PMI-A9A Specs | Maximum Distance | Extends USB 2.0 up to 165' (50.29 m) on category cable
USB Full Speed (12 Mbps): 100' (30.48 m)
USB Low Speed (1.5 Mbps): 330' (100.58 m) | | Protection | Anti-Static Protection
Contact Discharge: 2,000 V
Air Discharge: 4,000 V
IEC61000-4-2 1995 | | Power | Powered through the USB output of the host device
Vbus Power: 5 V | | USB | USB 2.0 full speed 12 Mbps
USB 1.1 legacy support | | Extension | For Low Power Device Extension (memory sticks, etc.) <100 ma draw: 200'(60.96 m)
For High Power Device Extension (unpowered hubs, etc.) <500 ma draw: 30' (9.14 m)
For Self Powered Device Extension (powered hubs, etc.) 0 mA Draw: 330' (100.58 m) | | Recommended Cable | CAT5, CAT5e, CAT6, CAT6e | | Operating Temperature | -41 to 95°F (-5 to 35°C) | | Operating Humidity | 5 to 90% non-condensing | | Enclosure | ABS plastic | | Regulatory | CE, RoHS | | Dimensions | 2.5 x 0.75 x 1.38" (63.5 x 19.05 x 35.05 mm) | | | | Package Weight | 0.055 lb | | Box Dimensions (LxWxH) | 2.05 x 1.8 x 1.05" |
