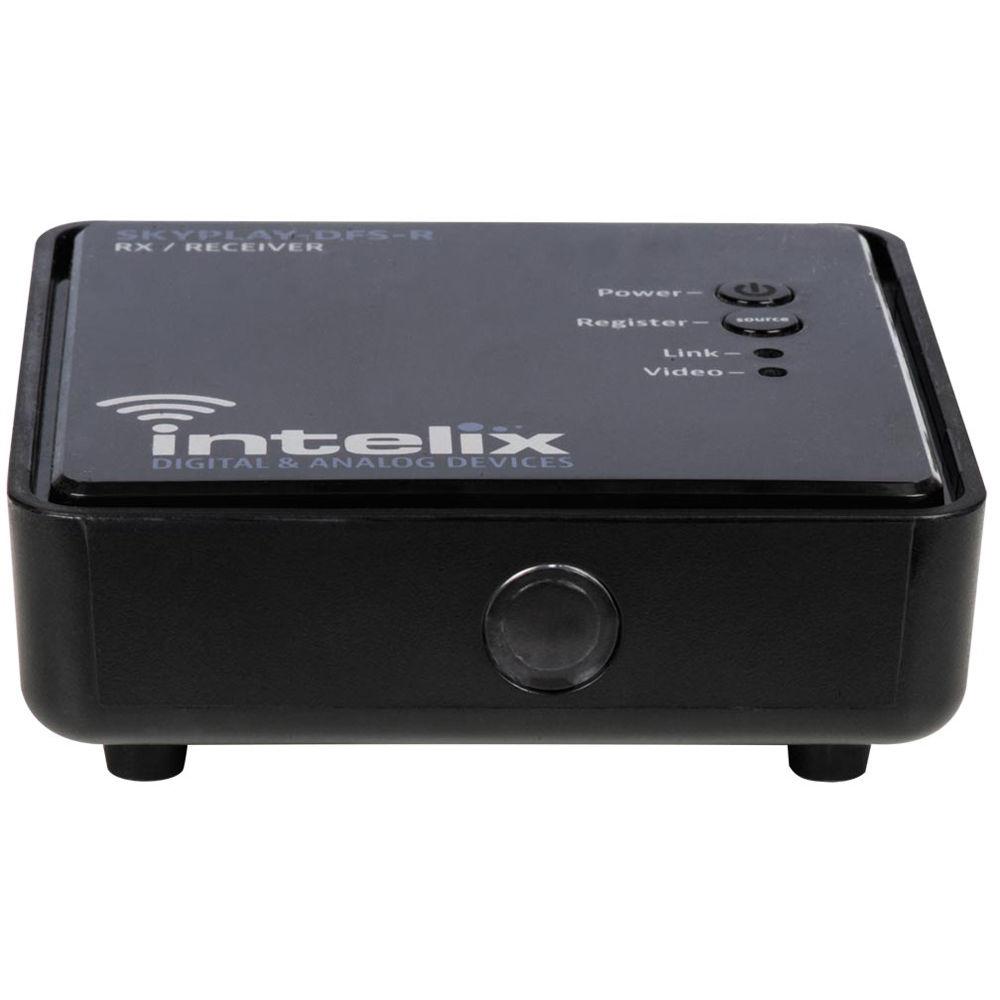

User Manual for Intelix SKYPLAY-DFS-R Wireless HDMI Distribution System with Dynamic Frequency Selection - Receiver Click to enlarge the picture
Contents of the user manual for the Intelix SKYPLAY-DFS-R Wireless HDMI Distribution System
- Product category: HDMI Signal Extenders Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix HDMI Signal Extenders
 |
User manual for the Intelix SKYPLAY-DFS-R Wireless HDMI Distribution System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|

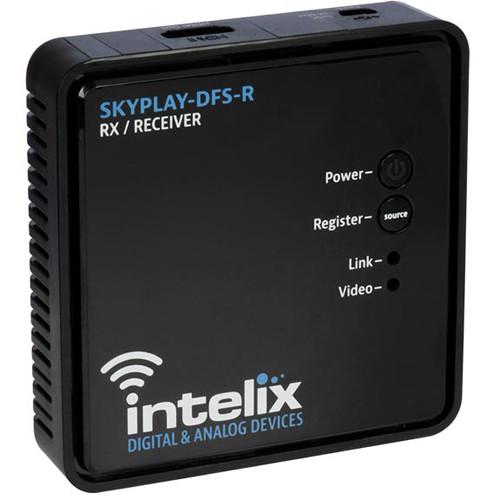

Product description The SKYPLAY-DFS-R Wireless HDMI Distribution System with Dynamic Frequency Selection - Receiver from Intelix receives HDMI high-definition audio and video from up to 100 feet in both point-to-point, point-to-many, and many-to-point configurations. Each separately purchased transmitter is compatible with up to 4 receivers, and each receiver can be paired to switch up to 4 transmitters.
The SKYPLAY-DFS-R can transmit IR signals from the remote location to control the source device. The SKYPLAY-DFS transmitter and receiver must be paired together to pass video.
The SKYPLAY-DFS radios are configured for operation in the US and Canada. - Wirelessly distribute HDMI up to 100 feet (30.48 m); IR control of source
- Signals can go through standard sheet rock walls
- Addressable transmitters: Up to 4 transmitters per receiver
- Latency less than 1 frame (17 milliseconds)
- HDCP 2.0 compliant, dynamic EDID pass-through, multichannel audio support
- DFS (Dynamic Frequency Selection) for improved density and reliability
- Applications
- Suitable for residential, commercial, corporate A/V, education, digital signage, hospitality, and house of worship
- Send HDMI signal from a source to a destination device without a wired connection
- Wireless HDMI switcher - up to 4 transmitters
UPC: 601446001455 In the Box Intelix SKYPLAY-DFS-R Wireless HDMI Distribution System with Dynamic Frequency Selection - Receiver IR Remote Power Supply with International Adapters HDMI Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix SKYPLAY-DFS-R Wireless HDMI Distribution System with Dynamic Frequency Selection - Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

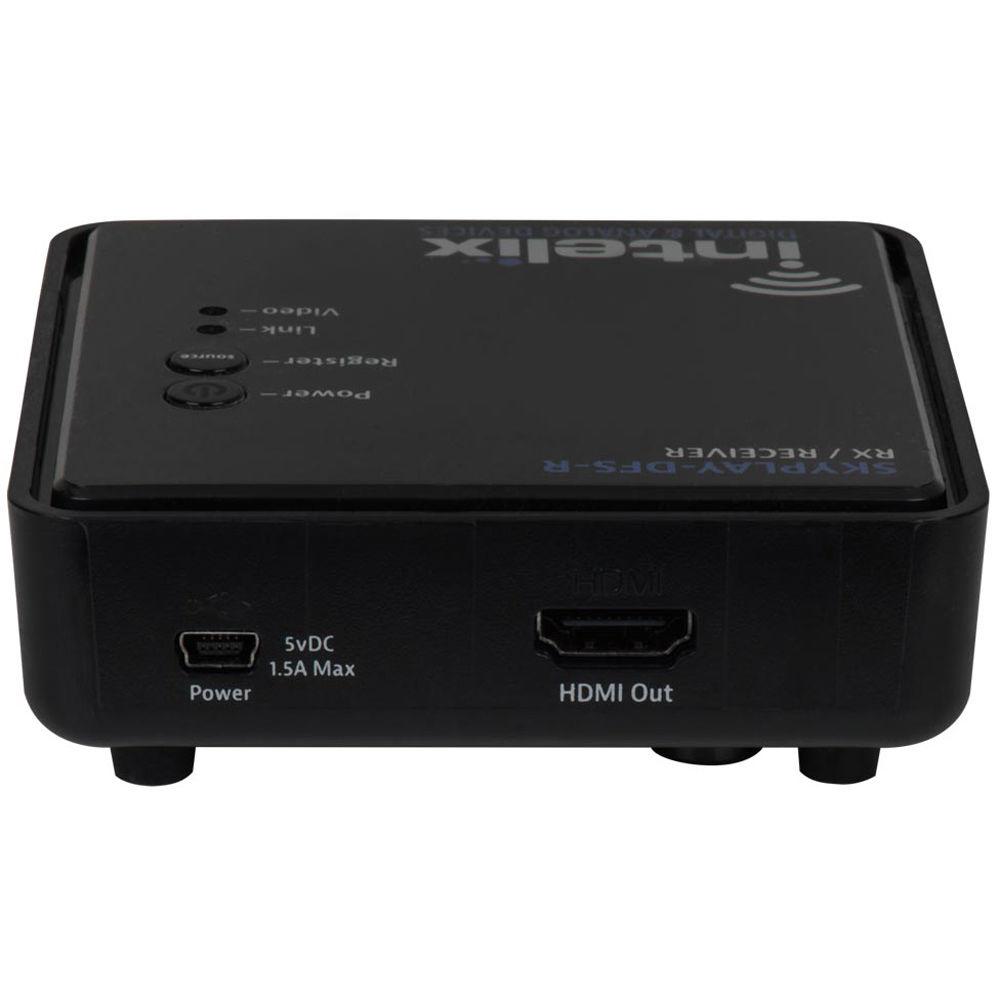

Technical parametersIntelix SKYPLAY-DFS-R Specs | I/O Connections | HDMI Output: 1 x HDMI Type-A receptacle
5V DC Power: 1 x Mini-USB Type-B connector | | Supported Applications | Video Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and VESA up to 1920 x 1080
Color Depth: 30-bit
Video Compliance: HDMI and HDCP
Input Video Signal: 0.5 to 1.5 V p-p
Input DDC Signal:5 V p-p
Embedded Audio: PCM 2.0, DTS (5.1) and Dolby Digital (5.1)
IR Frequency: 38 KHz | | Signal Characteristics | Wireless Transmission Technology: Amimon Pro
Signal Bandwidth: 40 MHz
Maximum Transmission Distance: 100' (30.48 m)
Transmission Rate: 6.75 Gbps
Operating Frequency (Non-DFS): 5.19 to 5.23 GHz and 5.755 to 5.795 GHz
Operating Frequency (DFS): 5.27 to 5.59 GHz and 5.67 GHz
System Latency: <1ms
Diagnostic Indicators: Link and Video | | Chassis | Black plastic material | | Environmental | Operating Temperature: +14 to +104°F (-10 to +40°C)
Operating Humidity: 15% to 85%, non-condensing
Storage Temperature: -4 to +176°F (-20 to +80°C)
Storage Humidity: 15% to 85%, non-condensing | | Power, ESD, and Regulatory | Power Supply: 5 VDC 2.6 A
Power Consumption: 9 W
ESD Protection: 15 kV
Regulatory: FCC, CE, RoHS | | Dimensions (H x W x D) | With Rubber Feet: 1.46 x 3.74 x 3.74" (37 x 95 x 95 mm)
Without Rubber Feet: 1.30 x 3.74 x 3.74" (33 x 95 x 95 mm) | | Shipping Weight | 2 lb (0.91 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.7 x 7.4 x 3.2" |
