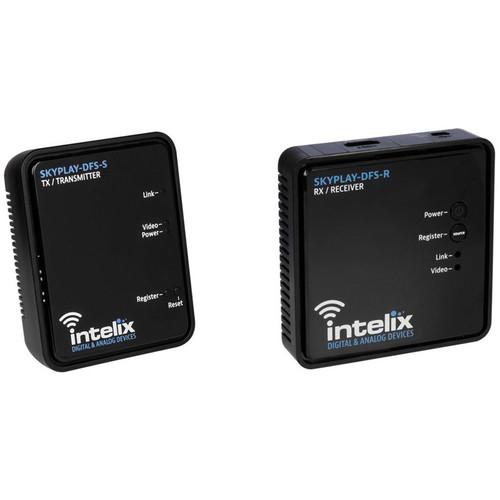

Product description This kit provides an HDMI transmitter and receiver that allow you to wirelessly transmit HDMI signals with full HDCP compliance. The kit includes an Intelix SKYPLAY-DFS-S HDMI Transmitter and an Intelix SKYPLAY-DFS-R Wireless HDMI Receivers. Used together the units support transmitting HDMI signals up to 100 feet, and the signals can travel through sheet rock walls, so you can transmit to a receiver in another room. Each transmitter can feed up to four SKYPLAY-DFS-R receivers, allowing you to view the same signal on four different monitors. The system supports IR control of the HDMI source (if your HDMI source supports IR control.)
The system supports DFS (Dynamic Frequency Selection) for improved signal reception. Each receiver can accept signals from up to four SKYPLAY-DFS-S transmitters; this allows you to use one receiver to switch from up to four sources. The pair feature less than one frame signal delay, this means that any transmission delay is virtually unnoticeable. The system is HDCP 2.0 compliant, supporting EDID passthrough, so that your HDMI source and monitor will work just as they would if an HDMI cable connected them. - Intelix SKYPLAY-DFS-S Wireless HDMI Distribution System with Dynamic Frequency Selection - Transmitter The SKYPLAY-DFS-S Wireless HDMI Distribution System with Dynamic Frequency Selection Transmitter from Intelix distributes HDMI high-definition audio and video up to 100 feet in both point-to-point, point-to-many, and many-to-point configurations. Each transmitter is compatible with up to 4 separately purchased receivers, and each receiver can be paired to switch up to 4 transmitters.
The SKYPLAY-DFS-S can transmit 1080p video with stereo or multichannel audio. The SKYPLAY-DFS transmitter and receiver must be paired together to pass video.
The SKYPLAY-DFS radios are configured for operation in the US and Canada. - Wirelessly distribute HDMI up to 100 feet
- Signals can go through standard sheet rock walls
- Up to 4 receivers per transmitter
- Latency less than 1 frame (17 milliseconds)
- HDCP 2.0 compliant, dynamic EDID pass-through, multichannel audio support
- DFS (Dynamic Frequency Selection) for improved density and reliability
- Applications
- Suitable for residential, commercial, corporate A/V, education, digital signage, hospitality, and house of worship
- Send HDMI signal from a source to a destination device without a wired connection
- Wireless HDMI switcher - up to 4 transmitters
UPC: 601446001448 - Intelix SKYPLAY-DFS-R Wireless HDMI Distribution System with Dynamic Frequency Selection - Receiver The SKYPLAY-DFS-R Wireless HDMI Distribution System with Dynamic Frequency Selection - Receiver from Intelix receives HDMI high-definition audio and video from up to 100 feet in both point-to-point, point-to-many, and many-to-point configurations. Each separately purchased transmitter is compatible with up to 4 receivers, and each receiver can be paired to switch up to 4 transmitters.
The SKYPLAY-DFS-R can transmit IR signals from the remote location to control the source device. The SKYPLAY-DFS transmitter and receiver must be paired together to pass video.
The SKYPLAY-DFS radios are configured for operation in the US and Canada. - Wirelessly distribute HDMI up to 100 feet (30.48 m); IR control of source
- Signals can go through standard sheet rock walls
- Addressable transmitters: Up to 4 transmitters per receiver
- Latency less than 1 frame (17 milliseconds)
- HDCP 2.0 compliant, dynamic EDID pass-through, multichannel audio support
- DFS (Dynamic Frequency Selection) for improved density and reliability
- Applications
- Suitable for residential, commercial, corporate A/V, education, digital signage, hospitality, and house of worship
- Send HDMI signal from a source to a destination device without a wired connection
- Wireless HDMI switcher - up to 4 transmitters
UPC: 601446001455 In the Box - SKYPLAY-DFS-S Wireless HDMI Distribution System with Dynamic Frequency Selection - Transmitter uxusdqzywttbyvxfctbtazcr
- IR Remote
- Power Supply with International Adapters
- HDMI Cable
- Limited 2-Year Warranty
- SKYPLAY-DFS-R Wireless HDMI Distribution System with Dynamic Frequency Selection - Receiver
