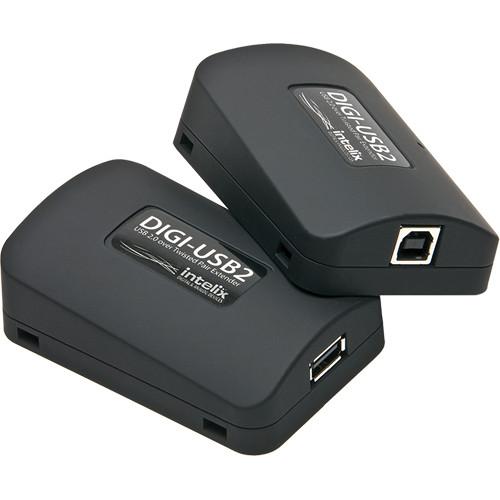

User Manual for Intelix USB 2.0 Extender Set Click to enlarge the picture
Contents of the user manual for the Intelix USB 2.0 Extender Set
- Product category: USB Extenders Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix USB Extenders
 |
User manual for the Intelix USB 2.0 Extender Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|
Product description The Intelix USB 2.0 Extender Set extends computer USB 1.1 and USB 2.0 signals up to 330’ over twisted pair cabling. The devices can be powered at either the client or the host device. It utilizes Cat5e/6/6A cabling and has a throughput of up to 480 Mb/s. This extender set is suitable for keyboard and mouse extension, remote data ports, up to four USB hubs, security applications, and Smart Board applications. - Extends USB High-Speed (480 Mb/s) up to 330'
- Can be powered at either the client or host device
- Can be used to extend USB 1.1 signals
- Uses any Cat5e/6/6A twisted pair cabling
- Regulatory: FCC (Class A), CE (Class A), RoHS
- Plenum routing of USB 1.1 and 2.0 full speed
- Good for extending high-bandwidth USB devices, such as HD webcams and motion-controlled gaming devices
- Suitable for education, government, house of worship, corporate, residential, and applications requiring extended USB signal distribution
UPC: 601446000533 In the Box Intelix USB 2.0 Extender Set USB Cable (A to B) US Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix USB 2.0 Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix DIGI-USB2 Specs | I/O Connections | USB

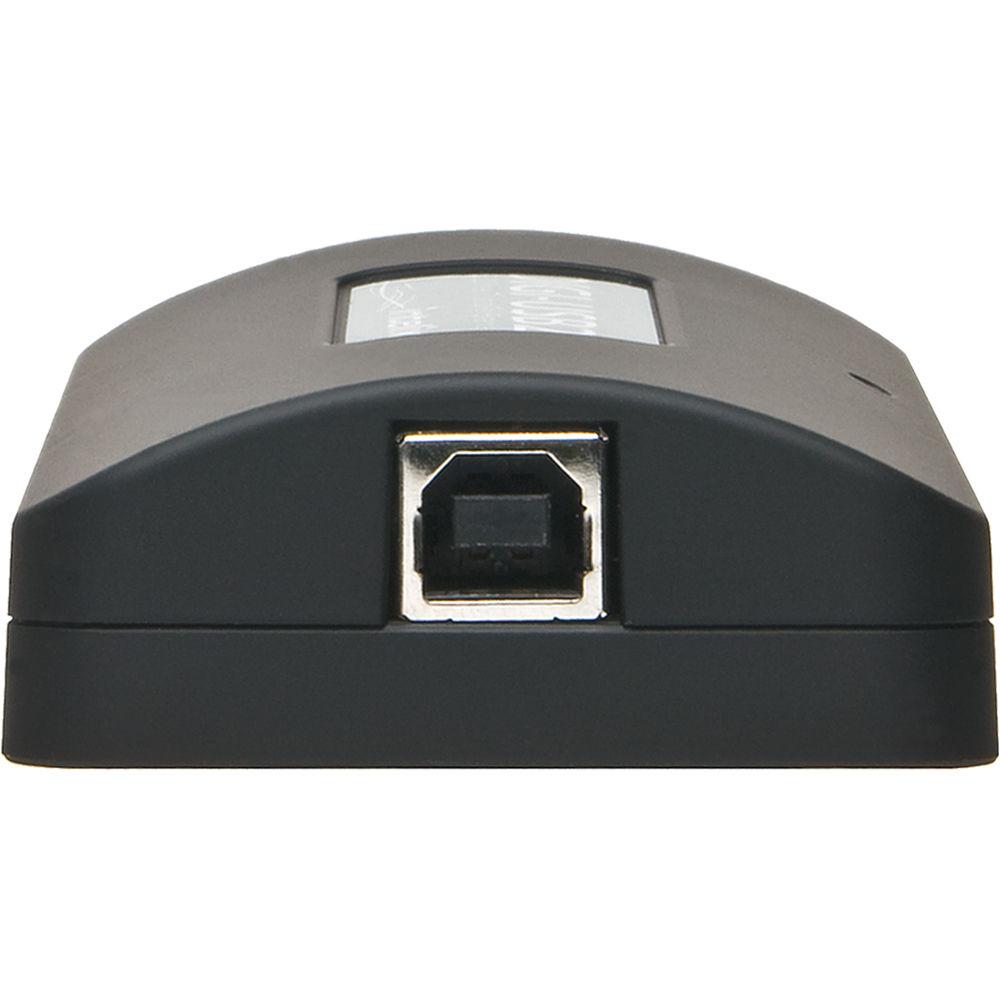

Local: 1 x USB type B

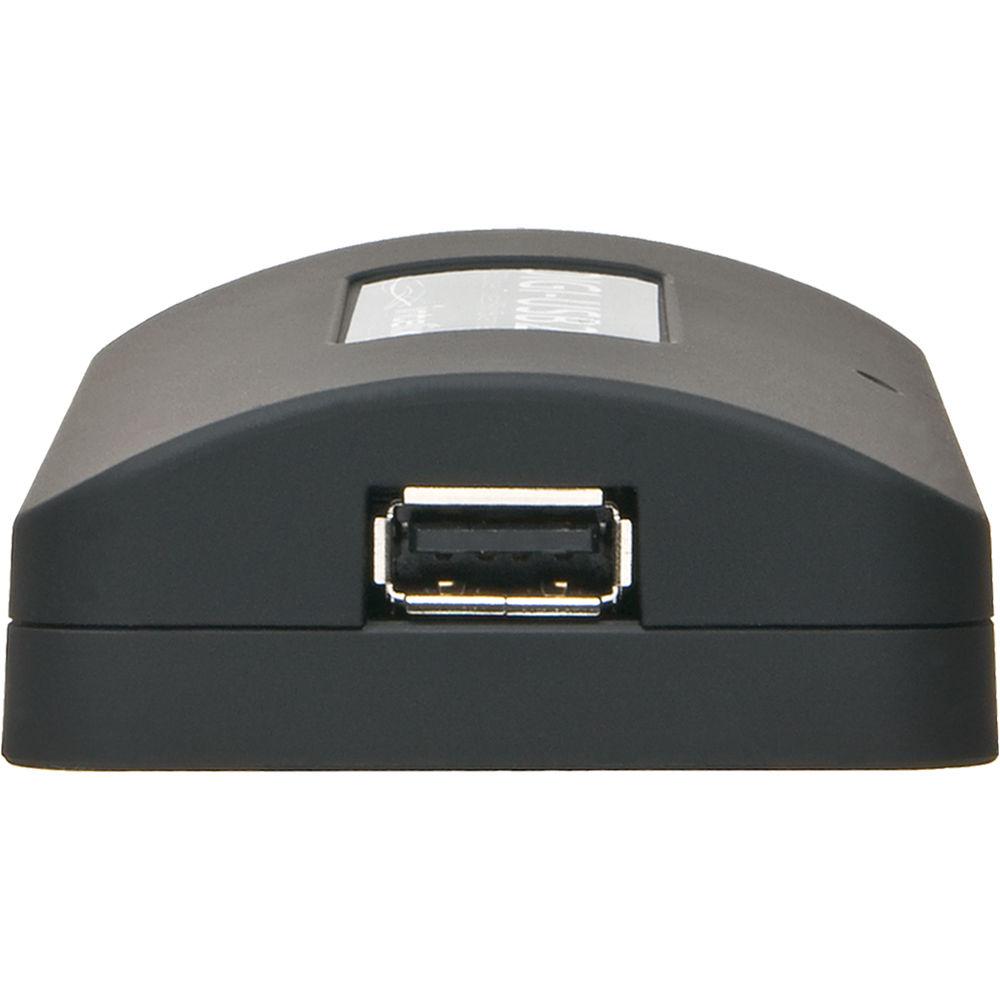

Remote: 1 x USB type A
Twisted Pair
Local: 1 x 8P8C port (shielded RJ45)
Remote: 1 x 8P8C port (shielded RJ45)
24 VDC power supply
Local: 0.22" (5.50 mm) outside diameter, 0.08" (2.10 mm) inside diameter barrel | | Maximum Distance | Cat5E: 330' (100 m) | | Supported Signals | USB 2.0: Up to 480 Mb/s
USB 1.1: Up to 12 Mb/s | | Enclosure | Black rubberized ABS plastic | | Power | 500 mA (to USB devices) | | Power Consumption | Maximum: 4.3 W | | Power Supply | 24 VDC | | Mounting | Slots for cable ties | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 158°F (-20 to 70°C) | | Humidity | Operating: 20 to 80%, non-condensing
Storage: 10 to 90%, non-condensing | | Dimensions | 3.4 x 2.3 x 1.2" (8.7 x 5.8 x 2.8 mm) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.1 x 6.0 x 2.4" |
