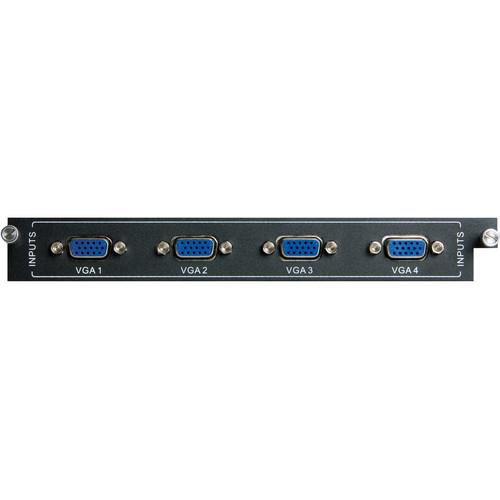

Product description The Intelix VGA Input Card for Card-Based Matrix Switcher features HD15 inputs that scale and convert a wide range of analog video signals to HD video resolutions, which can be routed to any available output. The individual scaler engine on each input can accommodate VGA-UXGA, RGBHV, RGsB, RsGsBs, component video, S-video, and composite video signals. - VGA, YPbPr, SV, and CV input card
- Scaling to XGA, WXGA, 720p, and 1080p
- Supported Signal Types: VGA-UXGA, RGBHV, RGsB, RsGsBs, component video, S-video, and composite video
- Applications:
Designed for use with the FLX-8X8A, FLX-88, FLX-1616, and FLX-3232 Matrix Switchers
Analog video scaling card
Suitable for applications with legacy devices In the Box Intelix VGA Input Card for Card-Based Matrix Switcher 2 x 15.75" HD15 Male to 3 RCA Female Connector Cable for FLX-8X8A Flexible Matrix Switcher dwbecbacswseyavcbcreexv 2 x 15.75" HD15 Male to RCA & S-Video Female Connector Cable for FLX-8X8A Flexible Matrix Switcher Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix VGA Input Card for Card-Based Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix FLX-RI4 Specs | Compatibility | FLX-8X8A, FLX-88, FLX-1616, and FLX-3232 Matrix Switchers | | I/O Connections | Analog Video Input: 4 x female HD15 | | Input Signal | VGA-UXGA, RGBHV, RGsB, RsGsBs, component video, S-video, and composite video | | Compliance | Output:
XGA (1024 x 768)
WXGA (1280 x 800)
720p (1280 x 720)
1080p (1920 x 1080) | | Bandwidth | 340 MHz (10.2 Gb/s) | | Gain | 0 dB | | Resolution | 640 x 480 to 1920 x 1200 | | Crosstalk | <-50 dB at 5 KHz | | Coupling | Input: AC coupling only | | Input Level | 0.5 to 2.0 Vpp | | Construction | Plug-in card with keyed black metal plate | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 140°F (-10 to 60°C) | | Humidity | Operating & Storage: 20 to 90%, non-condensing | | | | Package Weight | 1.36 lb | | Box Dimensions (LxWxH) | 6.38 x 3.88 x 1.19" | Note: Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.
These specifications are based on straight-through cabling with standard-grade CAT5e unless noted otherwise.
