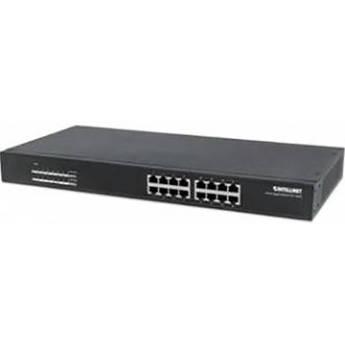

User Manual for Intellinet 16-Port Gigabit Ethernet PoE Switch Click to enlarge the picture
Contents of the user manual for the Intellinet 16-Port Gigabit Ethernet PoE Switch
- Product category: Network Switches, Bridges & Hubs Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Network Switches, Bridges & Hubs
|
User manual for the Intellinet 16-Port Gigabit Ethernet PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|
Product description Provided by third party: Save installation time and money with PoE.
The Intellinet 16-Port Gigabit Ethernet Rackmount PoE+ Switch (560993) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 16 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps.
Power over Ethernet 802.3at
The Intellinet 16-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet PoE/PoE+ Splitter.
Extreme Throughput
With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices. UPC: 766623560993 In the Box Intellinet 16-Port Gigabit Ethernet PoE+ Switch 16-Port Gigabit Ethernet PoE+ Switch Power cable User manual 19" mounting brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 16-Port Gigabit Ethernet PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 560993 Specs | | | Total Number of Network Ports | 16 | | Uplink Port | Yes | | Modular | No | | Stack Port | No | | Port/Expansion Slot Details | 16 x Gigabit Ethernet Network | | | | Media Type Supported | Twisted Pair | | Ethernet Technology | Gigabit Ethernet | | Network Technology | 1000Base-T | | | | Power Source | Power Supply | | Redundant Power Supply Supported | No | | | | Form Factor | Rack-mountable | | Height | 1.7" | | Width | 17.4" | | Depth | 8.2" | | Weight (Approximate) | 8.38 lb | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
