User Manual for Intellinet 16-Port Gigabit Ethernet Switch Click to enlarge the picture
Contents of the user manual for the Intellinet 16-Port Gigabit Ethernet Switch
- Product category: Network Switches, Bridges & Hubs Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Network Switches, Bridges & Hubs
 |
User manual for the Intellinet 16-Port Gigabit Ethernet Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|

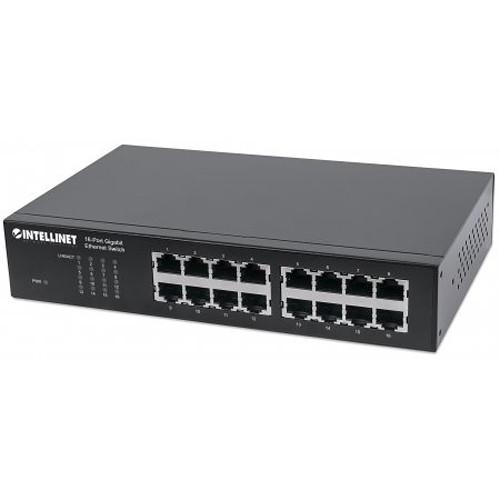

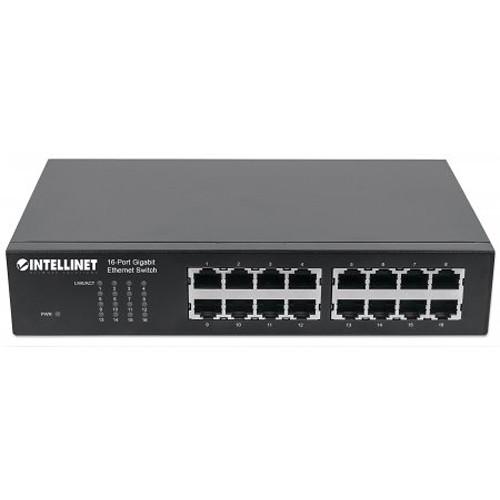

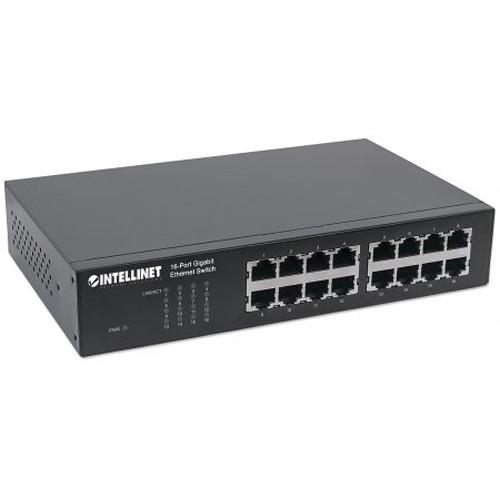

Product description The rack mountable 16-Port Gigabit Ethernet Switch from Intellinet can easily be integrated into an existing rackmount network configuration thanks to the included brackets. Whether using this switch on a desktop or in a rack users benefit from 16 Gigabit Ethernet auto-sensing ports designed to detect fluctuating network conditions to deliver optimal network speeds at all times. This switch also features a 32 Gbps backplane speed, supports up to 8,192 MAC address entries, supports jumbo frames up to 9 kBytes, and comes equipped with a 512 kByte memory buffer to ensure maximum performance is achieved regardless of the networking devices attached to the switch. - 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- All RJ-45 ports with Auto-MDIX (auto uplink) support
- For use on desktop or mounted in standard 19" rack
- Supports NWay auto-negotiation
- Store-and-forward switching architecture
- Full/half duplex operation
- Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- Supports jumbo frames up to 9 kBytes
- Supports up to 8,192 MAC address entries
- Supports MAC address auto-learning and auto-aging
- Includes 19" rackmount brackets
UPC: 766623561068 In the Box Intellinet 16-Port Gigabit Ethernet Switch 19" Rackmount Brackets Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 16-Port Gigabit Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

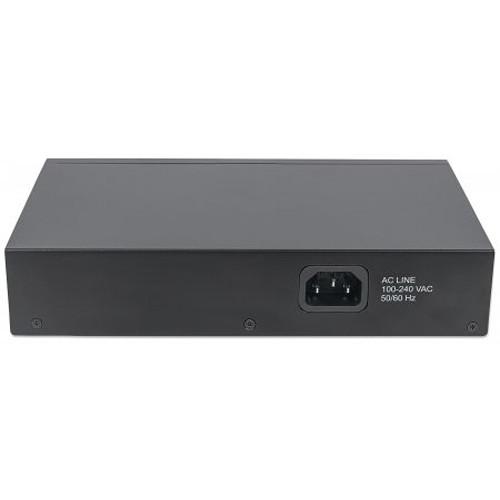

Technical parametersIntellinet 561068 Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 32 Gb/s | | | | Power Draw | 9.1 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | Indicator Lights | Link/Activity, Power, Speed | | Dimensions | 8.5 x 5.2 x 1.7" / 21.5 x 13.3 x 4.4 cm | | Weight | 2 lb / 1 kg |
