User Manual for Intellinet 48 VDC PoE Injector with 1 Port Click to enlarge the picture
Contents of the user manual for the Intellinet 48 VDC PoE Injector with
- Product category: Power over Ethernet (PoE) Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Power over Ethernet (PoE)
 |
User manual for the Intellinet 48 VDC PoE Injector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|

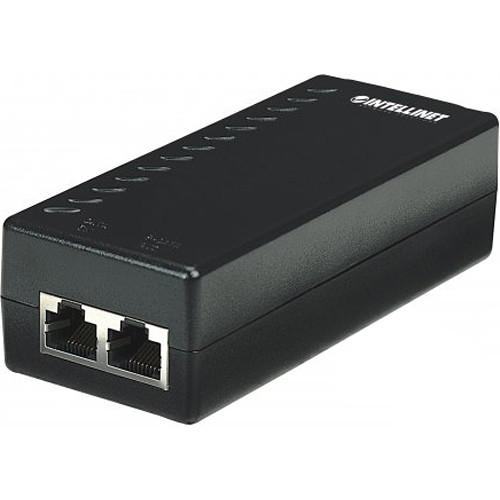

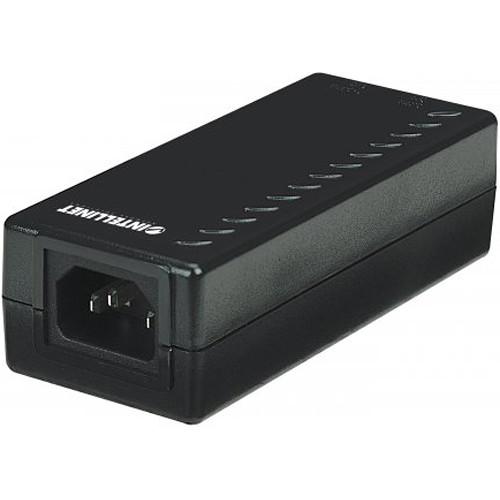

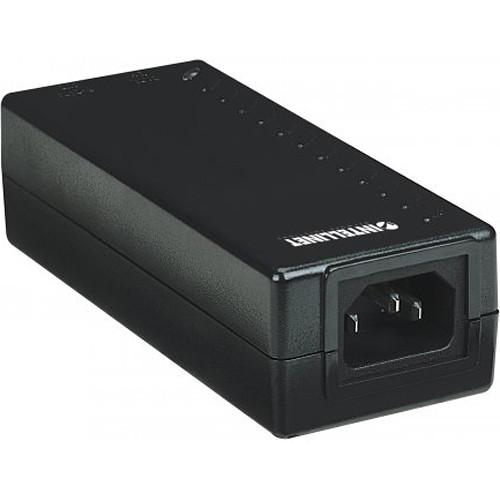

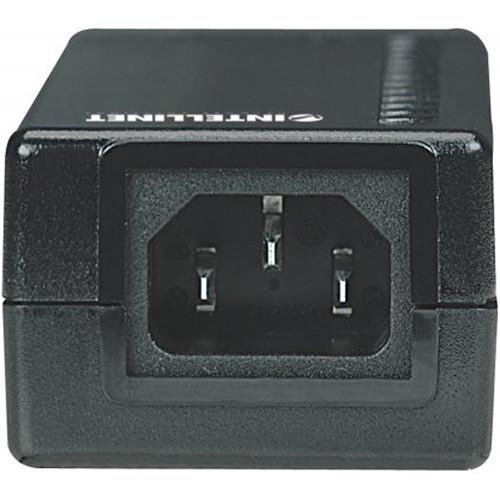

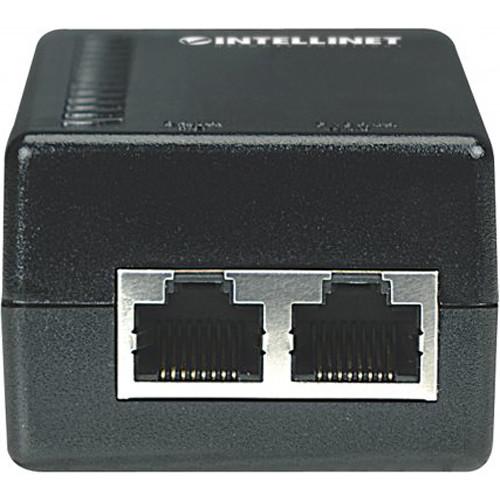

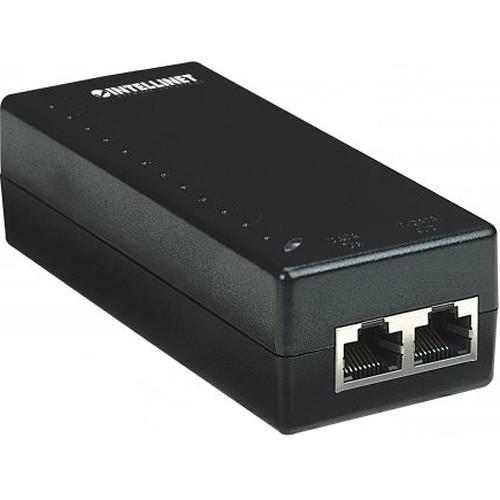

Product description Connect any IEEE 802.3af-compliant device to a non-PoE LAN switch port using the 48 VDC PoE Injector from Intellinet Network Solutions. This injector eliminates the need to run AC power lines to your devices, minimizing wiring for a neat setup. Even if your existing LAN switch does not support the IEEE 802.3af PoE standard, you can use the injector to deliver power over your existing Cat5 Ethernet cables. Additionally, the PoE Injector protects your equipment from short circuits, current overloads, and high voltages. It can be used with devices such as wireless access points, network cameras, or IP phones. - Reduce Wiring
- Eliminate the need to run AC power lines for your wireless access point, network camera, or IP phone.
- Power and Data Usage
- Connect IEEE 802.3af-compliant products to a non-PoE LAN switch port for both power and data.
- Use Existing Cabling
- Deliver DC power over existing Cat5 Ethernet cabling, even if your LAN switch does not support the IEEE 802.3af PoE standard.
- Protect Equipment
- Protects your devices from short circuits (short GRND), current overloads (over 450 mA), and high voltages (voltage exceeding 52 V).
- Power Output
- With a power output of up to 15.4 W and 48 VDC, the injector is ideal for use when AC power is not available.
- Unobtrusive Design
- Full-power Class 3 PoE fanless design for silent operation, enabling inconspicuous usage in your home, office, or store.
UPC: 766623524179 In the Box Intellinet 48 VDC PoE Injector with 1 Port Power Cable Limited 3-Year Warranty Brochure PDF 526.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 48 VDC PoE Injector with 1 Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 524179 Specs | Standards | IEEE 802.3af (Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet) | | Media Support | 100Base-TX Cat5 UTP/STP RJ45, 8-pin | | Ports | 1 x RJ45 100 Mbps input
1 x RJ45 100 Mbps data and power output
1 x Power input connector (3-pin) | | Protection Features | Short circuit protection for short GND
Overload protection for currents over 450 mA
High-voltage protection for output voltage exceeding 52 V | | Compatibility | All IEEE 802.3af-compliant PoE devices | | Supports | Intellinet Network Solutions Wireless 300N Access Points (524735, 524711), High Power Wireless G Access Point (503082), PoE Splitter (502900), Network Cameras (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR) | | Certifications | FCC Class B, Part 15, CE 89/336/EEC | | Input Connector Pinout | Pin 1: Rx+ (data receive)
Pin 2: Rx- (data receive)
Pin 3: Tx+ (data transmit)
Pin 4: NC (not connected)
Pin 5: NC (not connected)
Pin 6: Tx- (data transmit)
Pin 7: NC (not connected)
Pin 8: NC (not connected) | | Output Connector Pinout | Pin 1: Rx+ (data receive)
Pin 2: Rx- (data receive)
Pin 3: Tx+ (data transmit)
Pin 4: -VDC_return (+) (feeding power [+])
Pin 5: -VDC_return (+) (feeding power [+])
Pin 6: Tx- (data transmit)
Pin 7: -VDC (feeding power [-])
Pin 8: -VDC (feeding power [-]) | | LED | AC Powered: Red
Channel Powered: Green
Channel Alarm: Red | | Power | Input: 100 to 240 VAC , 50/60 Hz
Output: 48 VDC / 350 mA / 15.4 W
Power Consumption: 19 W (max) | | Operating Environment | Temperature: 32 to 140°F / 0 to 60°C
Humidity: 10 to 90% RH, non-condensing | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Housing | Plastic | | Dimensions | 4.7 x 2.0 x 1.4" / 11.9 x 5.1 x 3.6 cm | | Weight | 0.3 lb / 0.1 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.7 x 4.8 x 3.8" |
