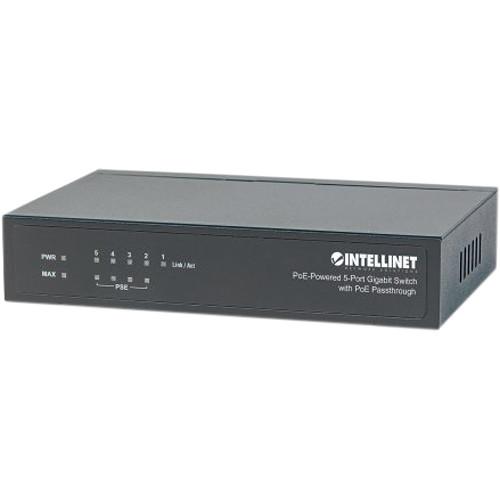

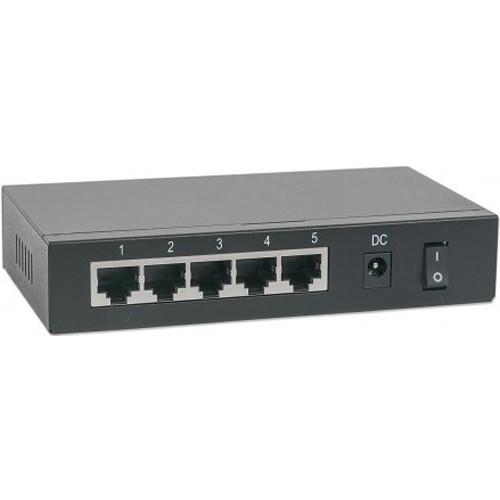

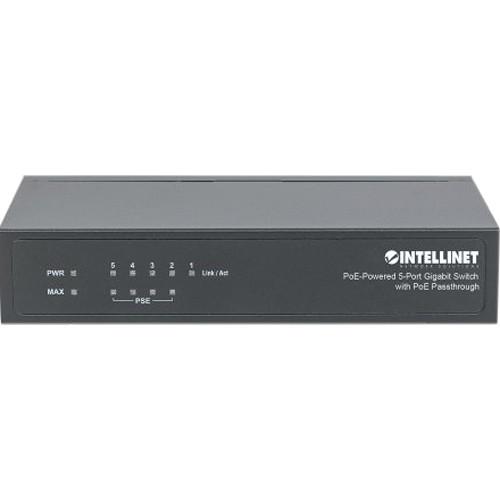

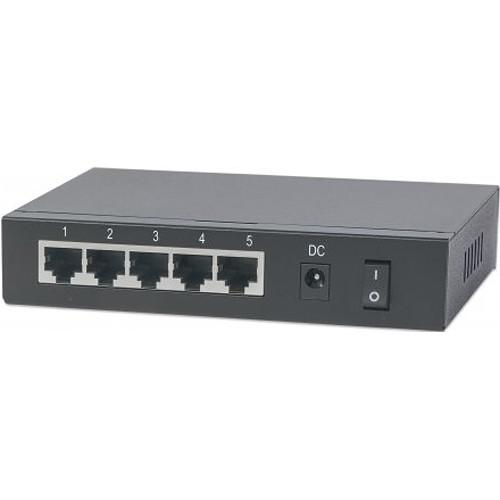

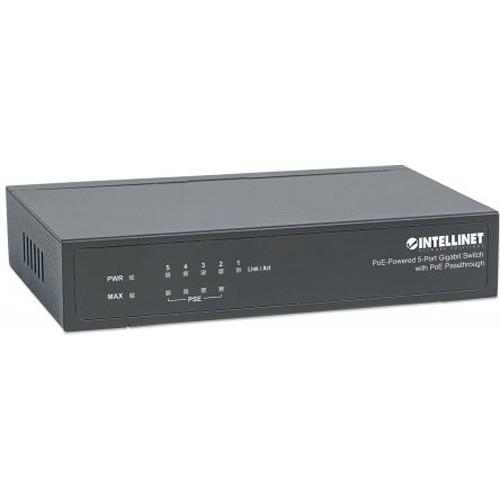

Product description Power your PoE compatible devices such as access points, VoIP phones, and more with the 5-Port PoE-Powered Gigabit Switch with PoE Passthrough from Intellinet. Each Gigabit Ethernet port found on this switch supports the 802.3at/af PoE networking standard along with the ability to deliver data transfer rates of up to 1000 Mbps. Along with enhanced data transfer rates Intellinet has managed to incorporate a large MAC address table capable of holding up to 2,048 entries, a 256MB memory buffer, and 10 Gbps backplane speed to ensure reliable network connectivity. - Switching Features
- • Receives power from a PoE injector or PoE switch and provides power to up to four PoE network devices
• Save time and money by delivering data and power via existing network cables
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
• Can be powered via PoE or the included AC power adapter
• Total power budget of 68 watts when using AC power
• Total power budget of 26 watts when powered via PD input port
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex
• Supports up to 2048 MAC address entries
• 256kB buffer memory UPC: 766623561082 In the Box Intellinet 5-Port PoE-Powered Gigabit Switch with PoE Passthrough Power Adapter Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 5-Port PoE-Powered Gigabit Switch with PoE Passthrough in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 561082 Specs | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 2K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 10 Gb/s | | Packet Buffer | 256 Kb | | | | Power Draw | 75.00 W (Active) | | Current | 2 to 2 A | | DC Input Power | 48 VDC at 1.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 68 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 32 to 158°F / 0 to 70°C | | Certifications | RoHS, as per Manufacturer | | | | Indicator Lights | Link/Activity, PoE, Power | | Dimensions | 5.5 x 3.1 x 1.1" / 14 x 7.8 x 2.8 cm | | Weight | 1 lb / 1 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 7.559 x 6.85 x 3.937" |
