User Manual for Intellinet 713863 19" Double-Section Wallmount Cabinet Click to enlarge the picture
Contents of the user manual for the Intellinet 713863 19" Double-Section Wallmount Cabinet
- Product category: Rack Furniture Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Rack Furniture
 |
User manual for the Intellinet 713863 19" Double-Section Wallmount Cabinet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|

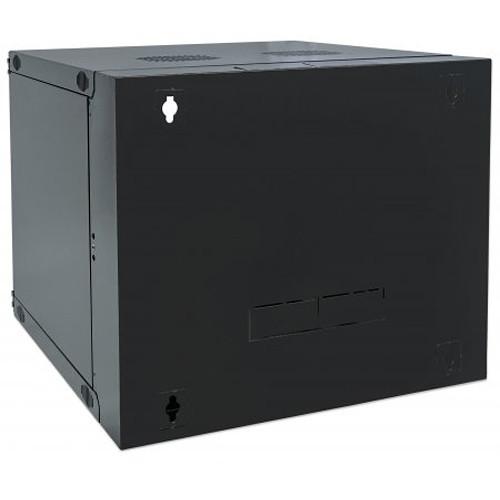

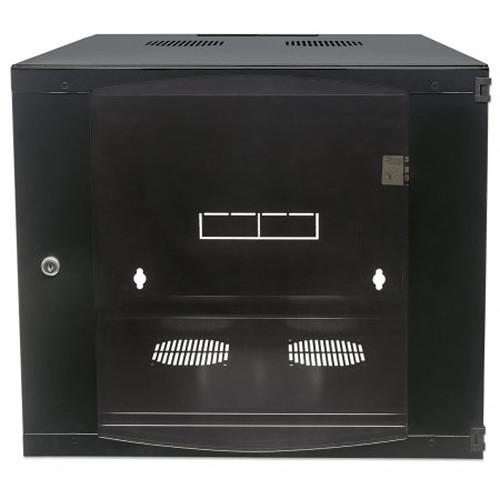

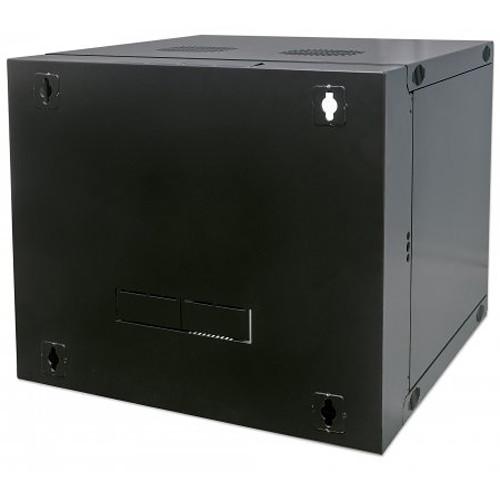

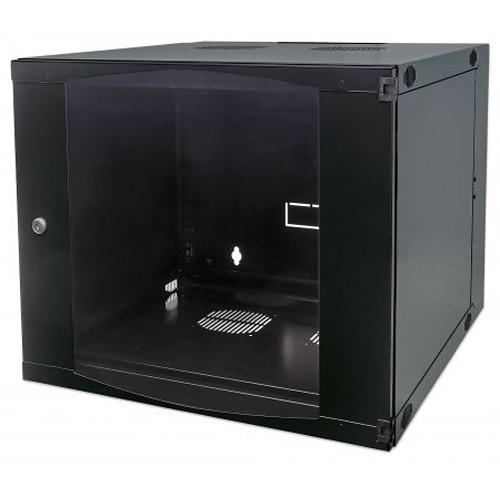

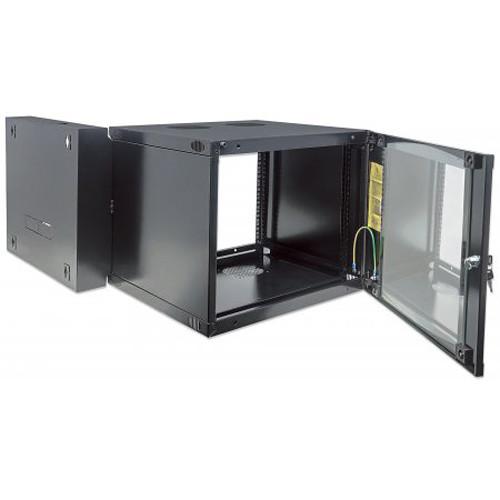

Product description The 713863 from Intellinet is a 12 RU, double-section wallmount cabinet designed to house and protect network installation components. Sturdy and rugged, it is made of cold-rolled, galvanized SPCC steel with anti-static powder coating, and features a 4mm toughened glass front door, a rear door for easy access to the back of the cabinet when changing components, and cable-entry options via the rear or top panel. The unit can supports a maximum static load of 66 lb. The 713863 comes flat-packed and requires some assembly, using the included installation hardware. -
- Ideal for 19" rackmount network installations — 12 RU
- Maximum static load of 66 lb
- Cable entry via rear or top panel
- 4mm toughened glass door
- Rear door for easy access to back of cabinet
- Reversible Front door
- Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
- Anti-static powder coating on all panels
- Ships flat-packed, assembly required
UPC: 766623713863 In the Box Intellinet 713863 19" Double-Section Wallmount Cabinet (12 RU, Black) 2 x Rail Frames Top, Bottom, Front, Back, Side Panels Installation Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 713863 19" Double-Section Wallmount Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 713863 Specs | Rack Form Factor | 12 RU | | Load Capacity | 66 lb / 30 kg | | Material of Construction | Steel | | Exterior Dimensions (W x H x D) | 21.3 x 23.4 x 23.6" / 540 x 593 x 600 mm | | | | Package Weight | 54.85 lb | | Box Dimensions (LxWxH) | 24.75 x 23.0 x 11.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
