User Manual for Intellinet 8-Port Fast Ethernet PoE Switch Click to enlarge the picture
Contents of the user manual for the Intellinet 8-Port Fast Ethernet PoE Switch
- Product category: Network Switches, Bridges & Hubs Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Network Switches, Bridges & Hubs
 |
User manual for the Intellinet 8-Port Fast Ethernet PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|

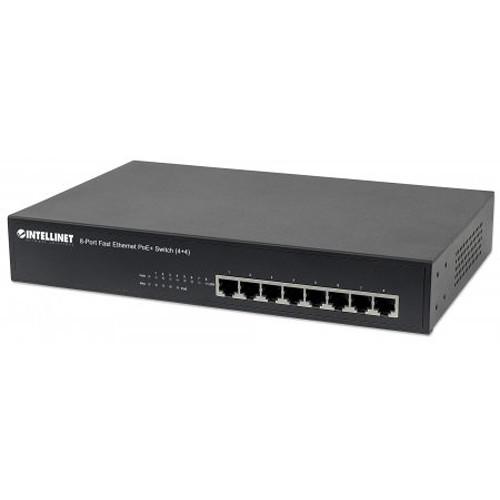

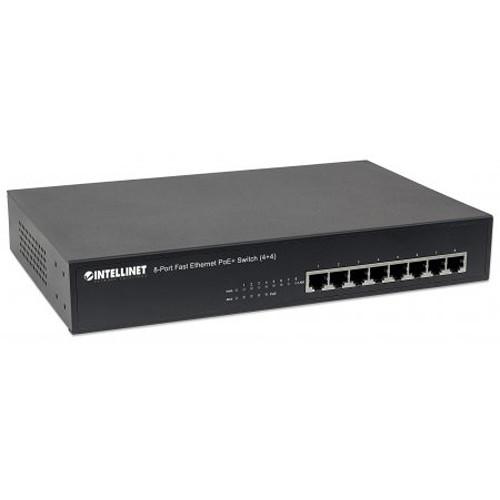

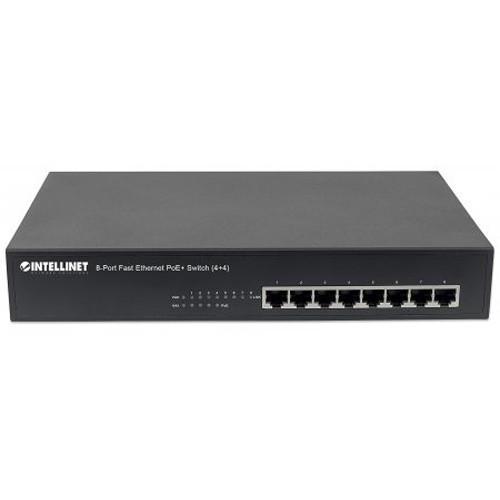

Product description With eight Fast Ethernet ports, the 8-Port Fast Ethernet PoE+ Switch from Intellinet is designed to provide power to PoE compatible devices. Four of the eight ports on the switch come compatible with the 802.3af/at PoE networking standard and offer up to 30 watts of power per port. Network administrators can now connect devices like access points, VoIP equipment, and more directly to the switch and avoid using dedicated power supplies for each device. Intellinet has even included short-circuit, overload and high-voltage protection to help prevent damage to connected network components. Installation has also been simplified as this switch can be integrated into a rackmount configuration using the included 19" rackmount brackets. - Provides power and data connection for up to four PoE network devices
- Save time and money by delivering data and power via existing network cables

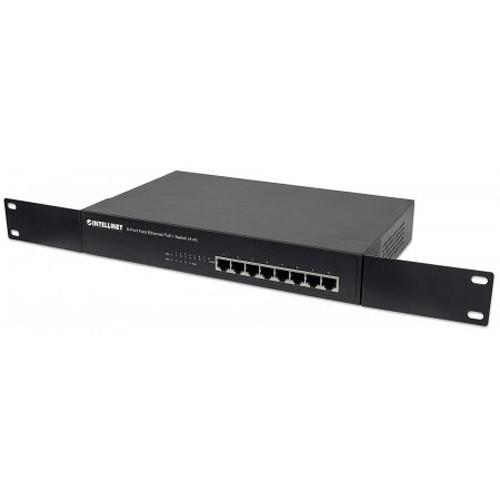

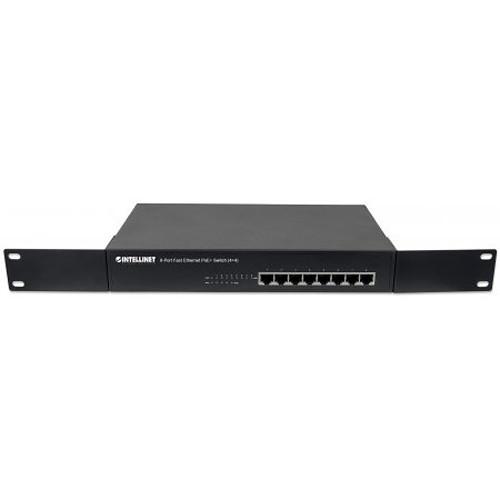

- For use on desktop or mounted in standard 19" rack
- 10/100 auto-sensing ports automatically detect optimal network speeds
- Four IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- PoE power budget of 70 watts
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- All RJ-45 ports with Auto-MDIX (auto uplink) support
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports up to 2K MAC address entries
- Includes 19" rackmount brackets
UPC: 766623561075 In the Box Intellinet 8-Port Fast Ethernet PoE+ Switch 19" Rackmount Brackets Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 8-Port Fast Ethernet PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

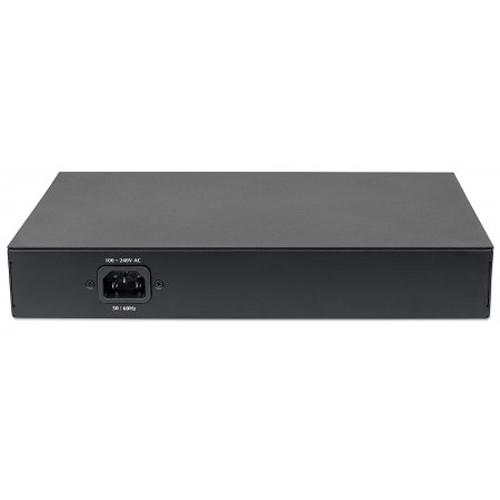

Technical parametersIntellinet 561075 Specs | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 2K | | | | Supported IEEE Standards | 802.3, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 1.6 Gb/s | | Packet Buffer | 768 Kb | | | | Power Draw | 80.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | | | Indicator Lights | Link/Activity, PoE, Power | | Dimensions | 11 x 7 x 1.7" / 28 x 17.9 x 4.4 cm | | Weight | 3 lb / 2 kg | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 17.3 x 9.6 x 3.1" |
