User Manual for Intellinet 8-Port Fast Ethernet PoE Switch Click to enlarge the picture
Contents of the user manual for the Intellinet 8-Port Fast Ethernet PoE Switch
- Product category: Network Switches, Bridges & Hubs Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Network Switches, Bridges & Hubs
 |
User manual for the Intellinet 8-Port Fast Ethernet PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|

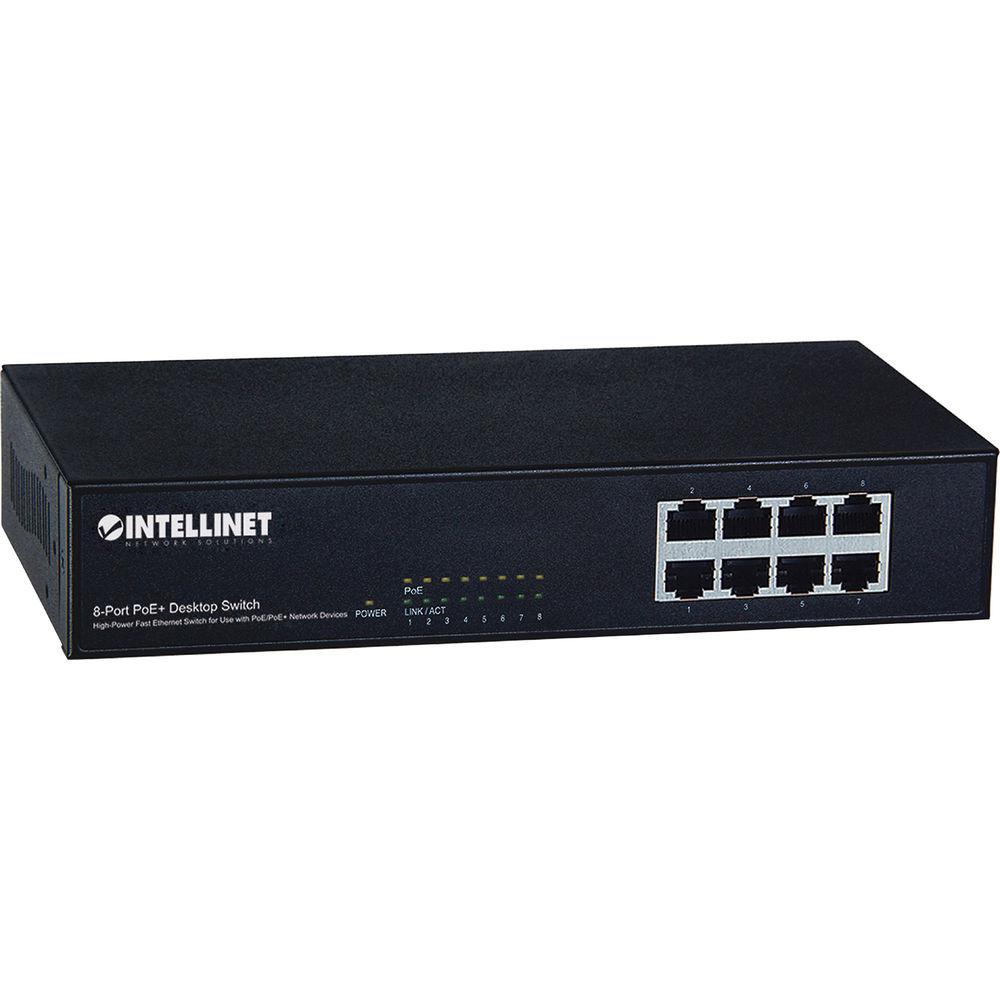

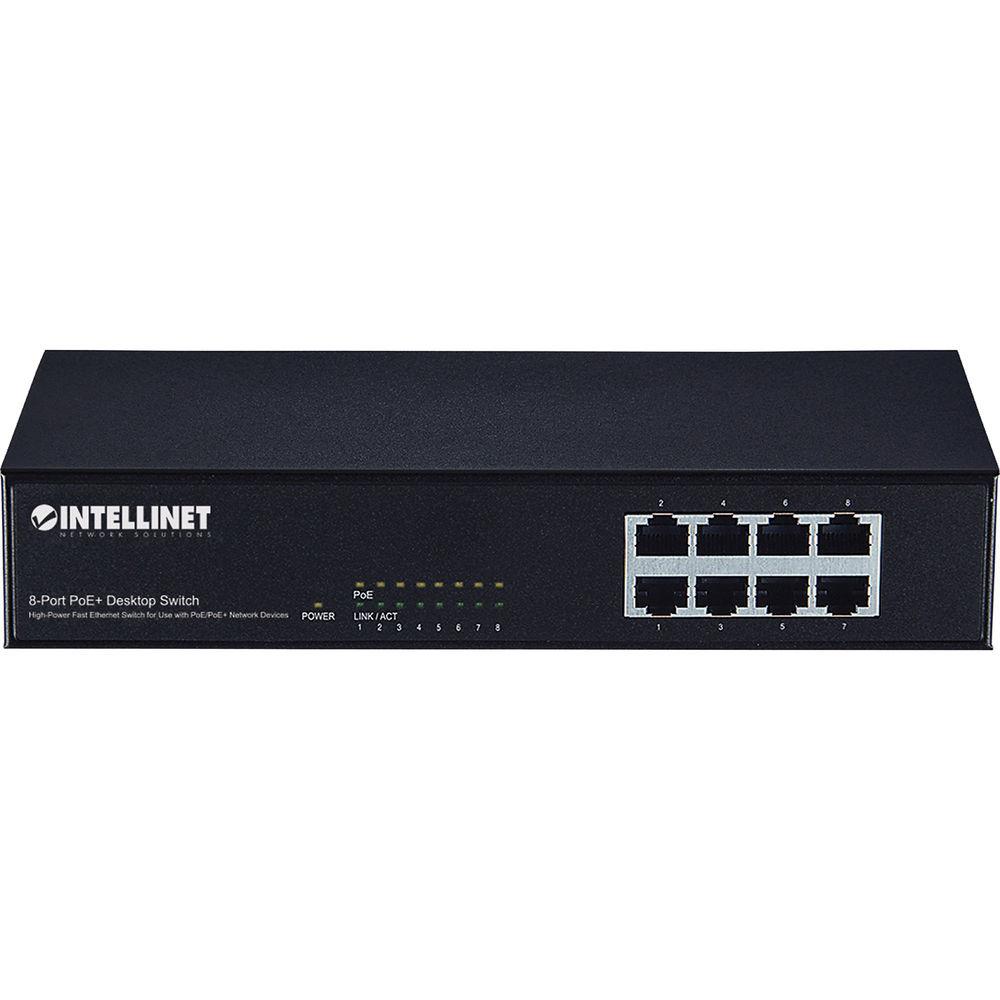

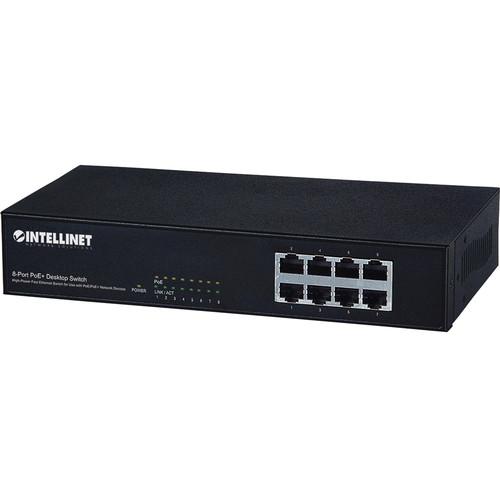

Product description Provided by third party: 8-Port PoE Plus Desktop Switch is designed to pass both data and electrical power to a number of Power over Ethernet-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE Plus), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. 10/100 auto-sensing ports automatically detect optimal network speeds. Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port. Total PoE budget for this switch is 40 watts. IEEE802.3af or IEEE802.3at-compliant devices attached to the switch require no additional power, eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places. Switch supports up to 4096 MAC address entries and 160 kBytes buffer memory. In the Box Intellinet 8-Port Fast Ethernet PoE+ Switch 8-Port PoE+ Desktop Switch Power Cable User Manual Limited 3-Year Warranty Brochure PDF 444.6kbudewuarvzzuarcxryxyrybcvbzbwuetduyeyey Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 8-Port Fast Ethernet PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 560764 Specs | | | Total Number of Network Ports | 8 | | Token Ring Port | No | | LRE Port | No | | Bypass | No | | Modular | No | | Management Port | No | | USB | No | | Number of PoE+ (RJ-45) Ports | 8 | | Stack Port | No | | Port/Expansion Slot Details | 8 x Fast Ethernet Network | | | | Media Type Supported | Twisted Pair | | Twisted Pair Cable Standard | Category 6 | | Ethernet Technology | Fast Ethernet | | Network Technology | 10/100Base-TX | | | | PoE (RJ-45) Port | No | | Input Voltage | 120 V AC
230 V AC | | Power Source | Power Supply | | Redundant Power Supply Supported | No | | | | Color | Black | | Form Factor | Desktop | | Height | 1.7" | | Width | 9" | | Depth | 4.8" | | Weight (Approximate) | 3.30 lb | | | | Certifications & Standards | IEEE Standards:- 802.3
- 802.3ab
- 802.3af
- 802.3at
- 802.3u
- 802.3x
| | Recycled | No | | Recycled Content | 0% | | Post-consumer-waste% | 0% | | Assembly Required | No | | Country of Origin | China |
