User Manual for Intellinet 8-Port Gigabit Web-Smart Switch Click to enlarge the picture
Contents of the user manual for the Intellinet 8-Port Gigabit Web-Smart Switch
- Product category: Network Switches, Bridges & Hubs Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Network Switches, Bridges & Hubs
 |
User manual for the Intellinet 8-Port Gigabit Web-Smart Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|

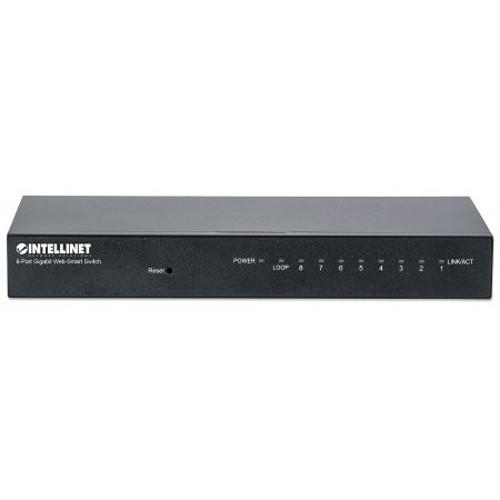

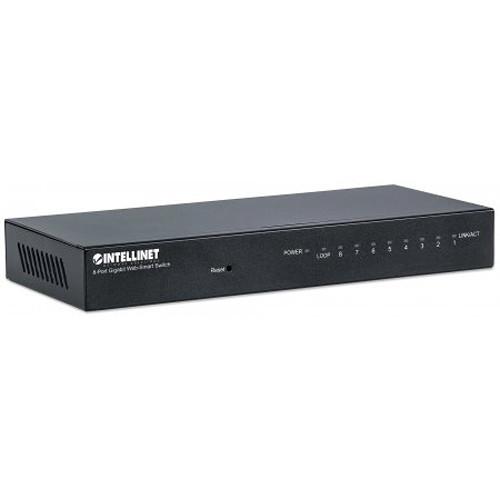

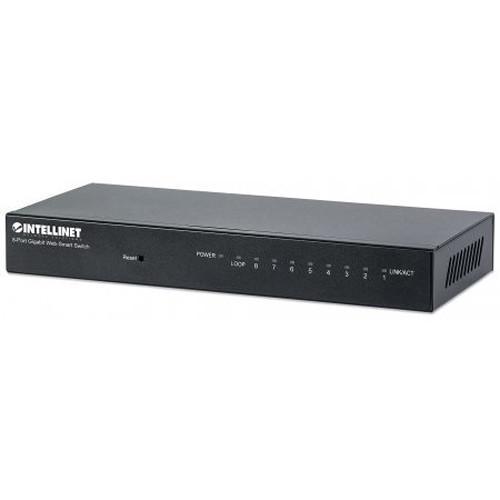

Product description The power conscious 8-Port Gigabit Web-Smart Switch from Intellinet features Green Ethernet technology designed to conserve power on all of the eight network ports and also supports the 802.3az Energy Efficient Ethernet standard. In addition to power conservation, the Gigabit Ethernet ports found on this switch support auto-sensing capabilities to ensure users receive optimal network speeds. Once installed, the switch offers enhanced performance thanks to the 8,192 entry MAC address table, 256 kB memory buffer, and 16 Gbps backplane speed. Additionally, this Intellinet switch comes equipped with dedicated power, link/activity, and loop detection LED indicators making it easy to see the status of each network connection. - 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length

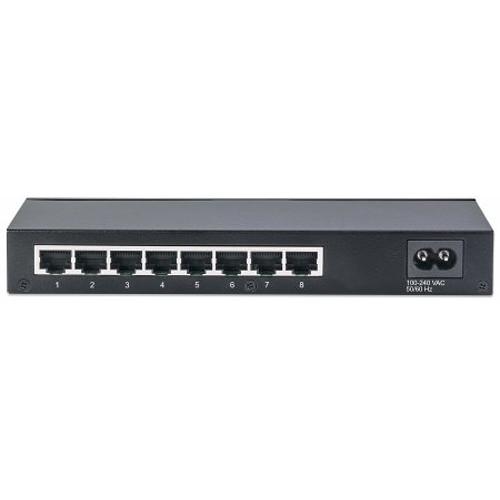

- All RJ-45 ports with Auto-MDIX (auto uplink) support
- Supports Trunking, VLAN and QoS
- Bandwidth control for all ports with 6 levels
- Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
- IGMP snooping reduces multicasting traffic on the network
- Broadcast and multicast storm control
- Loop detection and prevention
- Supports jumbo frames up to 9 kBytes
- Supports MAC address auto-learning and auto-aging
- Supports NWay auto-negotiation
- IEEE 802.3az (Energy Efficient Ethernet EEE) can be deactivated
- Store and forward switching architecture
- Full/half duplex operation
- Firmware update via HTTP and TFTP
UPC: 766623561099 In the Box Intellinet 8-Port Gigabit Web-Smart Switch Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet 8-Port Gigabit Web-Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 561099 Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.3, 802.3ab, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 16 Gb/s | | Packet Buffer | 256 Kb | | | | Power Draw | 3.57 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | | | Indicator Lights | Link/Activity, Power | | Dimensions | 7.6 x 3.3 x 1" / 19.3 x 8.4 x 2.6 cm | | Weight | 2 lb / 1 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.7 x 5.7 x 2.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
