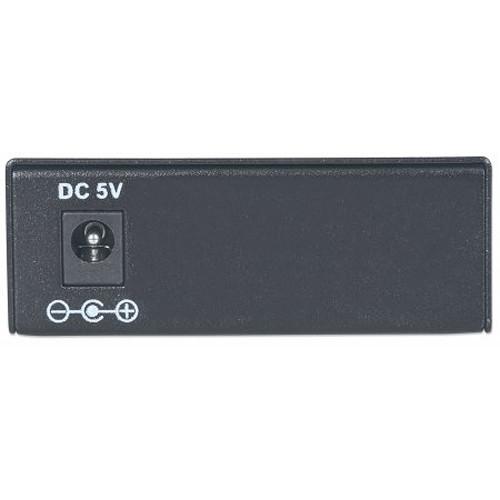

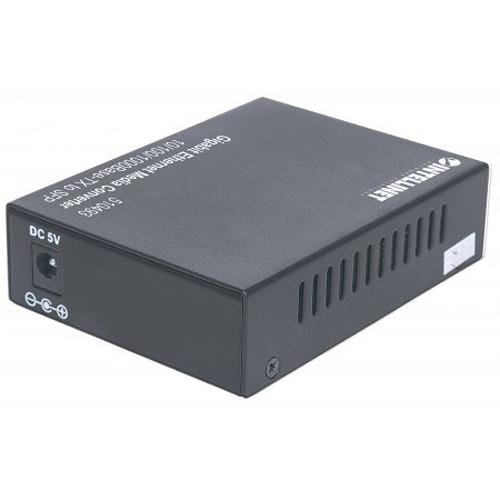

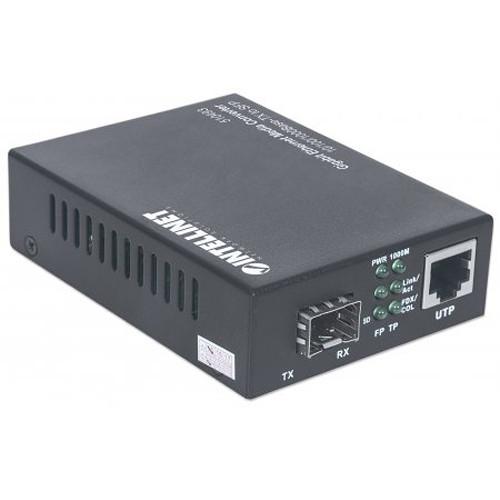

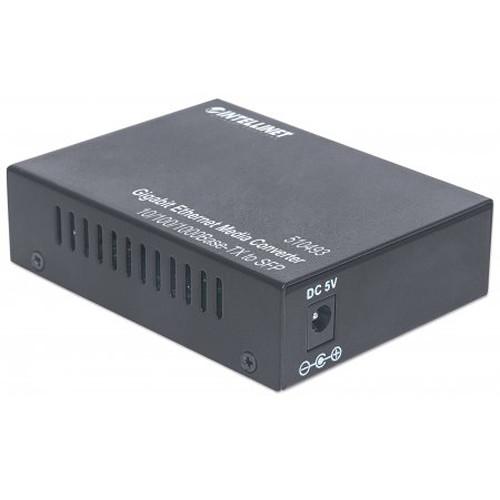

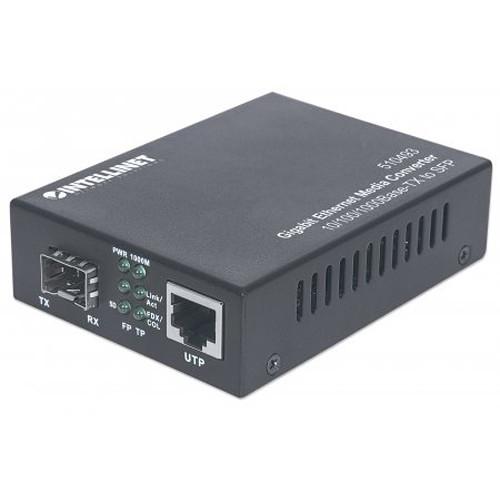

User Manual for Intellinet Gigabit Ethernet to SFP Media Converter Click to enlarge the picture
Contents of the user manual for the Intellinet Gigabit Ethernet to SFP Media
- Product category: Network Transceivers Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Network Transceivers
 |
User manual for the Intellinet Gigabit Ethernet to SFP Media contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|
Product description The Gigabit Ethernet to SFP Media Converter from Intellinet lets you convert a Gigabit Ethernet connection to a fiber one for faster speeds and farther connections between networking devices, up to 300' (100 m). This makes it ideal for building-to-building connectivity without the need for additional routers. It supports 1000Base-T connections and requires a Cat5e cable or better for optimal performance. Furthermore, LED indicators on the device lets your monitor its connectivity. You can use this converter as a stand-alone unit or with an optional 14-slot Intellinet media converter chassis. -
- Data transfer rate of up to 1000 Mbps
- 10/100/1000Base-TX auto-sensing RJ45 port, maximum distance of 300' (100 m) (Cat5e and better)
- RJ45 port with Auto MDI/MDI-X support
- SFP (Small Form Factor Pluggable) optical transceiver module port (SFP module not included)
- Module port for Gigabit multimode or single-mode Mini GBIC 1.25G SFP-type fiber modules

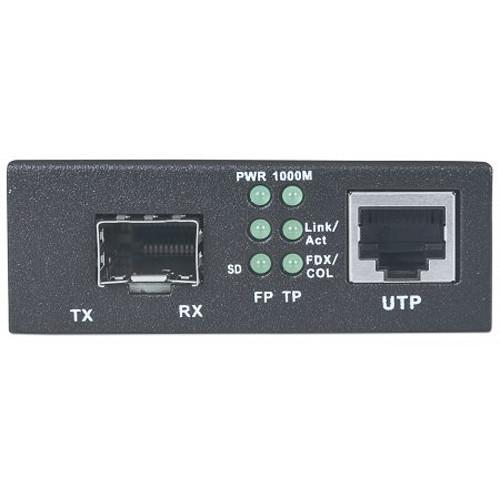

- Status LEDs for power and Link/TX for both ports
UPC: 766623510493 In the Box Intellinet Gigabit Ethernet to SFP Media Converter Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet Gigabit Ethernet to SFP Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 510493 Specs | Ethernet Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab | | Ports | 1 x RJ45 | | Networking Technology | 1000BASE-T | | Maximum Networking Distance | 328' / 100 m | | Maximum Data Rate | 1 Gbps | | Power Consumption | 5 W | | DC Input Power | 12 VDC at 1.2 A | | Material | Metal | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 80% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Dimensions (L x W x H) | 3.8 x 2.8 x 1.2" / 96.5 x 71.1 x 30.5 mm | | Weight | 5.4 oz / 153.1 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 2.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
