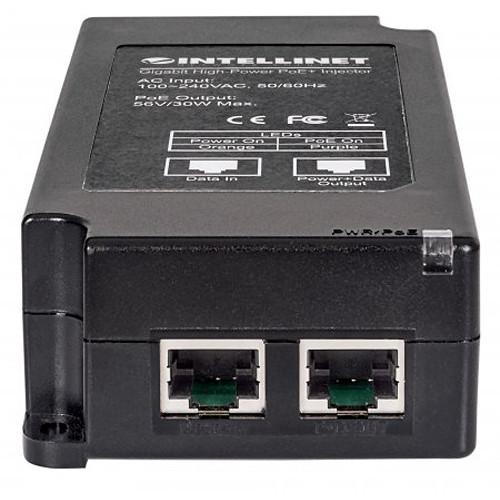

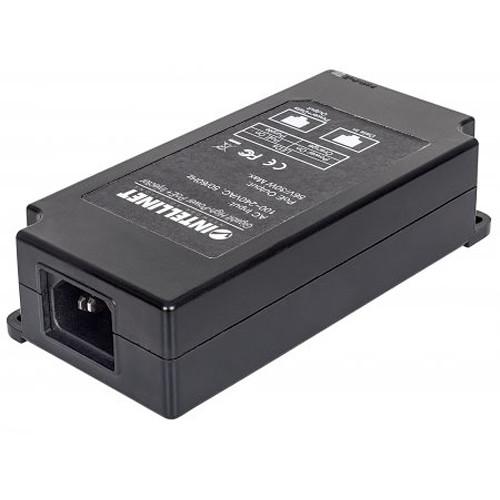

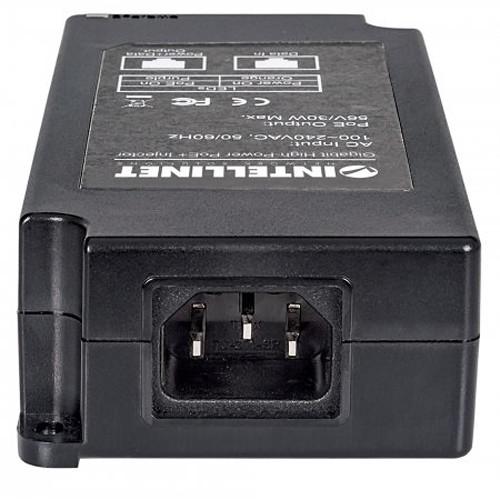

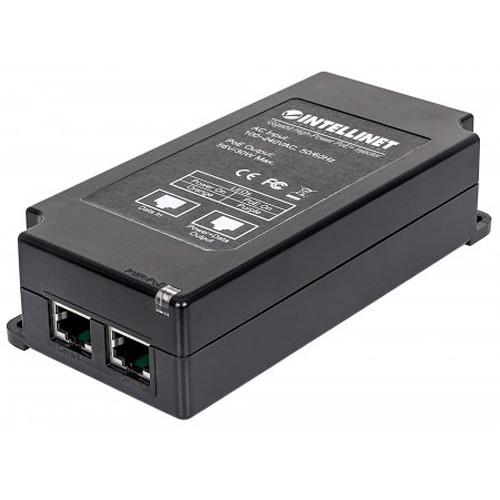

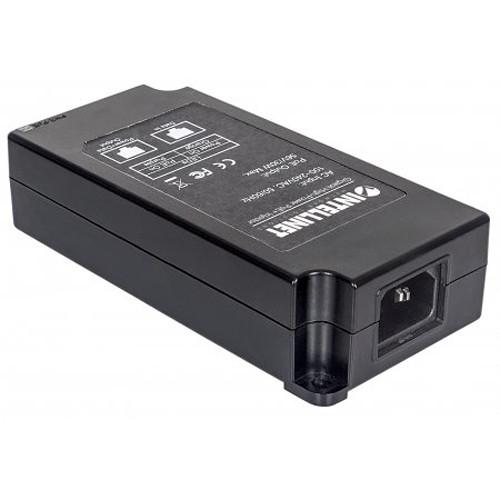

User Manual for Intellinet Gigabit High-Power PoE Injector Click to enlarge the picture
Contents of the user manual for the Intellinet Gigabit High-Power PoE Injector
- Product category: Power over Ethernet (PoE) Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Power over Ethernet (PoE)
 |
User manual for the Intellinet Gigabit High-Power PoE Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|
Product description Inject 30 watts of 802.3af/at PoE power into your network with the Gigabit High-Power PoE+ Injector from Intellinet. With this PoE injector, you can infuse your network with the power needed to support a variety of PoE devices such as access points, IP cameras, IP phones, and other compatible network components. - Save time and money by delivering data and power via existing network cables
- IEEE 802.3at compliant (PoE+)
- Power output of up to 30 watts
- Distance Support: up to 328' / 100 m
- Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload, and high-voltage protection
- Fanless design ideal for silent operation
UPC: 766623561037 In the Box Intellinet Gigabit High-Power PoE+ Injector Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet Gigabit High-Power PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 561037 Specs | Standards | IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode) | | Media Support | 100Base-TX Cat 5 UTP/STP RJ45, 8 pin
1000Base-T Cat 5e UTP/STP RJ45, 8 pin | | Ports | 1 x RJ45 10/100/1000 Mbps input port
1 x RJ45 10/100/1000 Mbps data and power output port | | Protection | Short circuit protection for short GND
Overload protection for currents over 0.6 A | | Output Connector Pinout | PoE Pinout: IEEE 802.3af/at Standard Mode A
Pin 1: DC (+)
Pin 2: DC (+)
Pin 3: DC (-)

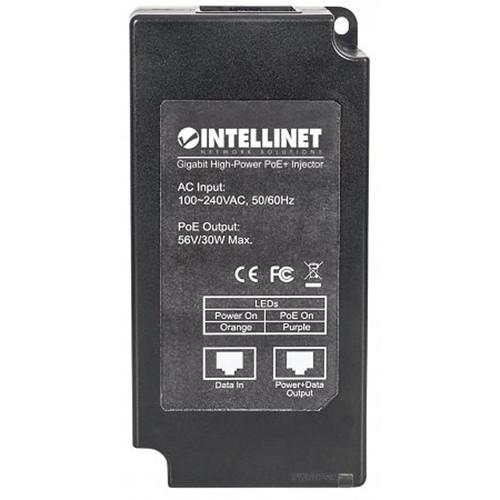

Pin 6: DC (-) | | Certifications | FCC Class A, CE, UL | | LED Indicators | Dual-color power and PoE LED | | Power | Input: 100-240 VAC, 50-60 Hz
Power Consumption: 35 watts (maximum) | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 176°F / -20 to 80°C
Operating Humidity
10 to 90% RH, non-condensing | | Housing | Plastic | | Dimensions | 5.35 x 2.64 x 1.34" / 136 x 67 x 34 mm | | Weight | 0.42 lb / 0.19 kg | | | | Package Weight | 1.125 lb | | Box Dimensions (LxWxH) | 7.8 x 4.75 x 3.65" |
