User Manual for Intellinet Net Toner Probe Kit with LEDs Click to enlarge the picture
Contents of the user manual for the Intellinet Net Toner Probe Kit with
- Product category: Installation & Maintenance Tools Intellinet
- Brand: Intellinet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellinet Installation & Maintenance Tools
 |
User manual for the Intellinet Net Toner Probe Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellinet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellinet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellinet product will considerably shorten its lifespan!
|
Product description The Net Toner and Probe Kit from Intellinet is a handheld tool useful for testing, tracing, and identifying signal in telecom, datacom, security system, video-, and audio-networking equipment. It provides a two-position switch for single or multi-tone signal, and offers both modular cables and testing leads to test individual wires or modular jacks. With this kit, you can trace or identify wire and cables in bundles or groups.
The Net Toner provides two sets of frequencies, with High alternating between 500 and 781 Hz and Low alternating between 446 and 657 Hz. The Net Toner's talk battery is quite a useful feature, as it allows users to communicate over telephone test sets—even when a circuit is dead—by providing additional battery power to the inactive circuit.
The probe comes with a replaceable plastic tip to prevent accidental shorts, and provides a 3.5mm ear jack. The probe will allow you to trace for unknown cable path/termination, locate termination verification, locate conductor break/discontinuity, identify telephone line polarity, verify telephone lines, and more, doing so while providing LED lights to indicate the state of a given line's polarity, continuity, and voltage.

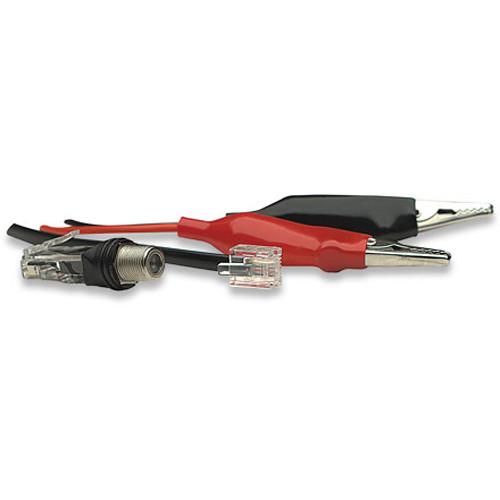

This kit provides an RJ45 jack and an RJ12 plug, as well as alligator clips and a convenient carry pouch. UPC: 766623515566 In the Box Intellinet Net Toner Probe Kit with LEDs Net Probe Net Toner with Alligator Clips and RJ-12 Connector Female F-Connector to RJ-45 Adapter Carrying Pouch Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellinet Net Toner Probe Kit with LEDs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellinet 515566 Specs | | | Frequency | High: alternating 500 and 781 Hz
Low: alternating 446 and 657 Hz | | Approvals and Certifications | CE Approved: EN 55022 Class B for ITE and EN 55024 | | Voltage Protection Rating | 50 VDC or 24 VAC | | Battery | Talk battery: 9 V into a 600 Ohms circuit
Battery type: 9 V standard or alkaline | | Dimensions (L x W x H) | 4.9 x 2.7 x 1.0" / 125.0 x 68.0 x 26.0 mm | | Weight | 4.2 oz / 120.0 g | | | | Gain | 30 dB | | Resistance | 30 Ohms (Plastic tip) | | Approvals and Certifications | CE Approved: EN 55022 Class B for ITE and EN 55024 | | Battery | 9 VDC standard or alkaline | | Dimensions (L x W x H) | 8.3 x 1.6 x 1.1" / 210.0 x 40.0 x 28.0 mm | | Weight | 4.9 oz / 140.0 g | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 10.8 x 5.5 x 1.8" |
