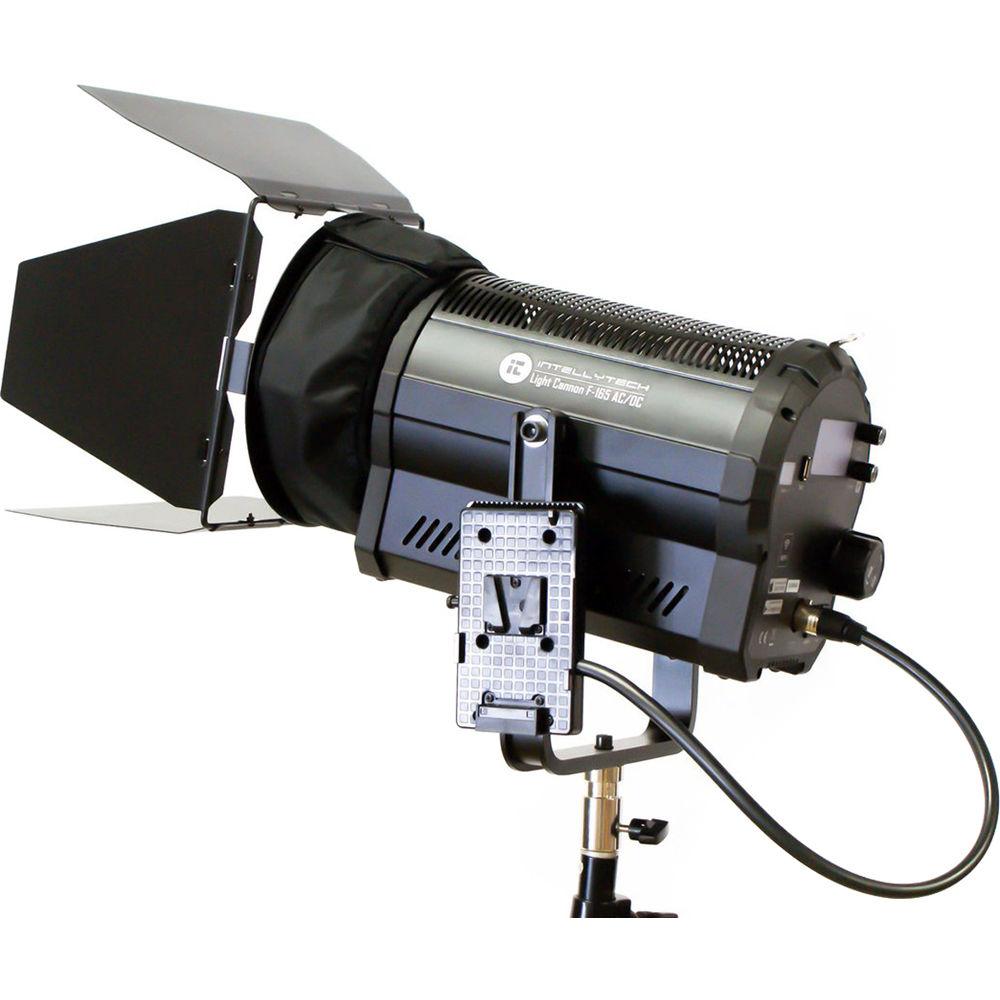

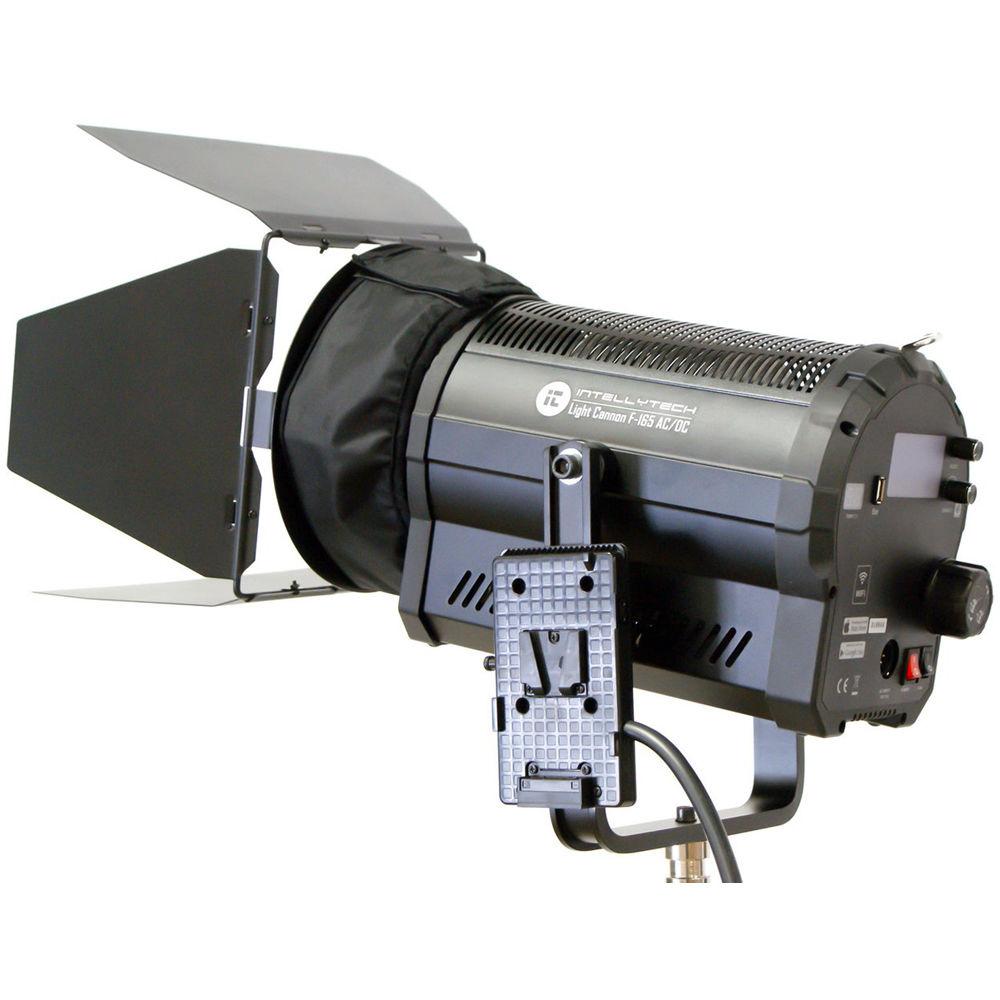

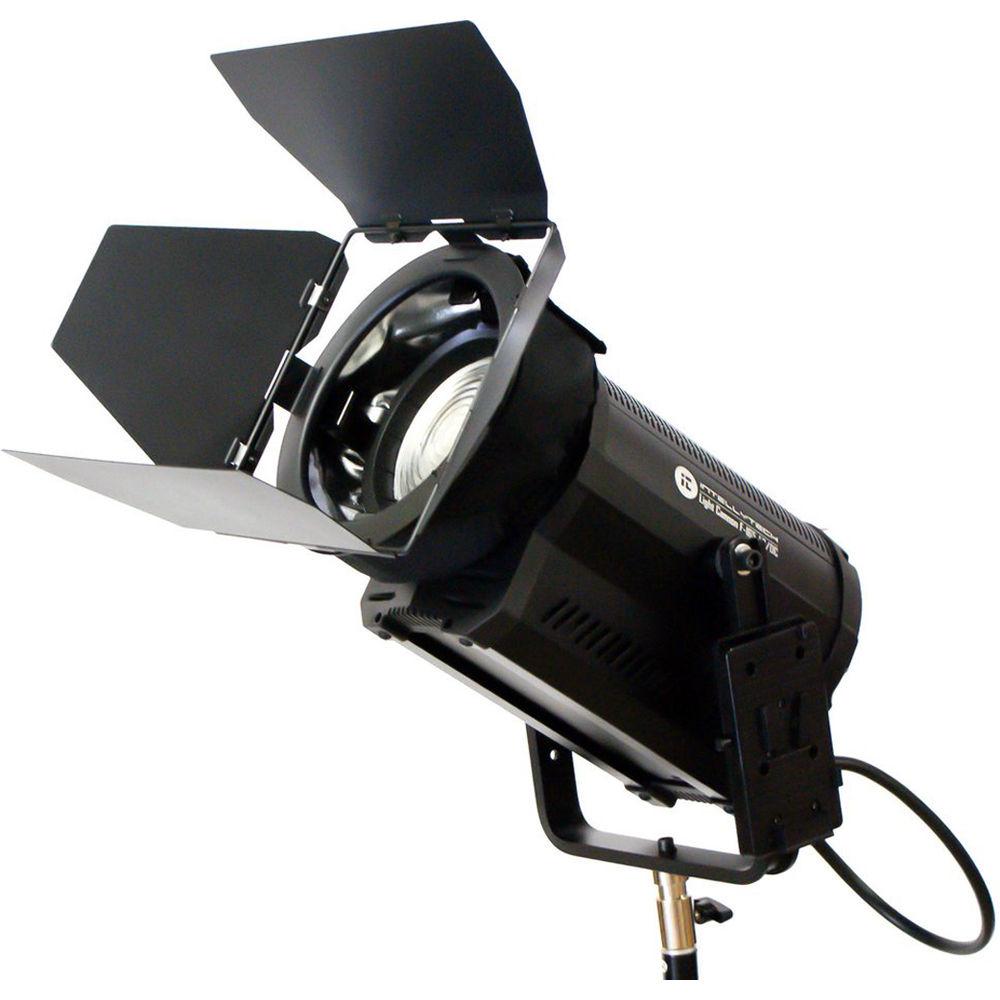

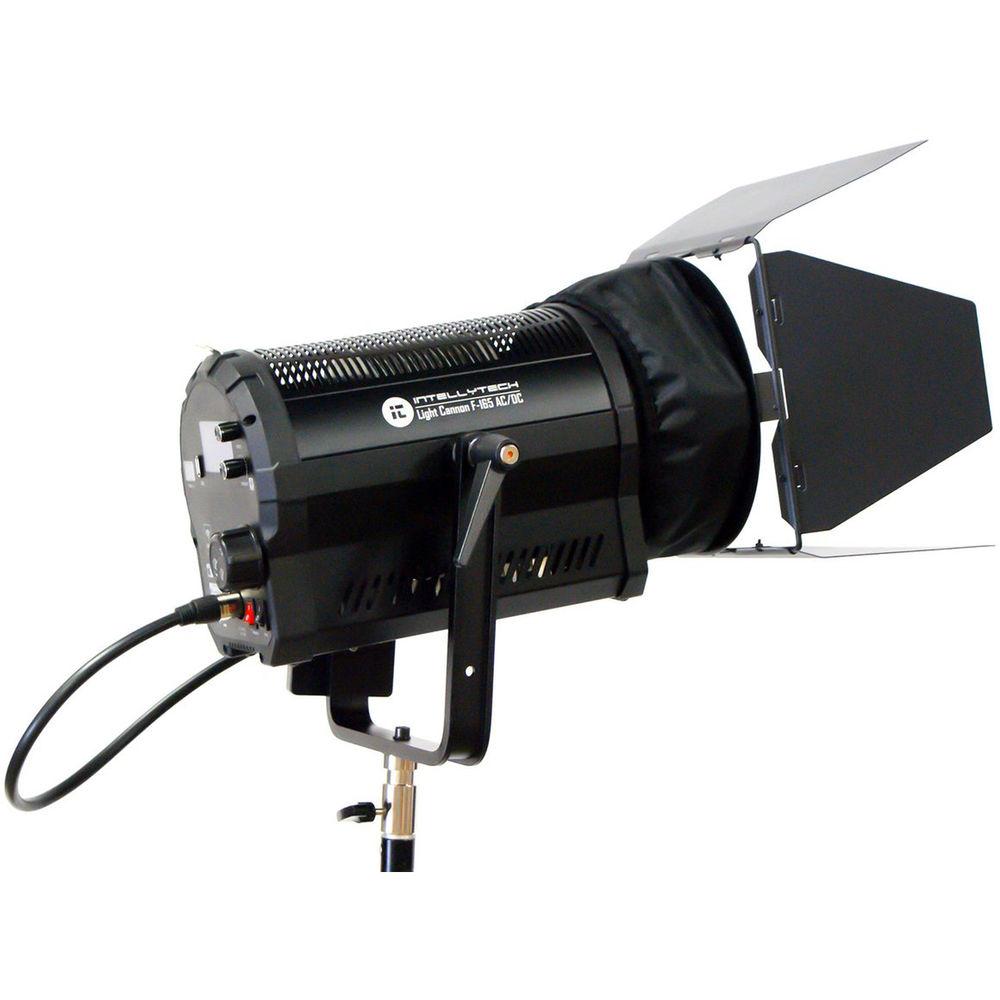

User Manual for Intellytech Light Cannon F-165 AC DC 5500K High-Output LED Fresnel with Wi-Fi and Gold Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Intellytech Light Cannon F-165 AC DC
- Product category: LED Lights Intellytech
- Brand: Intellytech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellytech LED Lights
 |
User manual for the Intellytech Light Cannon F-165 AC DC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellytech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellytech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellytech product will considerably shorten its lifespan!
|

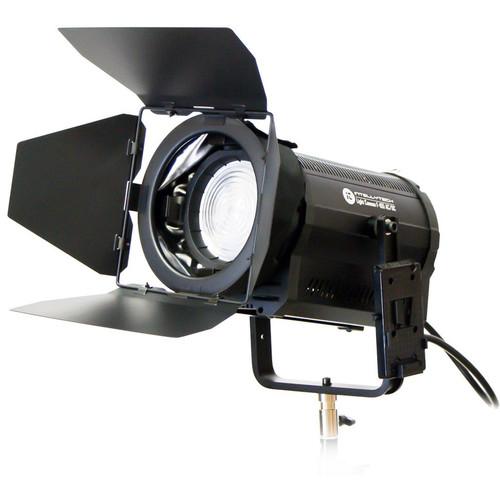

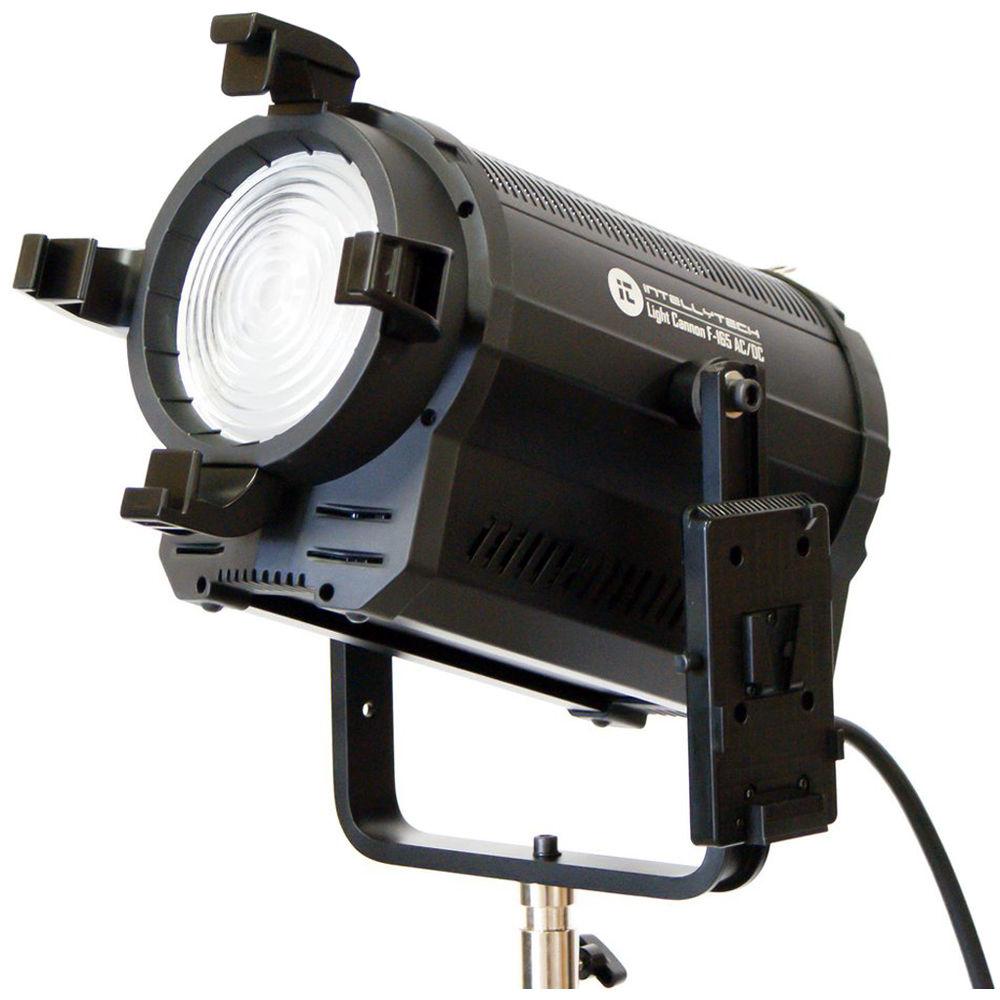

Product description The Light Cannon F-165 5500K High-Output LED Fresnel from Intellytech has a 5" lens that provides wide coverage with a variable beam angle from 20 - 70°. The F-165 has all of the benefits of an LED light source. It's very cool running yet manages to output the equivalent of a 1650 W quartz Fresnel while consuming just 1/10 of its power. That kind of post-purchase savings makes for a fast return on investment. What little heat that's generated is easily dissipated by the onboard fan which can be turned off when dead quiet operation is necessary. Light intensity is controllable from 0-100% without color shift from the light's rear panel, or you can control it remotely via its onboard Wi-Fi and monitor your settings on the F-165's digital display. The F-165 runs on 110-240 VAC current or optional battery power for worldwide use. - High Output and CRI
- Whether shooting in spot or flood mode, the F-165 provides the user with a high output of 165 Watts. The Light Cannon Series is capable of covering large areas. The lights are ideal for matching daylight shooting while its high CRI of 95-99 renders colors vibrantly and faithfully. Those who are shooting slow motion will appreciate flicker free performance up to 3,000 fps.
- Hybrid Cooling
- The Light Cannon Series has a fan that can be turned on or off with the flick of a switch. When on, the unit has 100% power and the fan is whisper quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life is up to 50,000+ hours of use - equivalent to 15 years of daily use, 10 hours a day.
- Strong and Lightweight Metal Frame

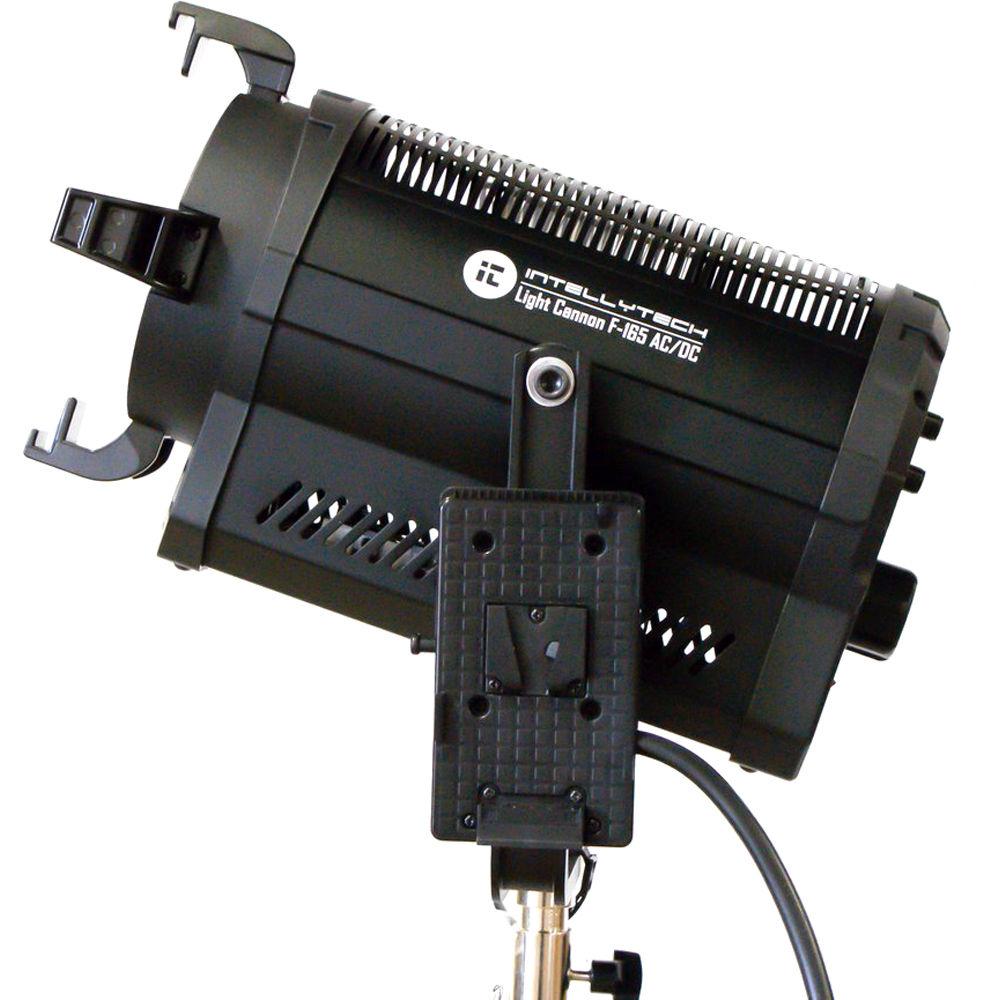

- The metal body housing is made using strong, lightweight, and attractive aluminum for years of use in a professional environment. The high-strength tilt lock provides extremely secure locking, eliminating movement and slippage, ensuring that the fixtures will stay where you put them.
- Wi-Fi Control
- Control the Light Cannon via the Intellytech App. Works on both Android and iOS. This allows for use of a wire-free set-up both in studio and in the field.
- Digital Display

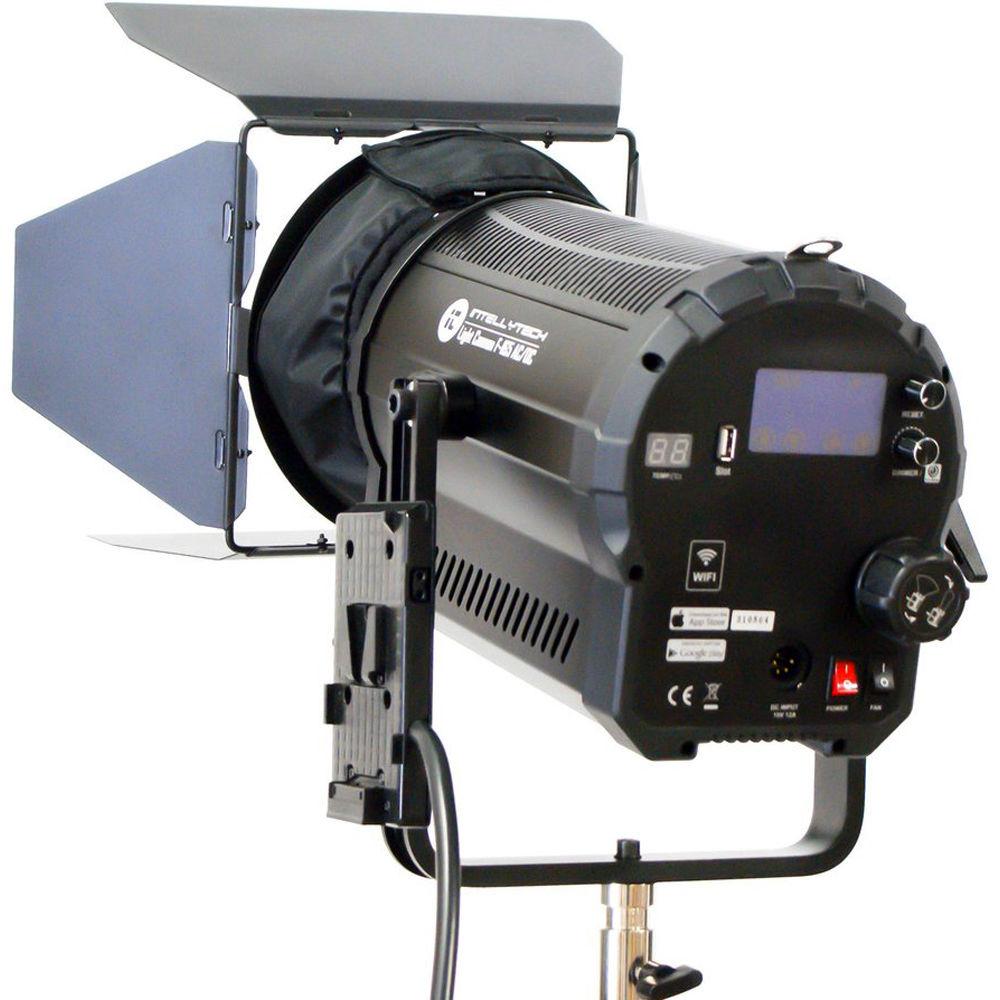

- The Light Cannon F-165 with Wi-Fi features an LCD touchscreen that provides the user with a high degree of control and information.
- Benefits in Short
-
- LED Power: 165 W
- Adjustable beam angle: 20 - 70°
- Dimming 100% to 0% with no color shift
- High CRI of 95-99: Colors are rendered with high accuracy
- 5" lens
- Flicker-free at high-speed shooting rates
- High-efficiency thermal design
- Choose to have fan on or off
- 50,000+ hour rated LED life
- Built-in Wi-Fi control
- LCD screen shows dimming level
- Mechanical spot-flood mechanism
- Wide array of accessories available
- Yoke bar rotatable
- Sturdy aluminum housing for many years of use
- Worldwide 110-240 VAC compatible or optional battery power

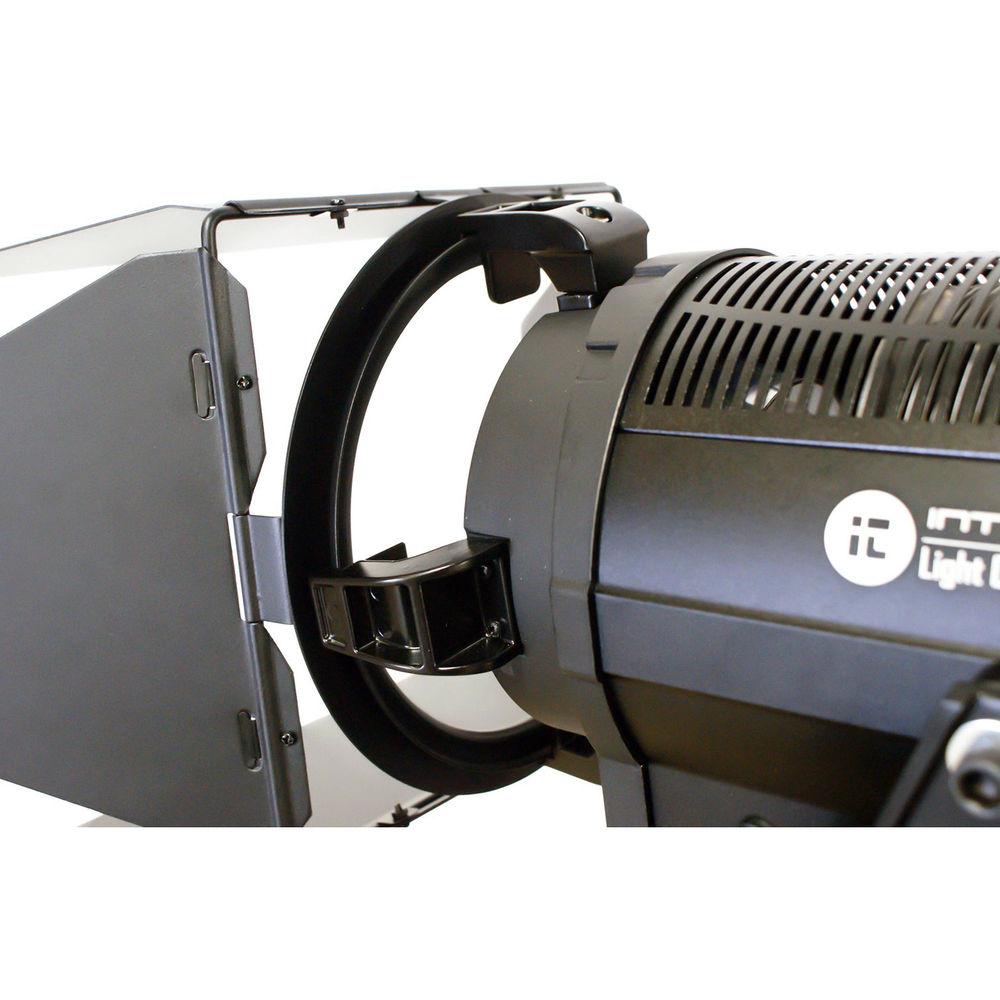

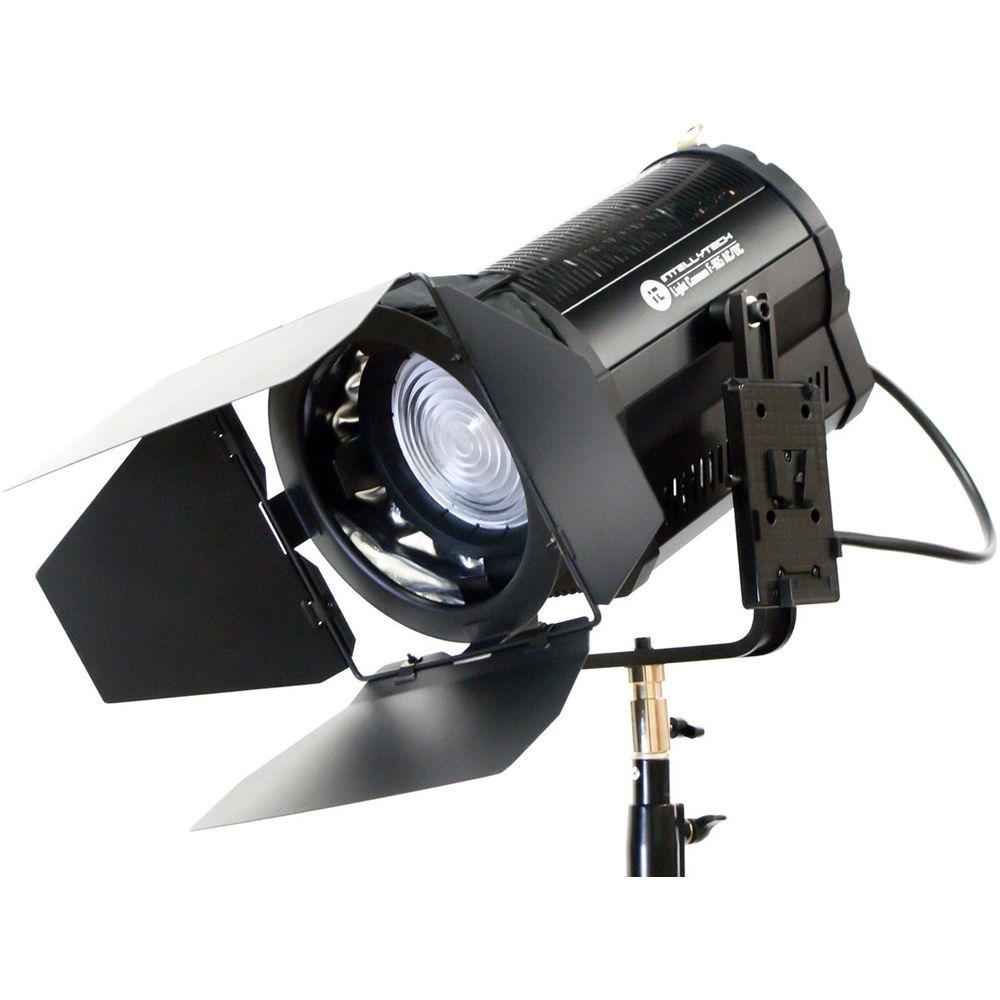

In the Box Intellytech Light Cannon F-165 AC/DC 5500K High-Output LED Fresnel with Wi-Fi and Gold Mount Battery Plate 4-Way Barndoors Yoke Bar with Combo 5/8" Receiver / 1-1/8" Spigot Power Cable with USA Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Light Cannon F-165 AC DC 5500K High-Output LED Fresnel with Wi-Fi and Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech F-165 Specs | | | Beam Angle | 20 to 70° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Housing Material | Aluminum, Glass | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 12.8 x 7.0 x 8.5" / 32.4 x 17.8 x 2.6 cm | | Fixture Weight | 10 lb / 4.5 kg | | | | Battery Plate | 1 x Gold Mount | | | | Lens Diameter | 5" / 12.7 cm | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | | | Remote Control Type | Wi-Fi | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 165 W |
