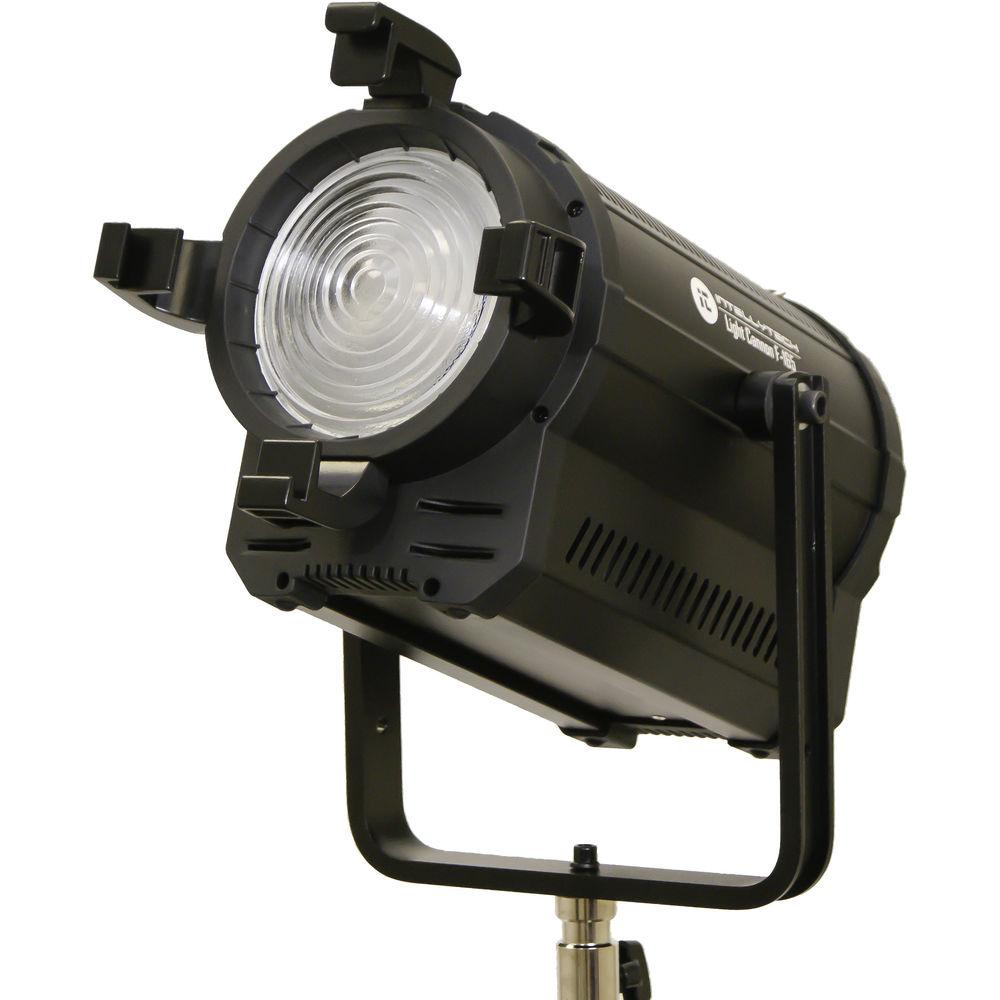

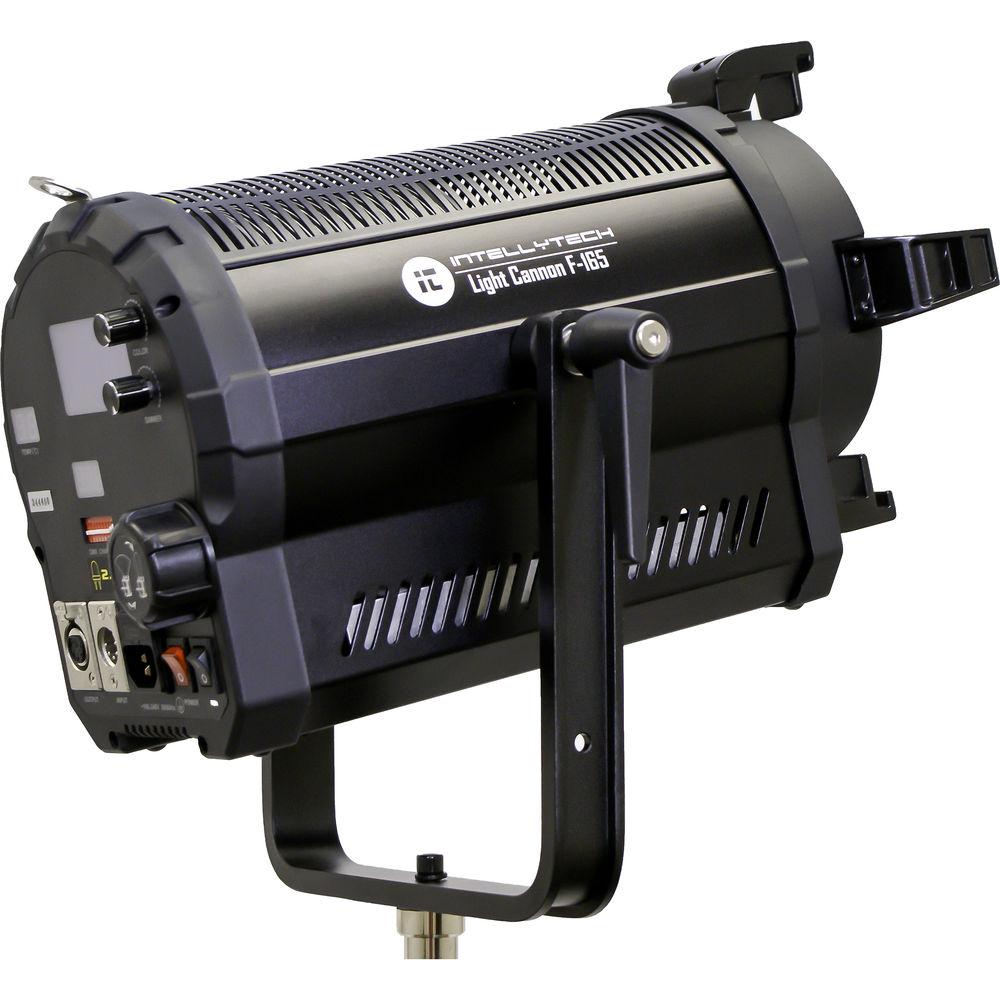

Product description The Light Cannon F-165 Bi-Color High Output LED Fresnel with DMX from Intellytech has a 5" lens that provides wide coverage with a variable beam angle from 15-50°. This variable color luminaire allows you to switch from a warm 3000K to a cool blue 8000K color temperature or anywhere in between with a twist of a knob while maintaining a high CRI of 95-99. Another knob controls light intensity from 0-100%. Alternatively, you can use the LCD touch screen to select and display your settings. You can also control light intensity and color via onboard DMX.The F-165 has all of the benefits of an LED light source. It's very cool running yet manages to output the equivalent of a 1650W quartz fixture while consuming just 1/10 of that power. That kind of post-purchase savings makes for a fast return on investment. What little heat that's generated is easily dissipated by the onboard fan which can be turned off when dead quiet operation is necessary. The F-165 runs on 110-240 VAC current for worldwide use. - Ultra-Wide Color Range and High CRI
- The F-165 is a fully tunable white light source allowing you to match existing fixtures from a warm 3000K to a blue 8000K. The on-board controller allows manual intensity control from 0-100%. All of the functions can be controlled via DMX, an ideal feature for broadcast studios. On top of that the light is rated at a CRI/TLCI of 95-99 to render attractive and accurate colors at all ends of the spectrum
- Hybrid Cooling
- The Light Cannon series has a fan that can be turned on or off with the flick of a switch. When on, the unit has 100% power and the fan is very quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life span also reaches up to 50,000+ hours of use equivalent to 15 years of daily use, 10 hours a day
- Strong and Lightweight Metal Frame
- The metal body housing is made using strong, lightweight, and attractive aluminum for years of use in a professional environment. The high-strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them
- DMX Control
- The Intellytech LED Fresnel Light Cannon is equipped with a built-in DMX 512 controller, allowing for the brightness and color temperature to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages, or conference rooms
- LCD Display

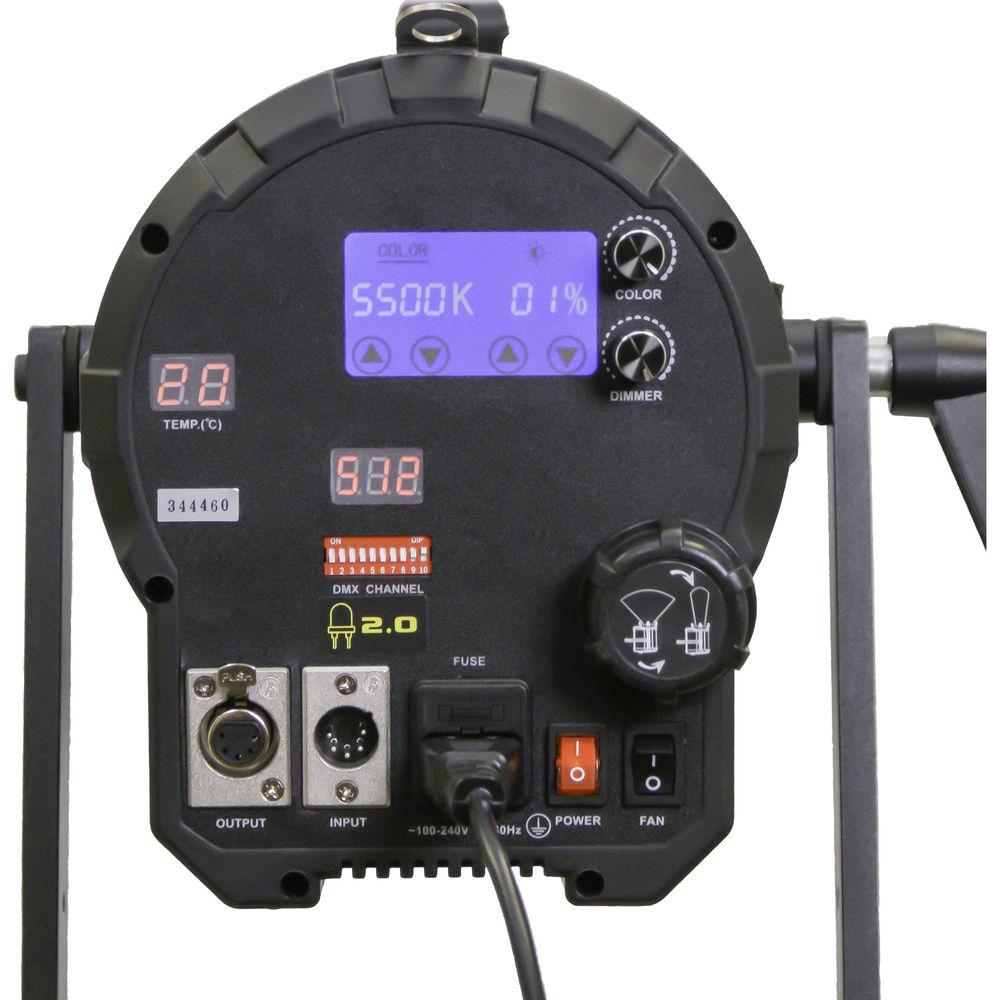

- The bi-color Light Cannons have a high-end LCD touchscreen providing the user with a high degree of control and plenty of information. Select the color temperature or brightness level using the LCD screen or by using the control knobs. The LCD provides the user with information regarding the Brightness Level, Color Temperature, DMX Channel, and Internal Temperature.
- High Output
- Whether shooting in spot or flood mode, the F-165 provides the user with an extremely high output of 165W. The Light Cannon Series is capable of covering large areas. It can be used outdoors in daylight with impressive results
- Benefits in Short
-
- LED Power: 165 W
- 3000-8000K color temperature
- Adjustable beam angle: 15-50°
- Dimming 100% to 0% with no color shift
- High CRI of 95-99
- 5" lens diameter
- Flicker-free at high-speed shooting rates.
- High efficiency thermal design
- Choose to have fan on or off
- 50,000+ hour rated LED life
- Built-in DMX
- LCD screen showing color temp and dimmer controls
- Mechanical spot-flood mechanism
- Wide array of accessories available
- Yoke bar rotatable
- Sturdy aluminum housing for many years of use
- Worldwide voltage compatible: 110-240 VAC

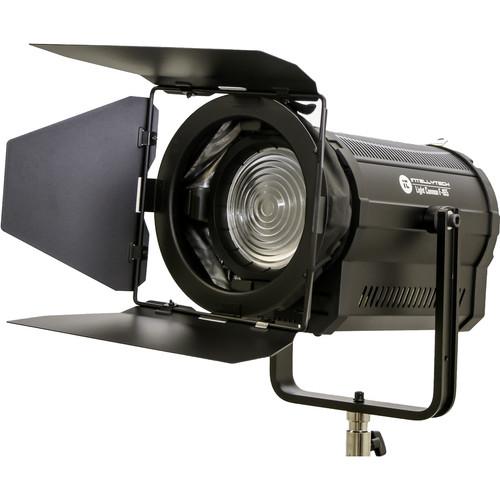

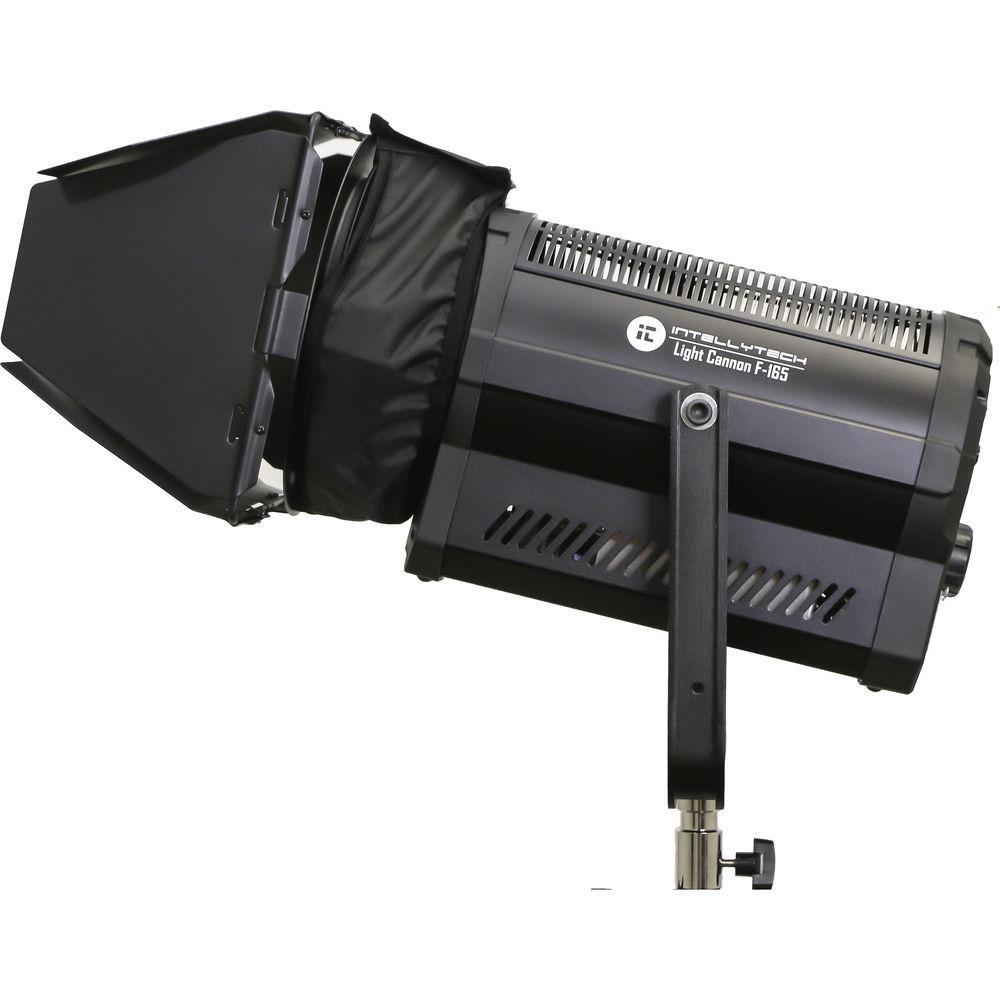

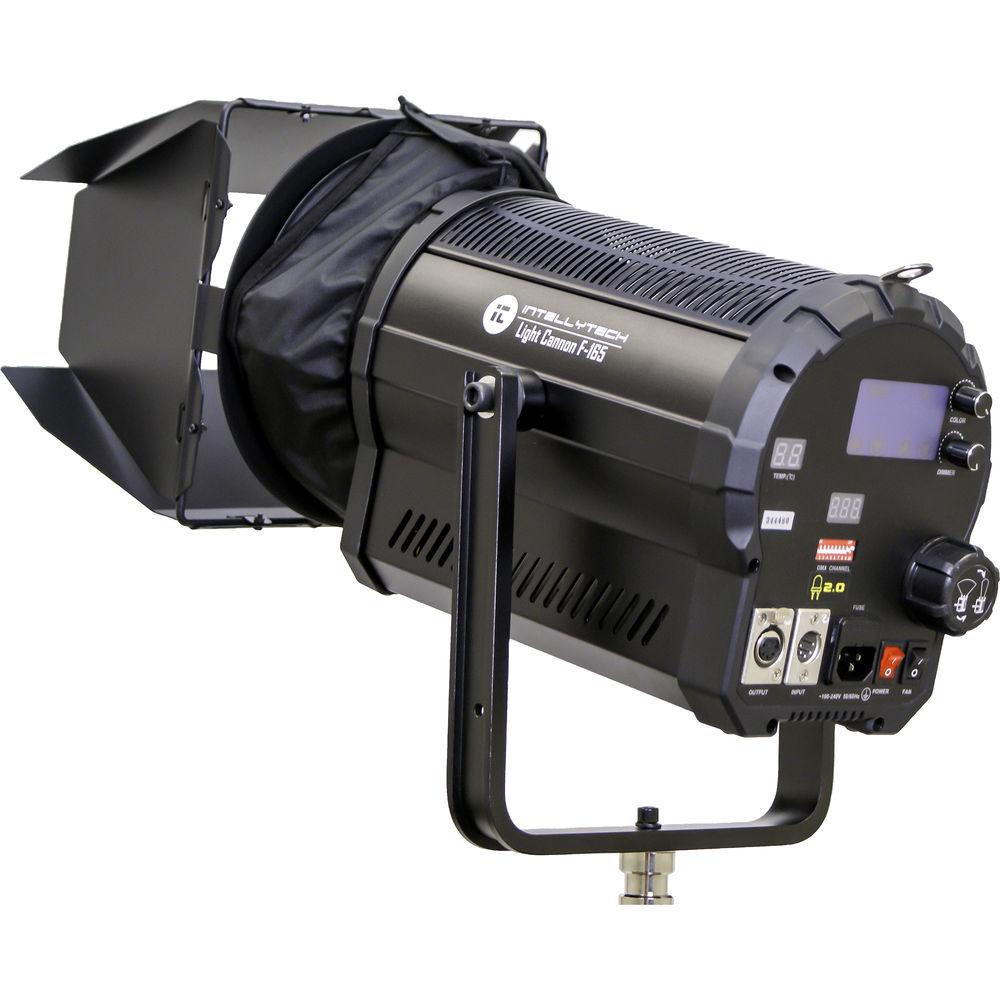

In the Box Intellytech Light Cannon F-165 Bi-Color High Output LED Fresnel with DMX Four-Leaf Barndoors Yoke Bar with Combo Mount 5/8" Receiver and 1 1/8" Spigot Power Cable with USA Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Light Cannon F-165 Bi-Color High Output LED Fresnel with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech F-165 Specs | | | Beam Angle | 20 to 70° | | Color Temperature | 3000 to 8000K | | Color Accuracy Standard | CRI 92 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum, Glass | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 12.0 x 7.0 x 8.5" / 30.5 x 17.8 x 21.6 cm | | Fixture Weight | 10 lb / 4.5 kg | | | | Lens Diameter | 5" / 12.7 cm | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 165 W | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 21.0 x 13.2 x 13.0" |
