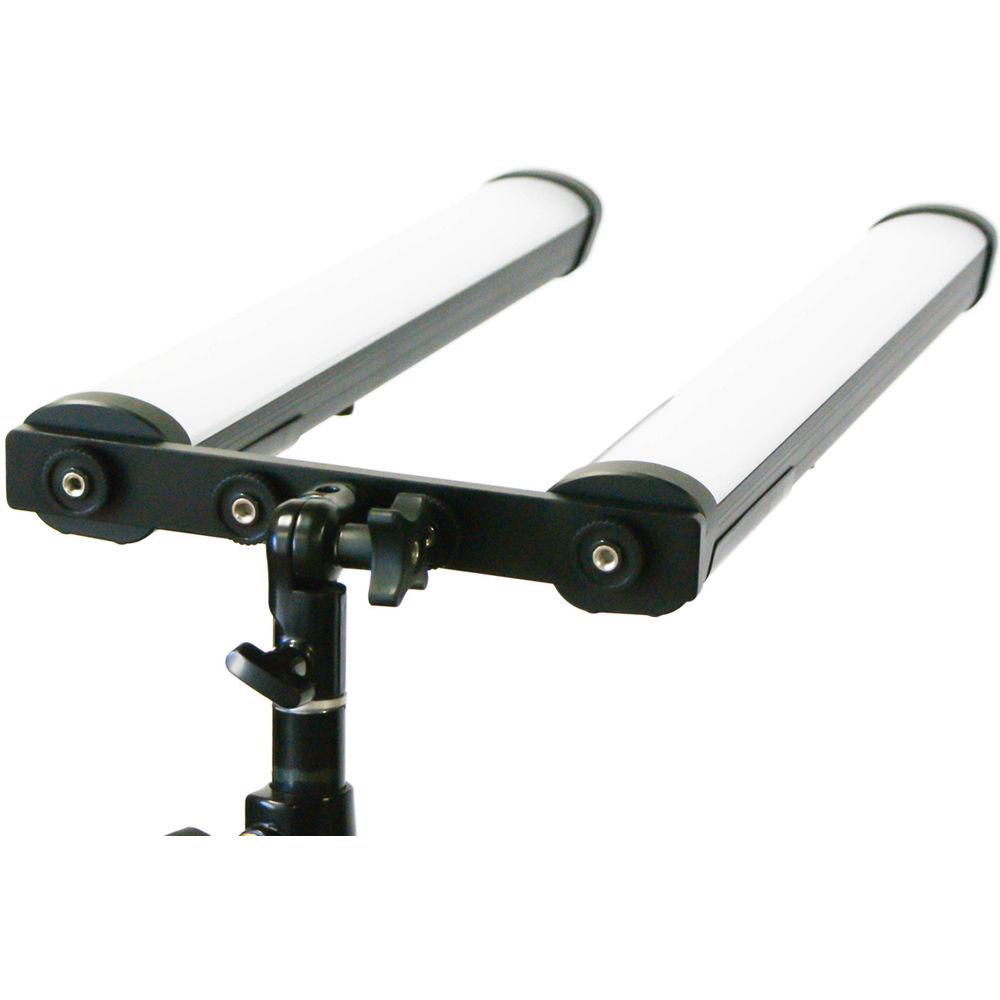

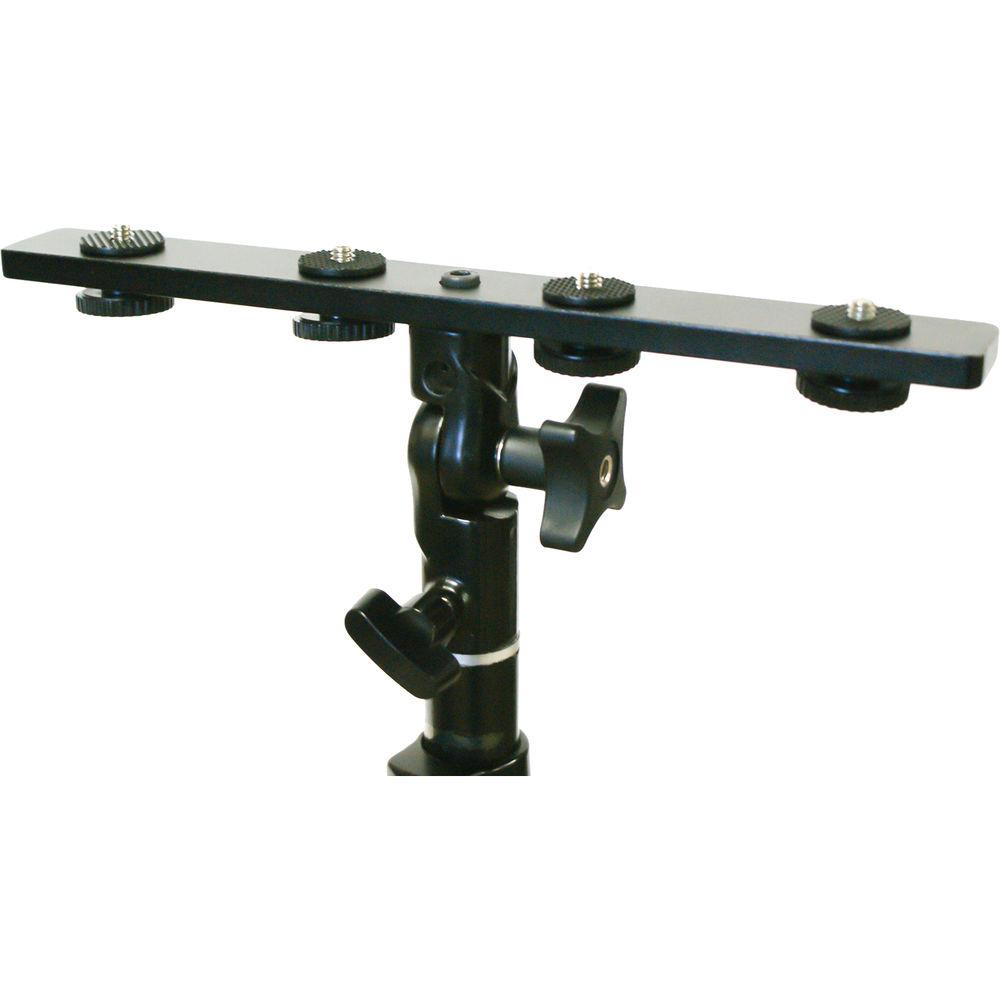

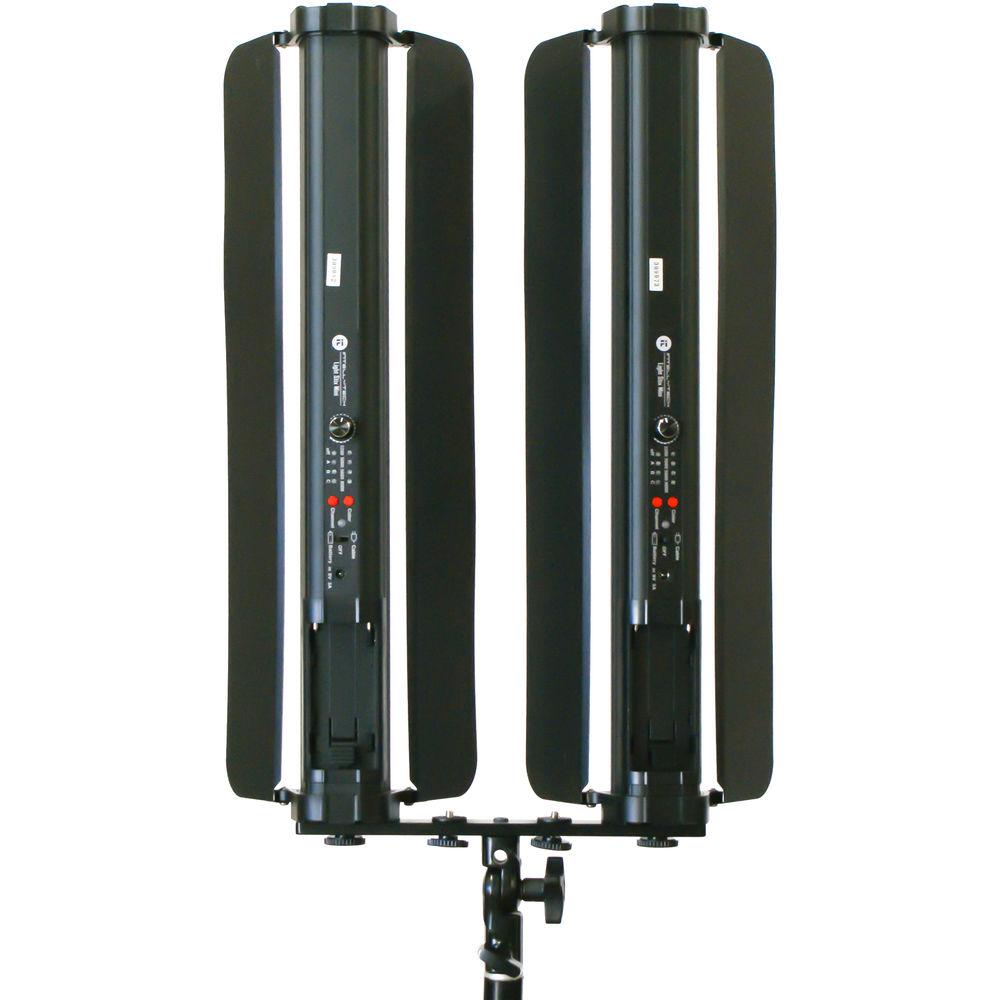

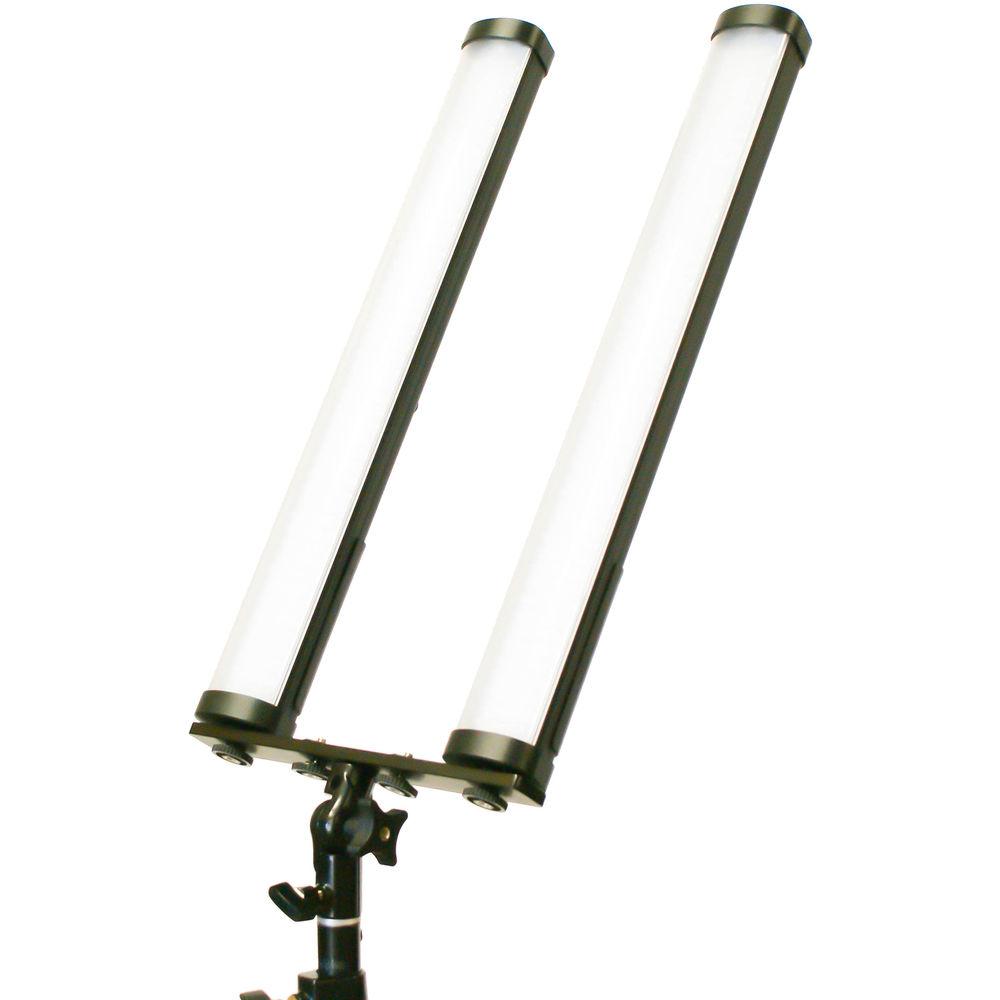

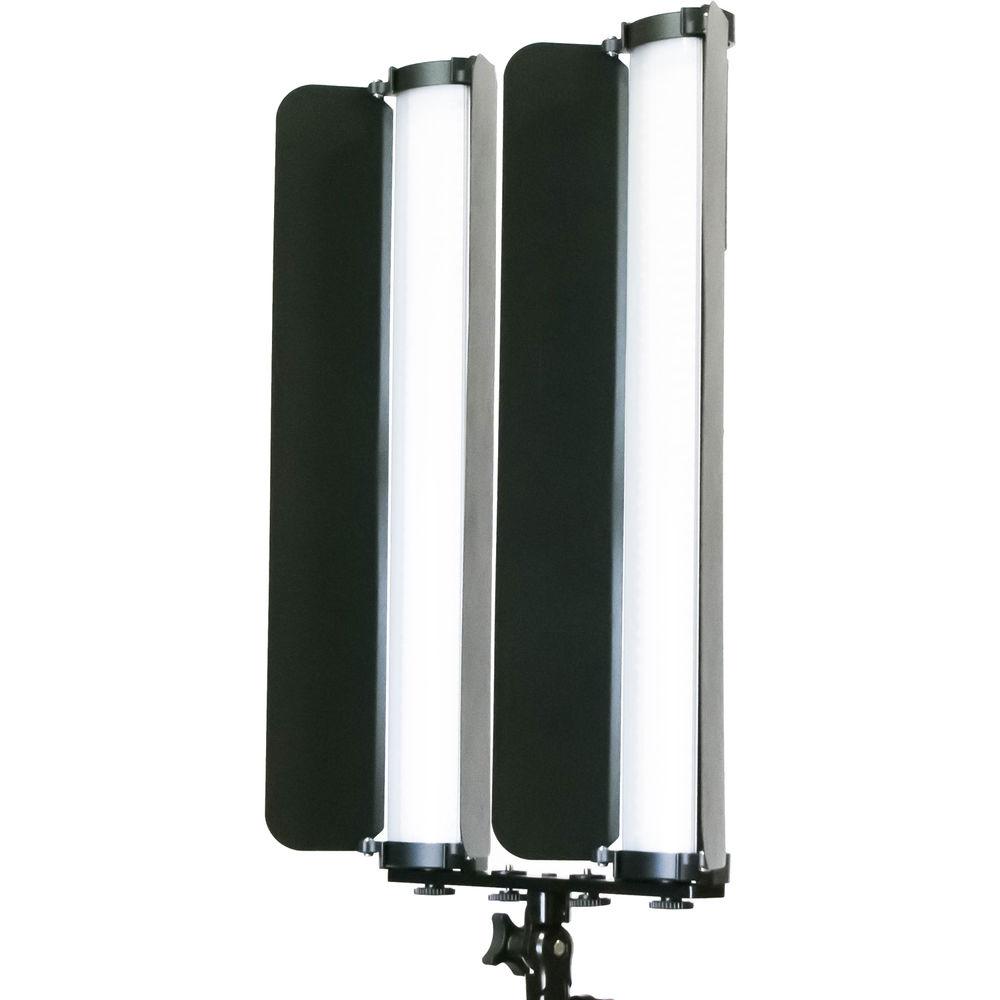

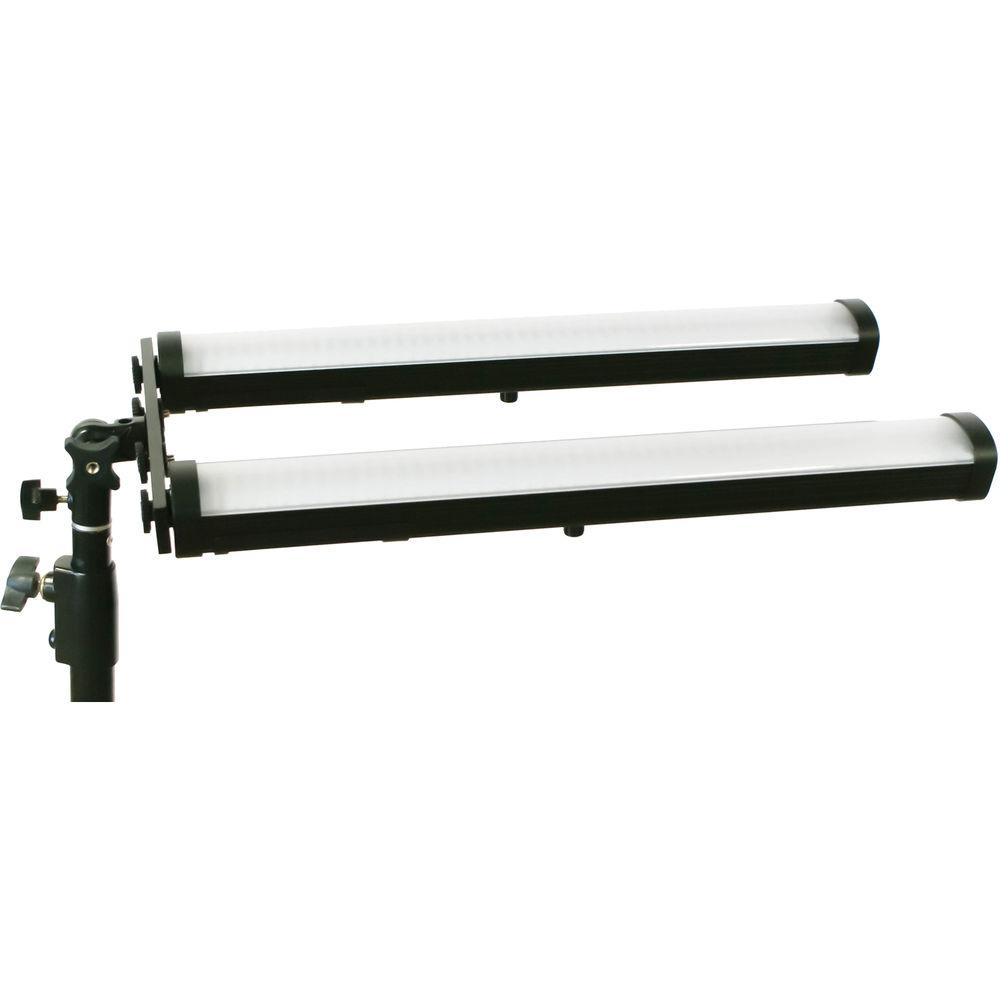

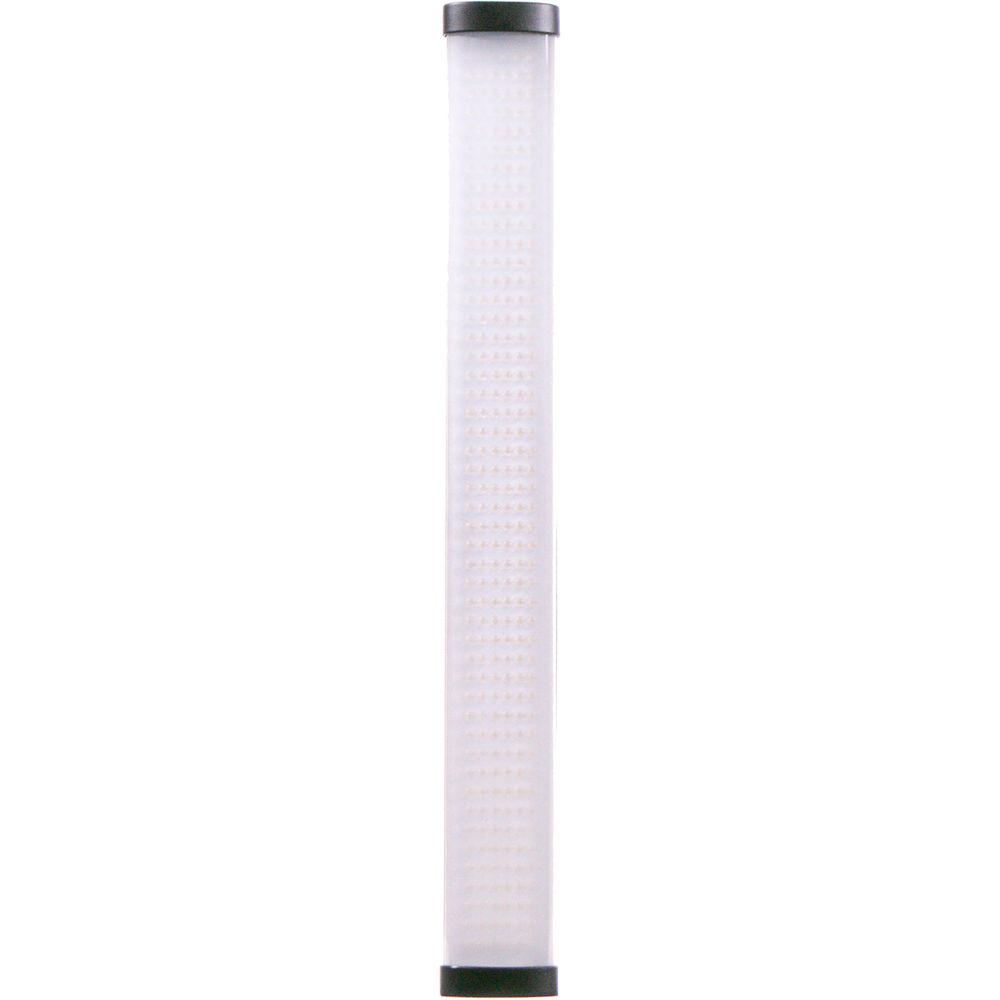

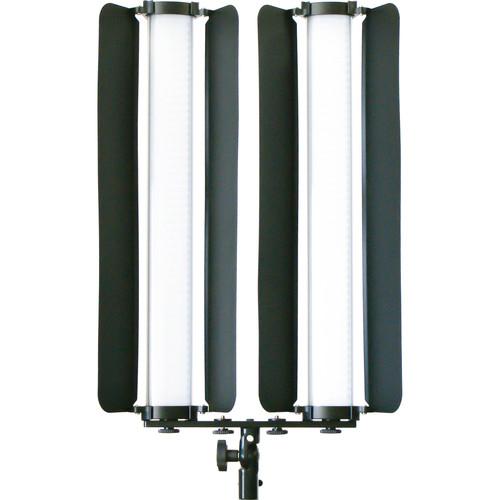

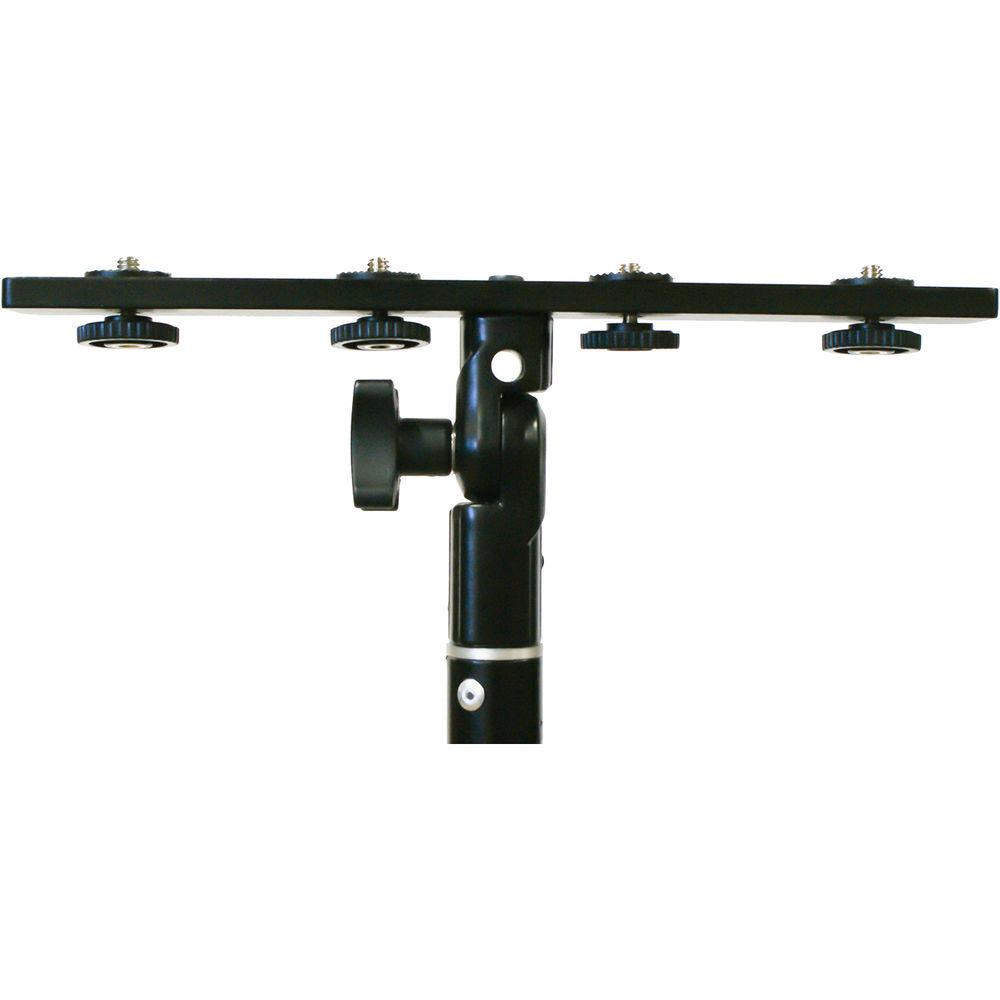

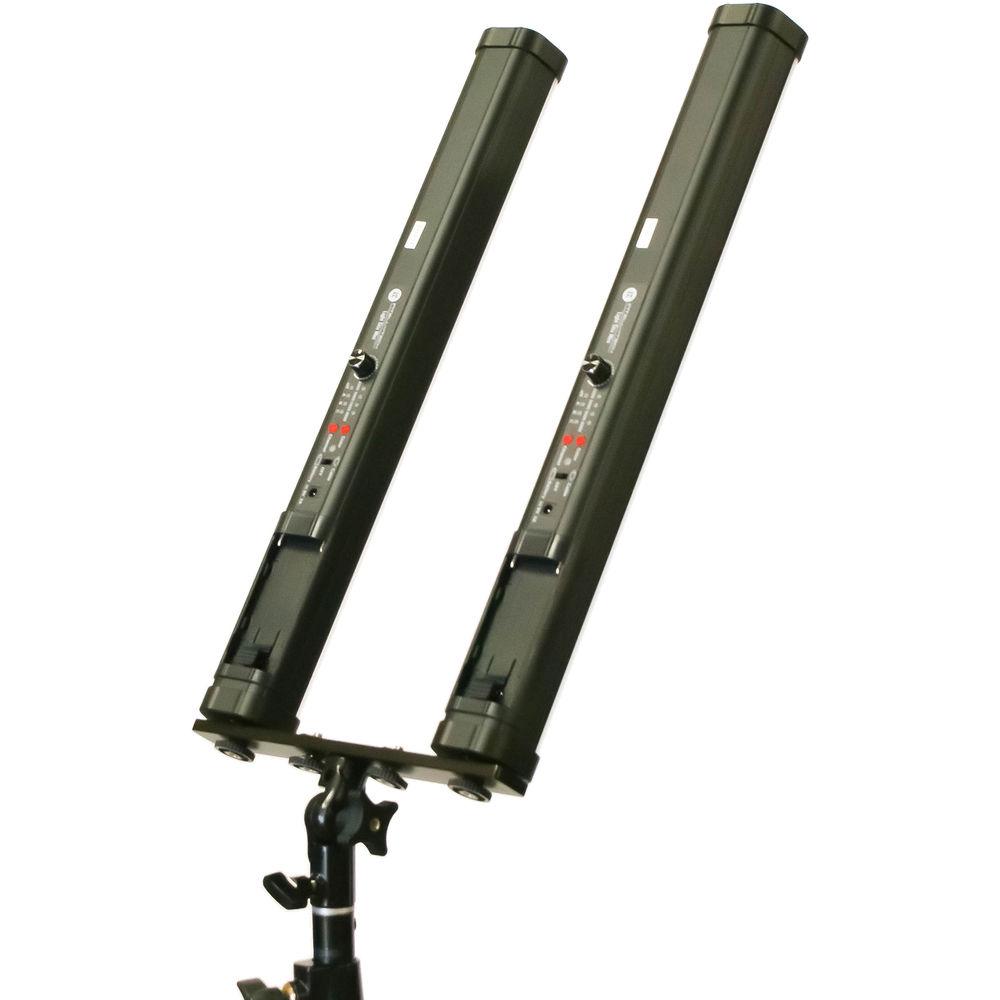

Product description Small, lightweight, and full-featured, the Light Stix Mini 2-Light Kit with Barndoors from Intellytech is a versatile asset in the studio or on location. The kit included 2 variable color 19.75 x 2.75 x 1.75" lamp heads each with barndoors, an NP-F750 battery with charger, padded carrying case, and an AC adapter. A T-Bracket that supports up to 4 lights is included for stand mounting. - Light Stix Mini with Barndoors (19.75") The 19.75" Light Stix Mini with Barndoors from Intellytech is built around a 19.75 x 2.75 x 1.75" LED wand that weighs just 1.4 lb and offers you a choice of 3200, 5000, 5600 or 8000K color temperature with the flick of a switch. The Light Stix Mini runs on a rechargeable, removable L-Series-type lithium-ion battery and is provided with a charger and AC adapter. It has A, B, and C wireless channels so that a single unit can wirelessly act as a master commanding several slaves and governing group functions like on/off, color balance, and 10-100% dimming. Three 1/4"-20 female threads offer a variety of mounting options.
- Color and Output
- The CRI on the Light Stix Series is accurate, reaching 95+ through its wide color spectrum of 3200-8000K. The output of 1200 lux at 3 feet is impressive for its size.
- Control Feature
- Easily control multiple lights by the press of a button. Select to have your lights in control group A, B, or C. When the same group is selected, one light will become the master allowing the remaining light's dimming and color control features to be controlled simultaneously.
- Included Accessories
- All lights also include a padded carrying case, barndoors, along with an AC adapter, L-Series-type battery, and battery charger. The case can hold all of the included accessories along with a few extras like the optional handle extension.
- Optional Accessories
-
- A Handheld Extension screws in to either end of light for handheld applications.
- The Tilter Bracket with Spigot can be positioned at any angle.
In the Box Bundle Items 2 x Light Stix Mini with Barndoors (19.75") - Barndoors for Light Stix Mini (19.75")
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Light Stix Mini 2-Light Kit with Barndoors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Light Stix Mini with Barndoors (19.75")
| | | Color Temperature | 3200K
5000K
5600K
8000K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 19.8 x 2.8 x 1.8" / 50.0 x 7.0 x 4.4 cm | | Fixture Weight | 1.4 lb / 0.64 kg | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Box Dimensions (LxWxH) | 33.5 x 5.5 x 5.0" |
