Product description

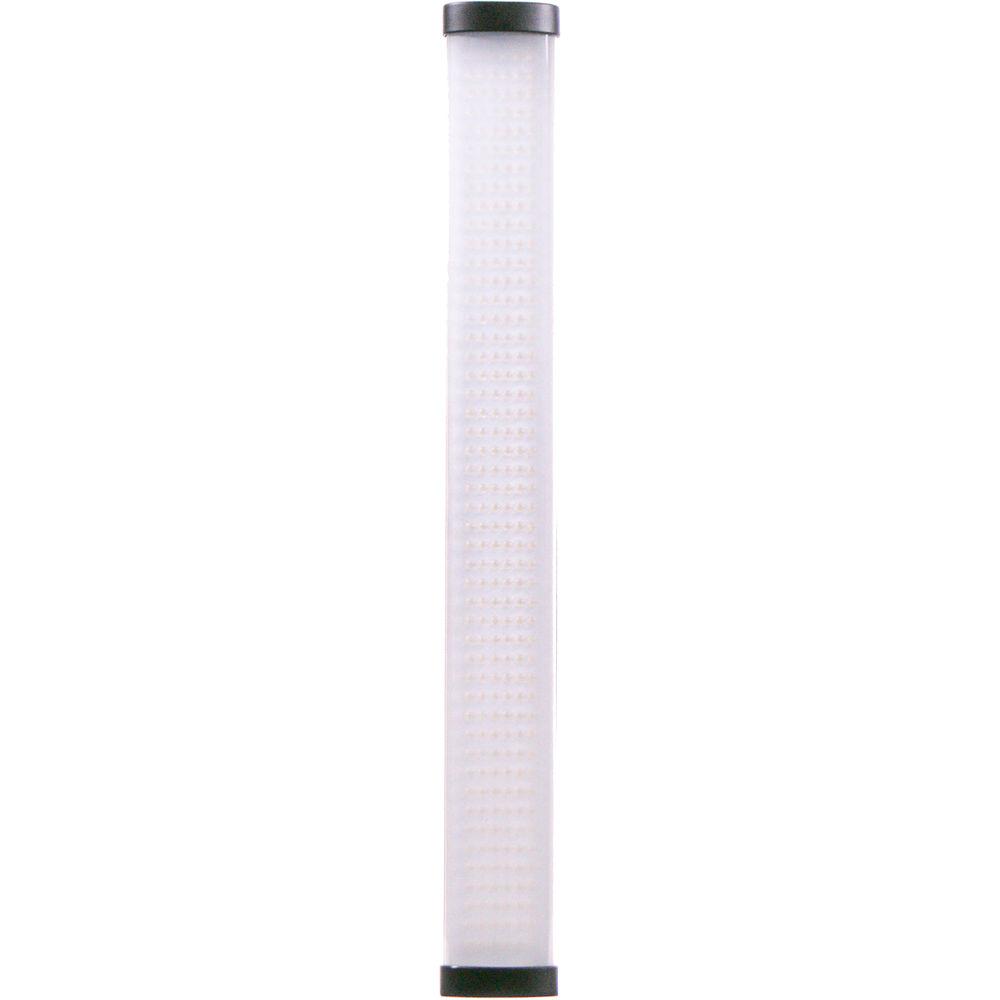

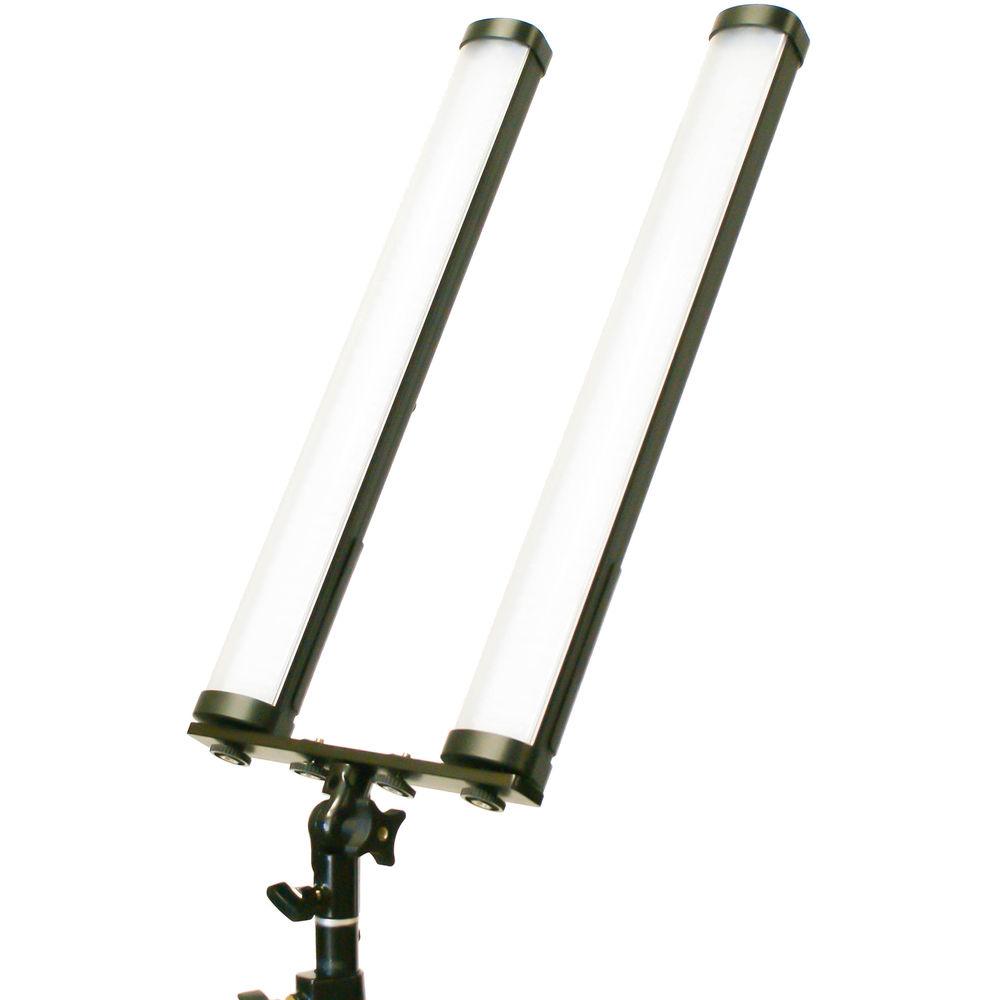

• Light Stix Mini with Barndoors (19.75") The 19.75" Light Stix Mini with Barndoors from Intellytech is built around a 19.75 x 2.75 x 1.75" LED wand that weighs just 1.4 lb and offers you a choice of 3200, 5000, 5600 or 8000K color temperature with the flick of a switch. The Light Stix Mini runs on a rechargeable, removable L-Series-type lithium-ion battery and is provided with a charger and AC adapter. It has A, B, and C wireless channels so that a single unit can wirelessly act as a master commanding several slaves and governing group functions like on/off, color balance, and 10-100% dimming. Three 1/4"-20 female threads offer a variety of mounting options.
  Color and Output
  • The CRI on the Light Stix Series is accurate, reaching 95+ through its wide color spectrum of 3200-8000K. The output of 1200 lux at 3 feet is impressive for its size.
  Control Feature
  • Easily control multiple lights by the press of a button. Select to have your lights in control group A, B, or C. When the same group is selected, one light will become the master allowing the remaining light's dimming and color control features to be controlled simultaneously.
  Included Accessories
  • All lights also include a padded carrying case, barndoors, along with an AC adapter, L-Series-type battery, and battery charger. The case can hold all of the included accessories along with a few extras like the optional handle extension.
  Optional Accessories
  • A Handheld Extension screws in to either end of light for handheld applications.
  • The Tilter Bracket with Spigot can be positioned at any angle.

• AC Adapter

• Battery

• Charger

• Padded Carry Case

• Barndoors for Light Stix Mini (19.75")

• Limited 1-Year Warranty

Also Includes

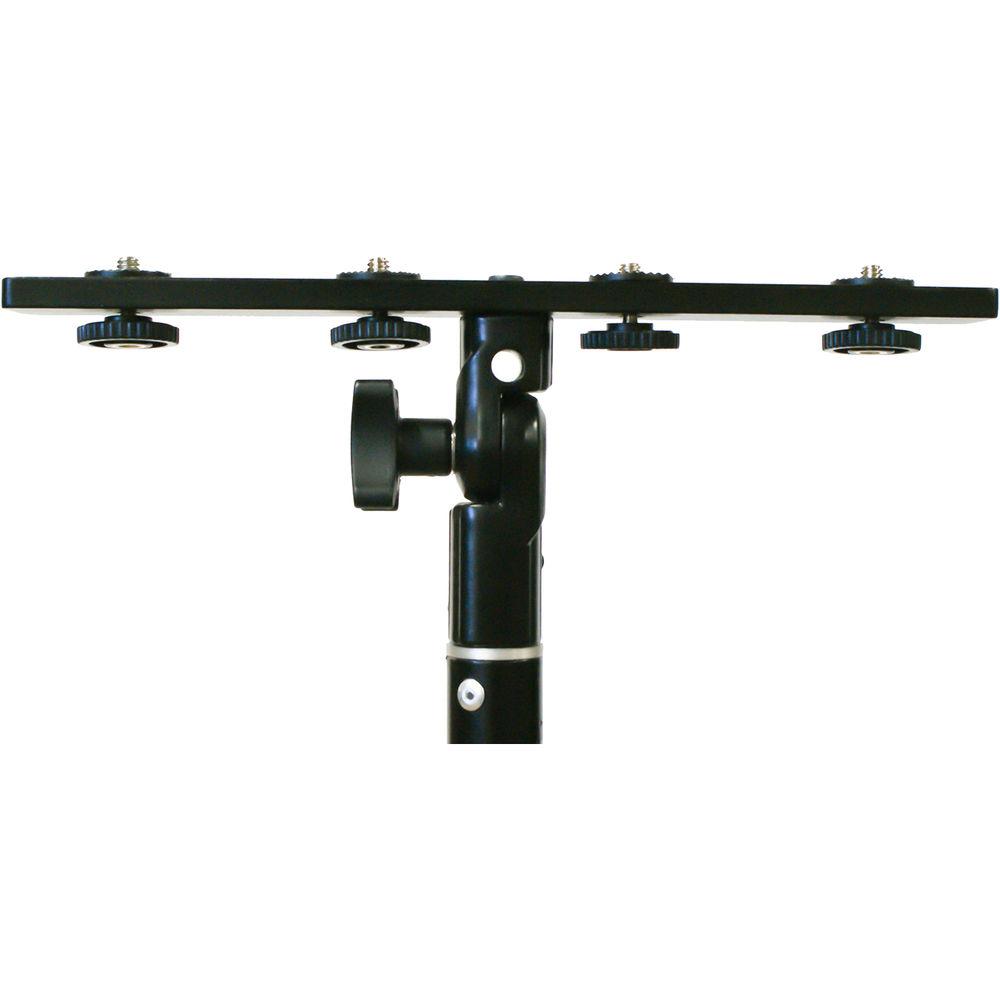

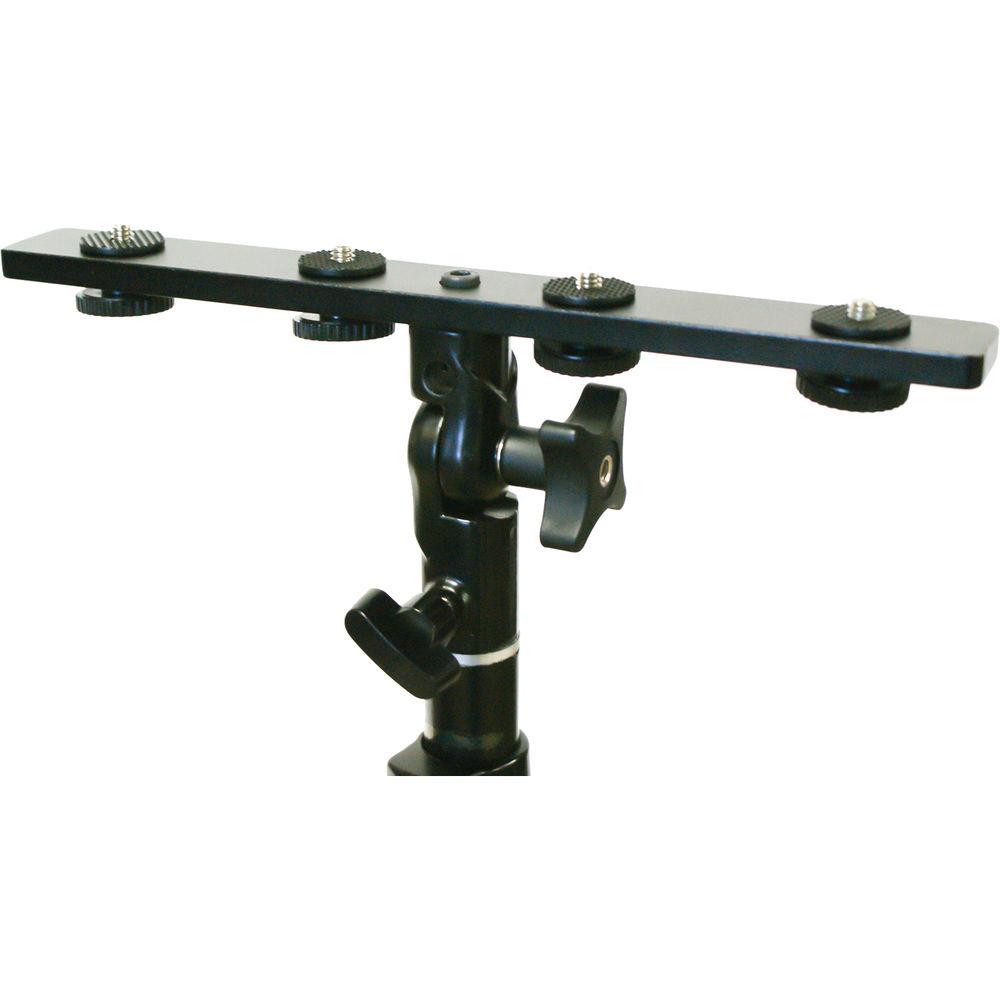

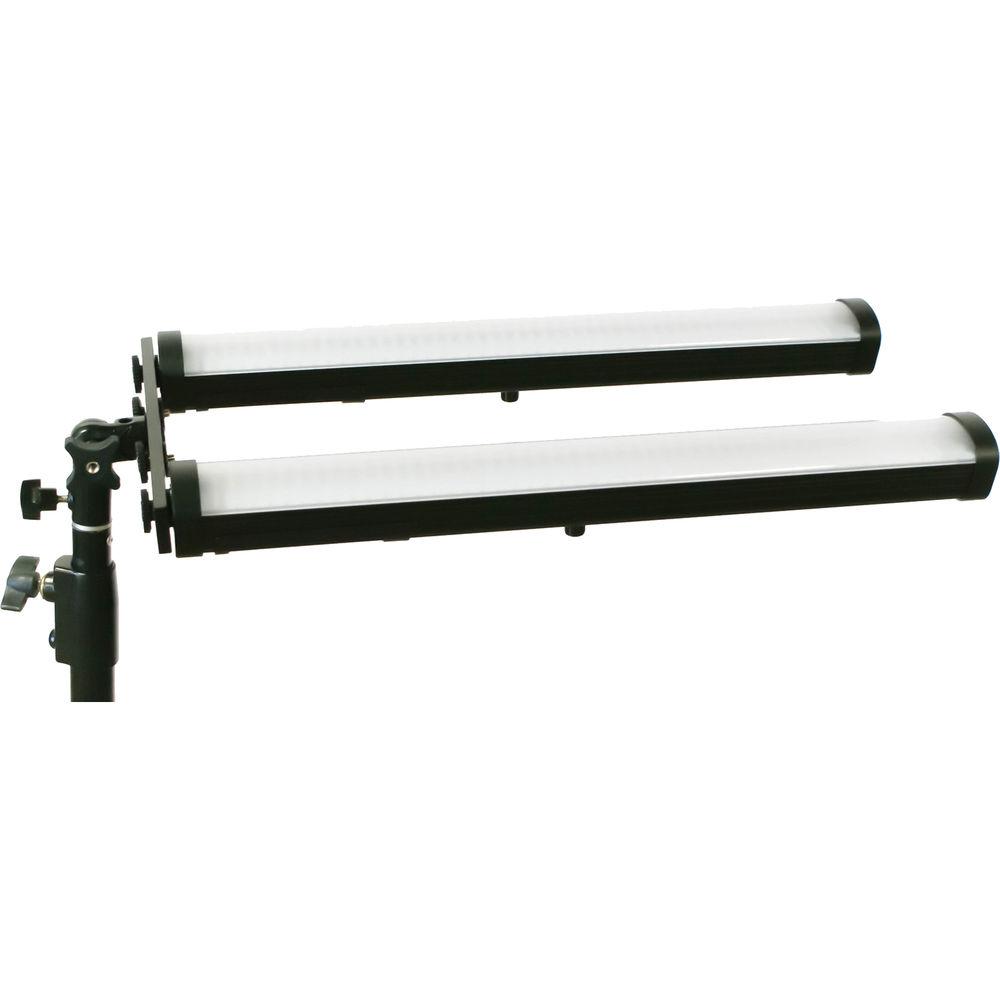

• T-Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Light Stix Mini with Barndoors (19.75")

  Color Temperature	3200K 5000K 5600K 8000K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	19.8 x 2.8 x 1.8" / 50.0 x 7.0 x 4.4 cm
  Fixture Weight	1.4 lb / 0.64 kg

  Battery Plate	1 x Sony L-Series (NP-F)

  Fixture Mount	1/4"-20 Female Thread
  Accessory Mount	None

  AC Input Power	110 to 220 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery

  IP Rating	IP20

  Box Dimensions (LxWxH)	33.5 x 5.5 x 5.0"
