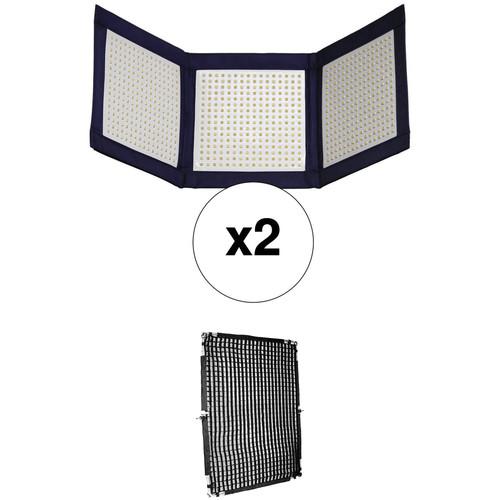

User Manual for Intellytech LiteCloth LC-120 Foldable 1x3' LED 2-Light Kit with Grid & Diffusion

Click to enlarge the picture
Intellytech LiteCloth LC-120 Foldable 1x3 Contents of the user manual for the Intellytech LiteCloth LC-120 Foldable 1x3' LED
  • Product category: LED Lights Intellytech
  • Brand: Intellytech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Intellytech LED Lights

User manual for the Intellytech LiteCloth LC-120 Foldable 1x3' LED contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Intellytech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Intellytech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Intellytech product will considerably shorten its lifespan!



Product description

has assembled this Intellytech LiteCloth LC-120 Foldable 1x3' LED 2-Light Kit for image-makers who want to take full advantage of the features of this unique light source. The kit includes two LC-120 1x3' Foldable LED Mats, each with a softbox, diffuser, fabric grid, AC adapter, V-mount battery plate, and a mounting bracket. A hard travel case is included for each light for storage and transport. A 5 x 6.5' Fast Frame Diffuser that can be used as you would a butterfly frame, is also included along with a fabric grid for directional control.
  • 2 x Intellytech LiteCloth LC-120 1 x 3' Foldable LED Mat Kit (V-Mount)
    • Foldable LED Panel: Intellytech LC-120
    The LiteCloth LC-120 1 x 3' Foldable LED Mat Kit with V-Mount plate was put together by Intellytech for imaginative imagers-makers who realize the potential in shaping their quality of light by literally shaping the light source. The kit includes one LC-120 12 x 36" Foldable LED Mat, with a softbox, diffuser, fabric grid, AC adapter, V-mount battery plate, and a directional mounting bracket. A hard travel case is included for storage and transport. Less than 1/4" in thickness, the 12 x 36" LC-120 LED LiteCloth is a lightweight fixture that folds down to just 12 x 12" for storage and transport. The mat can be used horizontally or vertically. A redesigned directional bracket allows you to employ the folding 3-section mat in a 1 x 1', 1 x 2' or 1 x 3' configuration. The two end sections can be used as LED-powered barndoors for the center section to direct and boost the output and enable selective lighting. The LC-120 has a remarkably wide variable color range of 3000 to 10,000K allowing it to meet the challenge of any ambient light conditions, match other fixtures, or just to shoot creatively. Light intensity is variable too, from 0-100%. Both functions can be controlled on the LC-120 remotely via DMX, or with an optional remote controller. The LC-120 comes with a softbox to take the edge off the LEDs and the included fabric grid narrows the light's beam, adding directional control for selective lighting. The LC-120 is ready for worldwide use, thanks to its universal AC power supply but depending on which version you choose, you can also run on V-mount batteries when mains power is unavailable.
      Folding Design
    • The LC-120 has a firm backing behind the mat, but can also fold down at its collapsible cross sections. This unique form factor allows for the light to be mounted in seconds without the need for a large metal frame or x-bracket. In addition, users can now travel with a 1 x 3' light kit that takes up less space than a conventional 1 x 1' panel.
      Directional Bracket
    • The included Mount and Bracket allow the user to direct and point the mat itself, allowing the light to act as a modifier. Think of it has barn-doors or a flag built into the light. This unique feature allows the user to shape and direct the light exactly where they want it. At times this unit can be used as a directional 1 x 1' or 1 x 2', or as a broad 1 x 3' depending on the position the mat and bracket are set to. The rotatable stud allows the user to position the LC-120 in both vertical and horizontal shooting positions.
      Accurate CRI and TLCI Ratings
    • Color Temperature:
      3000K: CRI: 97
      5600K: CRI: 95
      10,000K: CRI: 94
      Wide Color Range with High Accuracy
    • Set the LC-120 anywhere from 3000K-10,000K with superior color rendition (CRI 97 @ 3000K). On top of having greater creative control, this very wide color range also gives the user close to 100% output from 3500-9500K. All the bi-color LED's are always on throughout this range, eliminating the worry for output loss on a bi-color fixture. Select your color or brightness level (0-100%) via the touchscreen or knobs. The optional Wireless Controller can adjust up to 100 LC-120's wirelessly, individually or simultaneously.
      DMX Ready
    • The LC-120 can be controlled via DMX (512) for those looking to setup inside of a studio. The user can control both brightness and output remotely via a 512 DMX controller or via Wireless Controller.
      Power Options
    • Power the light via universal the AC adapter or an optional battery.
      Output
    • Rated at 120W, the LC-120 is equivalent to a 1200W tungsten soft light. Even without using the included softbox, the LC-120 creates a wide beam spread that will wrap around your subject.
  • Intellytech FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion
    • Foldable LED Panel: Intellytech LC-120
    The FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion from Intellytech is a great choice for illuminating a large subject or area with light fixtures or natural light. With the Fast Frame system there's no assembly of softboxes or concern about speedrings dedicated to specific lights. The metal frame locks into place in seconds and can be supported upright or overhead with optional light stands and grip heads. You can pump light through the diffusion cloth for soft lighting or fill light. The cloth is often used with the kit's honeycomb grid to direct the light source and allow selective lighting. Another option is overhead use, like a butterfly, to tame the contrast of harsh light or the sun. It all fits in the included carrying bag.
In the Box
  • 2 x LiteCloth LC-120 1 x 3' Foldable LED Mat Kit (V-Mount) yxrftrxb
  • Softbox
  • Diffuser
  • Fabric Grid
  • Mounting Bracket
  • Controller with V-Mount Battery Plate
  • AC Adapter
  • Power Cable
  • Carrying Case
  • Limited 1-Year Warranty
  • FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion
Table of Contents




Upload User Manual

Have you got an user manual for the Intellytech LiteCloth LC-120 Foldable 1x3' LED 2-Light Kit with Grid & Diffusion in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • 2 x Intellytech LiteCloth LC-120 1 x 3' Foldable LED Mat Kit (V-Mount)
    Color Temperature 3000 to 10,000K
    Color Accuracy Standard CRI 97 at 3000K
    TLCI 98 at 3000K
    CRI 95 at 5600K
    TLCI 96 at 5600K
    CRI 94 at 10000K
    TLCI 93 at 10000K
    Cooling System Passive
    Dimming Yes, 0 to 100%
    Display None
    Photometrics 3000K:
    80 fc / 860.8 lux at 6' / 1.83 m
    6500K:
    102 fc / 1097.5 lux at 6' / 1.83 m
    10000K:
    92 fc / 989.9 lux at 6' / 1.83 m
    Fixture Dimensions Flood: 12.0 x 36.0 x 0.5" / 30.5 x 91.4 x 1.3 cm
    Battery Plate 1 x V-Mount
    Fixture Mount 5/8" Receiver
    Accessory Mount None
    Remote Control Type DMX, Proprietary Wireless
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Power Source AC Adapter, External Battery
    Max Power Consumption 120 W
    Box Dimensions (LxWxH) 21.0 x 16.8 x 7.3"
  • Intellytech FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion
    Dimensions 5.0 x 6.5' / 1.5 x 2.0 m
    Box Dimensions (LxWxH) 64.0 x 6.0 x 6.0"
