Product description - Foldable LED Video Light! Intellytech LiteCloth LC-160 Review

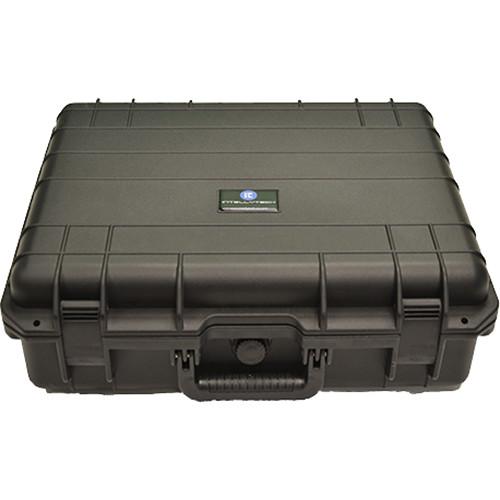

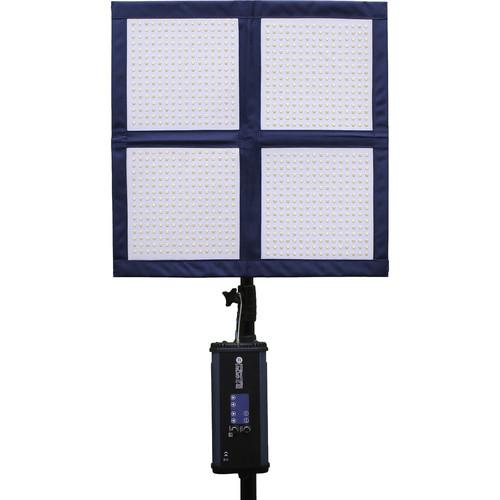

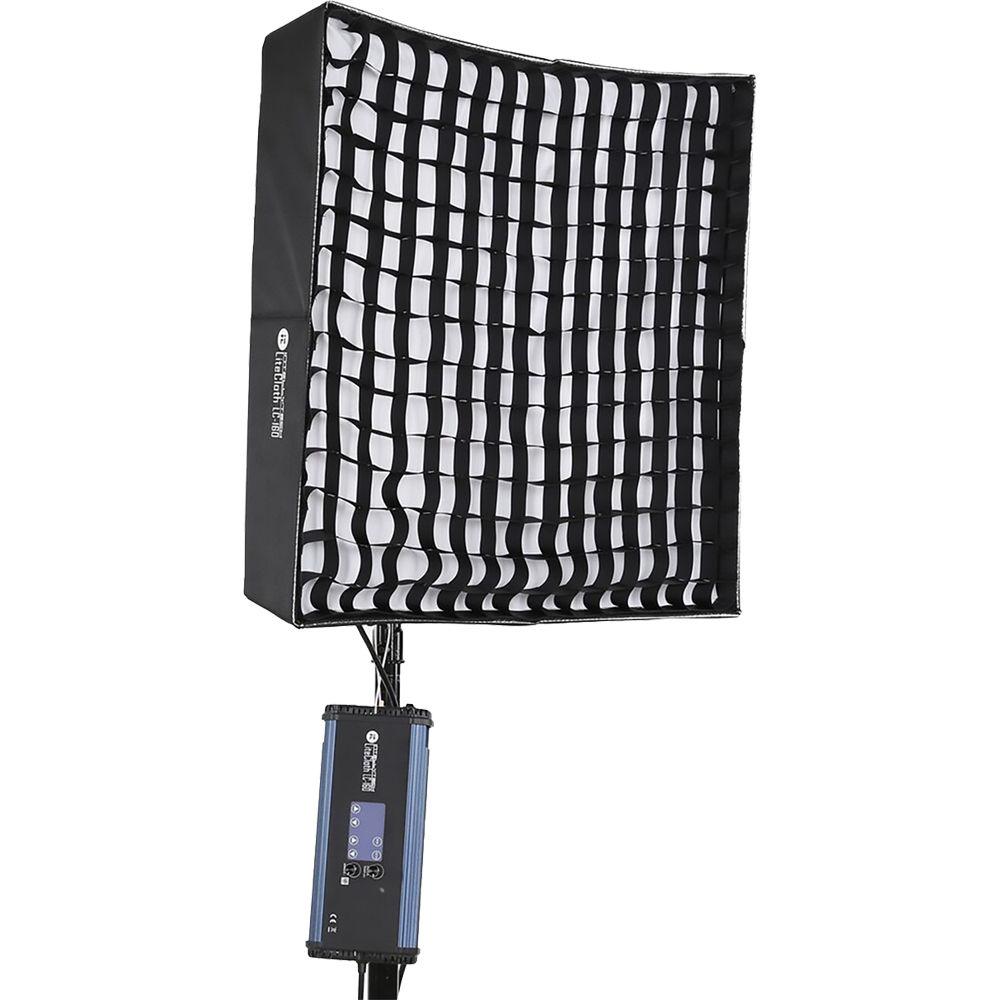

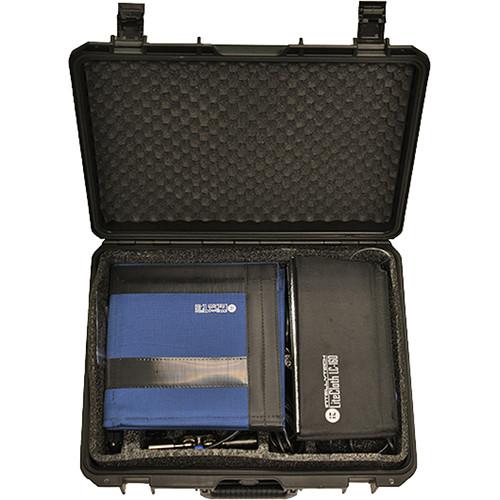

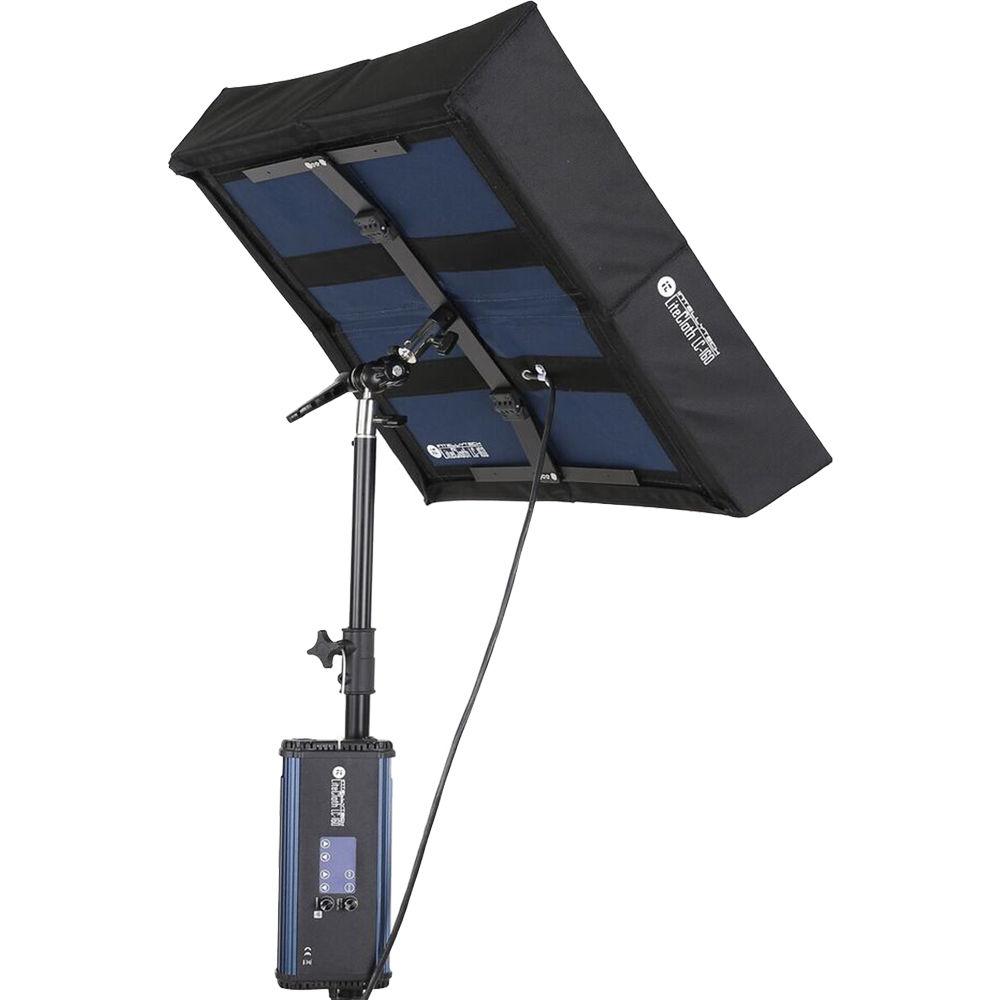

The LiteCloth LC-160 2 x 2' Foldable LED Mat Kit with Gold Mount plate was put together by Intellytech for imaginative imagers-makers who realize the potential in shaping their quality of light by literally shaping the light source. The kit includes one LC-160 22 x 22" Foldable LED Mat, with a softbox (which makes the size 2 x 2'), diffuser, fabric grid, AC adapter, Gold mount battery plate, and a mounting bracket. A hard travel case is included for storage and transport.The 22 x 22" LC-160 LED LiteCloth is a lightweight fixture that folds down to just 12 x 12" for storage and transport. The LC-160 has a remarkably wide variable color range of 3000 to 10,000K allowing it to meet the challenge of any ambient light conditions, match other fixtures, or just to shoot creatively. Light intensity is variable too, from 0-100%. Both functions can be controlled on the LC-160 remotely via DMX, or with an optional remote controller. The LC-160 comes with a softbox to take the edge off the LEDs and the included fabric grid narrows the light's beam, adding directional control for selective lighting. The LC-160 is ready for worldwide use thanks to its universal AC power supply but depending on which version you choose, you can also run on Gold mount batteries when mains power is unavailable - Folding Design

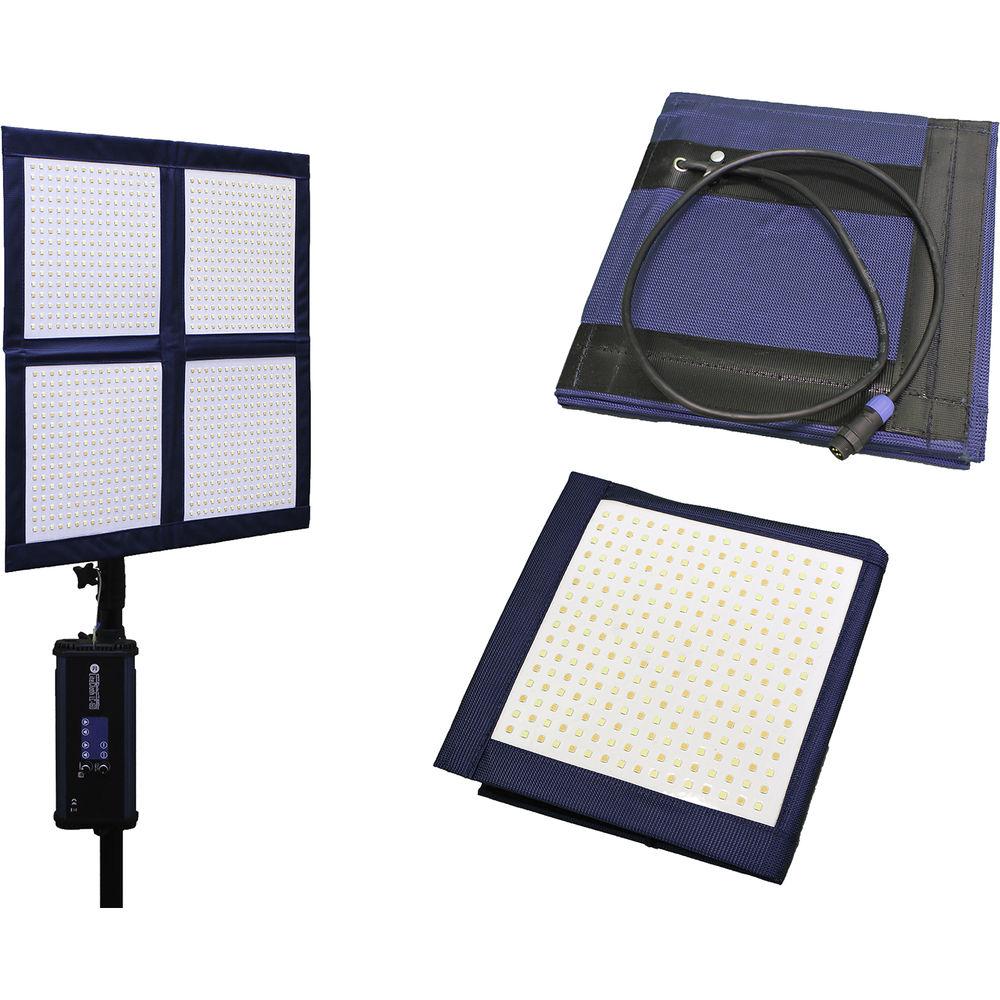

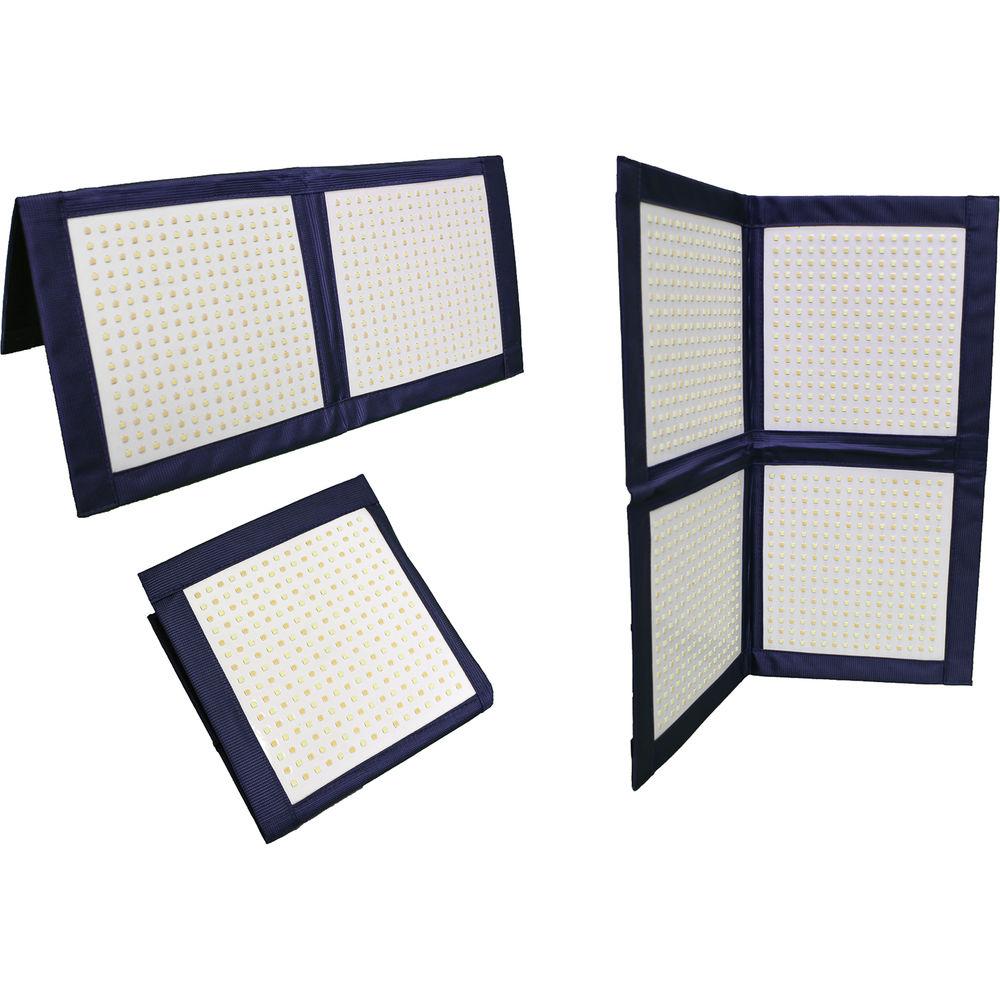

- The LC-160 has a firm backing behind the Mat, but can also fold down at its collapsible cross sections. This allows the light to be mounted quickly without the need for a giant metal frame or x-bracket. In addition, users can now travel with a 2 x 2' Light Kit that takes up less space than a conventional 1 x 1' panel.

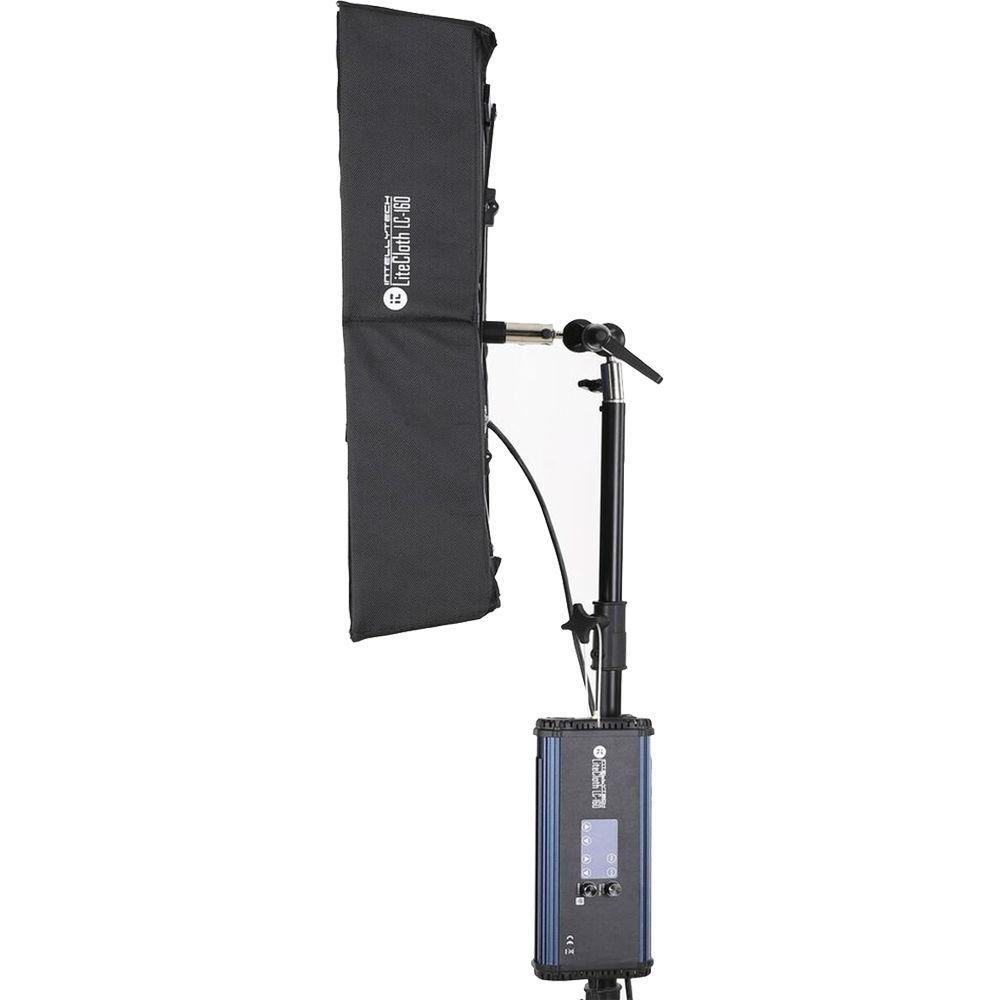

- Quick and Intuitive Mount
- The included mount securely attaches to the rear of the unit via touch-fastening fabric in seconds. Like the mat, the mount also folds down allowing it to pack easily into the included carrying case.
- Accurate CRI and TLCI Ratings
- Color Temperature:
3000K: CRI: 97 TLCI: 98
5600K: CRI: 95 TLCI: 96
10,000K: CRI: 94 TLCI: 93 - Wide Color Range with High Accuracy
- Set the LC-160 anywhere from 3000K-10,000K with excellent color rendition (CRI/TLCI 95/96 @ 5600K). On top of having greater creative control, this very wide color range also gives the user close to 100% output from 3500-9500K. All the Bi-Color LED's are always on throughout this range, eliminating the worry for output loss on a bi-color fixture. Select your color or brightness level (0-100%) via the touchscreen or knobs. An optional Wireless Controller can adjust up to 100 LC-160's wirelessly, individually or simultaneously.

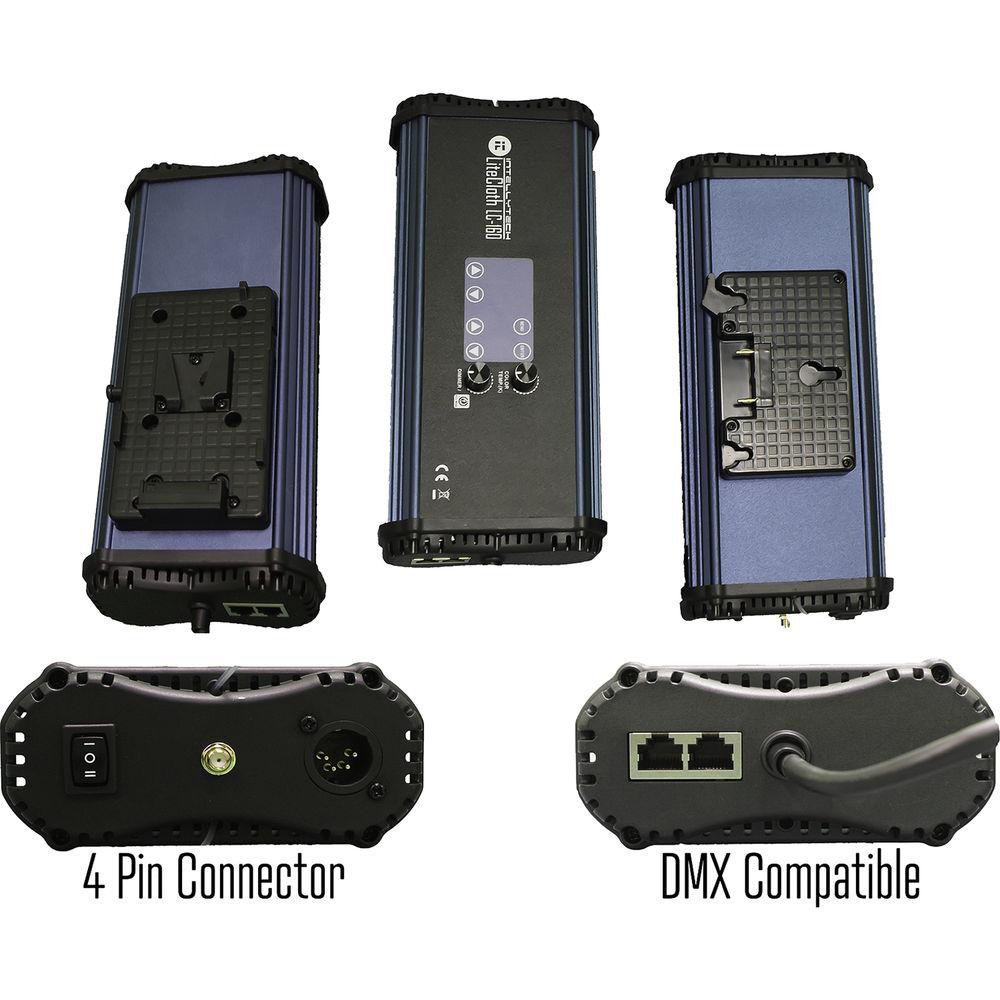

- DMX Ready
- The LC-160 can be controlled via DMX (512) for those looking to setup inside of a studio. The user can control both brightness and output remotely via a 512 DMX controller or via Wireless Controller.
- Power Options
- Power the light via universal AC or battery.
- Output Ratings
- The LC-160 produces broad, natural light as if shooting through a silk or softbox. The output measured directly in the center of the light will be as bright as the output measured on the edge of the light.

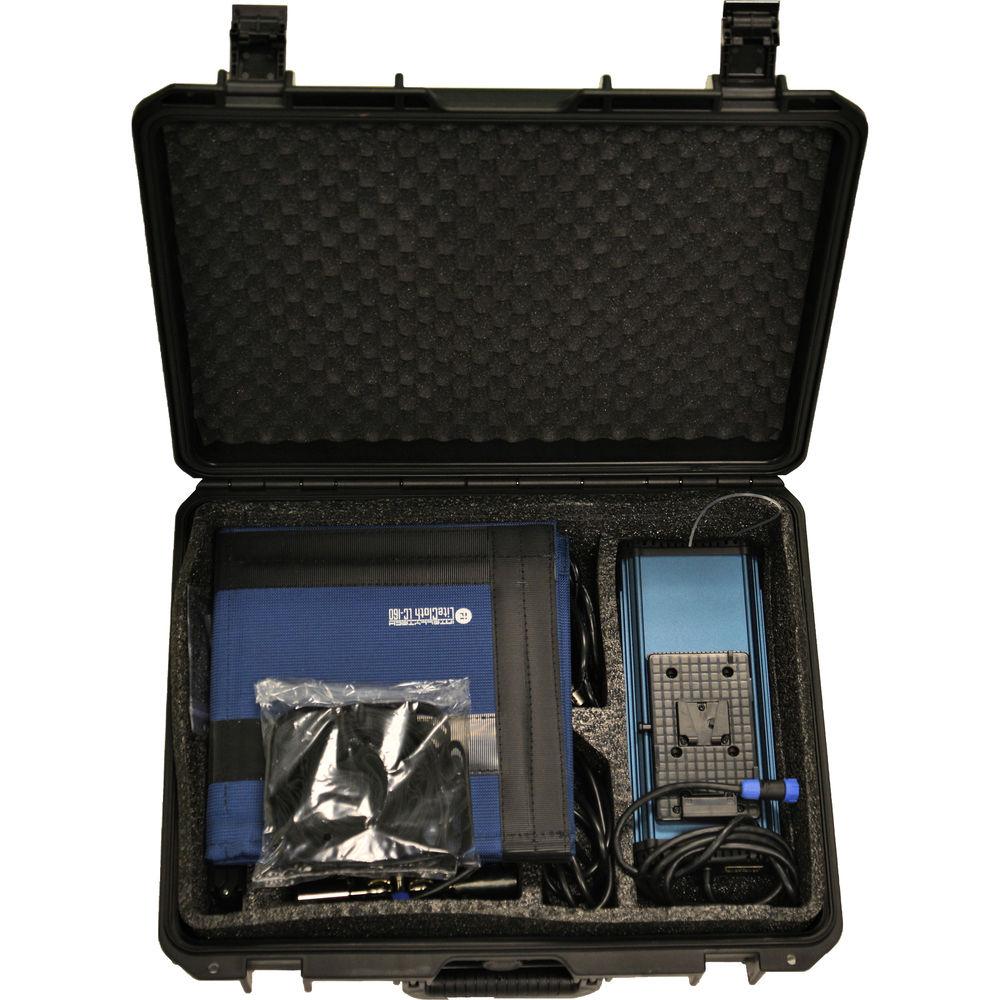

In the Box Intellytech LiteCloth LC-160 2 x 2' Foldable LED Mat Kit (Gold Mount) Softbox Diffuser Grid Mounting Bracket Controller with Gold Mount Battery Plate AC Adapter Power Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech LiteCloth LC-160 2 x 2' Foldable LED Mat Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech LC-160 Specs | | | Color Temperature | 3000 to 10,000K | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 96 at 5600K | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 3000K:
418 fc / 4500 lux at 3' / 0.9 m
114 fc / 1230 lux at 6' / 1.8 m
10000K:
488 fc / 5250 lux at 3' / 0.9 m
137 fc / 1470 lux at 6' / 1.8 m | | Number of LEDs | 1024 | | Fixture Dimensions | Flood: 22.0 x 22.0 x 0.5" / 55.9 x 55.9 x 1.3 cm | | | | Battery Plate | 1 x Gold Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 160 W | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 20.2 x 20.2 x 6.7" |
