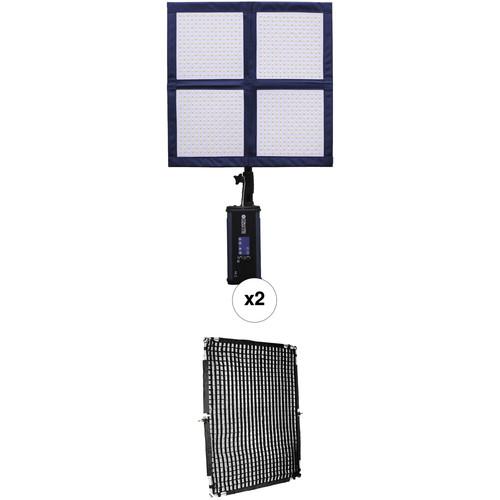

User Manual for Intellytech LiteCloth LC-160 Foldable 2x2 LED 2-Light Kit with Grid & Diffusion

• Product category: LED Lights Intellytech
• Brand: Intellytech
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Intellytech LED Lights

Product description

• 2 x Intellytech LiteCloth LC-160 2 x 2' Foldable LED Mat Kit (V-Mount)
  • Foldable LED Video Light! Intellytech LiteCloth LC-160 Review
  The LiteCloth LC-160 2 x 2' Foldable LED Mat Kit with V-Mount plate was put together by Intellytech for imaginative imagers-makers who realize the potential in shaping their quality of light by literally shaping the light source. The kit includes one LC-160 22 x 22" Foldable LED Mat, with a softbox (which makes the size 2 x 2'), diffuser, fabric grid, AC adapter, V-mount battery plate, and a mounting bracket. A hard travel case is included for storage and transport.The 22 x 22" LC-160 LED LiteCloth is a lightweight fixture that folds down to just 12 x 12" for storage and transport. The LC-160 has a remarkably wide variable color range of 3000 to 10,000K allowing it to meet the challenge of any ambient light conditions, match other fixtures, or just to shoot creatively. Light intensity is variable too, from 0-100%. Both functions can be controlled on the LC-160 remotely via DMX, or with an optional remote controller. The LC-160 comes with a softbox to take the edge off the LEDs and the included fabric grid narrows the light's beam, adding directional control for selective lighting. The LC-160 is ready for worldwide use thanks to its universal AC power supply but depending on which version you choose, you can also run on V-mount batteries when mains power is unavailable
  Folding Design
  • The LC-160 has a firm backing behind the Mat, but can also fold down at its collapsible cross sections. This allows the light to be mounted quickly without the need for a giant metal frame or x-bracket. In addition, users can now travel with a 2 x 2' Light Kit that takes up less space than a conventional 1 x 1' panel.
  Quick and Intuitive Mount
  • The included mount securely attaches to the rear of the unit via touch-fastening fabric in seconds. Like the mat, the mount also folds down allowing it to pack easily into the included carrying case.
  Accurate CRI and TLCI Ratings
  • Color Temperature:
    3000K: CRI: 97 TLCI: 98
    5600K: CRI: 95 TLCI: 96
    10,000K: CRI: 94 TLCI: 93
  Wide Color Range with High Accuracy
  • Set the LC-160 anywhere from 3000K-10,000K with excellent color rendition (CRI/TLCI 95/96 @ 5600K). On top of having greater creative control, this very wide color range also gives the user close to 100% output from 3500-9500K. All the Bi-Color LED's are always on throughout this range, eliminating the worry for output loss on a bi-color fixture. Select your color or brightness level (0-100%) via the touchscreen or knobs. An optional Wireless Controller can adjust up to 100 LC-160's wirelessly, individually or simultaneously.
  DMX Ready
  • The LC-160 can be controlled via DMX (512) for those looking to setup inside of a studio. The user can control both brightness and output remotely via a 512 DMX controller or via Wireless Controller.
  Power Options
  • Power the light via universal AC or battery.
  Output Ratings
  • The LC-160 produces broad, natural light as if shooting through a silk or softbox. The output measured directly in the center of the light will be as bright as the output measured on the edge of the light.
  UPC: 810019421099
• Intellytech FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion
  • Foldable LED Video Light! Intellytech LiteCloth LC-160 Review
  The FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion from Intellytech is a great choice for illuminating a large subject or area with light fixtures or natural light. With the Fast Frame system there's no assembly of softboxes or concern about speedrings dedicated to specific lights. The metal frame locks into place in seconds and can be supported upright or overhead with optional light stands and grip heads. You can pump light through the diffusion cloth for soft lighting or fill light. The cloth is often used with the kit's honeycomb grid to direct the light source and allow selective lighting. Another option is overhead use, like a butterfly, to tame the contrast of harsh light or the sun. It all fits in the included carrying bag.

• 2 x LiteCloth LC-160 2 x 2' Foldable LED Mat Kit (V-Mount) saaczarzwfaydcyebfwsdxuxxybazrtwx
• Softbox
• Diffuser
• Grid
• Mounting Bracket
• Controller with V-Mount Battery Plate
• AC Adapter
• Power Cable
• Carrying Case
• Limited 1-Year Warranty

• FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Intellytech LiteCloth LC-160 2 x 2' Foldable LED Mat Kit (V-Mount)

  Color Temperature	3000 to 10,000K
  Color Accuracy Standard	CRI 95 at 5600K TLCI 96 at 5600K
  Cooling System	Passive
  Dimming	Yes, 0 to 100%
  Display	None
  Photometrics	3000K: 418 fc / 4500 lux at 3' / 0.9 m 114 fc / 1230 lux at 6' / 1.8 m 10000K: 488 fc / 5250 lux at 3' / 0.9 m 137 fc / 1470 lux at 6' / 1.8 m
  Number of LEDs	1024
  Fixture Dimensions	Flood: 22.0 x 22.0 x 0.5" / 55.9 x 55.9 x 1.3 cm

  Battery Plate	1 x V-Mount

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX, Proprietary Wireless

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery
  Max Power Consumption	160 W

  Box Dimensions (LxWxH)	20.2 x 20.2 x 6.8"

• Intellytech FF-5x6.5'HC Fast Frame Scrim Diffuser with Grid and Diffusion

  Dimensions

  5.0 x 6.5' / 1.5 x 2.0 m

  Box Dimensions (LxWxH)	64.0 x 6.0 x 6.0"
