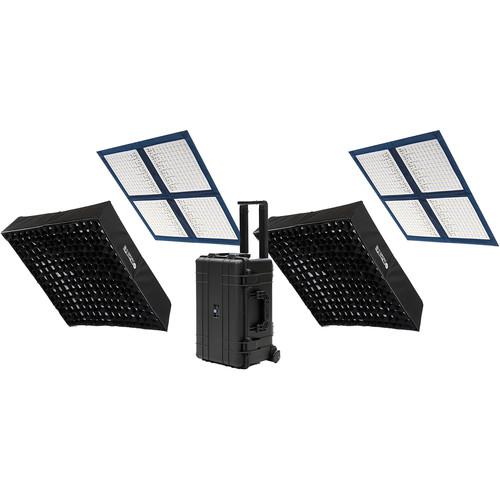

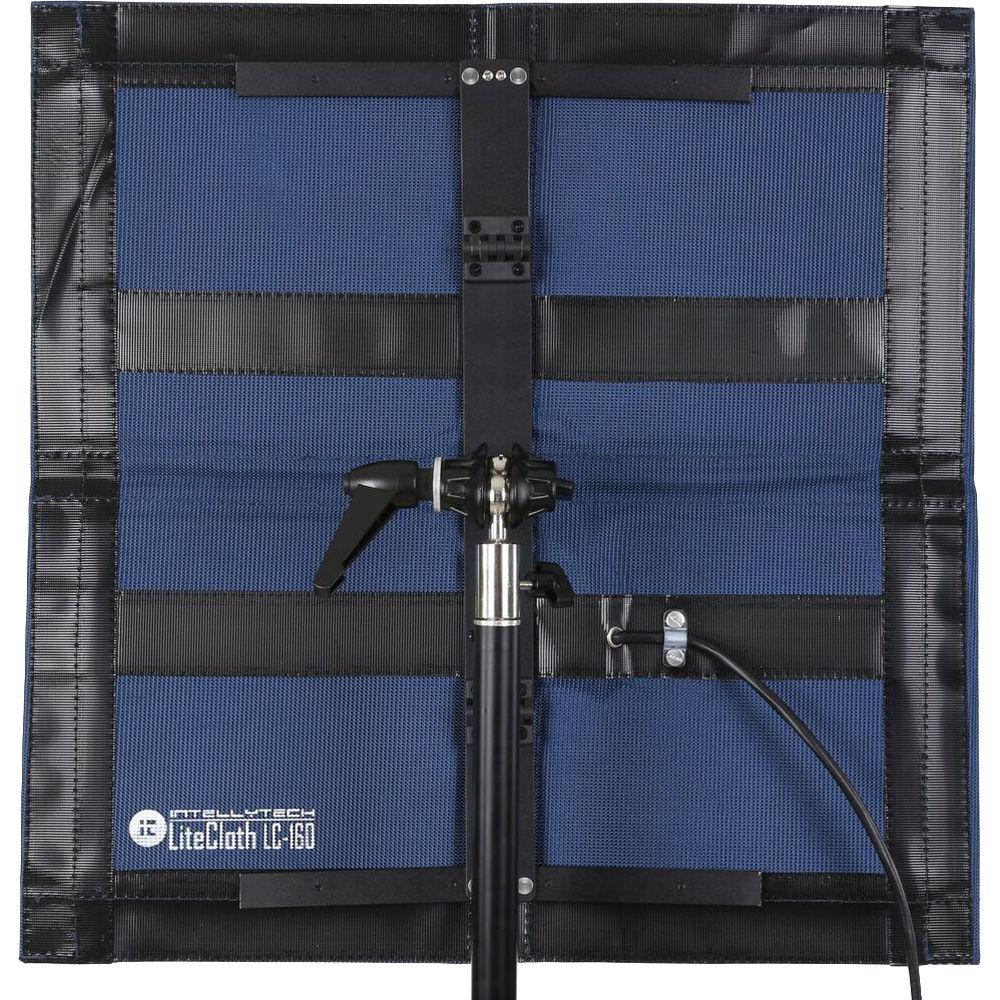

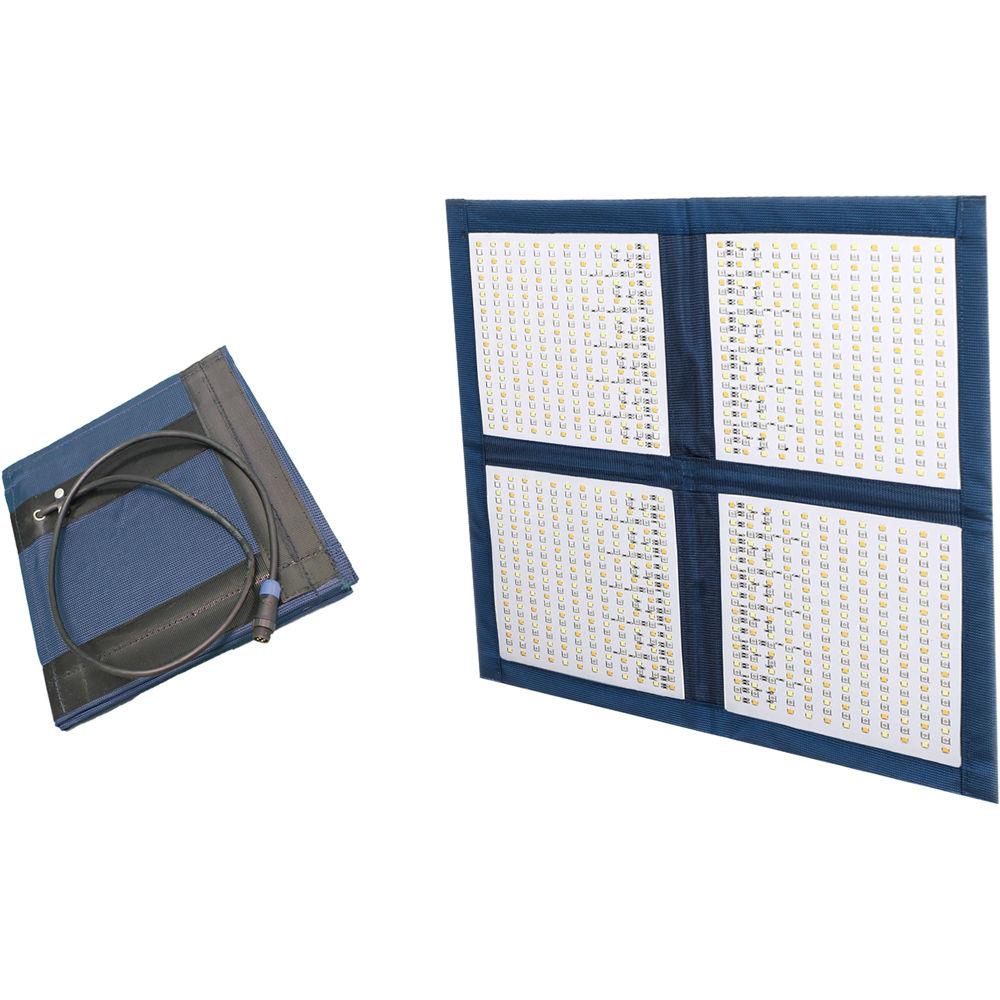

Product description The LiteCloth LC-160RGBW 2 x 2' Foldable LED 2-Mat Kit with V-Mount battery plate was put together by Intellytech for imaginative imagers/makers who require complete color control suited to their specific needs, as well as the ability to enhance the quality of light by literally shaping its source. The kit includes two LC-160RGBW 22 x 22" LED Mats, each with a softbox, diffuser, fabric grid, AC adapter, wireless remote controller, and a mounting bracket. A hard travel case is included for storage and transport. The 22 x 22" LC-160RGBW LED LiteCloth is a lightweight fixture that folds down to just 12 x 12" for storage and transport. The light has an impressively wide variable bi-color range of 3000 to 10,000K, allowing it to meet the challenge of ambient light conditions, match other fixtures, or just to shoot creatively. It is also capable of RGB adjustments in single increments and saturation control that allows you to gain access to literally millions of color combinations. Light intensity is variable too, from 0-100%. Both functions can be controlled on the LC-160RGBW, remotely via DMX, or wirelessly with the included remote controller. The LiteCloth Mat comes with a softbox to take the edge off the bright LEDs, while the included fabric grid narrows the light's beam, adding directional control for selective lighting. - RGB and Bi-Color - Wide Color Range with High Accuracy

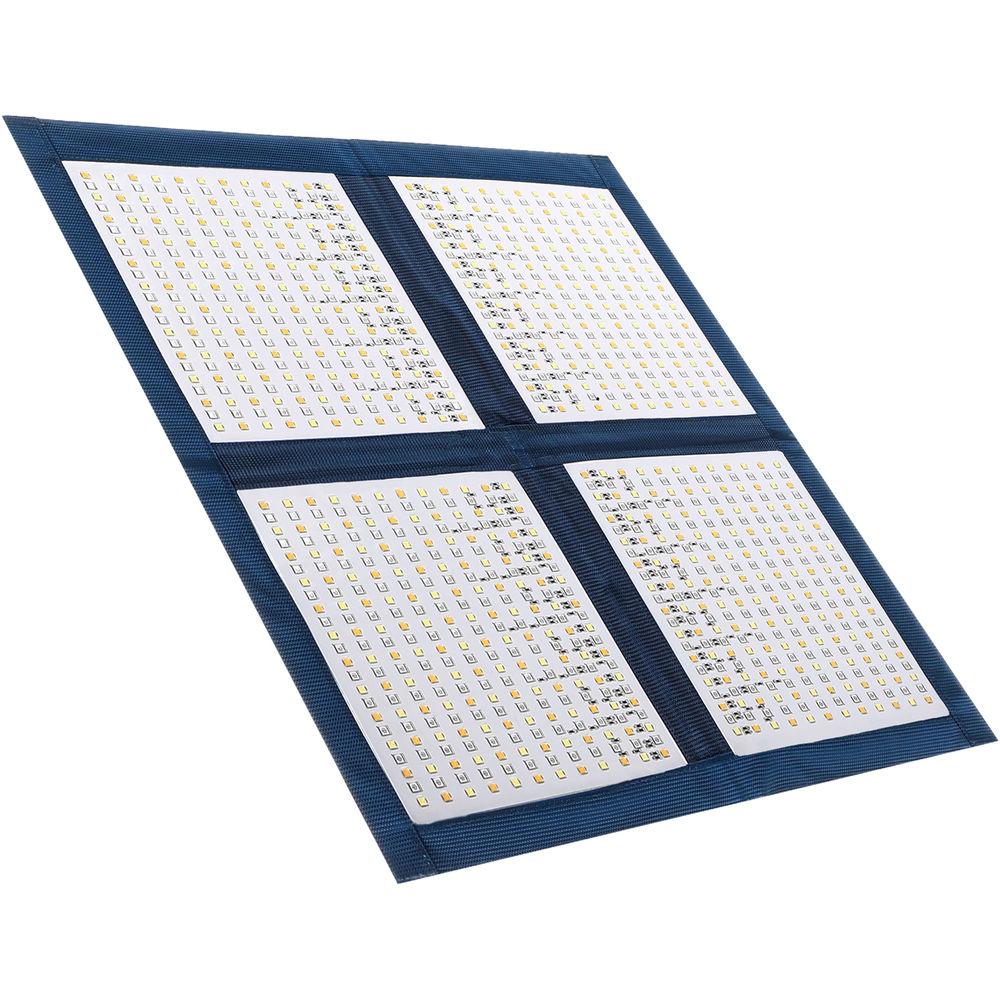

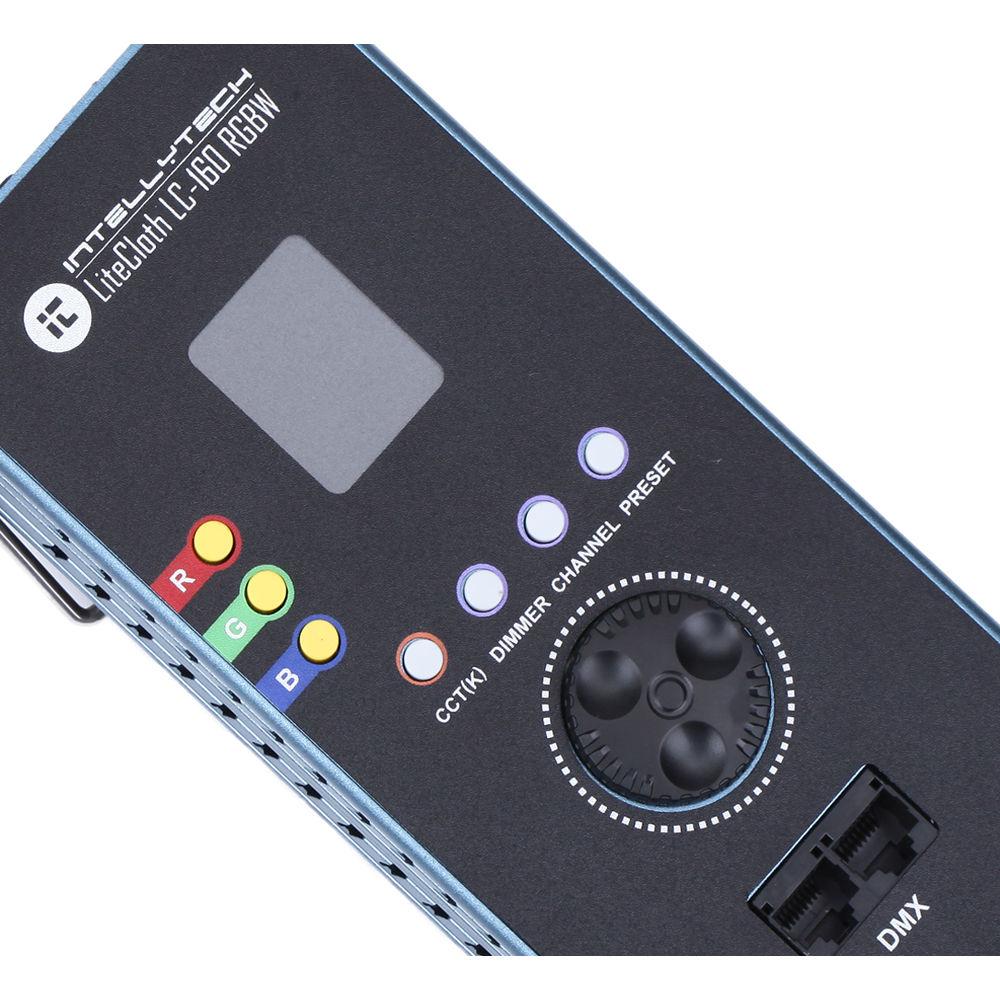

- The LC-160RGBW has both RGB and Bi-Color LEDs (3000-10,000K) combined on the LiteCloth 2 x 2 mat. Fine tune adjustments can be made in increments of 1 to your tungsten / daylight selection to match other lighting sources, while saturation control gives you access to literally millions of color combinations. Select your color or brightness level (0-100%) via the touchscreen or knobs.

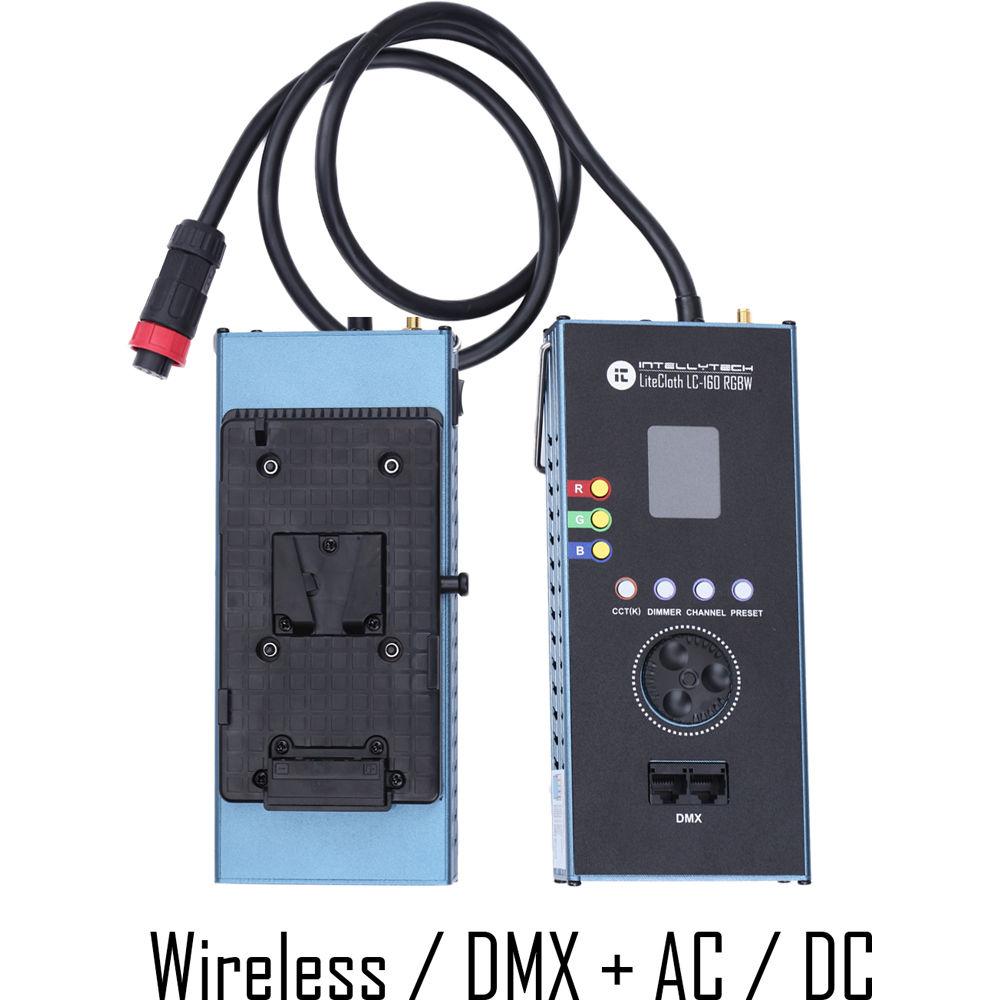

- Portable Power and Control
- Power the LC-160RGBW either with the included AC Adapter or via an optional 14.8V V-Mount battery.

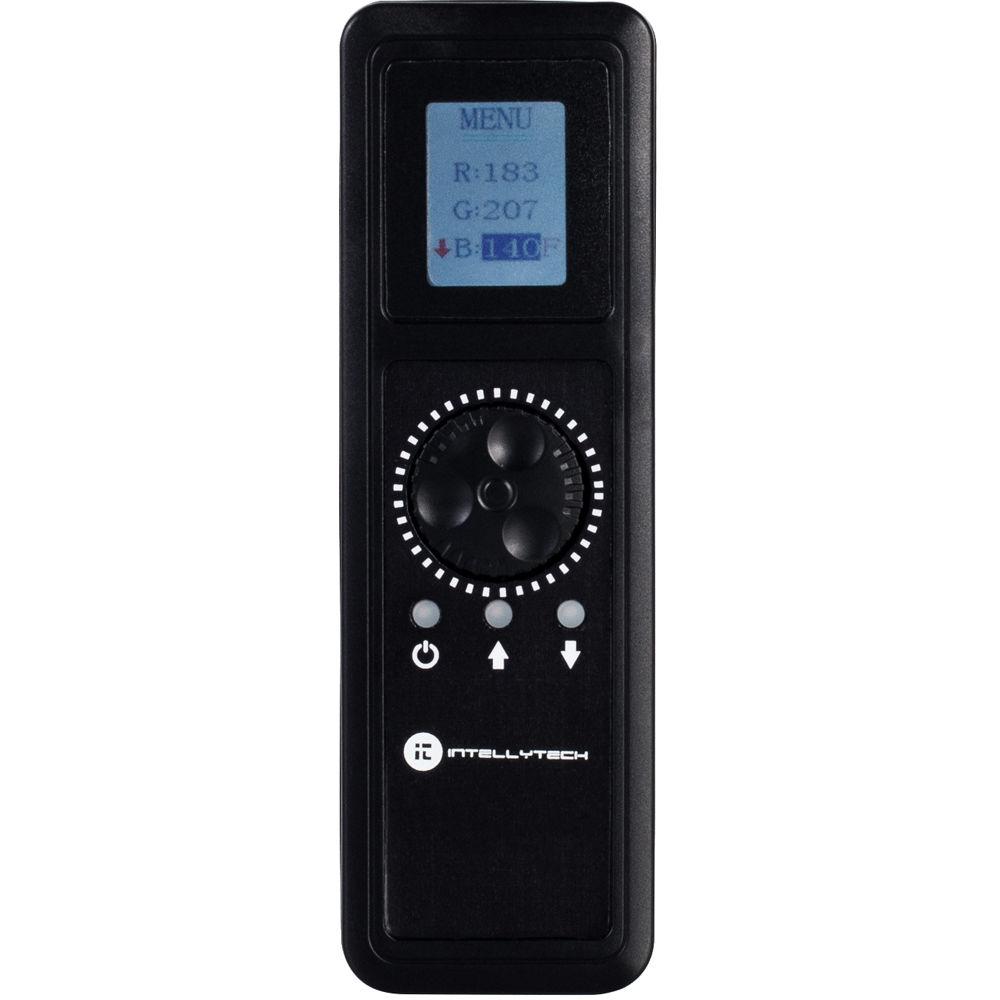

- Included Wireless Remote - LC-WR3
- With the LC-WR3 there is no need for a complicated App or DMX table. The LC-WR3 can control all aspects of the light, whether it's RGB selection, output level from 0-100%, or color temperature selection from 3000 to 10,000K. Additionally, users can choose to control one unit individually, or they can sync an almost infinite number of LC-160RGBWs together for simultaneous control.

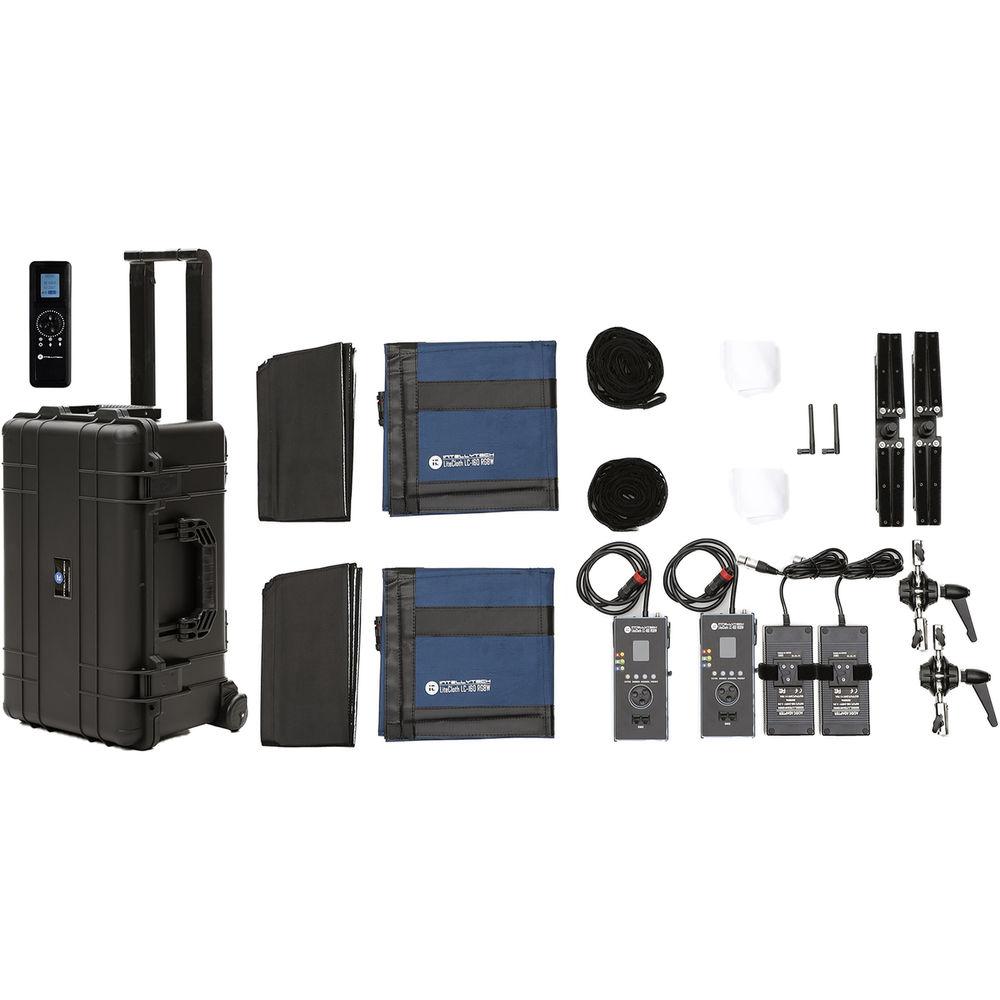

UPC: 810019421228 In the Box Intellytech LiteCloth LC-160RGBW 2 x 2' Foldable LED 2-Mat Kit (V-Mount) 2 x Foldable 2 x 2 LED Mat 2 x Softbox 2 x Diffuser 2 x Grid 2 x Mounting Bracket 2 x Controller/Ballast with V-Mount Battery Plate 2 x AC Adapter 2 x Power Cable Carrying Case LC-WR3 Wireless Remote for LC-160RGBW Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech LiteCloth LC-160RGBW 2 x 2' Foldable LED 2-Mat Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech LC-160RGBW Specs | | | Color Temperature | 3000 to 10,000K | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 96 at 5600K | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 3000K:
80 fc / 860.8 lux at 6' / 1.83 m
10000K:
84 fc / 903.8 lux at 6' / 1.83 m | | Fixture Dimensions | Flood: 22.0 x 22.0 x 0.5" / 55.9 x 55.9 x 1.3 cm | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Package Weight | 39.63 lb | | Box Dimensions (LxWxH) | 1.98 x 1.65 x 1.59" |
