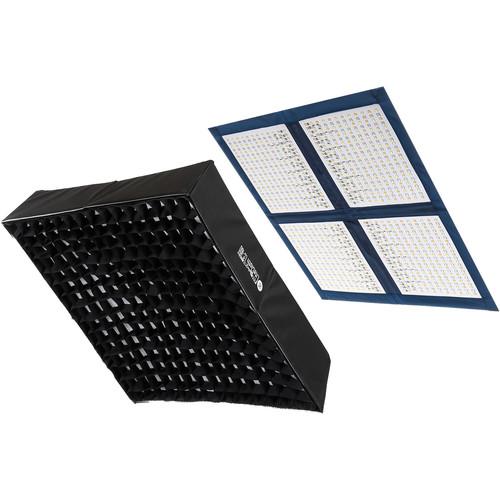

Product description The LiteCloth LC-160RGBW 2 x 2' Foldable LED Mat Kit with Gold Mount battery plate was put together by Intellytech for imaginative imagers-makers who require complete color control suited to their specific needs, as well as the ability to enhance the quality of light by literally shaping its source. The kit includes one LC-160RGBW 22 x 22" LED Mat, with a softbox, diffuser, fabric grid, AC adapter, and a mounting bracket. A hard travel case is included for storage and transport. The 22 x 22" LC-160RGBW LED LiteCloth is a lightweight fixture that folds down to just 12 x 12" for storage and transport. The light has an impressively wide variable bi-color range of 3000 to 10,000K, allowing it to meet the challenge of ambient light conditions, match other fixtures, or just to shoot creatively. It is also capable of RGB adjustments in single increments and saturation control that allows you to gain access to literally millions of color combinations. Light intensity is variable too, from 0-100%. Both functions can be controlled on the LC-160RGBW, remotely via DMX, or wirelessly with an optional remote controller. The LiteCloth Mat comes with a softbox to take the edge off the bright LEDs, while the included fabric grid narrows the light's beam, adding directional control for selective lighting. The LC-160RGBW is ready for worldwide use thanks to its universal AC power supply, but you can also run it on Gold Mount batteries when mains power is unavailable. - RGB and Bi-Color - Wide Color Range with High Accuracy

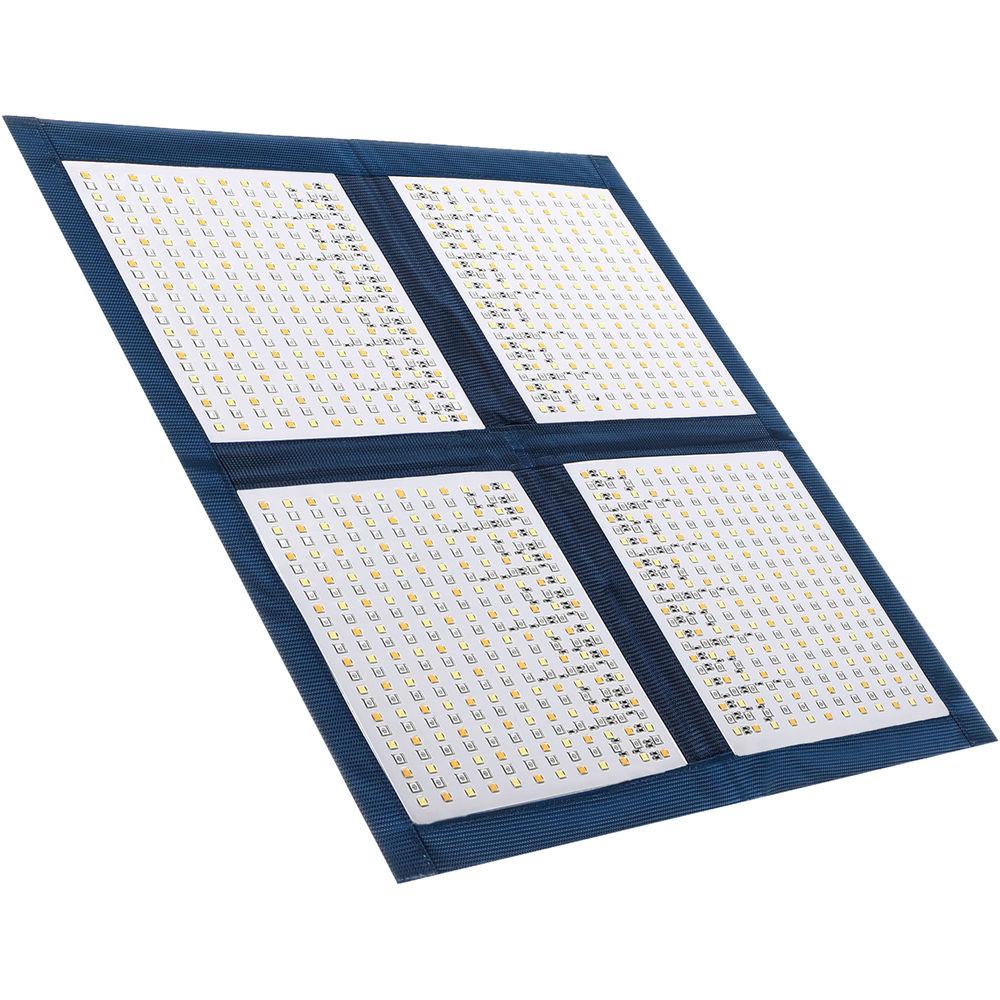

- The LC-160RGBW has both RGB and Bi-Color LEDs (3000-10,000K) combined on the LiteCloth 2 x 2 mat. Fine tune adjustments can be made in increments of 1 to your tungsten / daylight selection to match other lighting sources, while saturation control gives you access to literally millions of color combinations. Select your color or brightness level (0-100%) via the touchscreen or knobs.

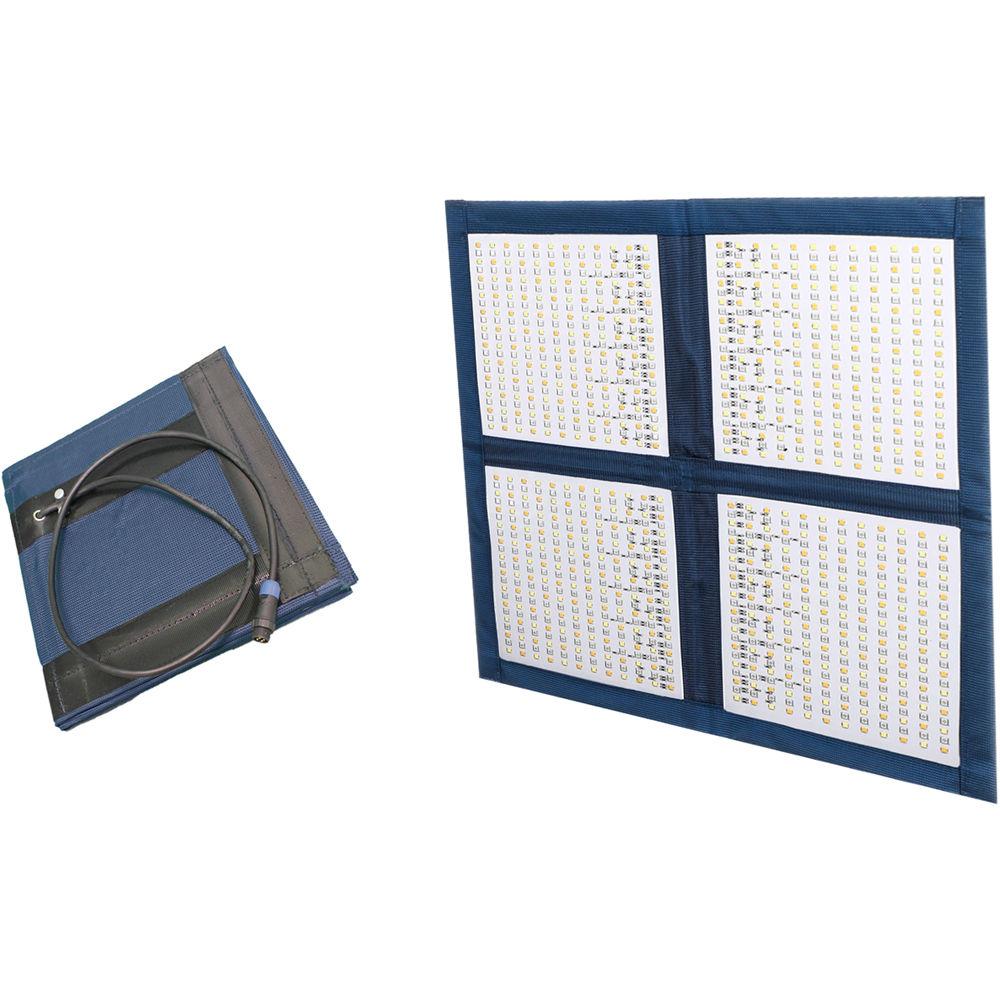

- Folding Design - 1 x 1 to 2 x 2 in Seconds.
- The LC-160RGBW has a firm backing behind the Mat, but can also fold down at its collapsible cross sections. This allows the light to be mounted quickly without the need for a metal frame or x-bracket, allowing users to travel with a 2 x 2 light kit that takes up less space than a conventional 1 x 1 panel.

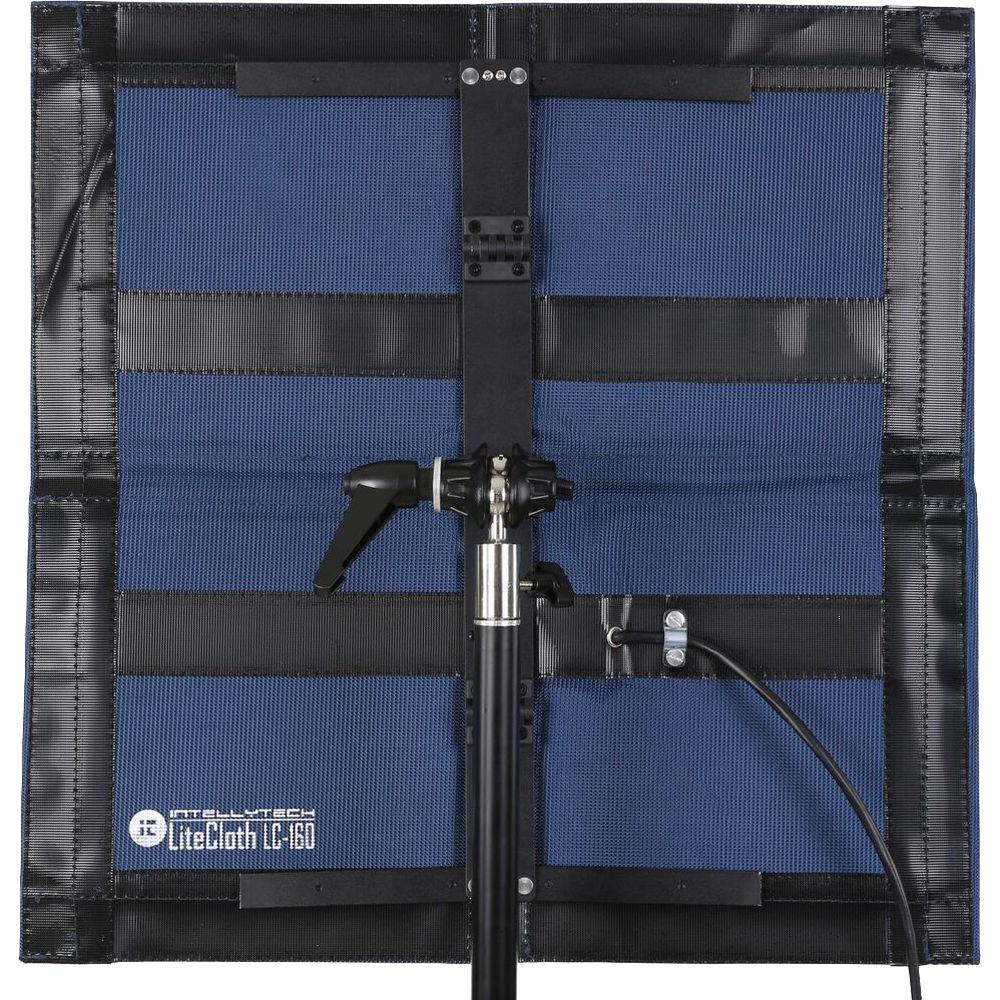

- Quick and Intuitive Mount
- The included mount securely attaches to the rear of the unit via high-strength touch-fasteners. Like the Mat, the Bracket also folds down, which allows it to pack easily into the included carrying case.

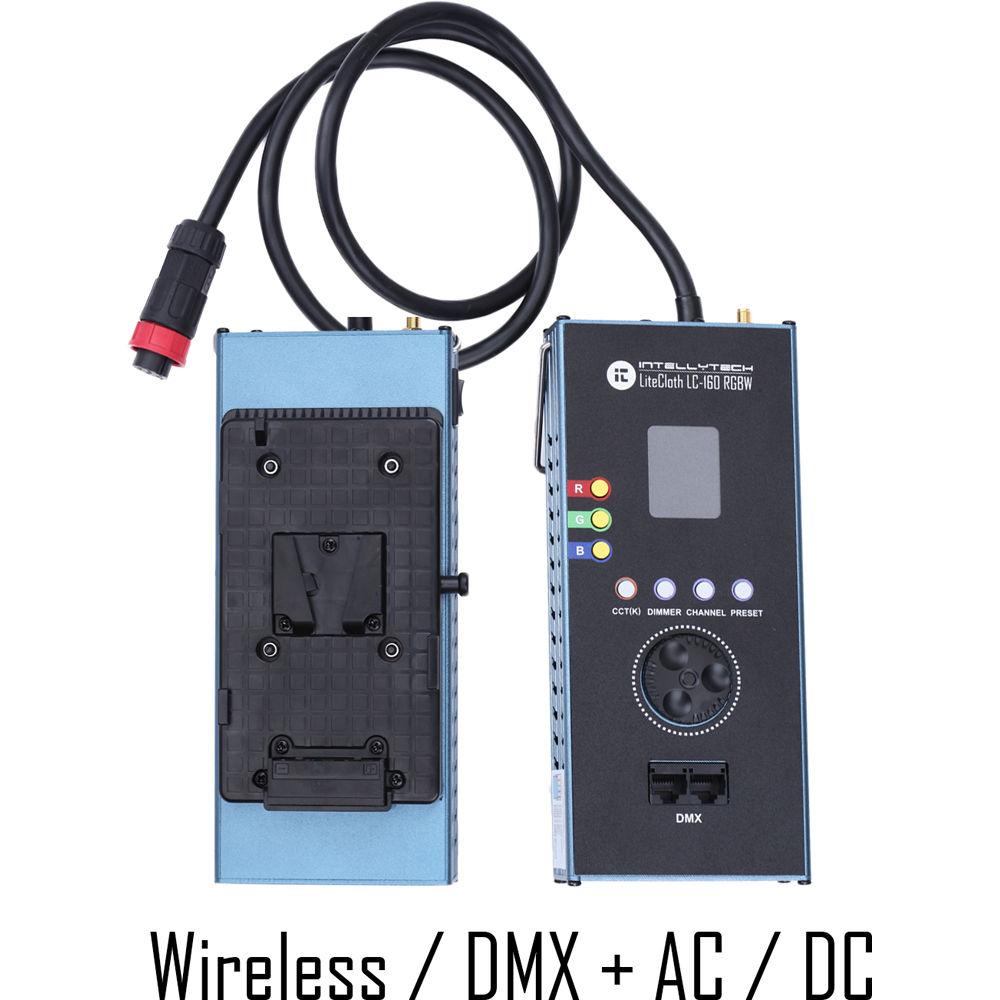

- Portable Power and Control
- Power the LC-160RGBW either with the included AC Adapter or via an optional 14.8V Gold Mount battery.
- DMX Ready
- Brightness and color can be controlled remotely from a console via DMX for studio work. An optional remote control presents a wireless option.

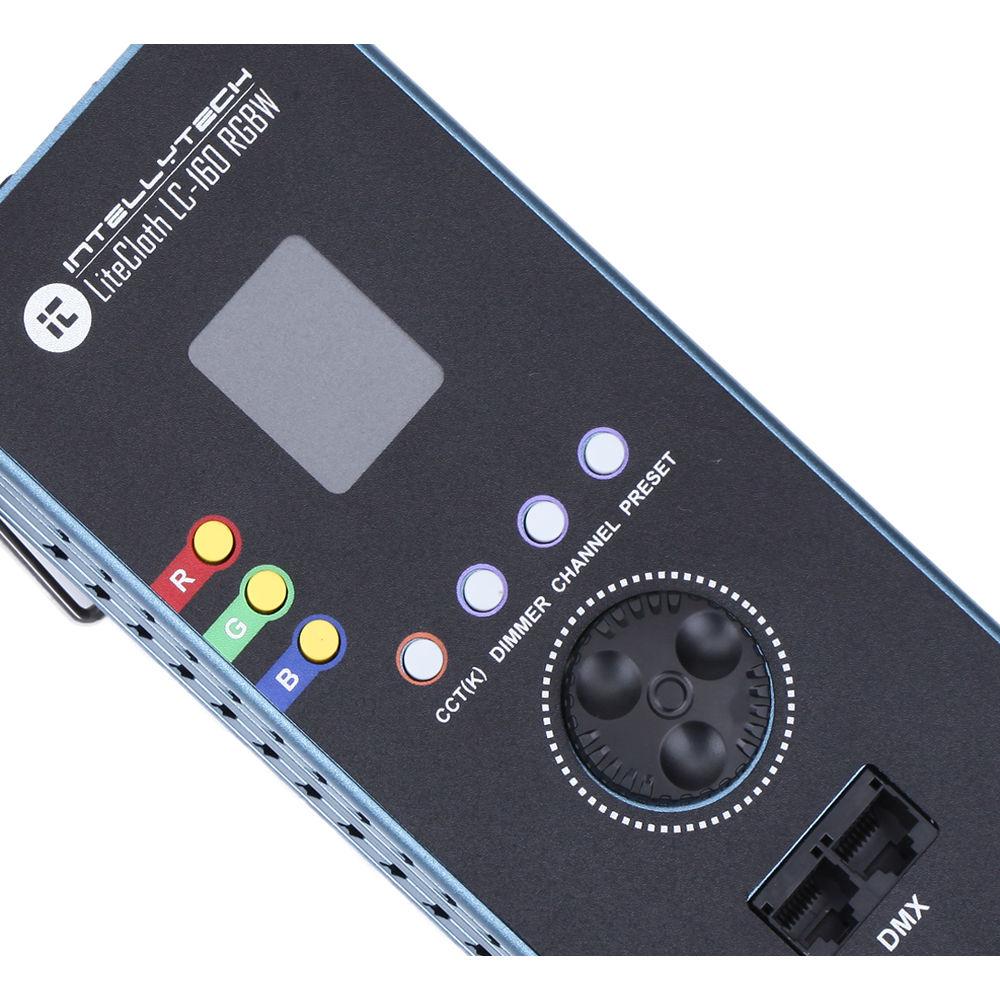

- Quick and Convenient Controls
- The LC-160RGBW Ballast was designed to give users fast, intuitive controls for each aspect of the light. You can jump to each function with the press of a button. Controls include CCT (Kelvin selection), Dimming, Channel, Preset, Red, Green, and Blue.
- Optional Wireless Remote - LC-WR3
- With the optional LC-WR3 there is no need for a complicated App or DMX table. The LC-WR3 can control all aspects of the light, whether it's RGB selection, output level from 0-100%, or color temperature selection from 3000 to 10,000K. Additionally, users can choose to control one unit individually, or they can sync an almost infinite number of LC-160RGBWs together for simultaneous control.

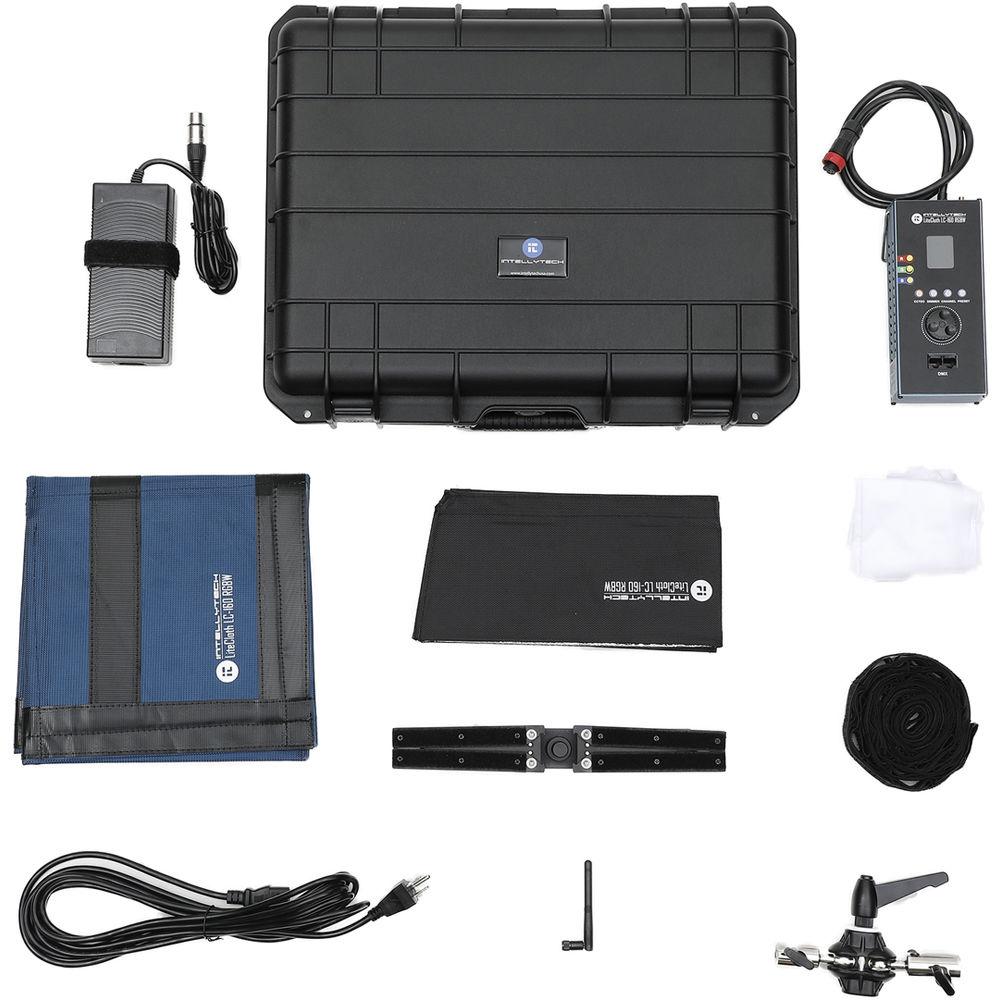

In the Box Intellytech LiteCloth LC-160RGBW 2 x 2' Foldable LED Mat Kit (Gold Mount) 2 x 2 Foldable LED Mat Softbox Diffuser Grid Mounting Bracket Controller/Ballast with Gold Mount Battery Plate AC Adapter Power Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech LiteCloth LC-160RGBW 2 x 2' Foldable LED Mat Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech LC-160RGBW Specs | | | Color Temperature | 3000 to 10,000K | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 96 at 5600K | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 3000K:
80 fc / 860.8 lux at 6' / 1.83 m
10000K:
84 fc / 903.8 lux at 6' / 1.83 m | | Fixture Dimensions | Flood: 22.0 x 22.0 x 0.5" / 55.9 x 55.9 x 1.3 cm | | | | Battery Plate | 1 x Gold Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Package Weight | 19.55 lb | | Box Dimensions (LxWxH) | 1.8 x 1.6 x 0.7" |
