User Manual for Intellytech Nitro 15 Bi-Color On-Camera LED Panel Light Click to enlarge the picture
Contents of the user manual for the Intellytech Nitro 15 Bi-Color On-Camera LED
- Product category: On Camera Lights Intellytech
- Brand: Intellytech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellytech On Camera Lights
 |
User manual for the Intellytech Nitro 15 Bi-Color On-Camera LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellytech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellytech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellytech product will considerably shorten its lifespan!
|

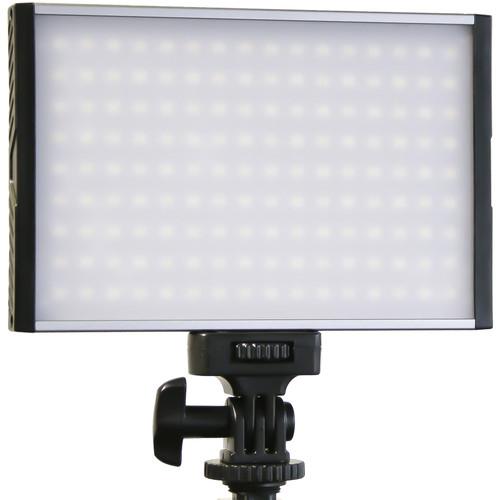

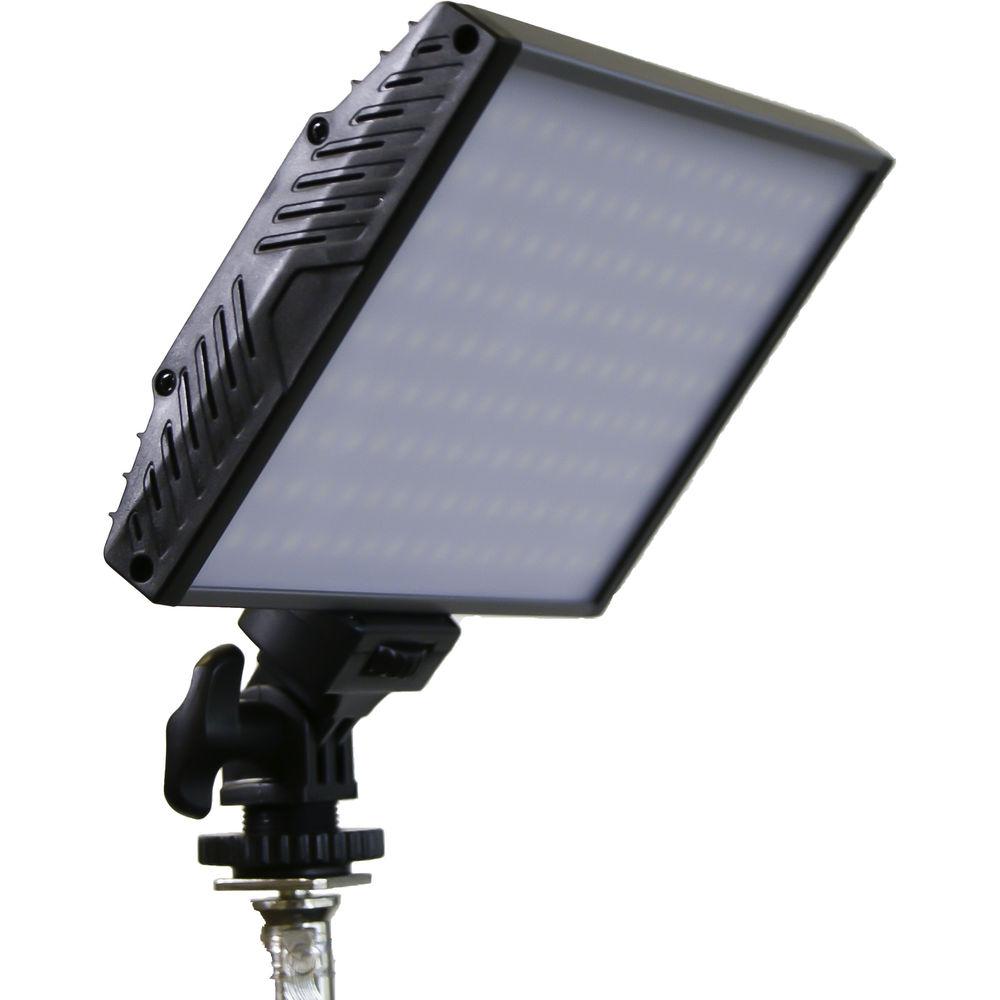

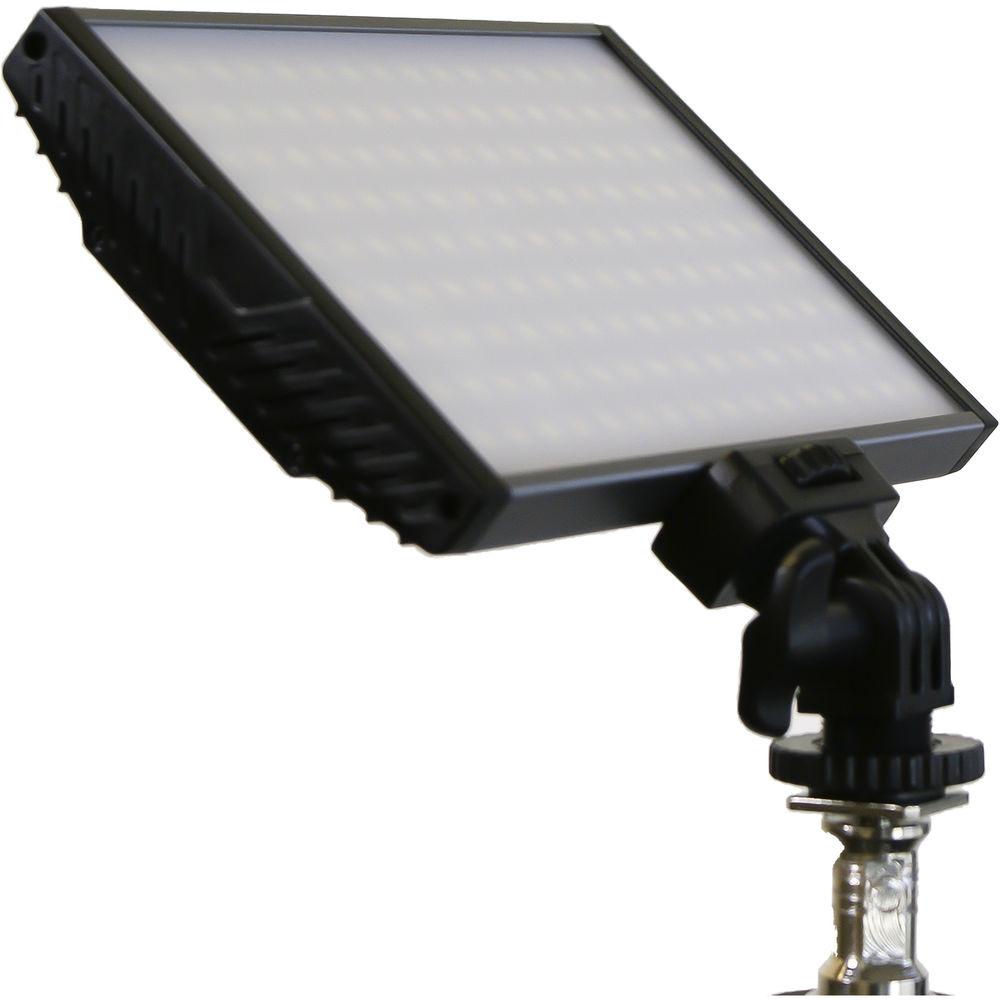

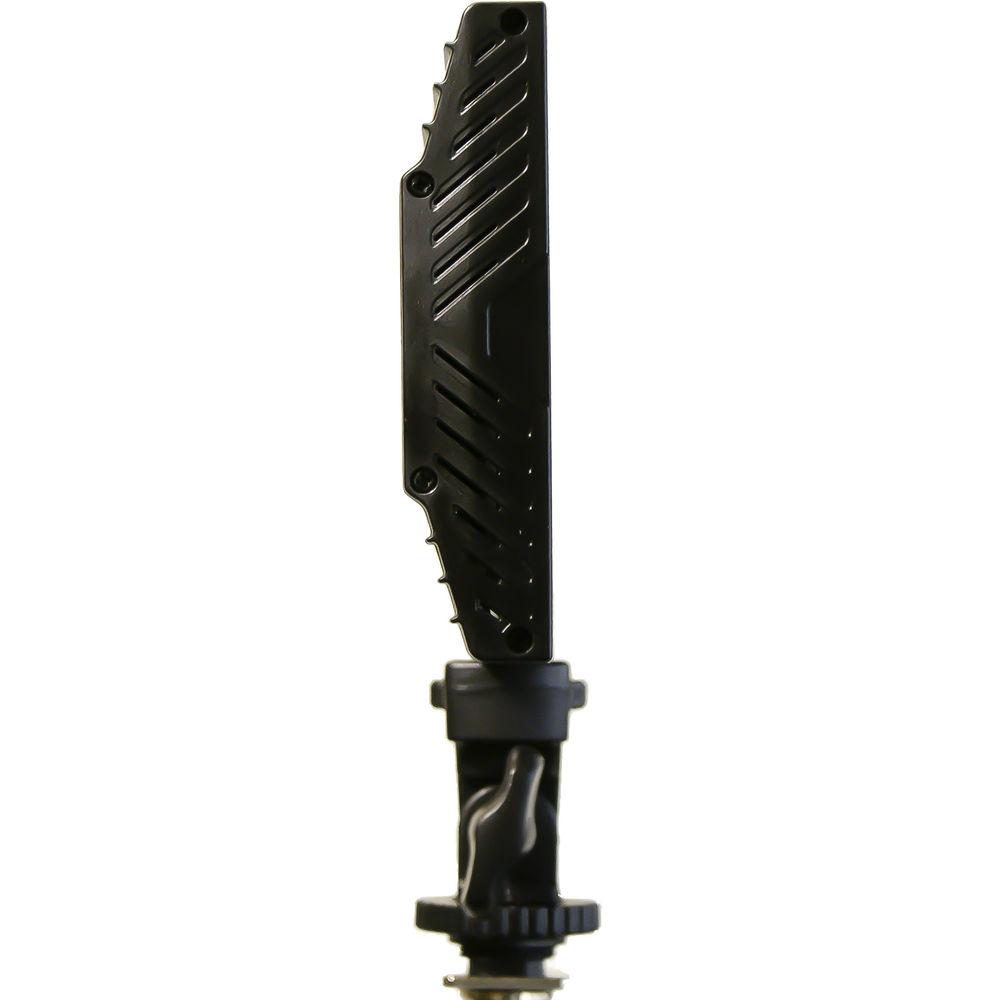

Product description The Intellytech Nitro 15 Bi-Color On-Camera LED Panel Light is a 5.75 x 3.75" fixture that features a color temperature output variable from 3200 to 5600K, and is dimmable from full brightness to 10%. The metal frame aids in keeping the fixture cool and the integrated diffusion creates a smooth output that does not suffer from the multiple shadows that many LED array lights suffer. Drawing only 15W, but with an equivalent output of a 100 to 150W tungsten bulb. The fixture is slim and lightweight and suitable for use mounted on to your camera or on a lightstand.

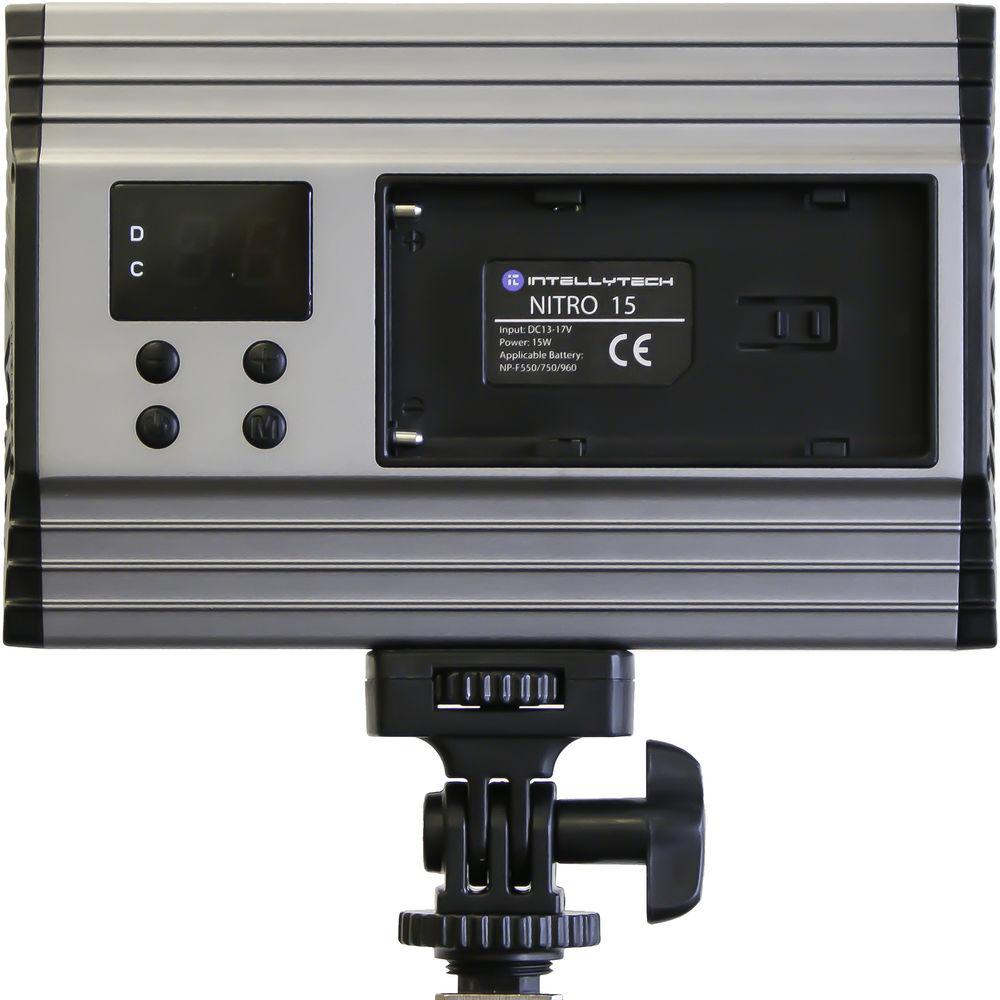

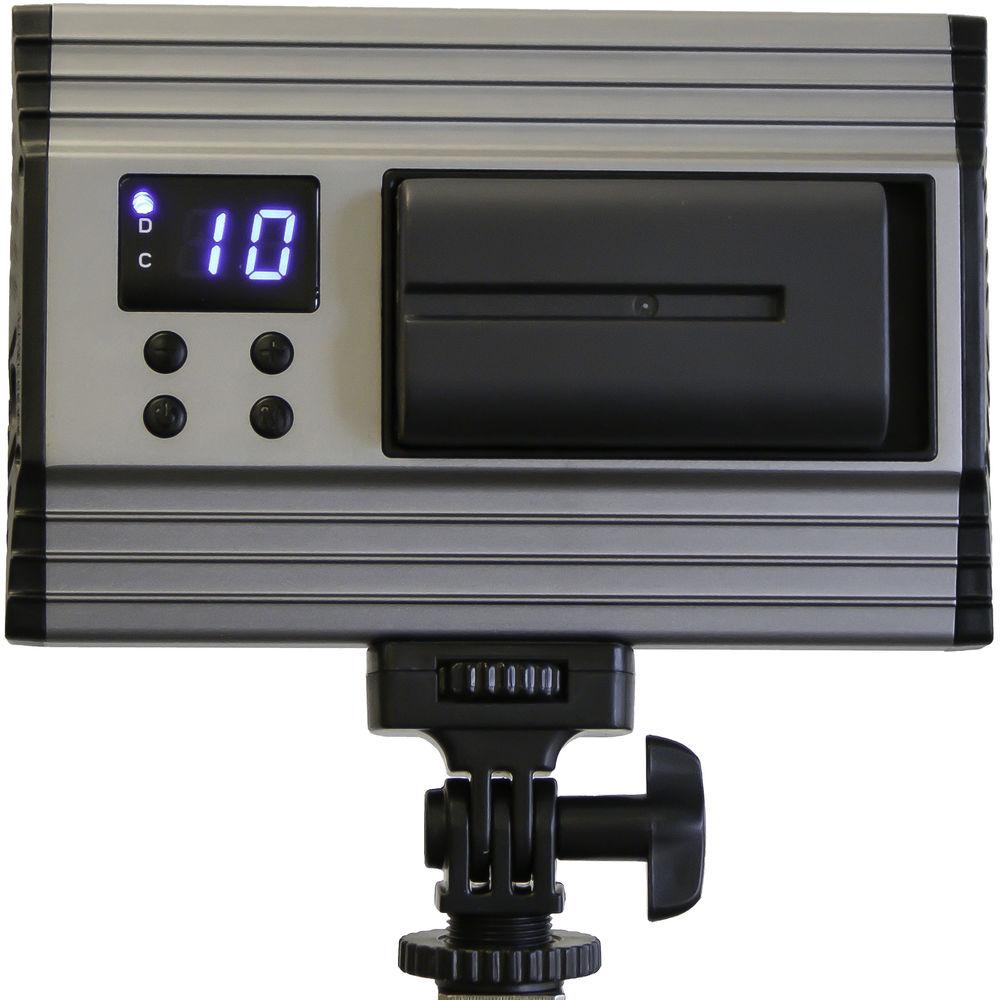

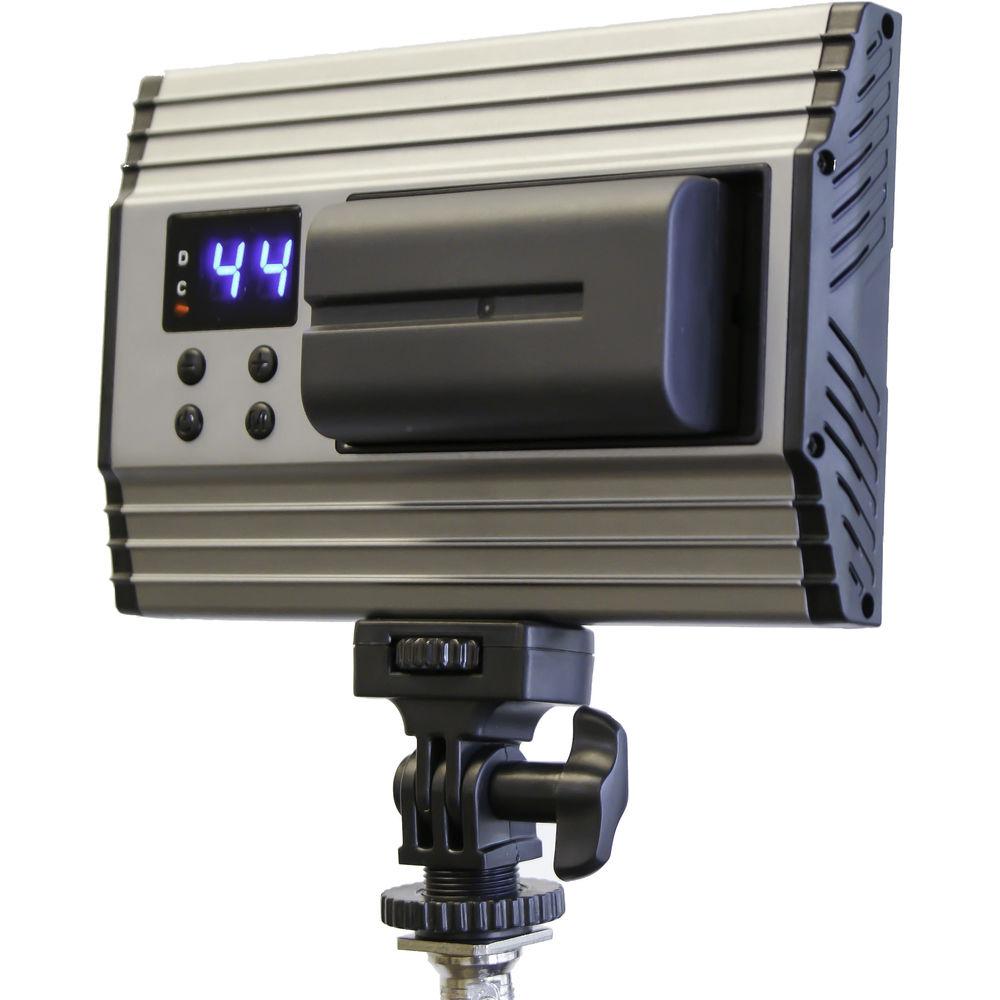

The fixture accepts L-series type batteries for power, and it can also be powered by an optional AC power adapter through a power port on the side of the fixture. A digital readout toggles between brightness and color temperature, which is set by using the flush-mount "M", up, and down buttons built into the light. An on/off power button is likewise set flush with the back of the unit. The light features a single 1/4"-20 threaded mounting hole, so it can be mounted on a standard accessory arm, or you can attach the cold shoe mount to the fixture and mount the light onto your camera's accessory shoe. - The SMD LEDs and integrated diffusion provide smooth flood-like output with a 120° beam angle

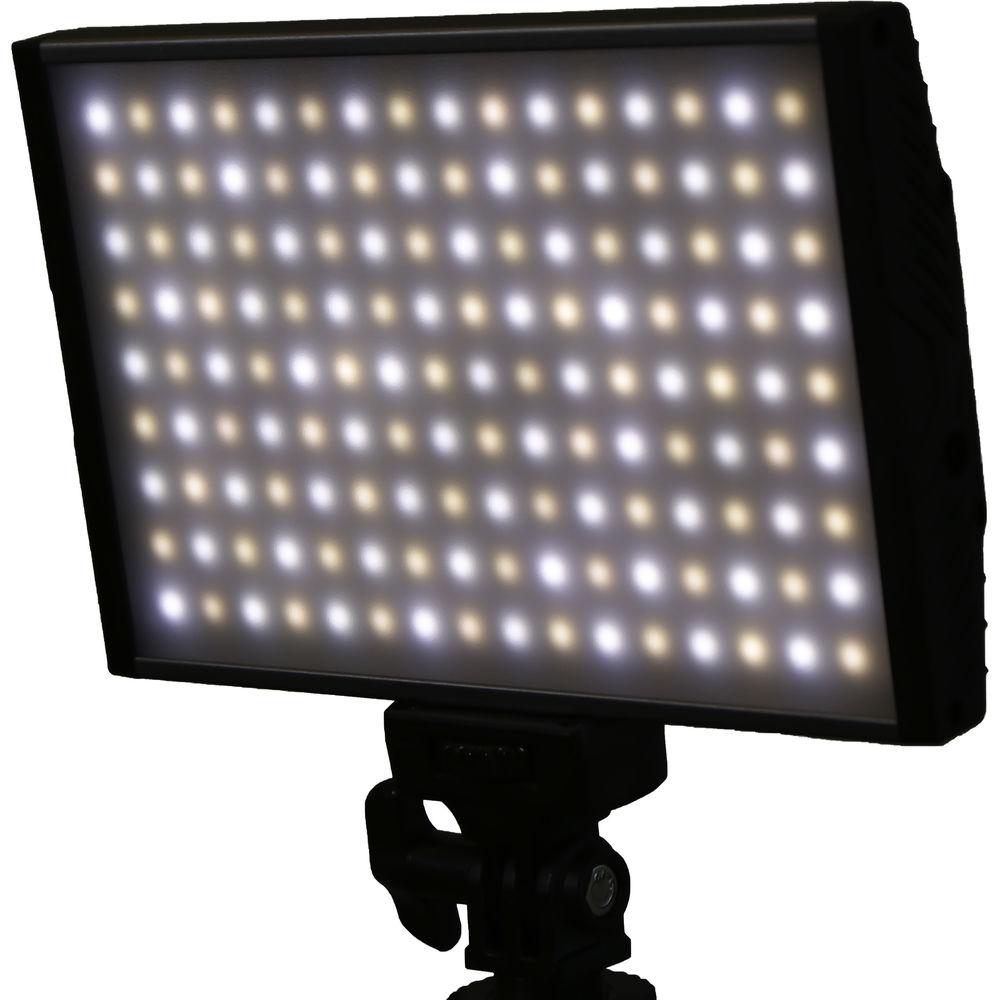

- This bi-color output is variable from 3200 to 5600K, so you can use the light in many different situations with varying color temperatures
- Hi CRI color output of between 95 and 97
- Powers from industry standard L-series type batteries or optional power supply
In the Box Intellytech Nitro 15 Bi-Color On-Camera LED Panel Light (5.75 x 3.75") Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Nitro 15 Bi-Color On-Camera LED Panel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech Nitro 15 Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 10 to 100% | | Number of LEDs | 144 | | | | Max Power Consumption | 15 W | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 5.8 x 3.8 x 0.8" / 14.6 x 9.5 x 1.9 cm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.4 x 5.7 x 3.5" |
