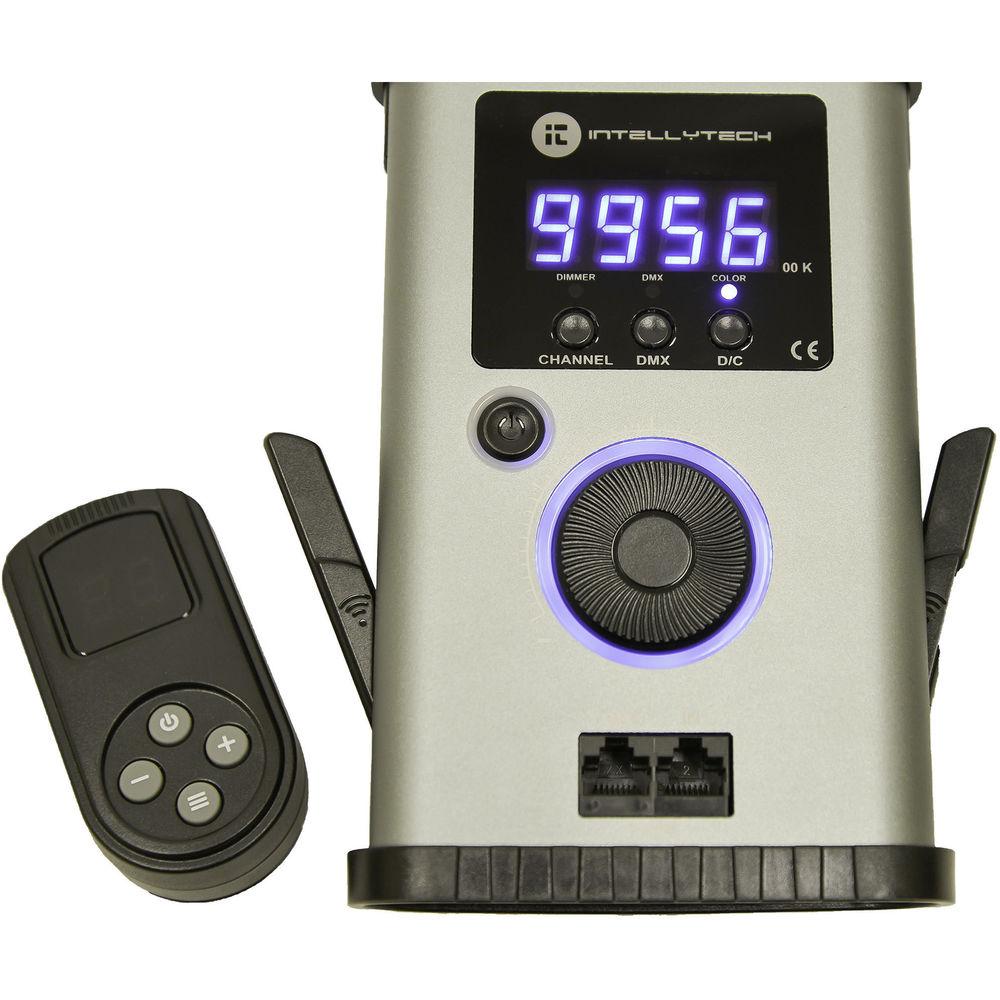

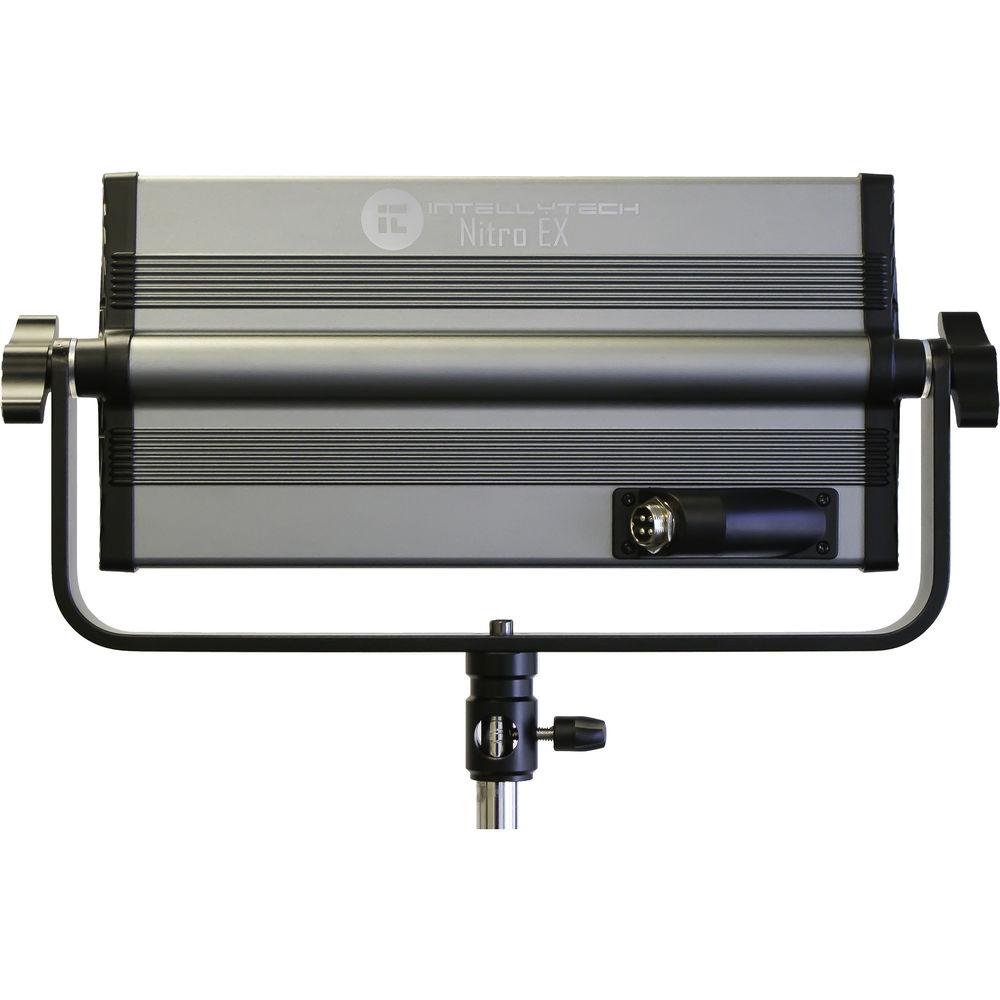

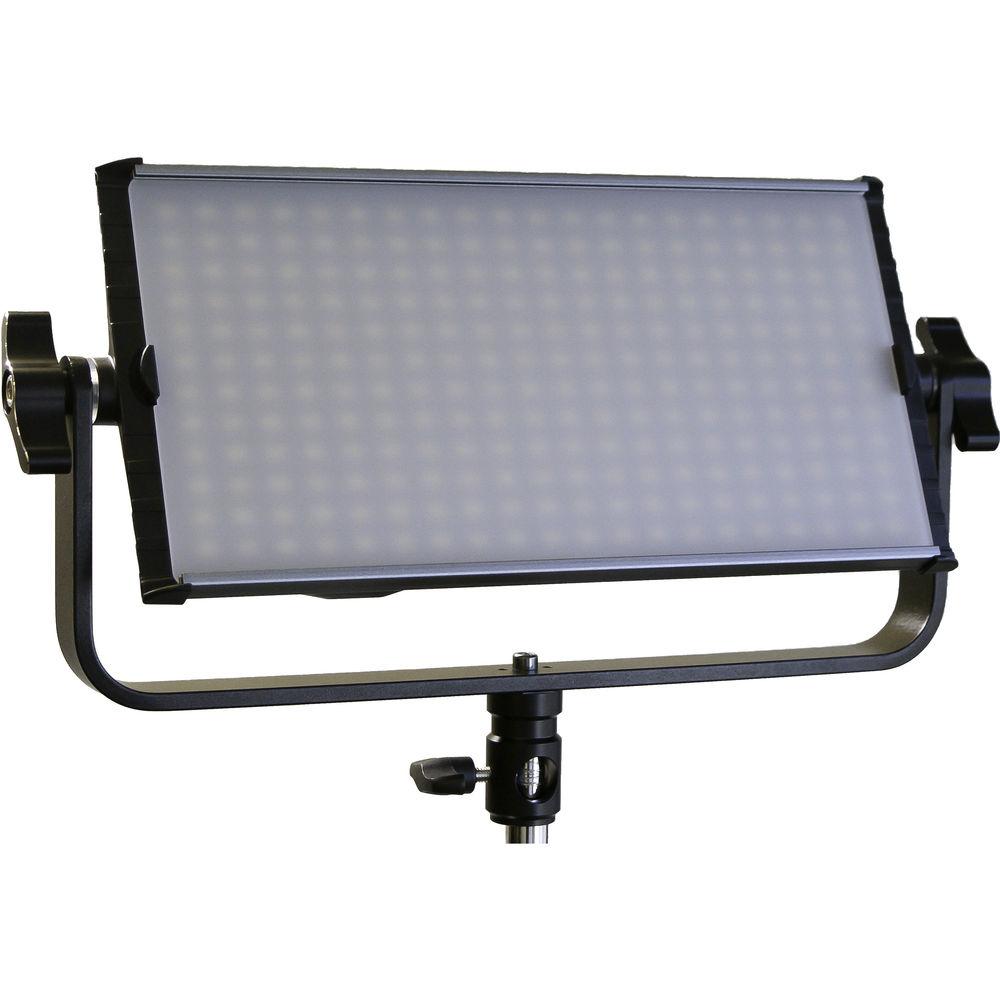

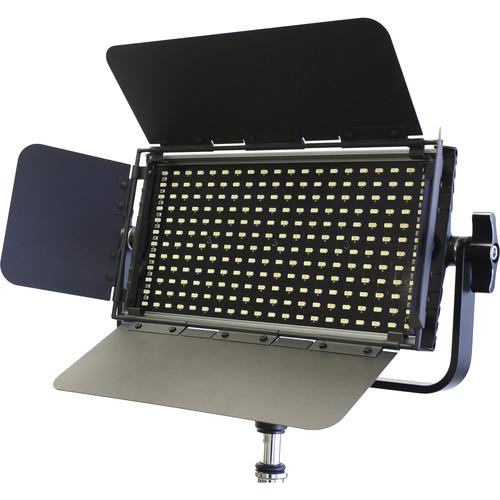

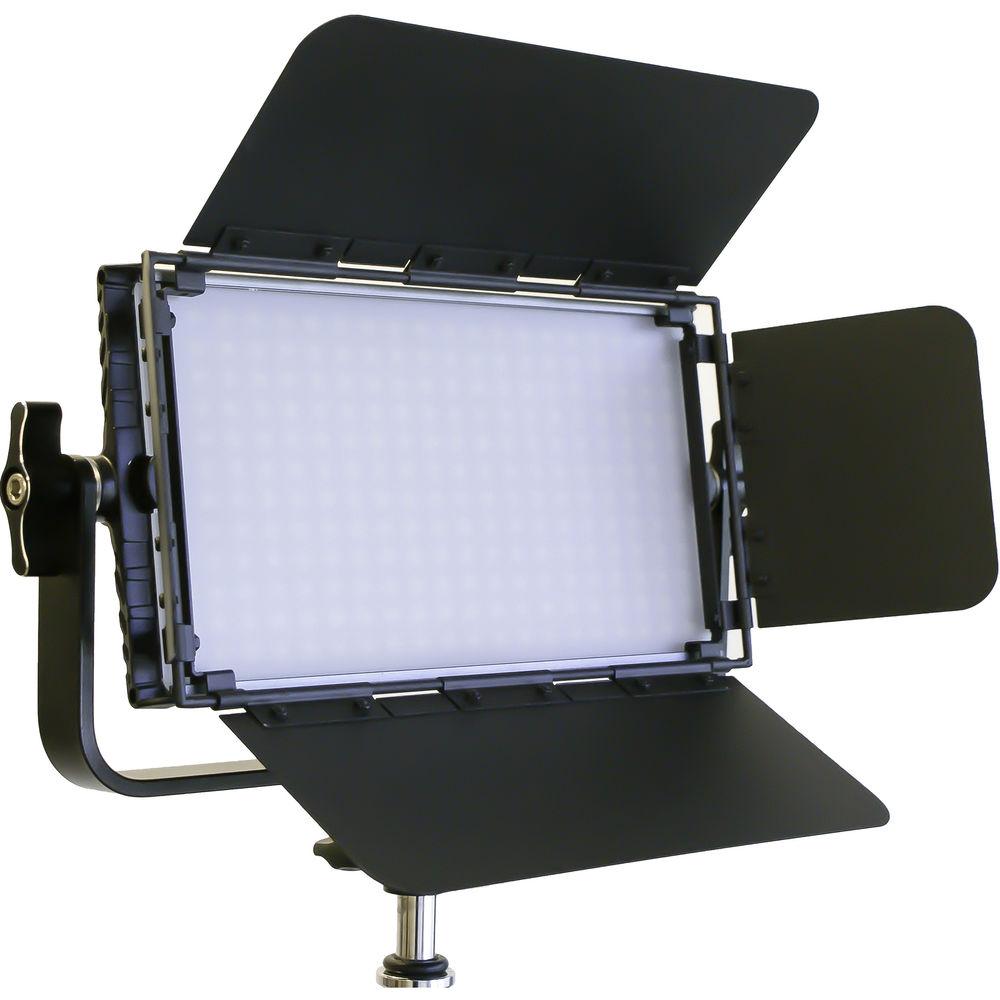

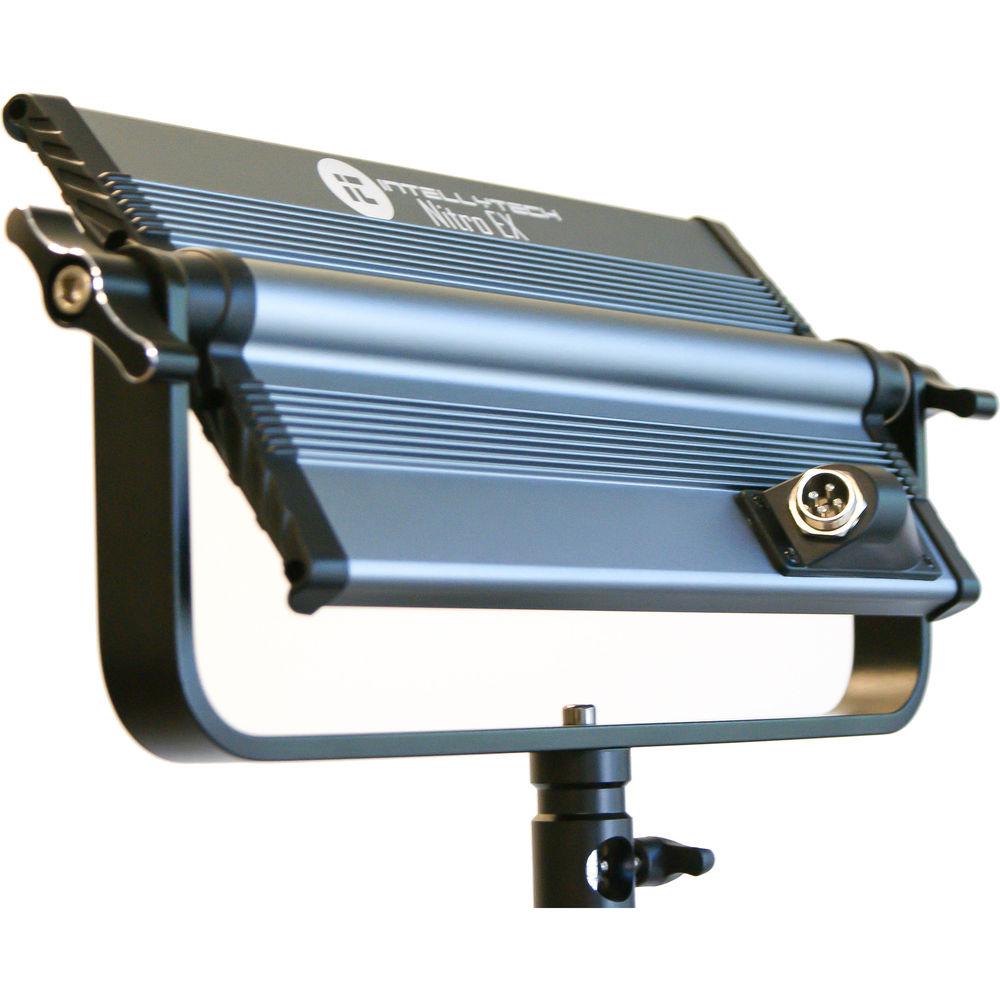

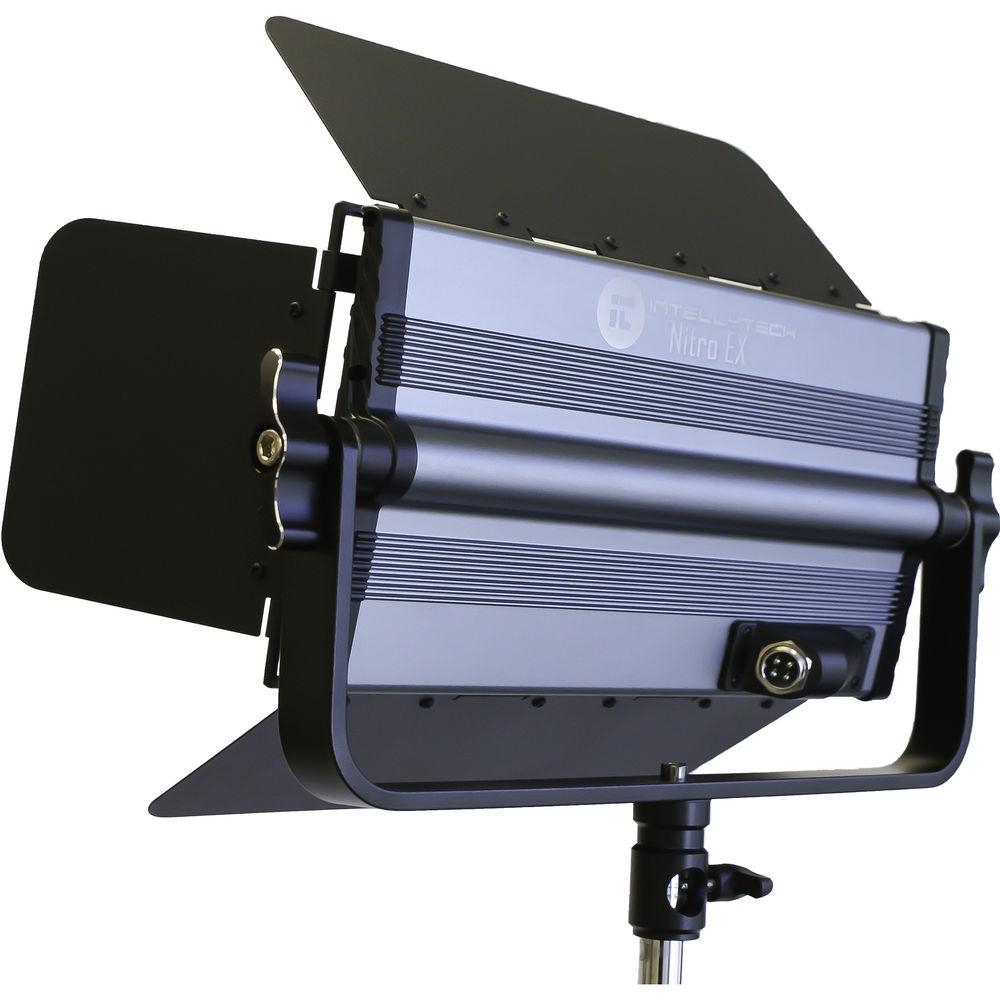

Product description The Nitro EX Bi-Color Panel Kit from Intellytech has color that's variable from 3200 to 5600K or anywhere in between to match other fixtures, ambient light conditions, or just for creative effects. Light intensity is also variable from 100 to 10%. Both functions are adjustable locally on the fixture or remotely via the included 2.4 GHz wireless remote control or onboard DMX. The Nitro EX Bi-Color panel's small 12 x 5.8 x 1" form factor and slim profile make the fixture a wise choice for placement where larger lights can't fit and since its LEDs run barely warm to the touch, you can work close to the talent without discomfort while avoiding heat damage and hazard on set. You'll save money on air-conditioning too, making for a rapid return on investment. The Nitro EX Bi-Color has a 120° beam spread that can be further controlled by its removable 4-way barndoors while its yoke has a 2-way 5/8" receiver to allow a full tilting range without being impeded by the light stand. The powerful light outputs the equivalent of a 400 to 500 hot light while drawing only 60W and maintains a high CRI rating of 95-97 indicating faithful and accurate rendition of color. The Nitro EX Bi-Color is ready for worldwide use thanks to its multi-voltage AC adapter, but it can also run on V-Mount batteries when mains power is unavailable. - Bi-Color
- Color temperature is variable from 3200 to 5600K to match other fixtures, ambient light conditions, or just for creative effects.
- Soft Light - No Hot Spots
- Built with high-grade, SMD LED's, the Nitro EX Bi-Color creates wide, even lighting while also displaying impressive brightness.
- High Power in a Small Package
- The Nitro EX Bi-Color packs in a high power load of 60W for such a compact 12 x 5.8 x 1" light.
- High CRI
- The high CRI rating of 95-97 indicates faithful and accurate rendition of color.
- Optional Battery Power

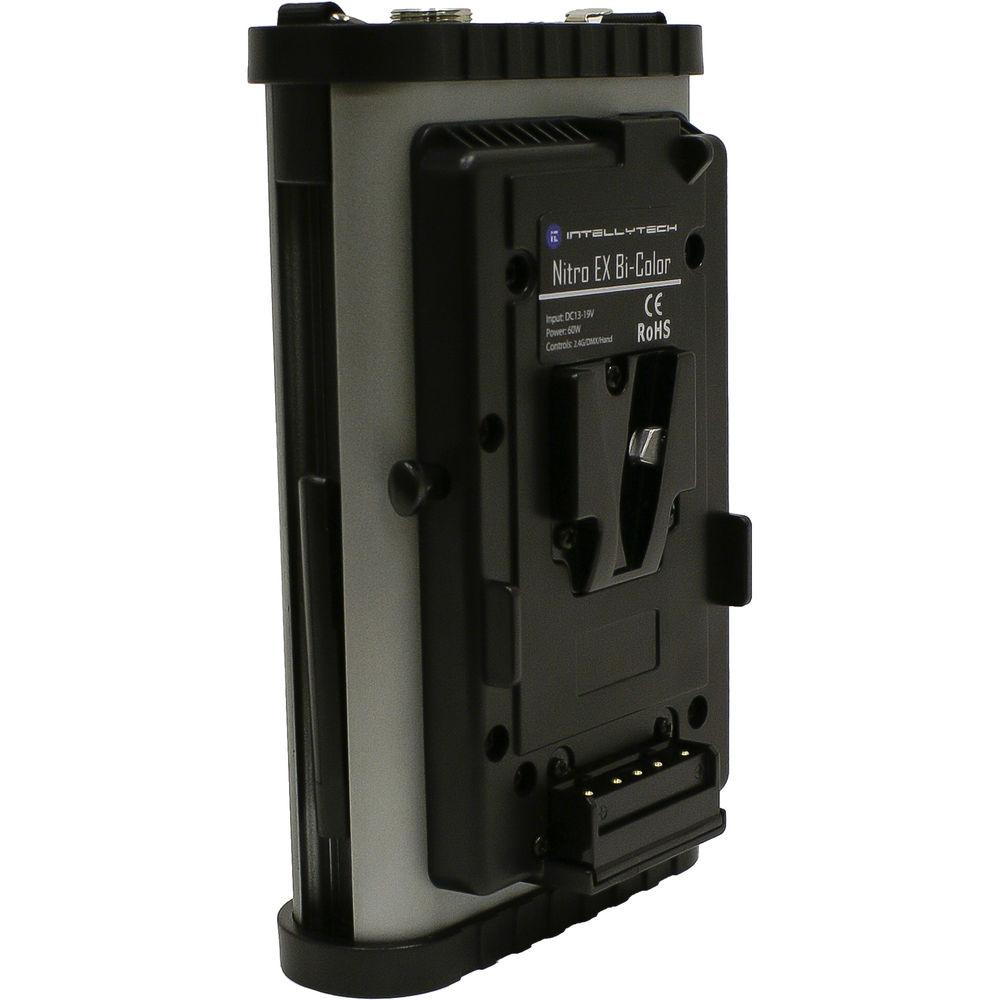

- Besides the included AC power supply, the light can also run on separately purchased V-Mount batteries.
- Photometrics
- At 5600K:
2460 lux / 229 fc @ 3.0' (0.9 m)
670 lux / 62 fc @ 6.0' (1.8 m)
350 lux / 32 @ 9.0' (2.7 m)
At 4400K:
2530 lux / 235 fc @ 3.0' (0.9 m)
690 lux / 64 fc @ 6.0' (1.8 m)
360 lux / 33 @ 9.0' (2.7 m)
At 3200K:
2210 lux / 205 fc @ 3.0' (0.9 )
680 lux / 63 fc @ 6.0' (1.8 m)

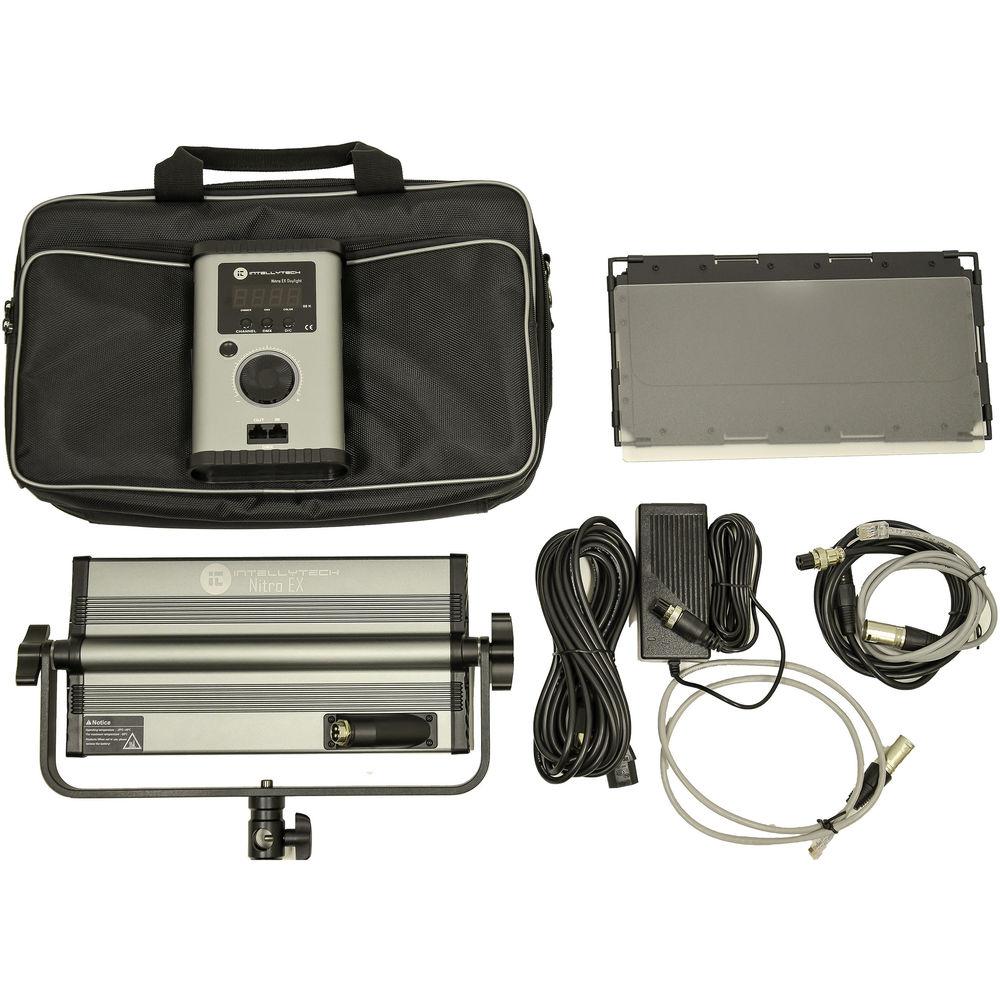

345 lux / 32 @ 9.0' (2.7 m) In the Box Intellytech Nitro EX Bi-Color Panel Kit Remote Control 4-Way Barndoors AC/DC Power Adapter DMX Cable Power Cable 2 x Diffusers (Lite and Standard) V-Mount Battery Plate Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Nitro EX Bi-Color Panel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech Nitro EX Specs | Light Source | 240 LEDs | | Color Temperature | 3200 to 5600K | | CRI | 95-97 | | Beam Angle | 120° | | Dimming Range | 10 to 100% | | DMX | Yes | | Control | Locally on fixture, remotely via DMX, or using included 2.4 GHz remote control | | Voltage | DC 14.8 V
Input: 100 - 240 VAC, 50/60 Hz | | Batteries | Optional V-Mount batteries | | Equivalent | 400 to 500 W hot light | | Power Consumption | 60 W | | Mount | 2-way 5/8" (16 mm) receiver | | Dimensions | 12 x 5.8 x 1.0" (30.5 x 14.7 x 2.54 cm) without yoke or knobs
External Controller: 7.0 x 4.75 x 1.75" (17.8 x 12.1 x 4.4 cm) | | Weight | 2.2 lb (1.0 kg)
External Controller: 1.2 lb (0.5 kg) | | | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 16.0 x 10.7 x 6.6" |
