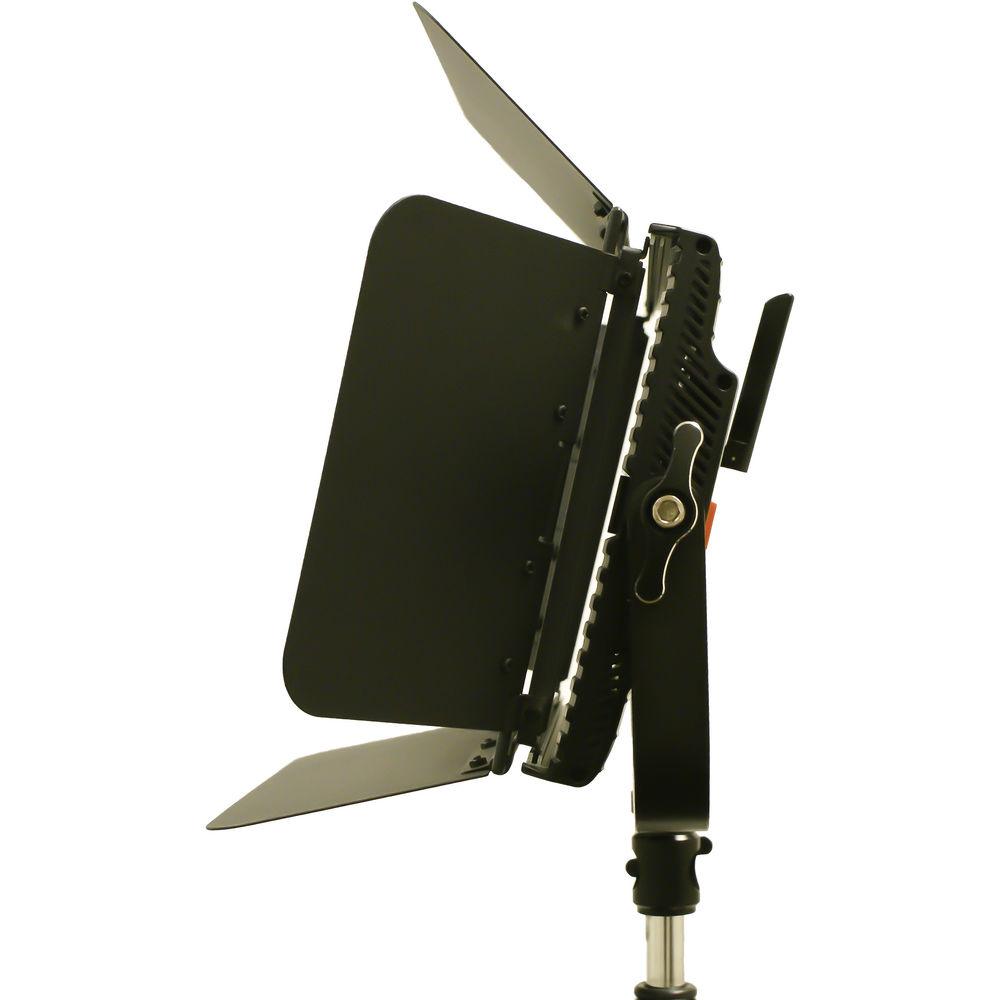

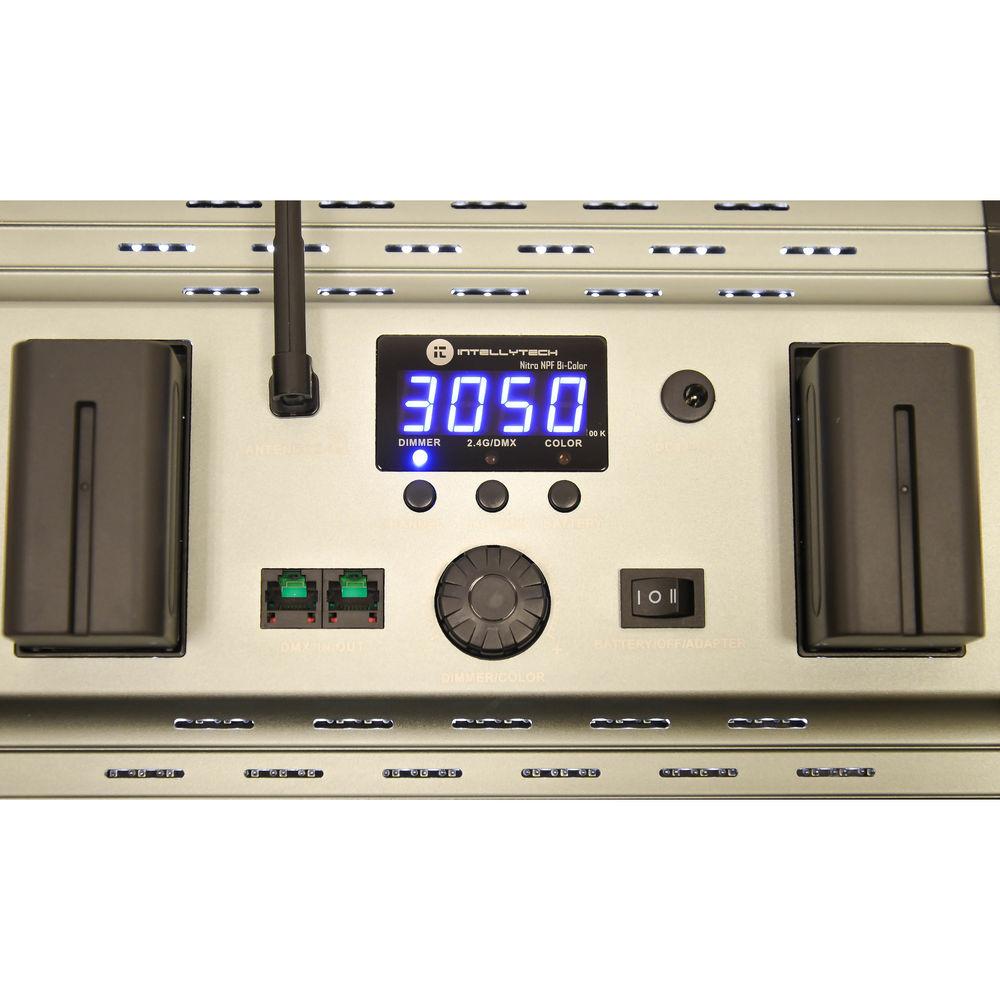

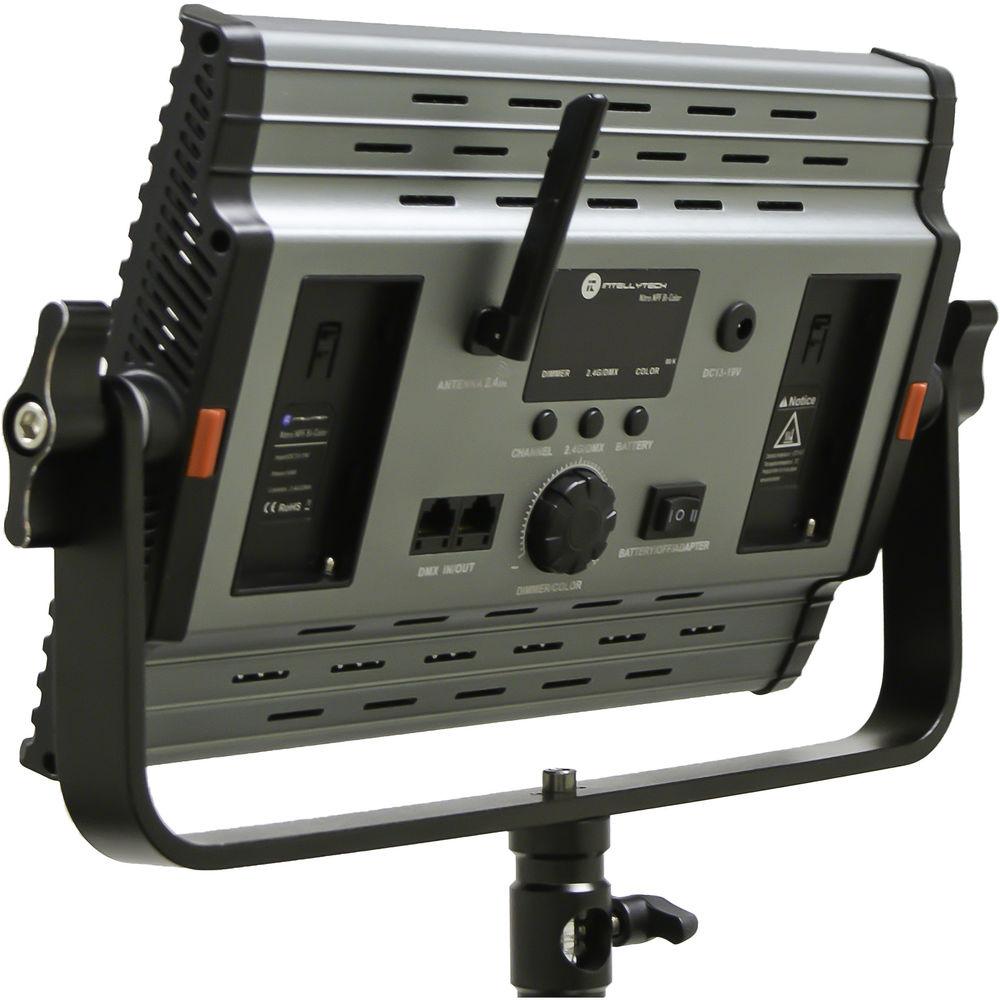

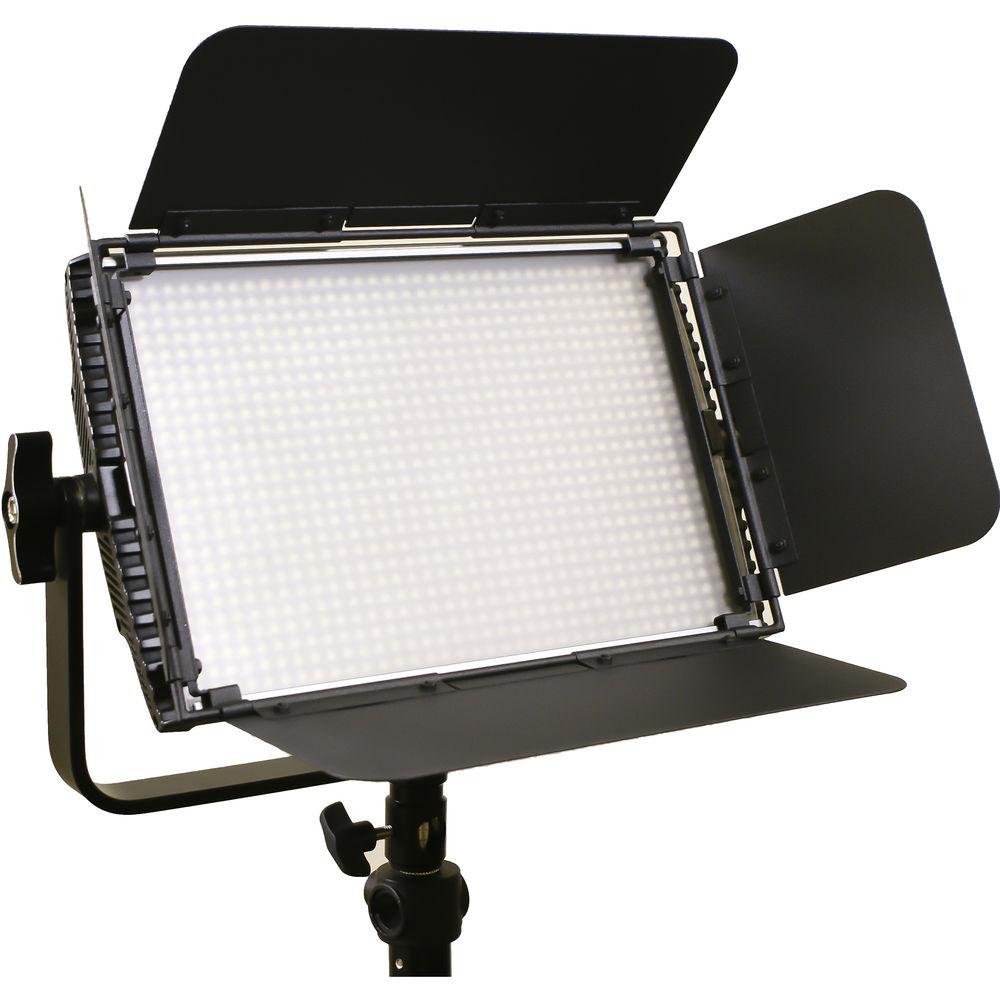

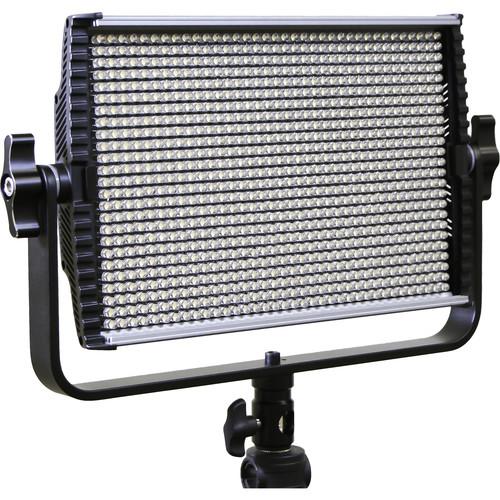

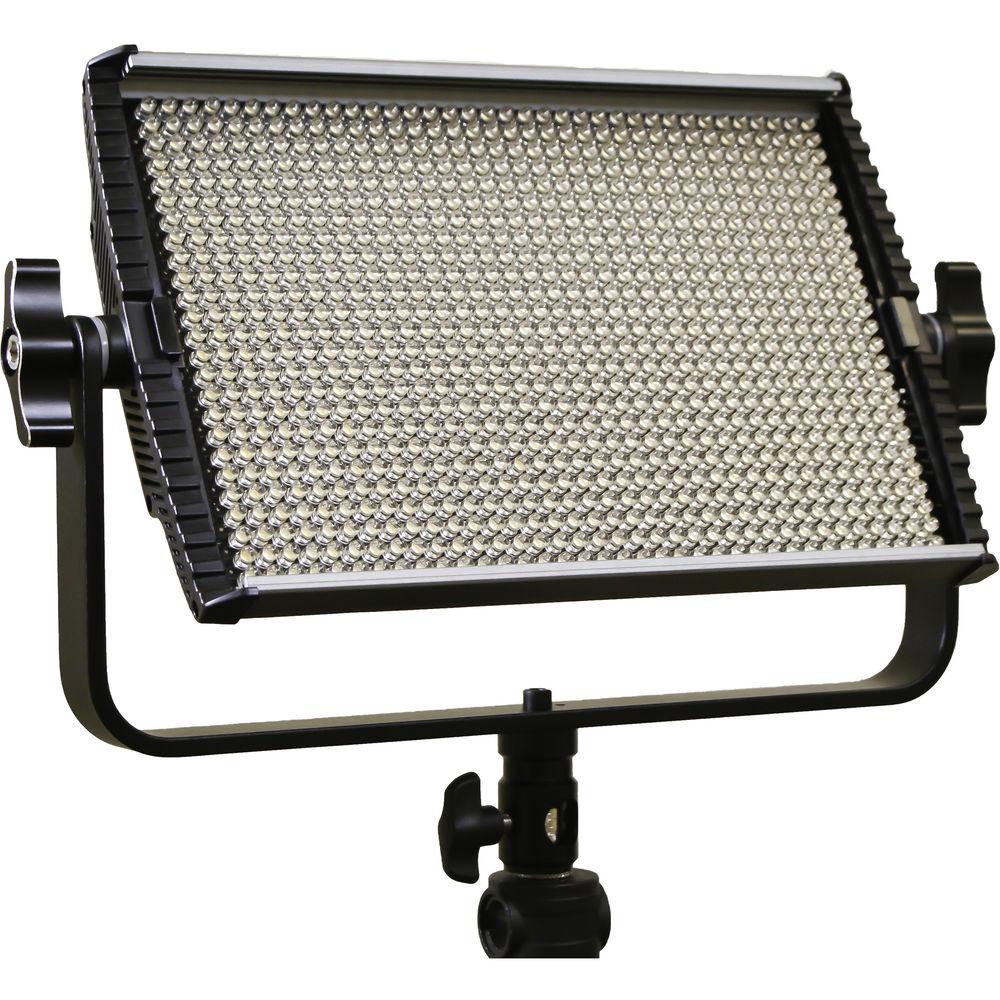

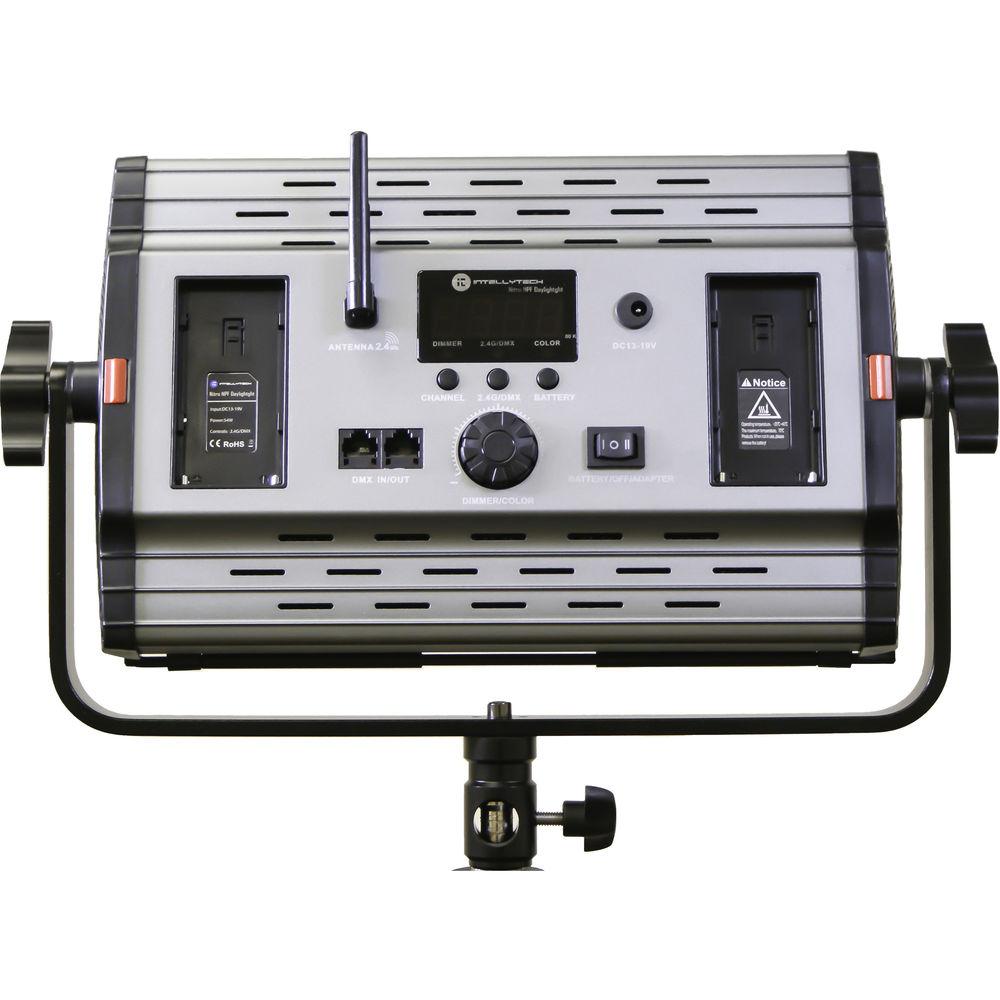

Product description The Nitro NPF Bi-Color Panel Kit from Intellytech has color that's variable from 3200 to 5600K or anywhere in between to match other fixtures, ambient light conditions, or just for creative effects. Light intensity is also variable from 100 to 10%. Both functions are adjustable locally on the fixture or remotely via the included 2.4 GHz wireless remote control or onboard DMX. The Nitro NPF Bi-Color panel's small 12 x 7.5 x 1.25" form factor and slim profile make the fixture a wise choice for placement where larger lights can't fit and since its LEDs run barely warm to the touch, you can work close to the talent without discomfort while avoiding heat damage and hazard on set. You'll save money on air-conditioning too, making for a rapid return on investment. The Nitro NPF Bi-Color has a 45° beam spread that can be further controlled by its removable 4-way barndoors while its yoke has a 2-way 5/8" receiver to allow a full tilting range without being impeded by the light stand. The powerful light outputs the equivalent of a 700 to 800 hot light while drawing only 54W and maintains a high CRI rating of 96-98 indicating faithful and accurate rendition of color. The Nitro NPF Bi-Color is ready for worldwide use thanks to its multi-voltage AC adapter, but it can also run on NPF Series batteries when mains power is unavailable. - Bi-Color
- Color temperature is variable from 3200 to 5600K to match other fixtures, ambient light conditions, or just for creative effects.
- Soft Light - No Hot Spots
- Built with high-grade LED's, the Nitro NPF Bi-Color creates wide, even lighting while also displaying impressive brightness.
- High Power in a Small Package
- The Nitro NPF Bi-Color packs in a high power load of 54W for such a compact 12 x 7.5 x 1.25" light.
- High CRI
- The high CRI rating of 96-98 indicates faithful and accurate rendition of color.
- Optional Battery Power
- Besides the included AC power supply, the light can also run on separately purchased NPF Series batteries.
- Photometrics
- At 5600K:
4300 lux / 400 fc @ 3.0' (0.9 m)
1150 lux / 107 fc @ 6.0' (1.8 m)
580 lux / 54 fc @ 9.0' (2.7 m)
At 4400K:
3900 lux / 362 fc @ 3.0' (0.9 m)
925 lux / 86 fc @ 6.0' (1.8 m)
535 lux / 50 fc @ 9.0' (2.7 m)
At 3200K:
3600 lux / 334 fc @ 3.0' (0.9 m)
1100 lux / 102 fc @ 6.0' (1.8 m)

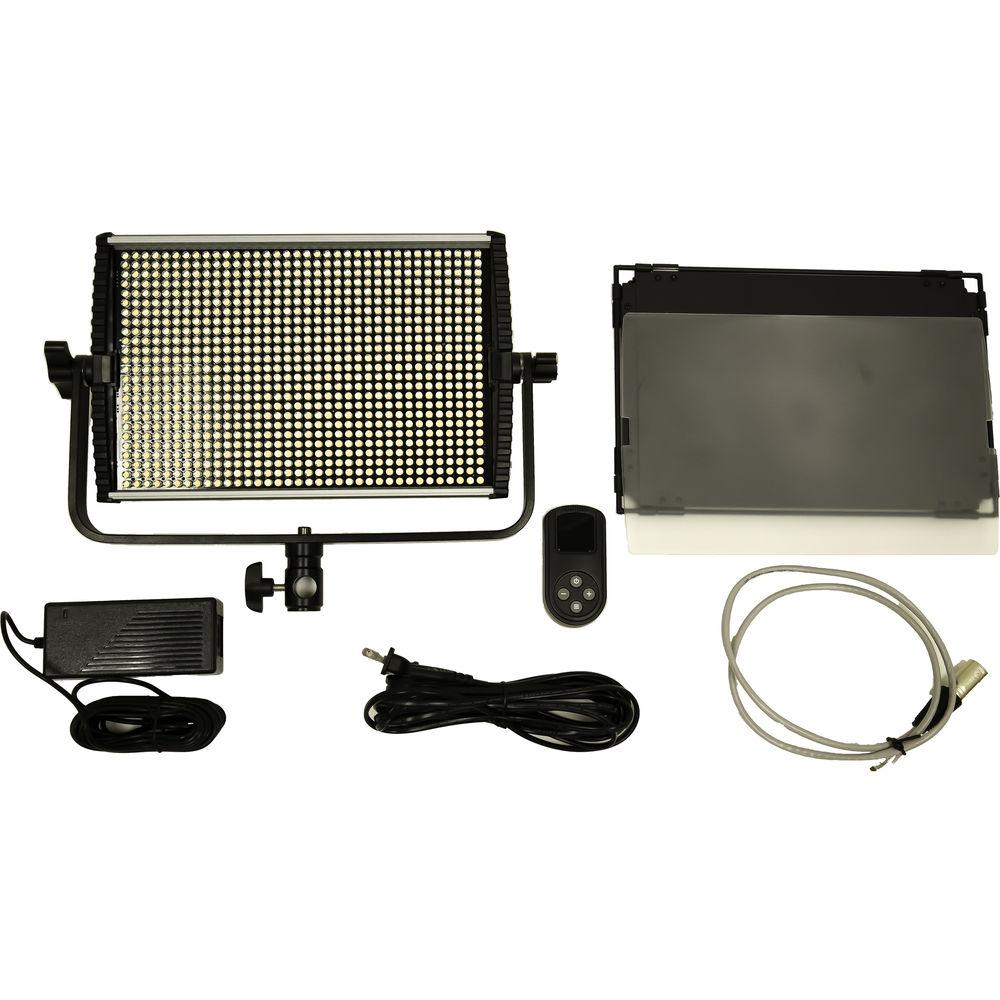

446 lux / 41 fc @ 9.0' (2.7 m) In the Box Intellytech Nitro NPF Bi-Color Panel Kit Remote Control 4-Way Barndoors AC/DC Power Adapter DMX Cable Power Cable Diffuser Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Nitro NPF Bi-Color Panel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech Nitro NPF Specs | Light Source | 900 LEDs | | Color Temperature | 3200 to 5600K | | CRI | 96-98 | | Beam Angle | 45° | | Dimming Range | 10 to 100% | | DMX | Yes | | Control | Locally on fixture, remotely via DMX, or using included 2.4 GHz remote control | | Voltage | DC 14.8 V
Input: 100 - 240 VAC, 50/60 Hz | | Batteries | Optional NPF Series batteries | | Equivalent | 700 to 800 W hot light | | Power Consumption | 54 W | | Mount | 2-way 5/8" (16 mm) receiver | | Dimensions | 12 x 7.5 x 1.25" (30.5 x 19.1 x 3.2 cm) without yoke or knobs | | Weight | 3.4 lb (1.5 kg) with yoke | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 16.1 x 12.1 x 5.8" |
