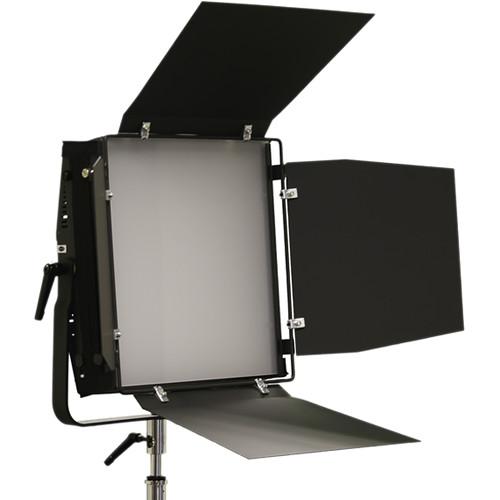

User Manual for Intellytech Nova-X Bi-Color DMX 30-Degree Spot 1x1 Panel Kit with Gold Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Intellytech Nova-X Bi-Color DMX 30-Degree Spot
- Product category: LED Lights Intellytech
- Brand: Intellytech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellytech LED Lights
 |
User manual for the Intellytech Nova-X Bi-Color DMX 30-Degree Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellytech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellytech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellytech product will considerably shorten its lifespan!
|

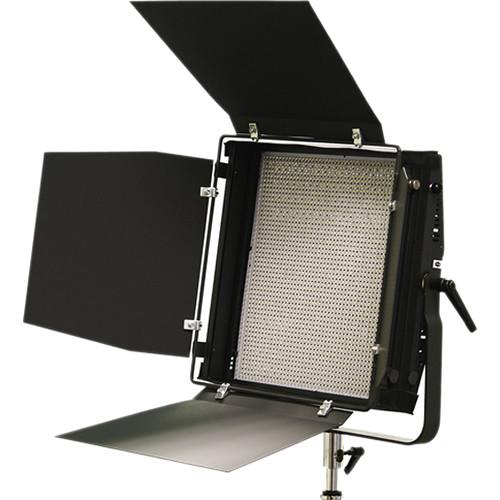

Product description With 2304 bright LEDs and accurate CRI 95 color rendition that's variable from 3200 to 5600K, the Nova-X Bi-Color DMX 30-Degree Spot 1x1 Panel Kit with Gold Mount Battery Plate from Intellytech can integrate seamlessly with legacy fixtures, meet any ambient light challenge, and maximize your creative potential. Light intensity is variable from 0 to 100%. Both functions can be adjusted locally on the fixture or remotely from a console via onboard DMX. The 12 x 12" fixture is only 2" thick allowing it to be squeezed into tight spaces, and since it runs cool to the touch, there's no danger of damage to the set or discomfort of the talent. Its tight 30-degree beam angle offers punchy output with a soft edge thanks to the included diffuser, which makes the fixture a good choice for selective lighting or long throw work. The output can be further controlled and directed by the included 4-way barndoors. The sturdy metal housing has an easy-to-read LCD display and a yoke with 5/8" receiver that can be removed for hand holding. The Nova-X 1x1 is ready for worldwide use thanks to its 100-240 VAC included adapter or on batteries via the included Gold mount battery plate when shooting on location without access to mains power. The Nova-X comes with a carry case for storage and transport. - High 100W Output, 2304 Bright LED's

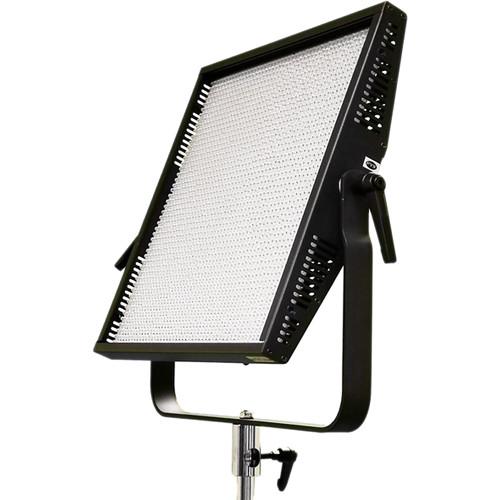

- The Nova-X has 2304 LED's packed into the 1x1 frame, creating an impressive output with a high CRI of 95.
- Like a Softbox

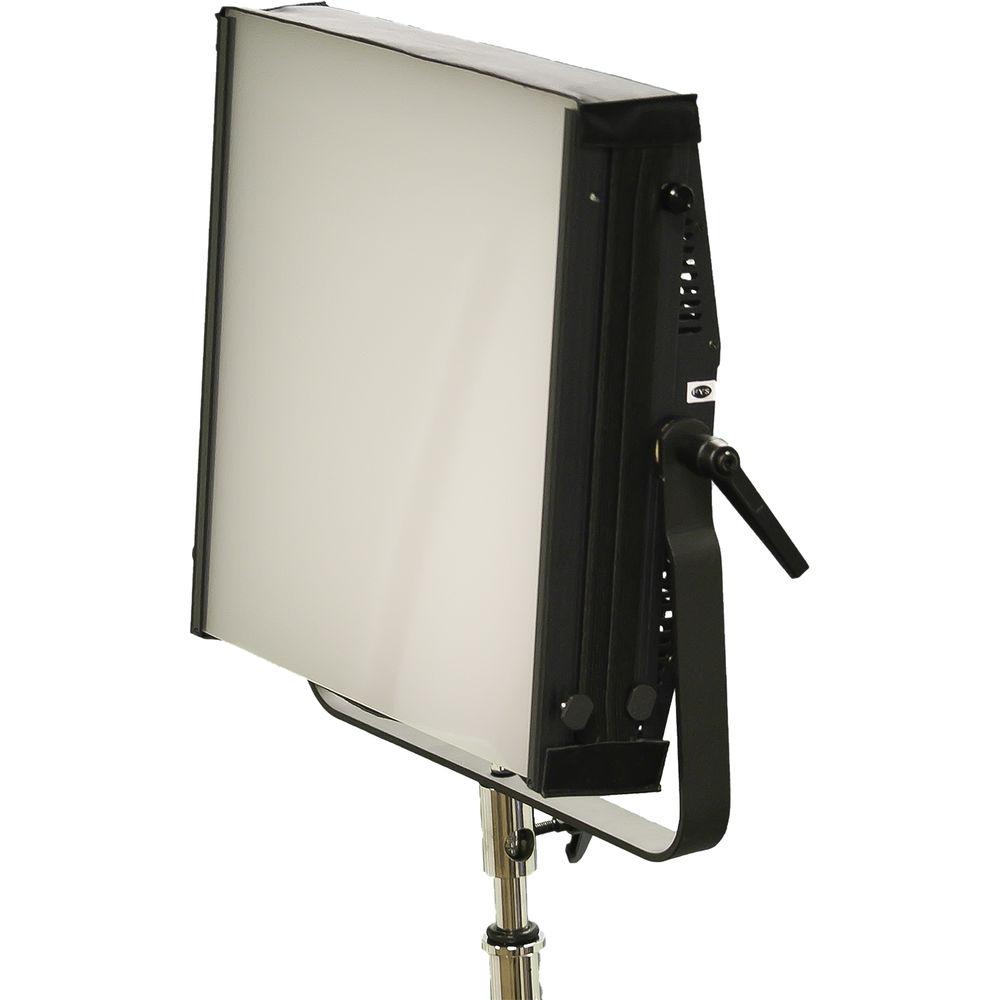

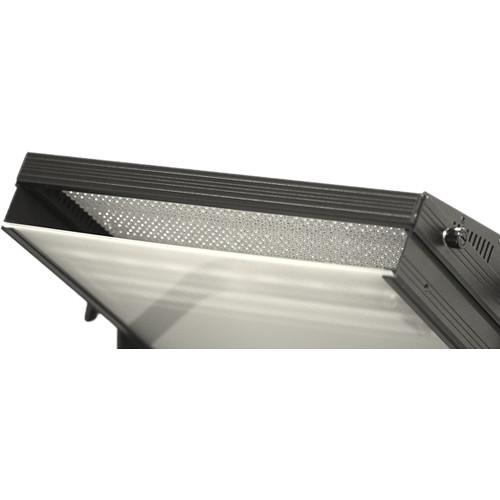

- The Nova-X has a Diffusion Spacer which separates the LED's and included diffusion filter by about 2". Think of it as a miniature softbox making the light look more flattering and reducing shadows. The included spacers can be added or removed by hand, simply by screwing them in.

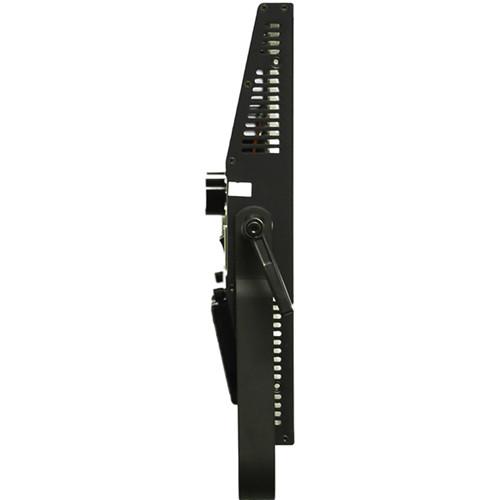

- Slim, All Metal Frame
- Built with a slim, all metal frame, the Nova-X is designed fit in tight quarters where larger fixtures can't go.
- Informative Screen

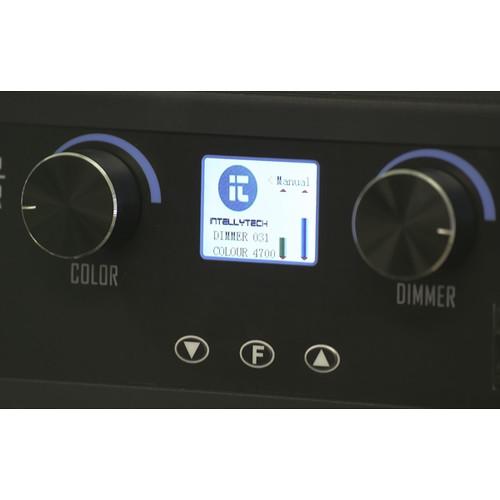

- The screen shows the exact brightness level from 0-100% along with the color temperature from 3200-5600K.

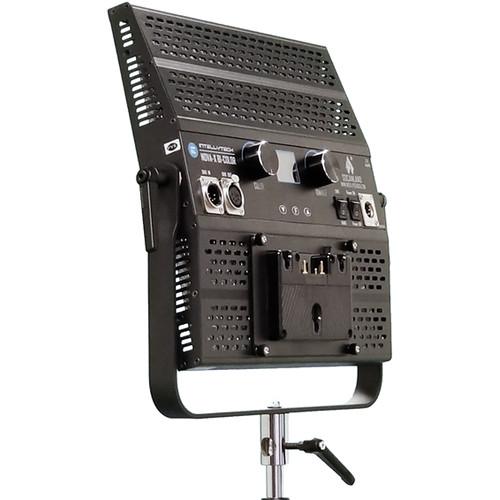

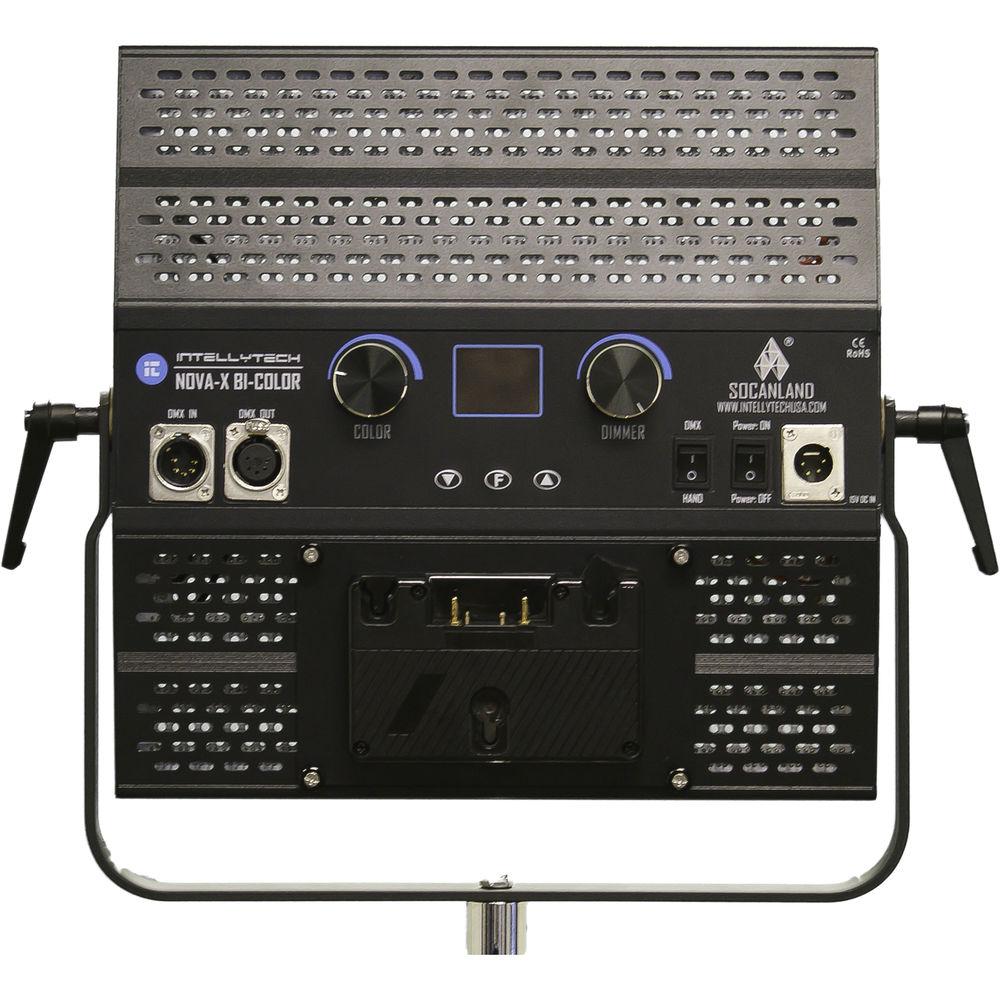

- Removable Battery Plate
- The Nova-X allows you to change the battery plate by hand between Gold mount and V-mount.
- Flicker-Free and Slow-Mo Ready
- The Nova-X uses enhanced potentiometers resulting in smooth dimming transitions. Additionally, the Nova-X is ready for slow motion and has been tested at up to 3000 fps.
- DMX512 Compatible
- Control your Nova-X via a DMX console for in-studio use. Channel 1 controls output and Channel 2 controls color allowing for simple and intuitive adjustments.

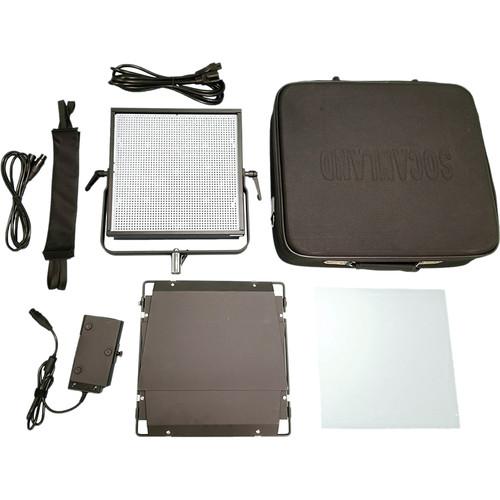

In the Box Intellytech Nova-X Bi-Color DMX 30-Degree Spot 1x1 Panel Kit with Gold Mount Battery Plate 4-Way Barndoors Diffusion Panel 2 x Spacers for Diffusion and Barndoors AC Adapter with Power Cord Gold Mount Battery Plate XLR Cable for DMX Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Nova-X Bi-Color DMX 30-Degree Spot 1x1 Panel Kit with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech Nova-X Specs | | | Beam Angle | 30° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | LCD | | Housing Material | Metal | | Photometrics | 30° at 4400K:
293.6 fc / 3160 lux at 5.97' / 1.82 m | | Number of LEDs | 2304 | | Fixture Dimensions | 12.0 x 12.0 x 24.0" / 30.5 x 30.5 x 61.0 cm (Including Yoke) | | Fixture Weight | 4 lb / 1.81 kg (Including Yoke) | | | | Battery Plate | 1 x Gold Mount | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 2 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W |
