Product description - Intellytech Pocket Cannon Review and Lighting Tutorial

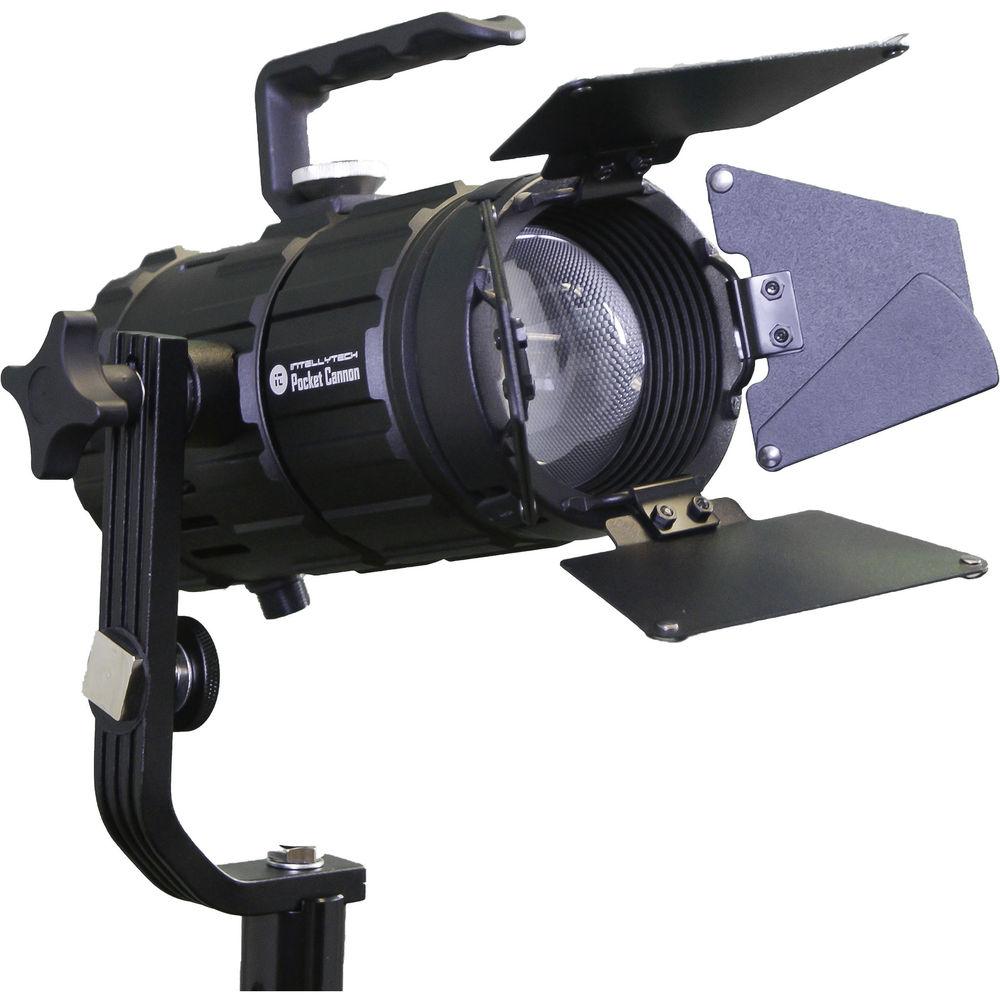

The Pocket Cannon Daylight Focusable LED Fresnel Kit with V-Mount / NP-F Battery Plates was put together by Intellytech to offer image-makers a small, lightweight LED lighting solution with AC and battery power options that make it ideal for location work. The kit contains a Pocket Cannon Fresnel with barndoors, AC adapter, Controller and a hard molded carrying case that fits the light and all the accessories. The light has a V-Mount battery plate with an NP-F adapter to offer battery power options for locations where mains current is unavailable. The Light Cannon is a focusable LED Fresnel with a 5600K color temperature and a high CRI/TLCI rating of 97+, indicating an accurate rendering of color. The light comes with a glass lens that allows it to adjust the beam angle from 60 to 160-degree flood for wide coverage, while removing the lens allows a spot range of 20-50 degrees for selective lighting. The light output can be dimmed and further controlled with the included removable barndoors. Like all LEDs, the Pocket Cannon produces negligible heat. The rugged aluminum body's heat sink allows it to run dead silent - a valuable asset for sound-sensitive situations. LEDs are also known for power efficiency and the Pocket Cannon consumes just 30 watts of power while outputting the tungsten equivalent of a 400-500W traditional fixture.Besides its many attributes, the versatile Pocket Cannon offers multiple power options. Its 100-240 VAC adapter makes it ready for worldwide use but it can also run on batteries when mains current is unavailable. - Focusable

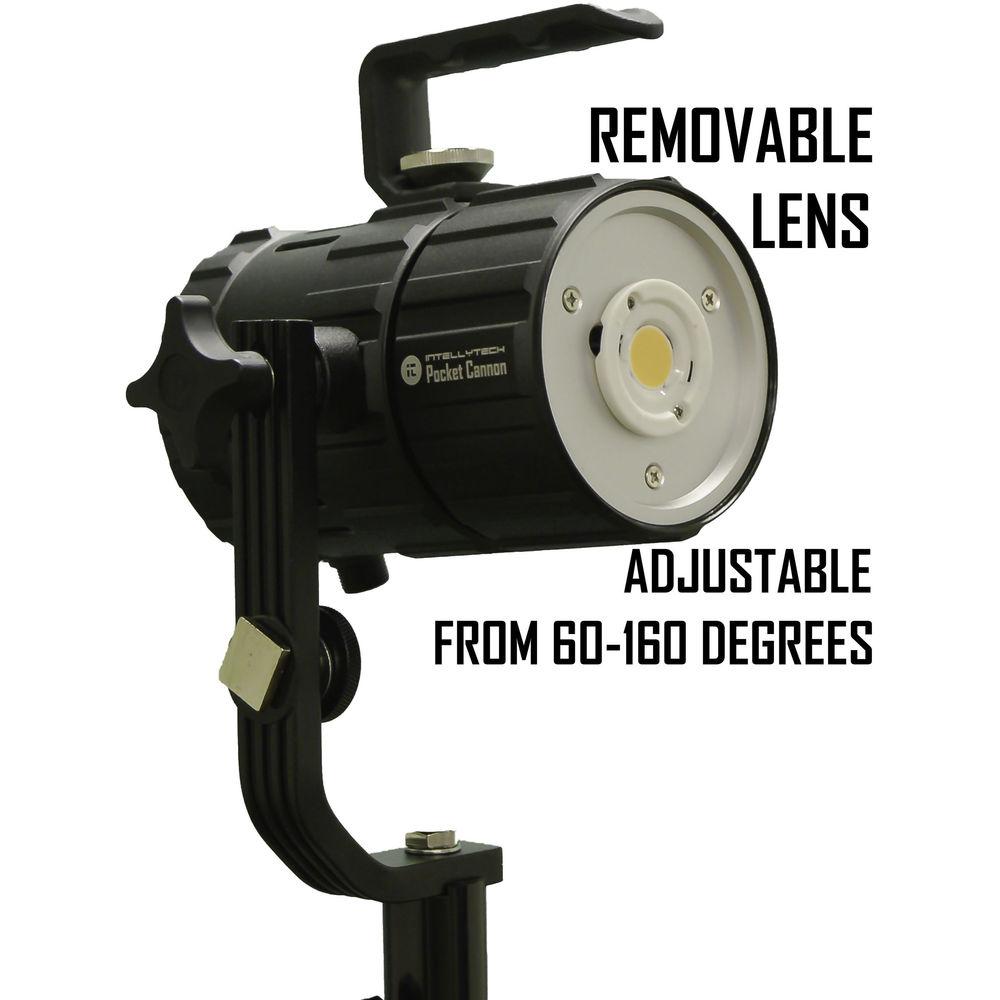

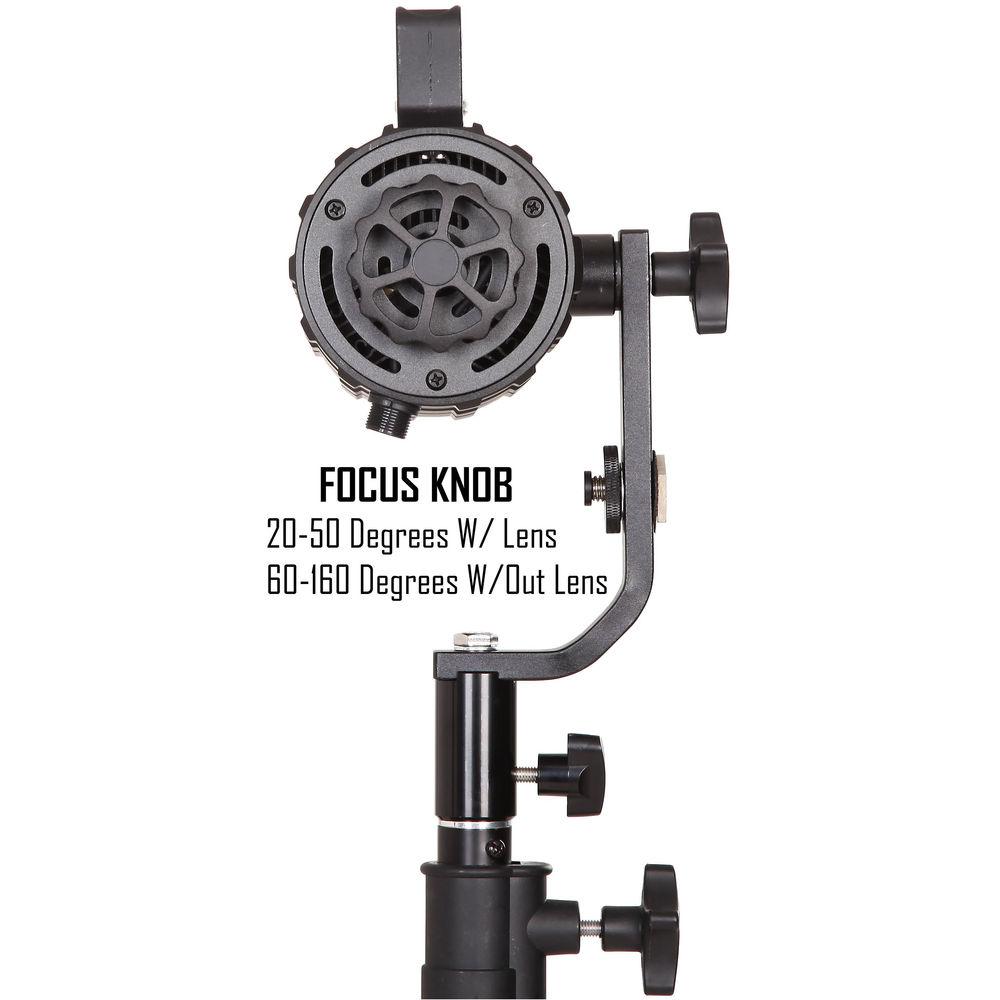

- The Pocket Cannon is focusable from 60-160 degrees for wide coverage via a simple knob. When the included glass lens is attached, the unit can focus from a 20-50 degree spot for selective lighting.
- Passive Cooling
- The Pocket Cannon is fanless, making it completely silent. The light is cooled via the built-in heat sink.
- Metal Adjustable Frame

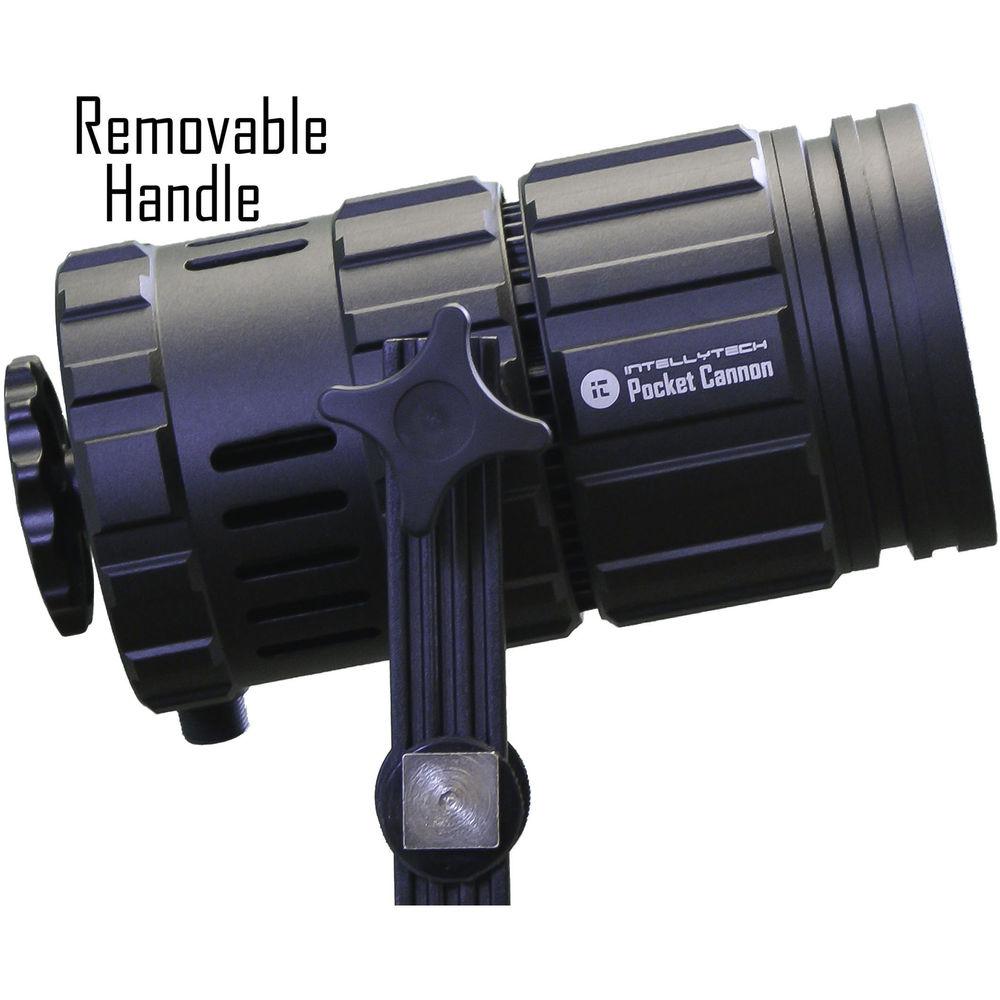

- The metal body housing is made using strong, lightweight aluminum made for years of use in a professional environment. Both the handle and yoke can be removed by hand for increased portability and different mounting options.
- Variety of Power Options

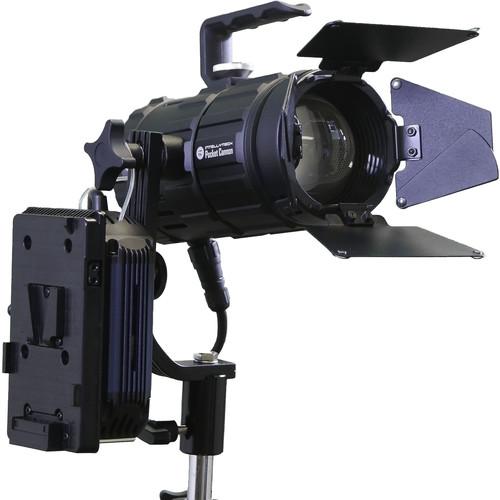

- Power the light via AC or DC out of the box. Each Pocket Cannon includes a universal 100-240 VAC adapter, V-Mount battery plate with an NP-F adapter or a Gold Mount battery plate with a V-Mount adapter plate.
- External Dimmer and Battery Plate System
- The Pocket Cannon has an external controller allowing the user to change dimming levels or swap batteries without taking the light down from a stand. The external controller also provides a lower center of gravity when mounted below the light. Alternatively, you can mount the controller on the light's yoke.
- High Output and CRI
- Whether shooting in spot or flood mode, the Pocket Cannon provides a high level of output for such a small, portable fixture. To help increase the output, the light is fitted with a thick glass lens, greatly amplifying the light. Both the Tungsten and Daylight Pocket Cannons produce a CRI/TLCI of 97+, and slow-motion shooting is no problem. This LED series is flicker-free and tested at 3,000 fps.
- Basic Kit

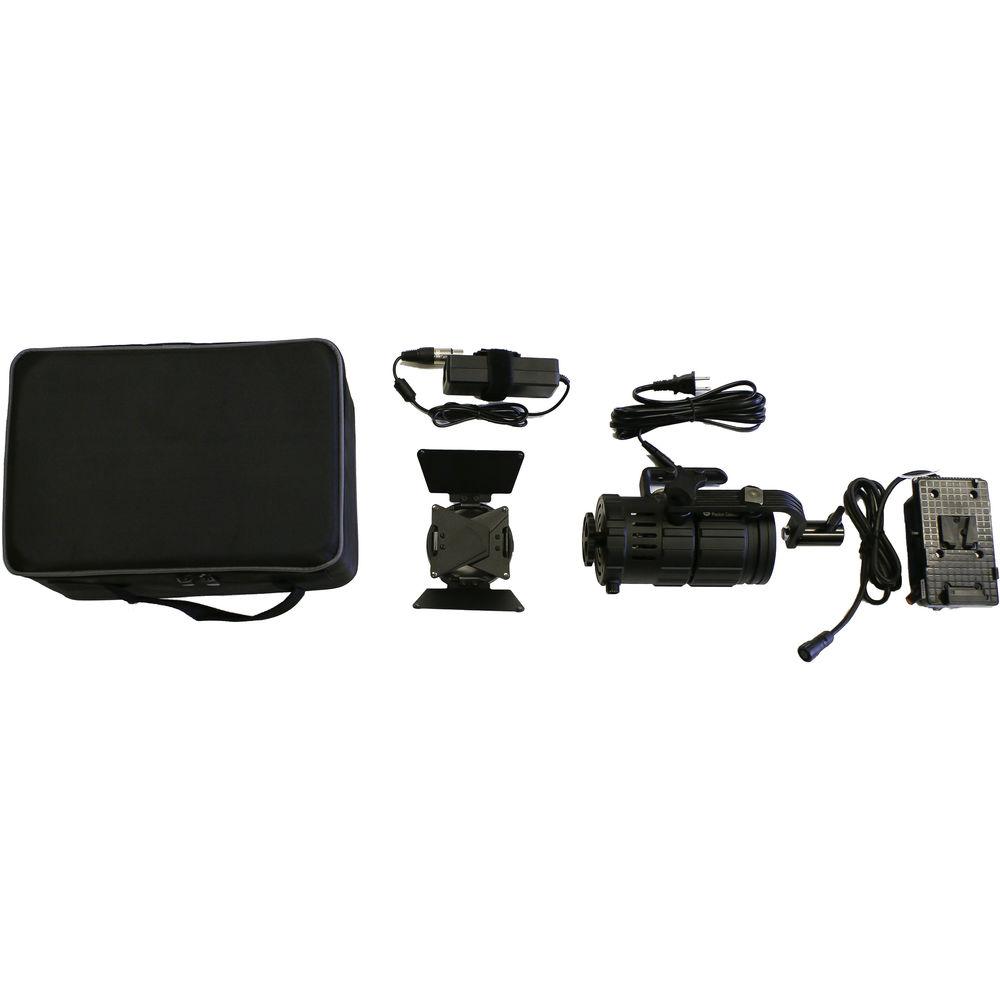

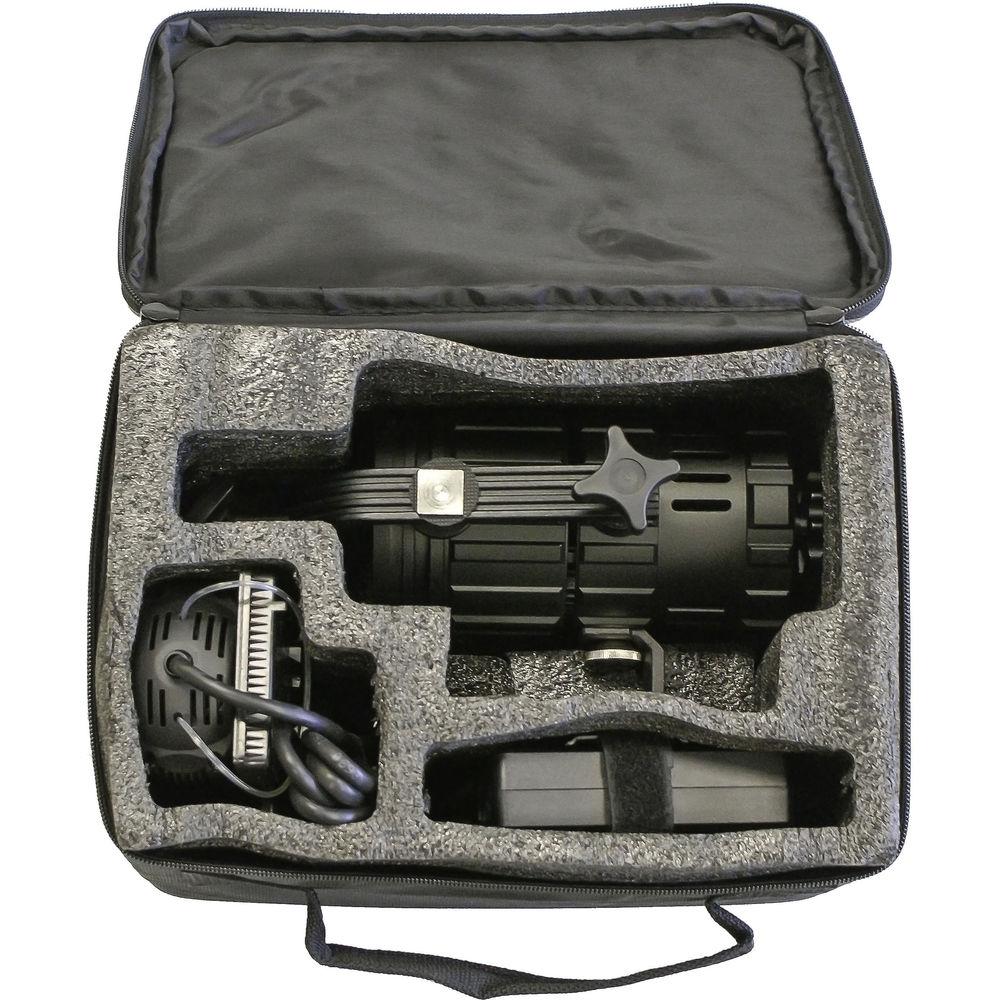

- All Pocket Cannons include an external controller, battery plate and adapter, barndoors, AC adapter, and a molded carrying case to hold everything included in the kit.
- Photometrics
- Spot: 20 Degrees 5600K
7743 lux / 719 fc @ 3.28' (1.0 m)
2050 lux / 191 fc @ 6.56' (2.0 )
920 lux / 86 fc @ 9.8' (3.0 m)
398 lux / 37 fc @ 13' (4.0 m)
Flood: 50 Degrees 5600K
2860 lux / 226 fc @ 3.28' (1.0 m)
731 lux / 68 fc @ 6.56' (2.0 m)
349 lux / 32 fc @ 9.8' (3.0 m)
152 lux / 14 fc @ 13' (4.0 m) In the Box Intellytech Pocket Cannon Daylight Focusable LED Fresnel Kit (V-Mount / NP-F) Pocket Cannon Fixture (Daylight) External Controller V-Mount with NP-F Battery Converter Barndoors AC Adapter Hard Molded Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Pocket Cannon Daylight Focusable LED Fresnel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech Pocket Cannon Specs | Light Source | Single-source LED | | Color Range | 5600K | | CRI / TLCI | 97+ | | Dimming | Yes | | Beam Angle | With Lens: 20-50°
Without Lens: 60-160° | | Power | 100-240 VAC, 50/60 Hz via adapter
V-Mount or NP-F batteries | | Power Consumption | 30 W | | Tungsten Equivalent | 400-500 W | | Mount | 5/8" (16 mm) | | Material of Construction | Aluminum | | Dimensions | Each Light:
Without Lens: 6.0 x 4.0 x 4.0 (15.2 x 10.2 x 10.2 cm)
With Lens: 7.5 x 4.0 4.0 (19 x 10.2 x 10.2 cm) | | Weight | Each Light:
Without Lens with Yoke: 2.5 lb (1.13 kg)
With Lens and Yoke: 3.2 lb (1.45 kg) | | | | Package Weight | 7.595 lb | | Box Dimensions (LxWxH) | 12.6 x 11.4 x 8.25" |
