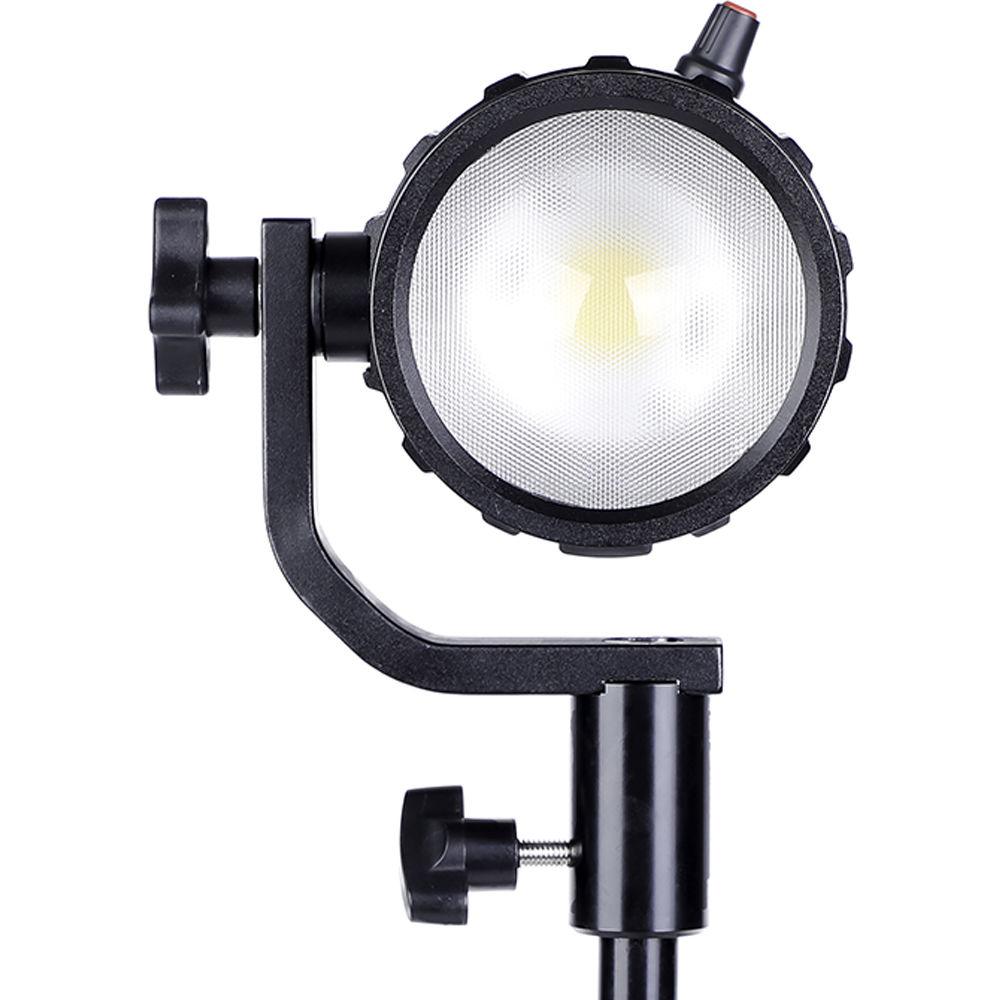

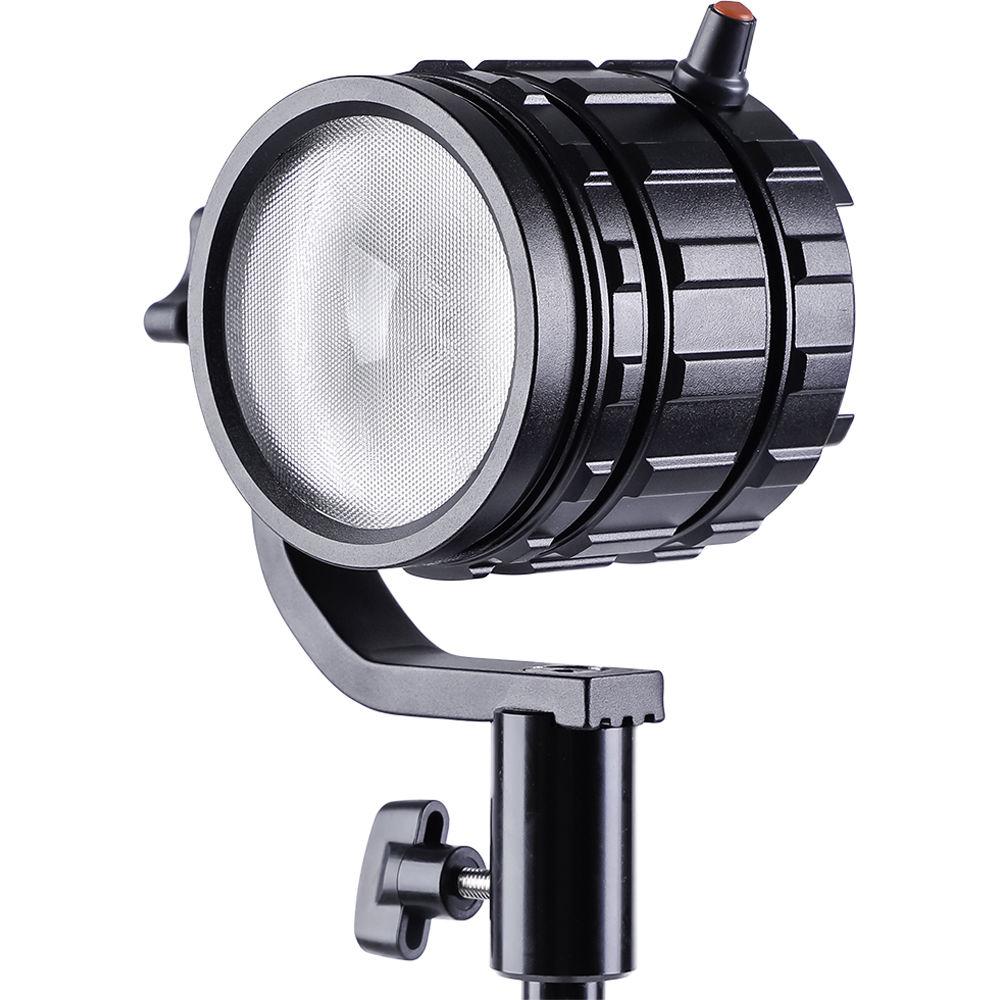

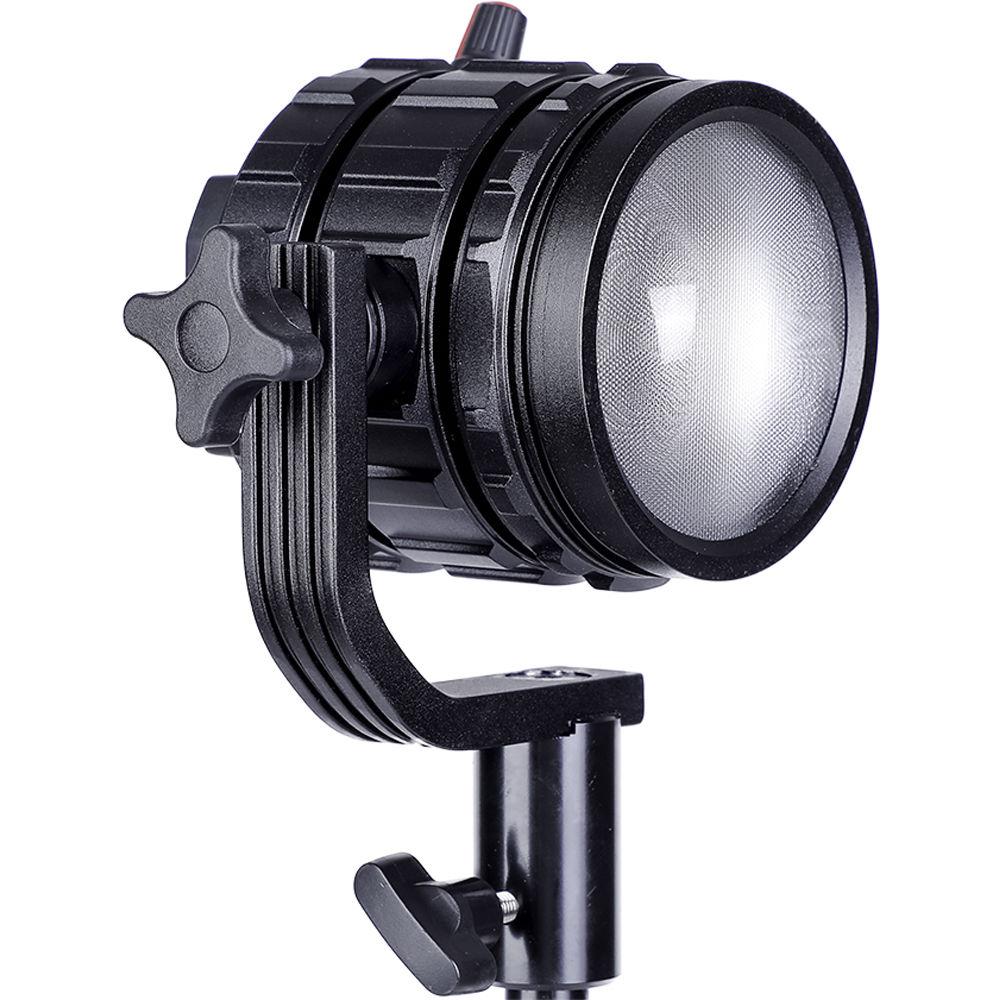

Product description Ideal for the traveling image-maker looking for a lightweight solution with modifiers and power options, the Pocket Cannon Mini LED Daylight-Balanced Fixture from Intellytech is a 3.9 x 4.4" light source; that is a real asset in locations where larger, traditional lights just can't go. The Mini has an expansive 160º coverage that can be narrowed to 55º for accent or selective lighting.The light's removable, four-way barndoors allow you to further control the output by swinging one or more barndoor leaves into the path of the light. Intellytech has chosen to use a circular COB LED chip, which not only boasts single-shadow performance, but it also earns a CRI/TLCI rating of 97, indicating accurate rendering of hues and colors. The 15W chip uses negligible power, while it outputs the equivalent of a 150W fixture. A dimmer knob on top of the light allows you to vary the power from 0 to 100%.Another indication of the Pocket Cannon Mini's versatility is its power options. The light is ready for worldwide use via its 100 to 240 VAC adapter, but an included Sony NP-F550 lithium-ion battery slips into a holder at the back of the light for cord-free operation when mains power is unavailable. The battery will give you a 1.5-hour run time at full power. The light and accessories all fit in a case designed for storage and transport. - Single-Source Round COB LED (150W Equivalent)

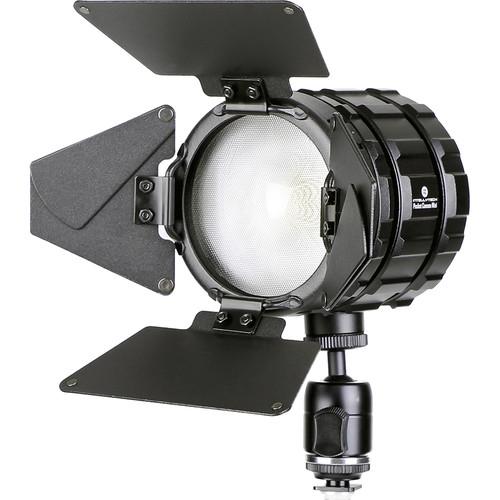

- The LED creates an attractive, round light that can be cut and controlled with the included barndoors. The dimmer knob placed at the top of the light allows for quick and easy control of the light from 0-100%.
- Small and Versatile

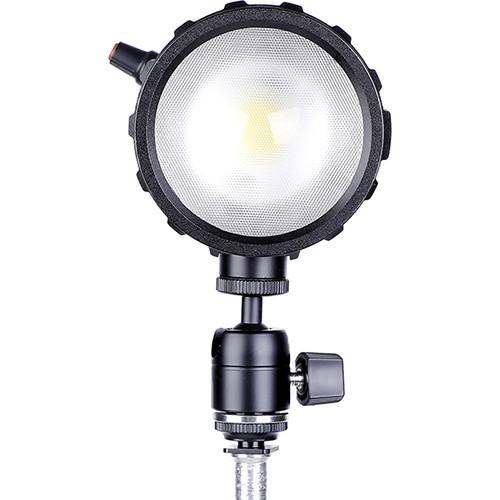

- Measuring in at just 3.9 x 4.4" and weighing only 1.2 lb, the Pocket Cannon Mini can be used in a variety of ways. A shoe mount adapter and 5/8" receiver are included to allow you to use the Pocket Cannon Mini as an on-camera light during one shoot and as a fill or accent light.
- AC and DC Power

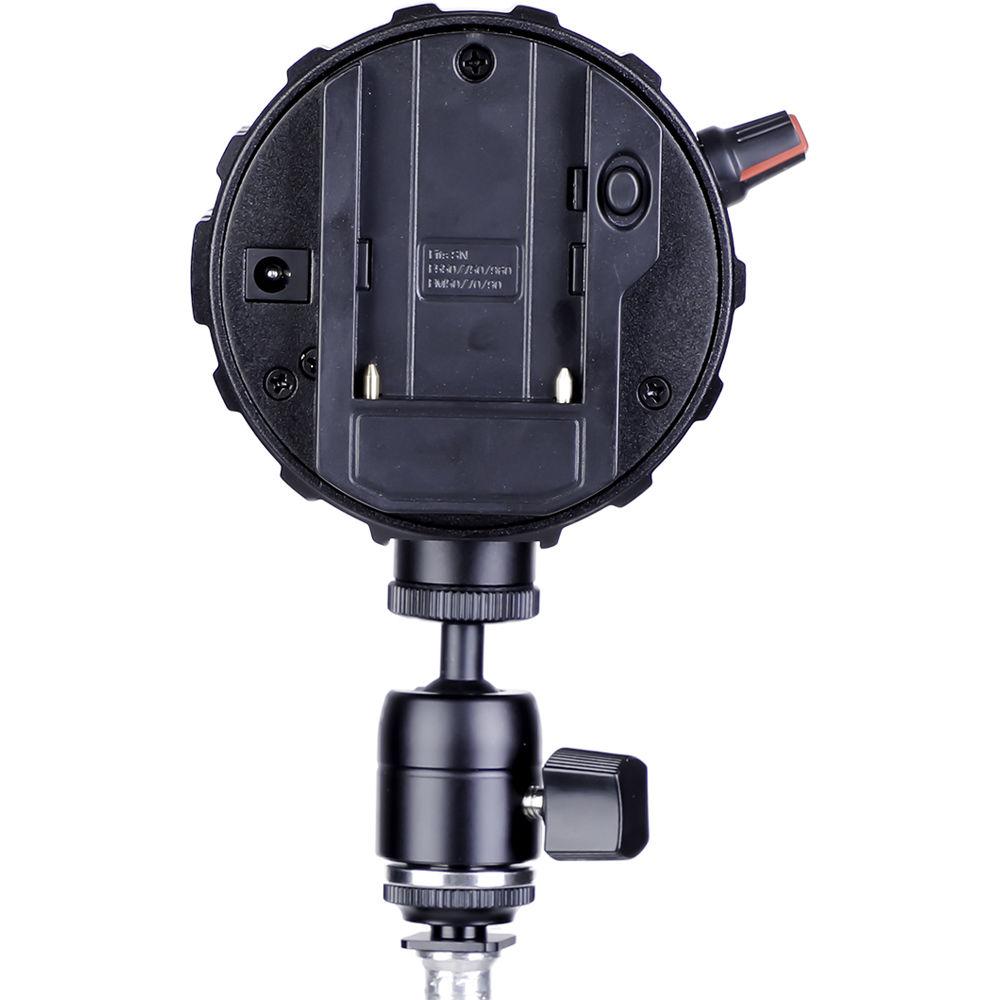

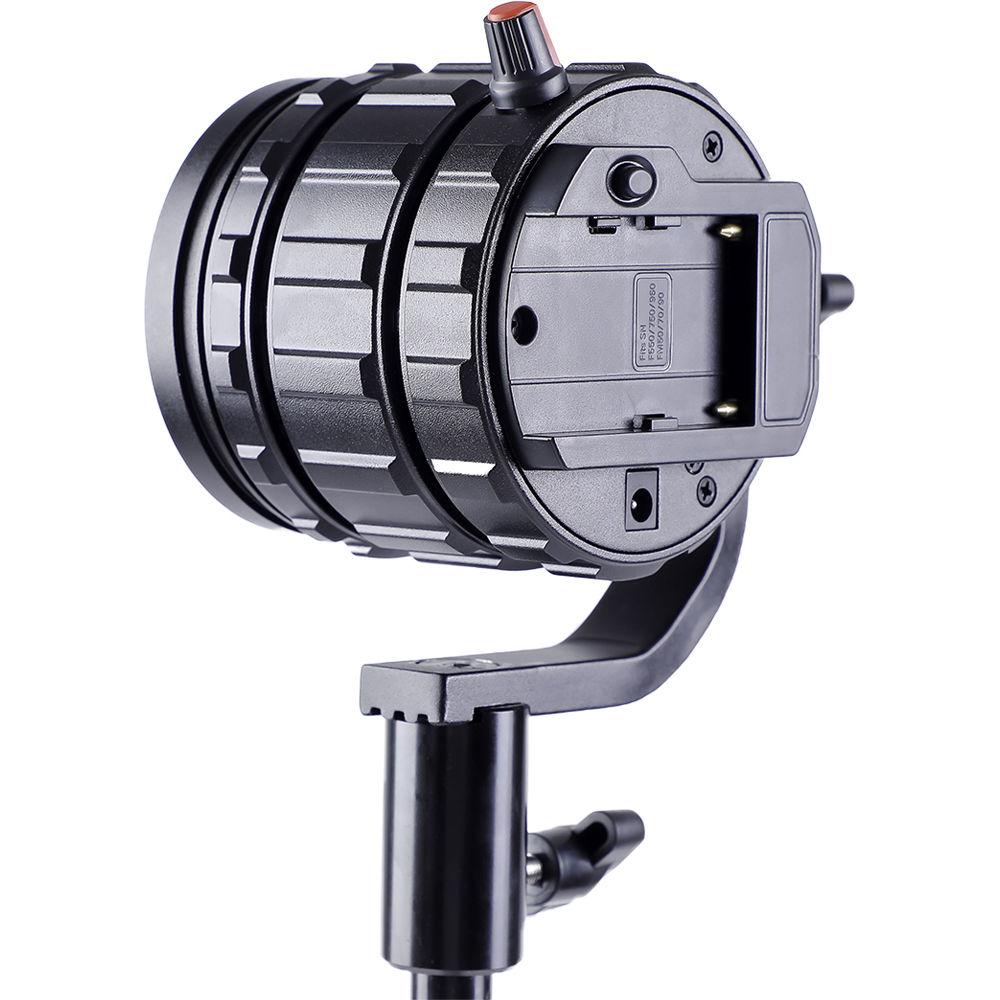

- The Pocket Cannon Mini can be powered via a battery or AC power adapter (both are included). The low power draw of just 15W works with practically any NP-F (L-series) battery, and the AC adapter simply plugs into the back of the light.

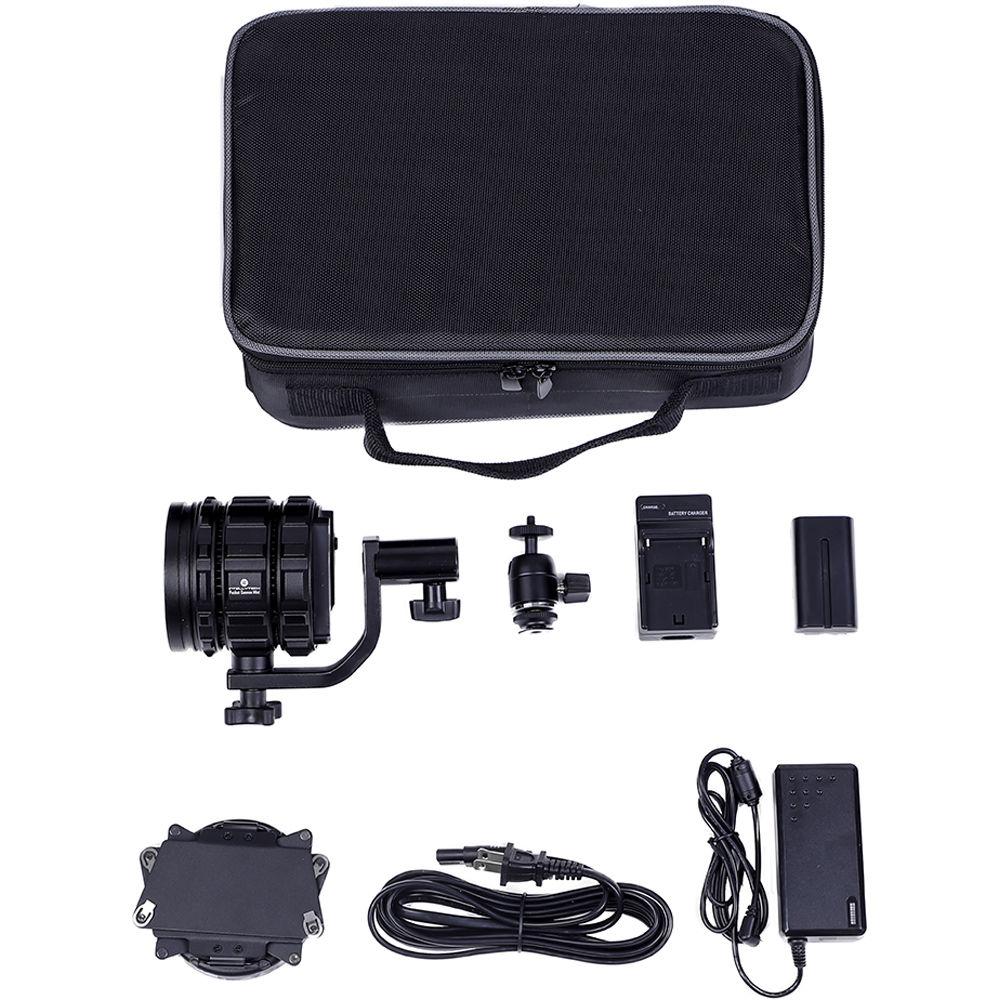

UPC: 810019420429 In the Box Intellytech Pocket Cannon Mini (Daylight) Removable Barndoors 5/8" Receiver Shoe Mount Removable 55° Lens Sony NPF-550 Li-Ion Battery Battery Charger AC Adapter with Power Cord Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Pocket Cannon Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech Pocket Cannon Mini Specs | | | Beam Angle | 55 to 160° With Lens: 55º, Without Lens: 160º | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 97
TLCI 97 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 102.2 fc / 1100 lux at 3.28' / 1 m | | Fixture Dimensions | 3.9 x 4.4" / 9.9 x 11.2 cm Without Lens | | Fixture Weight | 1.2 lb / 0.54 kg Without Lens | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 15 W | | Power Pass-Thru | None | | | | Package Weight | 4.98 lb | | Box Dimensions (LxWxH) | 14.2 x 9.6 x 5.9" |
