User Manual for Intellytech Socanland D-100CTD Nova-Wide 1x2' Bi-Color 100W LED Light Panel with DMX Click to enlarge the picture
Contents of the user manual for the Intellytech Socanland D-100CTD Nova-Wide 1x2' Bi-Color
- Product category: LED Lights Intellytech
- Brand: Intellytech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intellytech LED Lights
 |
User manual for the Intellytech Socanland D-100CTD Nova-Wide 1x2' Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intellytech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intellytech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intellytech product will considerably shorten its lifespan!
|

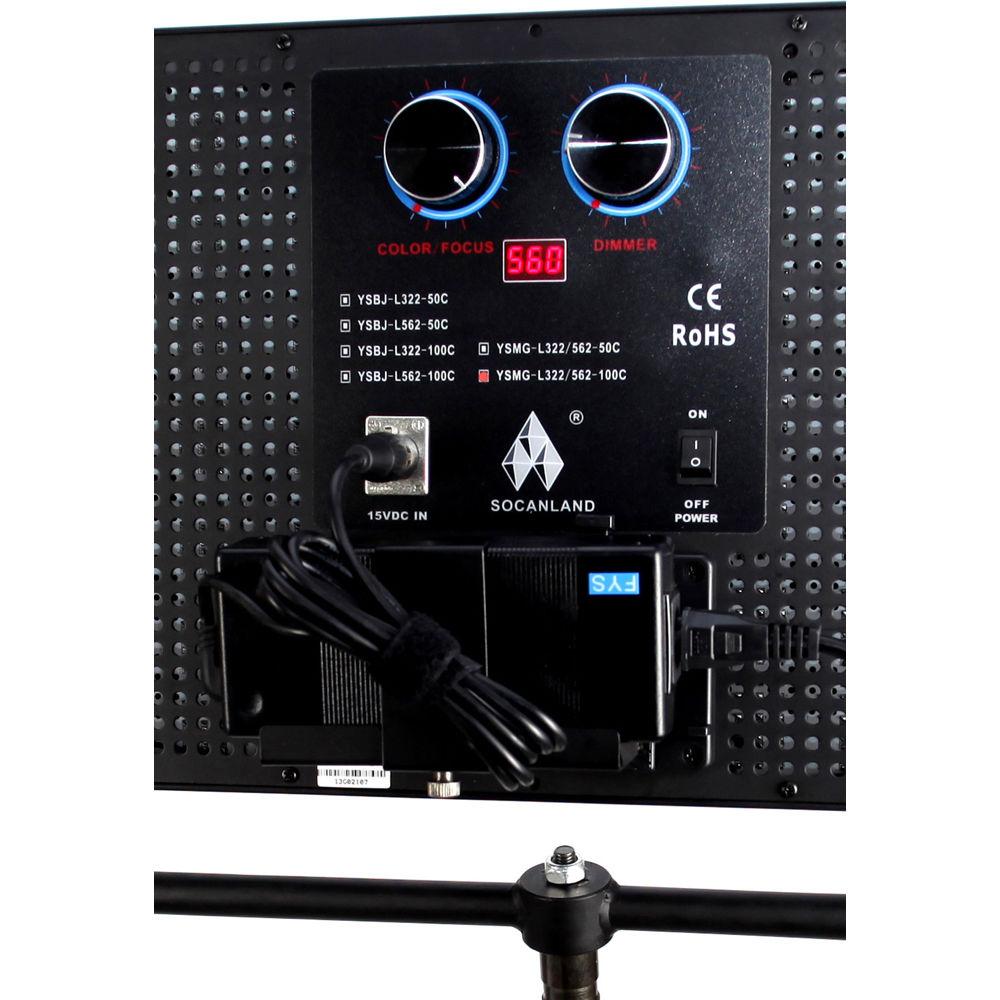

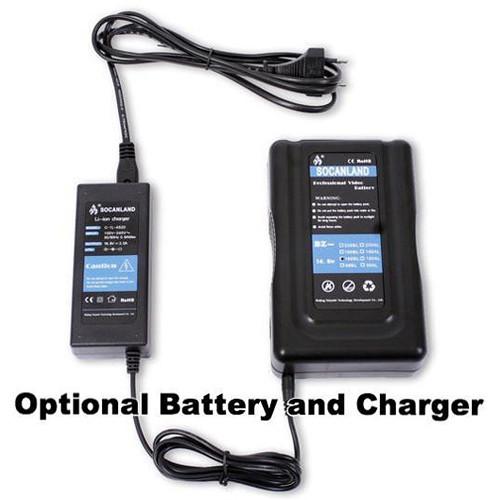

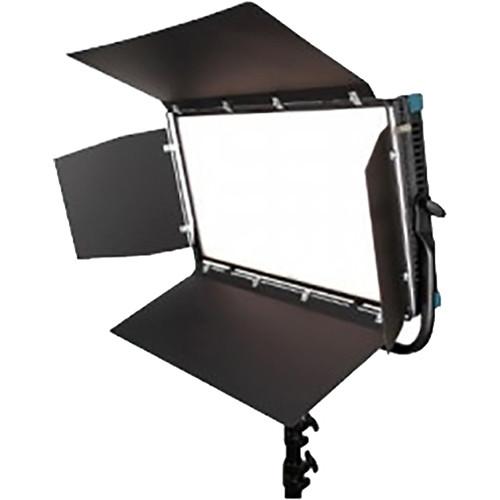

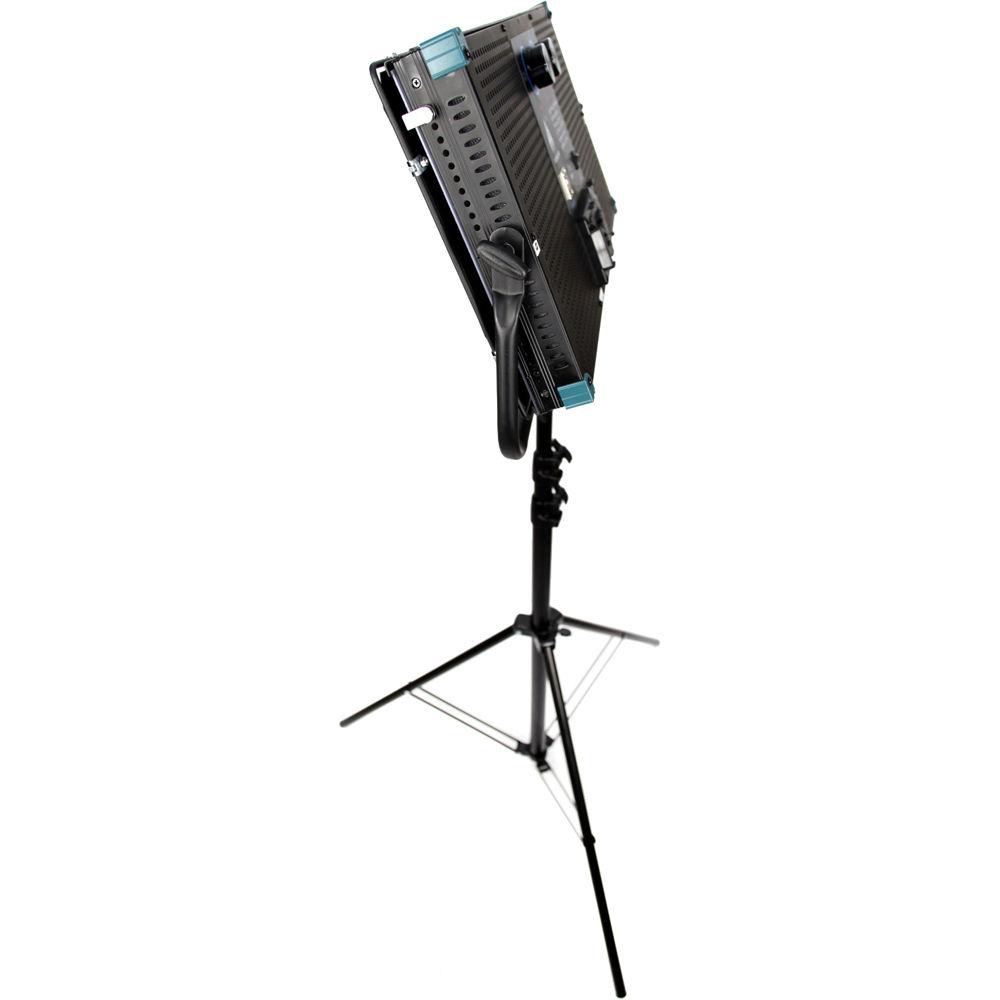

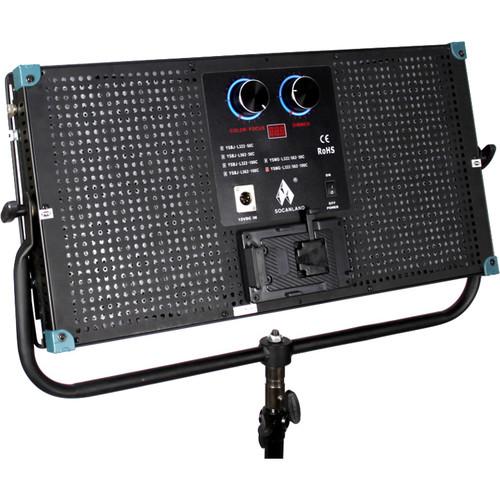

Product description A 3200-5600K output, high CRI rating of 90+ with no green or magenta tint, and an LED light life of 50,000 hours are just a few of the features found in the Socanland D-100CTD Nova-Wide 1x2' Bi-Color 100W LED Light Panel with DMX (V-Mount) from Intellytech. This powerful 100W, 1' x 2' x 2" light can produce a light output equivalent to a 1,250W hot light. The light spread is a flood with a 60° beam angle and is 0-100% dimmable. Mount the light with the removable yoke that has a 5/8" receiver on the bottom. For power, the light includes both an AC adapter and V-Mount battery plate (battery sold separately). - Accepts accessories such as a diffuser and barndoors, which may be used at the same time
In the Box Intellytech Socanland D-100CTD Nova-Wide 1x2' Bi-Color 100W LED Light Panel with DMX (V-Mount) V-Mount Battery Plate AC Adapter Yoke Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intellytech Socanland D-100CTD Nova-Wide 1x2' Bi-Color 100W LED Light Panel with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntellytech D-100CTD Specs | | | Beam Angle | 60° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 12.0 x 24.0 x 2.0" / 30.5 x 61.0 x 5.1 cm | | Fixture Weight | 9 lb / 4.1 kg | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 14.8 VDC | | Power Source | AC Adapter, External Battery |
